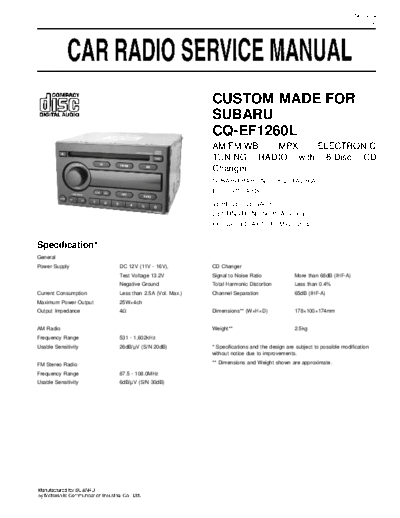

Image preview - the first page of the document
>> Download CQ-EF1260 documenatation <<Text preview - extract from the document ORDER No. 6074
I0
CUSTOM MADE FOR
SUBARU
CQ-EF1260L
AM/FM/WB MPX ELECTRONIC
TUNING RADIO with 6-Disc CD
Changer
SUBARU PART No. : 86201AE36A
ID CORD : P128
VEHICLE : LEGACY
DESTINATION : North America
PRODUCED AFTER : May., 2002
Specification*
General
Power Supply DC 12V (11V - 16V), CD Changer
Test Voltage 13.2V Signal to Noise Ratio More than 68dB (IHF-A)
Negative Ground Total Harmonic Distortion Less than 0.4%
Current Consumption Less than 2.5A (Vol. Max.) Channel Separation 65dB (IHF-A)
Maximum Power Output 25W
