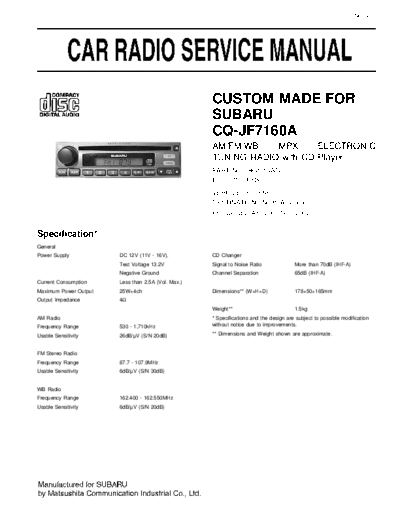

Image preview - the first page of the document
CQ-JF7160


>> Download CQ-JF7160 documenatation <<

Text preview - extract from the document
                                                                                                        ORDER No. 6071




                                                    CUSTOM MADE FOR
                                                    SUBARU
                                                    CQ-JF7160A
                                                    AM/FM/WB    MPX      ELECTRONIC
                                                    TUNING RADIO with CD Player
                                                    PART No. : 86201SA020
                                                    ID CORD : P126
                                                    VEHICLE : Forester
                                                    DESTINATION : North America
                                                    PRODUCED AFTER : Jan., 2002


Specification*
General
Power Supply           DC 12V (11V - 16V),          CD Changer
                       Test Voltage 13.2V           Signal to Noise Ratio              More than 70dB (IHF-A)
                       Negative Ground              Channel Separation                 65dB (IHF-A)
Current Consumption    Less than 2.5A (Vol. Max.)
Maximum Power Output   25W
