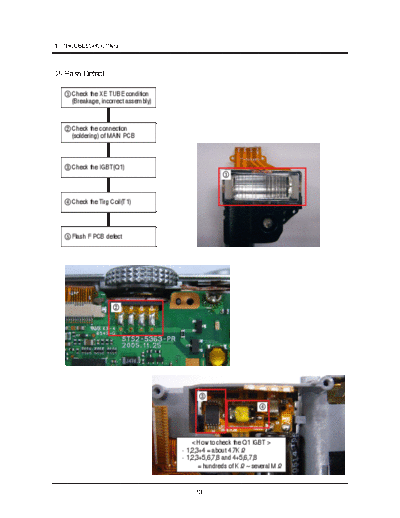

Image preview - the first page of the document



>> Download digimax_s600_3_194 documenatation <<

Text preview - extract from the document

. TROUBLESHOOTING



2) Flash Defect.

    Check the XE TUBE condition
    (Breakage, incorrect assembly)



    Check the connection
    (soldering) of MAIN PCB



    Check the IGBT(Q1)




    Check the Tirg Coil(T1)




    Flash F PCB defect















                                         < How to check the Q1 IGBT >
                                     - 1,2,3+4 = about 4.7K
                                     - 1,2,3+5,6,7,8 and 4+5,6,7,8
                                            = hundreds of K ~ several M



                                         100
                                                                 . TROUBLESHOOTING



3) Flashing Defect.

   Check the connetion
   (soldering) of MAIN PCB



   Check the Trans (T
