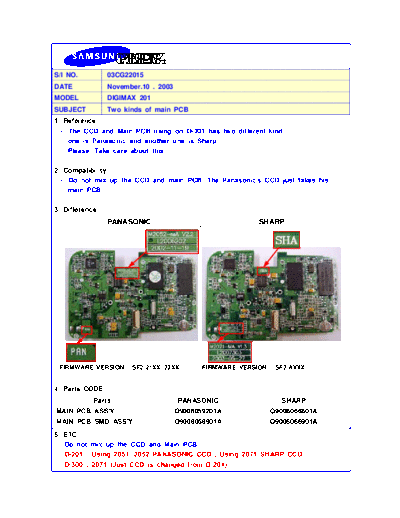

Image preview - the first page of the document
SAMSUNG_DIGIMAX_201


>> Download SAMSUNG_DIGIMAX_201 documenatation <<

Text preview - extract from the document
S/I NO.          03CG22015
DATE             November.10 . 2003
MODEL            DIGIMAX 201
SUBJECT          Two kinds of main PCB
1. Reference :
  -. The CCD and Main PCB using on D-201 has two different kind,
     one is Panasonic and another one is Sharp.
     Please, Take care about this.

2. Compatibility
  -. Do not mix up the CCD and main PCB. The Panasonic's CCD just takes his
     main PCB.

3. Difference
                 PANASONIC                                 SHARP




 FIRMWARE VERSION : SF2-21XX~22XX            FIRMWARE VERSION : SF2-AXXX


4. Parts CODE.
            Parts                     PANASONIC                  SHARP
MAIN PCB ASS'Y                        Q9008059201A            Q9008066801A
MAIN PCB SMD ASS'Y                    Q9008058901A            Q9008066901A
5. ETC
   Do not mix up the CCD and Main PCB.
   D-201 : Using 2051, 2052 PANASONIC CCD , Using 2071 SHARP CCD
   D-300 : 2071 (Just CCD is changed from D-201)
