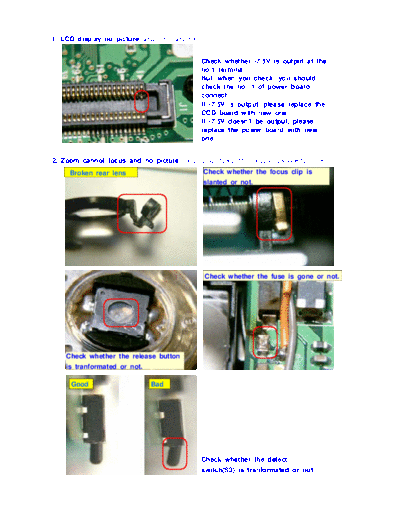

1. LCD display no picture (#12208135, #12310045)
Check whether -7.5V is output at the
no.1 terminal.
But, when you check, you should
check the no. 1 of power board
connect.
If -7.5V is output, please replace the
CCD board with new one.
If -7.5V doesn't be output, please
replace the power board with new
one.
2. Zoom cannot focus and no picture (#12302192, 12302177, 12302204,12309998,12310026)
Broken rear lens Check whether the focus clip is
slanted or not.
Check whether the fuse is gone or not.
Check whether the release button
is tranformated or not.
Good Bad
Check whether the detect
switch(S3) is tranformated or not
