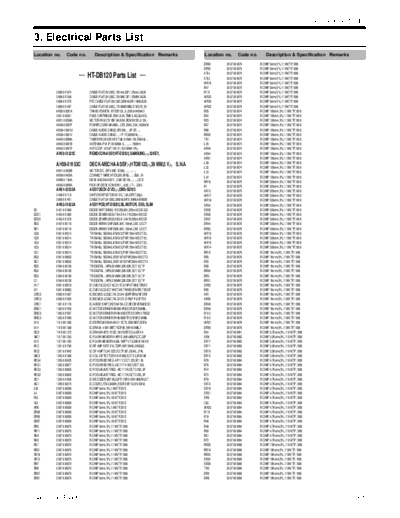

Image preview - the first page of the document
>> Download Electrical Part List documenatation <<
Text preview - extract from the document
*S.N.A. : Service Not Available
3. Electrical Parts List
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
DR60 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
DR52 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
ATL4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
***** HT-DB120 Parts List ***** ATL3 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR18 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
R47 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
3809-001074 CABLE-FLAT;30V,80C,150mm,32P,1.25mm,UL28 R112 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
3809-001349 CABLE-FLAT;30V,80C,120MM,13P,1.25MM,UL28 MR32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
3809-001375 FPC CABLE-FLAT;30V,80C,80MM,24P,1MM,UL28 MR30 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
3809-001487 CABLE-FLAT;30V,80C,170MM(SHIELD NO3P),20 MR22 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
AH26-00261A TRANS POWER;-,HT-DB120,-,0,230V,##45/##2 R25 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
3601-000301 FUSE-CARTRIDGE;250V,6.3A,TIME-LAG,GLASS, R24 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH31-00039A MOTOR FAN;C151BK10A2430,RDM5015S,0.12A,- R23 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH39-00257F POWER CORD;MAX980,-,CP2,250V,2.5A,1830MM R27 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH39-40001U CABLE-AUDIO CABLE,2P2000;-,-,2P-2P,-,-,- R88 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH39-40001V CABLE-AUDIO CABLE;-,-,1P-1P,3000MM,-,-,- RR20 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH40-00058A TUNER-PACK ASSY;KST-ML014MA1-50,FM/AM,-, TR1 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH42-00001B ANTENNA-FM 1P;X000089-0,-,-,-,-,-,1500## L35 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH42-20001P ANT LOOP;-,KS971120-01,18.5UH##10%,- AR40 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH59-01225C REMOCON-ASSY;HT-DB120,SAMSUNG,-,-,52KEY, AR44 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AR51 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
L29 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH59-01153C DECK-MECHA ASSY;-,HTDB120,-,39 MM,5 V,-, S.N.A L32 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH31-00030B MOTOR DC;-,RF-300E-1D390,-,-,-,-,-,-,-, L33 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH39-00425A CONNECT WIRE;HT-DL200,RING,-,-,-,BLK,-,R L34 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
AH59-01184A DECK-MECHA ASSY;-,CMS-SD100,-,-,-,-,CD D RR18 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
AH30-00055A PICK UP-DECK;SOH-DH11,-,0.60,1.71,-,CMS- R1 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
AH91-00005A ASSY DECK-DVD;-,-,CMS-SD100 AR13 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
3409-001119 SWITCH-DETECTOR;5V DC,1.0A,DPST,30gf,- MR17 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
3809-001451 CABLE-FLAT;30V,80C,60MM,24P,0.5MM,AWM206 MR19 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
AH92-01822A ASSY PCB;HT-DB300,BL MOTOR, ESS, SLIM SR34 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
D2 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323 SR35 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
DZD1 0403-001062 DIODE-ZENER;UDZ4.7B,4.55-4.75V,200mW,SOD SR36 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
DZD2 0403-001376 DIODE-ZENER;UDZ3.6B,3.6-3.845V,200mW,SOD SR37 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
RD2 0407-000116 DIODE-ARRAY;DAP202K,80V,100mA,CK2-3,SOT- DR44 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
RD1 0407-000116 DIODE-ARRAY;DAP202K,80V,100mA,CK2-3,SOT- DR53 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VQ6 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23, MR12 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VQ5 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23, MR16 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VQ4 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23, MR15 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VQ3 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23, MR14 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608
VQ1 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23, RR12 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RQ2 0501-000632 TR-SMALL SIGNAL;2SB1197K,PNP,200mW,SOT-2 R55 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RQ1 0501-000632 TR-SMALL SIGNAL;2SB1197K,PNP,200mW,SOT-2 R35 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RQ5 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP R28 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RQ4 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP RR24 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
RQ3 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP RR3 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
Q1 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP RR31 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
U17 0801-002518 IC-CMOS LOGIC;74LCX157,2-INPUT MULTIPLEX SR22 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
U11 0801-002683 IC-CMOS LOGIC;74HCT245,TRANSCEIVER,TSSOP R26 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
OPIC2 0802-001007 IC-BICMOS LOGIC;74LCX244,BUFFER/LINE DRI AR1 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
OPIC3 0802-001025 IC-BICMOS LOGIC;74LCX374,D FILP-FLOP,TSS AR52 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
OPIC1 1001-001170 IC-AUDIO SWITCH;CS8415A-CZ,RECEIVER&DECO DR46 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DRIC1 1003-001450 IC-MOTOR DRIVER;BA5954FM,SOP,28P,300MIL, DR49 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DRIC2 1003-001507 IC-MOTOR DRIVER;FAN8423D3TF,SSOPH-375SG2 R103 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DRIC3 1003-001508 IC-MOTOR DRIVER;FAN8082DTF,SOP,8P,200MIL R102 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
U16 1103-001292 IC-EEPROM;S524A40X21-SCT0,256X8BIT,SOP,8 MR21 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
U14 1105-001369 IC-DRAM;-,4MX16BIT,TSOP(II),54P,400MIL,7 DR50 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
SIC2 1105-001372 IC-DRAM;K4E151512D,1MX16BIT,SOJ,42P,40 R34 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608
MIC1 1107-001203 IC-FLASH MEMORY;49F512,64Kx8Bit,PLCC,32P SR9 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
U15 1107-001452 IC-FLASH MEMORY;A29L160FTV-70,2MX8/1MX16 SR17 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
RIC1 1201-001790 IC-RF AMP;SP3721A,TQFP,64P,10MIL,SINGLE, SR11 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
RIC2 1201-001842 IC-OP AMP;TL3472CD,SO,TP,8P,-,DUAL,-,PAL SR10 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
MIC3 1203-001369 IC-VOL. DETECTOR;61AN1902,SOT-23,3P,63MI DR13 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
REG4 1203-002425 IC-POSI.FIXED REG.;AP1117,SOT-223,3P,138 R78 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
REG1 1203-002877 IC-POSI.FIXED REG.;AIC1117A-50CY,SOT-223 R76 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
REG3 1203-002935 IC-POSI.ADJUST REG.;AIC1117ACE,TO-252,3P R74 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
REG2 1203-002935 IC-POSI.ADJUST REG.;AIC1117ACE,TO-252,3P R73 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
SIC1 1204-001936 IC-DECODER;M5705,LQFP,176P,24X24MM,PALST R79 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
AIC1 1205-002215 IC-CODEC;STAC9460S,SSOP,28P,10.2X5.3MM, SR12 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
L38 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 SR18 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
L4 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 SR31 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
PL5 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 SR5 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
VL2 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 C93 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
AR8 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 MR23 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
DR38 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
DR56 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 R19 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
DR57 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 R48 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
RR2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 R49 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
RR11 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 R50 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R99 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 R61 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R96 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 R72 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
R87 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 RR26 2007-000088 R-CHIP;7.5Kohm,5%,1/10W,TP,1608
RR21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 RR19 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
SR19 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 RR23 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
SR13 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 SR24 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RR7 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 SR28 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RR6 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 TR2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
RR27 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 DR2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR61 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 DR6 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
Samsung Electronics 3-1
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
R43 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 AR10 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
RR15 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 AR11 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
RR16 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 AR14 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
DR11 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 RR30 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608
SR7 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 RR4 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608
MR26 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 TN5 2011-000475 R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,32
SR33 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 TN3 2011-000475 R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,32
DR59 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 SN1 2011-000475 R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,32
DR7 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 TN4 2011-000585 R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP
SR14 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 RN5 2011-000651 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,32
SR27 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 RN6 2011-000651 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,32
DR17 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 RN7 2011-000651 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,32
DR16 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 RN4 2011-000651 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,32
DR12 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 RN1 2011-000651 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,32
DR1 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 RN2 2011-000651 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,32
RR25 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 RN3 2011-000651 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,32
R104 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 TN13 2011-000816 R-NETWORK;100OHM,5%,1/16W,L,CHIP,8P,TP
DR54 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 TN12 2011-000816 R-NETWORK;100OHM,5%,1/16W,L,CHIP,8P,TP
AR36 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 TN11 2011-000816 R-NETWORK;100OHM,5%,1/16W,L,CHIP,8P,TP
AR32 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 TN10 2011-000816 R-NETWORK;100OHM,5%,1/16W,L,CHIP,8P,TP
AR28 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 TN7 2011-001011 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP
AR24 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 TN8 2011-001011 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP
AR20 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 TN9 2011-001011 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP
AR16 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 TN6 2011-001011 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP
RR28 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 TN2 2011-001011 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP
R94 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 TN1 2011-001011 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP
R93 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 RC21 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
R92 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 DC3 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
R89 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 DC2 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
R86 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 TC1 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
R95 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 C57 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
SR15 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 TC7 2203-000280 C-CERAMIC,CHIP;0.01NF,0.5PF,50V,C0G,TP,1
RR9 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 TC6 2203-000280 C-CERAMIC,CHIP;0.01NF,0.5PF,50V,C0G,TP,1
RR8 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 TC5 2203-000280 C-CERAMIC,CHIP;0.01NF,0.5PF,50V,C0G,TP,1
RR5 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 TC4 2203-000280 C-CERAMIC,CHIP;0.01NF,0.5PF,50V,C0G,TP,1
R98 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 TC3 2203-000280 C-CERAMIC,CHIP;0.01NF,0.5PF,50V,C0G,TP,1
R85 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 TC2 2203-000280 C-CERAMIC,CHIP;0.01NF,0.5PF,50V,C0G,TP,1
R106 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 C86 2203-000384 C-CERAMIC,CHIP;0.015NF,5%,50V,C0G,TP,160
R105 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 SC20 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
DR48 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 SC19 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
DR10 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 SC11 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
AR12 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 RC26 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
R107 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 AC31 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
R67 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 AC35 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
R57 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 RC10 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
R45 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 RC22 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-
R44 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 C116 2203-000646 C-CERAMIC,CHIP;0.024NF,5%,50V,C0G,TP,160
R22 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 RC46 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
VR24 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 C55 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
VR21 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 C54 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
VR15 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 C53 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
VR1 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 C115 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
R2 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608 C51 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
R58 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 C52 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
SR1 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 C59 2203-000888 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
RR14 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 DC4 2203-000888 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608
RR13 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 SC14 2203-000972 C-CERAMIC,CHIP;47nF,10%,16V,X7R,TP,1608
LR2 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 SC1 2203-000972 C-CERAMIC,CHIP;47nF,10%,16V,X7R,TP,1608
LR1 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 RC17 2203-000972 C-CERAMIC,CHIP;47nF,10%,16V,X7R,TP,1608
DR15 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 C101 2203-000998 C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
SR2 2007-000131 R-CHIP;91Kohm,5%,1/10W,TP,1608 SC28 2203-000998 C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
SR3 2007-000131 R-CHIP;91Kohm,5%,1/10W,TP,1608 SC6 2203-000998 C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160
DR8 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 SC2 2203-001052 C-CERAMIC,CHIP;0.56nF,10%,50V,X7R,TP,160
DR5 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 RC47 2203-001071 C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
RR10 2007-000308 R-CHIP;10ohm,5%,1/8W,TP,2012 RC48 2203-001071 C-CERAMIC,CHIP;0.056NF,5%,50V,C0G,TP,160
RR1 2007-000308 R-CHIP;10ohm,5%,1/8W,TP,2012 SC12 2203-001103 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,1608
PR1 2007-000308 R-CHIP;10ohm,5%,1/8W,TP,2012 RC9 2203-001126 C-CERAMIC,CHIP;0.68nF,10%,50V,X7R,TP,160
AR3 2007-000308 R-CHIP;10ohm,5%,1/8W,TP,2012 RC19 2203-001126 C-CERAMIC,CHIP;0.68nF,10%,50V,X7R,TP,160
SR26 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 RC18 2203-001126 C-CERAMIC,CHIP;0.68nF,10%,50V,X7R,TP,160
SR23 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 RC15 2203-001126 C-CERAMIC,CHIP;0.68nF,10%,50V,X7R,TP,160
VR25 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 RC13 2203-001126 C-CERAMIC,CHIP;0.68nF,10%,50V,X7R,TP,160
VR22 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 SC35 2203-001573 C-CERAMIC,CHIP;0.012nF,5%,50V,NP0,TP,160
VR20 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 SC29 2203-001573 C-CERAMIC,CHIP;0.012nF,5%,50V,NP0,TP,160
VR2 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 RC39 2203-001636 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,160
VR18 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 RC16 2203-001636 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,160
DR35 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012 RC14 2203-001636 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,160
DR37 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012 RC12 2203-001636 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,160
DR40 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012 SC13 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
DR34 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012 RC42 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
DR31 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012 SC16 2203-001656 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,1608
DR30 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012 SC15 2203-001656 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,1608
R91 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 RC28 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
R59 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 RC23 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
AR4 2007-000694 R-CHIP;3.3ohm,5%,1/8W,TP,2012 RC2 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
R60 2007-000799 R-CHIP;360ohm,5%,1/10W,TP,1608 RC11 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
JR1 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012 RC1 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
SR29 2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,1608 PC9 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
SR21 2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,1608 RC38 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
SR8 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608 RC36 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
R14 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 RC35 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
R90 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 RC30 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
AR9 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 RC3 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
AR15 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 RC29 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
3-2 Samsung Electronics
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
PC8 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 C90 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
LC3 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 C88 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
LC2 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 C73 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
LC1 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 C70 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
DC8 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PC11 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
DC6 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 RC34 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
DC5 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 RC37 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
PC4 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 RC45 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
PC14 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC38 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
PC12 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC4 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
PC1 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC6 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
MC8 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 C105 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
MC7 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 C69 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
RC4 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 C66 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
SC39 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 C40 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
SC38 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 C38 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
SC37 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 VC1 2402-000107 C-AL,SMD;100uF,20%,6.3V,GP,TP,6.6x6.6x5
SC32 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 RC7 2402-000107 C-AL,SMD;100uF,20%,6.3V,GP,TP,6.6x6.6x5
SC31 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 RC20 2402-000107 C-AL,SMD;100uF,20%,6.3V,GP,TP,6.6x6.6x5
SC27 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PC13 2402-000107 C-AL,SMD;100uF,20%,6.3V,GP,TP,6.6x6.6x5
VC2 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PC10 2402-000107 C-AL,SMD;100uF,20%,6.3V,GP,TP,6.6x6.6x5
SC9 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 DC14 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4,
SC8 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 DC12 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4,
SC5 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 DC10 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4,
SC40 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC36 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
SC4 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC39 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
SC26 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC40 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
SC17 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC8 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
RC8 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 C11 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
RC44 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 C74 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
RC43 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC10 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
RC41 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC14 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
RC40 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC17 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
SC25 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC28 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
SC24 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC24 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
SC23 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AC21 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4.3x5.4
SC22 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 DC9 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
SC21 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PC2 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.
SC18 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 SC3 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6
C58 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PC3 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6
C56 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 VL1 2703-000125 INDUCTOR-SMD;10uH,10%,1.25x2x1.25mm
C39 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 DXT1 2801-004180 CRYSTAL-SMD;33.8688MHZ,50PPM,28-AAN,12PF
C119 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 Y3 2801-004284 CRYSTAL-SMD;27MHZ,10PPM,28-AAN,20PF,30OH
C113 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL7 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
C111 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL9 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
C65 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 L28 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
C64 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 L31 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
C63 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 R83 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
C62 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 RL1 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
C61 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 RL2 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
C60 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL6 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
C110 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL16 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
C102 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL17 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
C100 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL19 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
AC9 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL2 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
AC7 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL5 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
AC5 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL4 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
AC3 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL20 3301-001069 BEAD-SMD;AB,1.6x0.8x0.8mm,-,-
C109 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PL17 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
C108 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PL18 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
C107 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PL19 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
C106 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PL3 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
C104 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PL7 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
C103 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PL8 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
C67 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 VL3 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
DC1 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PL13 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
C99 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL18 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
C98 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AL21 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
C96 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 ASL1 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
C95 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 L40 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
C89 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PL10 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
DC19 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PL1 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
DC18 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 L41 3301-001495 BEAD-SMD;AB,120OHM,2.0X1.2X0.9MM,2500MA
DC17 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AJS1 3708-001615 CONNECTOR-FPC/FFC/PIC;24P,1MM,SMD-S,SN
DC16 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AJ1 3708-001805 CONNECTOR-FPC/FFC/PIC;20P,1MM,SMD-A,SN
DC15 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 CN1 3708-001807 CONNECTOR-FPC/FFC/PIC;11P,1MM,SMD-A,SN
DC13 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 RCN2 3708-001808 CONNECTOR-FPC/FFC/PIC;24P,0.5MM,SMD-A,SN
C87 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 CN3 3711-002533 CONNECTOR-HEADER;BOX,5P,1R,2MM,ANGLE,SN,
C77 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 CN4 3711-005306 CONNECTOR-HEADER;BOX,4P,1R,2MM,SMD-S,TIN
C76 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 PCN1 3711-005307 CONNECTOR-HEADER;BOX,8P,1R,2MM,SMD-S,TIN
C75 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 U13 AH09-00089A IC MICOM;ESS6028F,HT-EVE1,208PIN,3,3V,2
C72 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608
C71 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AH59-01250F SPEAKER SYSTEM;PSSA120E,-,-,-,-,-,-,EDC,
C68 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AH81-00924G A/S PART-FRONT PANEL;PS3510,-,-,FRONT PA
C85 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AH81-00924J A/S PART-NET;PS3510,-,-,NET,HIPS , PSSA3
C84 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AH81-01069B A/S PART-FRONT PANEL;PSSA300E,HIPS,-,FRO
C83 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AH81-01069K A/S PART-SPEAKER WIRE;PSDB300E,-,-,SPEAK
C82 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AH81-01069K A/S PART-SPEAKER WIRE;PSDB300E,-,-,SPEAK
C81 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AH81-01322A A/S PART-SPK SYSTEM SATELLITE;PS DB120E,
C78 2203-005005 C-CERAMIC,CHIP;100nF,10%,16V,X7R,TP,1608 AH81-01322B A/S PART-BACK CABINET;PS DB120E,HIPS,-,B
MC6 2203-005065 C-CERAMIC,CHIP;1000nF,+80-20%,10V,Y5V,TP AH81-01322C A/S PART-SATELLITE WOOFER;PS DB120E,-,-,
C48 2203-005065 C-CERAMIC,CHIP;1000nF,+80-20%,10V,Y5V,TP AH81-01322J A/S PART-EPS CUSHION;PS DB120E,EPS,-,EPS
C43 2203-005065 C-CERAMIC,CHIP;1000nF,+80-20%,10V,Y5V,TP AH81-01322L A/S PART-EPS CUSHION;PS DB120E,EPS,-,EPS
Samsung Electronics 3-3
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
AH81-01323A A/S PART-SPK SYSTEM SATELLITE;PS DB120H, SPK2 3716-001205 TERMINAL-BLOCK;SOLDER,4P,6.3MM,60V,7A
AH81-01323B A/S PART-BACK CABINET;PS DB120H,HIPS,-,B AUX1 3722-002042 JACK-PIN;2P/2C,NI,WHT/RED,ANGLE
AH81-01323C A/S PART-EPS CUSHION;PS DB120H,EPS,-,EPS AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ
AH81-01323D A/S PART-EPS CUSHION;PS DB120H,-,-,EPS C PT1 AH26-00143C TRANS POWER;-,HT-DL100,-,6,276V,24V/9V,0
AH81-01323E A/S PART-UNIT WOOFER;PS DB120H,-,-,UNIT AL2 AH27-10001F COIL-CHOKE;27uH,K,Q30,-,-,DR(6.5*7.5),-,
AH81-01323E A/S PART-UNIT WOOFER;PS DB120H,-,-,UNIT AL1 AH27-10001F COIL-CHOKE;27uH,K,Q30,-,-,DR(6.5*7.5),-,
AH59-01251F SPEAKER SYSTEM;PSWA120E,-,-,-,-,-,-,EDC, AL3W AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-
AL3RR AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-
AH92-01897C ASSY PCB;HT-DB120(USA),MAIN MANU PCB AS S.N.A AL3RL AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-
AL3FR AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-
PBD2 0402-001077 DIODE-BRIDGE;KBP202G,200V,2A,SIP-4
AL3FL AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-
PBD1 0402-001258 DIODE-BRIDGE;GBU606,600V,6A,SIP-4,BK
AL3C AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-
ABD4 0402-001258 DIODE-BRIDGE;GBU606,600V,6A,SIP-4,BK
UCW11 AH39-00477A LEAD CONNECTOR-ASSY;HT-DB300,-,-,3P,-,-,
ABD2 0402-001258 DIODE-BRIDGE;GBU606,600V,6A,SIP-4,BK
UCW1 AH39-00478A HARNESS;HT-DB300,-,-,6P,-,-,1007#26,35
ABD1 0402-001408 DIODE-BRIDGE;KBP005G,50V,1.5A,SIP-4,BK
UCW3 AH39-00479A WIRE HARNESS;HT-DB300,-,-,3P,-,-,26AWG,5
Q36FL 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
PW3 AH39-00525A LEAD CONNECTOR;-,-,-,8P,-,-,-,PH-08Y,SAN
Q36C 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
UEYE AH59-60001J MODULE REMOCON;GP1U271R,38KHZ,-,MESH,-,
Q31RR 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
AH61-00779A HOLDER-IC;HT-DL100,PBT,-,-,-,GRAY,-
Q31RL 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
AH61-00855A HOLDER-IC;HT-DL200,PBT,-,-,-,GRAY,-
Q36FR 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
PD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
Q36RL 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
PD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
Q36RR 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
D29 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
Q36W 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
AD8 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
Q29C 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
D35RR 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q29FL 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
D36W 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q29FR 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
D37W 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q29RL 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
D38C 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q31FR 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
D38FL 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q31FL 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
D35FR 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q31C 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
D33 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q29RR 0502-001048 TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160
D33FR 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q34C 0502-001210 TR-POWER;KSB1151,PNP,1300MW,TO-126S/L,S
D34 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q34FL 0502-001210 TR-POWER;KSB1151,PNP,1300MW,TO-126S/L,S
D35C 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q34FR 0502-001210 TR-POWER;KSB1151,PNP,1300MW,TO-126S/L,S
D35FL 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q34RL 0502-001210 TR-POWER;KSB1151,PNP,1300MW,TO-126S/L,S
D39RR 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q34RR 0502-001210 TR-POWER;KSB1151,PNP,1300MW,TO-126S/L,S
D39W 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q32C 0502-001210 TR-POWER;KSB1151,PNP,1300MW,TO-126S/L,S
UD1 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q32FL 0502-001210 TR-POWER;KSB1151,PNP,1300MW,TO-126S/L,S
UD100 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q32FR 0502-001210 TR-POWER;KSB1151,PNP,1300MW,TO-126S/L,S
UD101 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q32RL 0502-001210 TR-POWER;KSB1151,PNP,1300MW,TO-126S/L,S
D39RL 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q32RR 0502-001210 TR-POWER;KSB1151,PNP,1300MW,TO-126S/L,S
D38RL 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q31W 0503-001014 TR-DARLINGTON;2SD2495-P,NPN,30W,TO-220F,
D38RR 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q30W 0503-001014 TR-DARLINGTON;2SD2495-P,NPN,30W,TO-220F,
D39C 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
PQ5 0503-001014 TR-DARLINGTON;2SD2495-P,NPN,30W,TO-220F,
D39FL 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q33W 0503-001016 TR-DARLINGTON;2SB1626-P,PNP,30W,TO-220F,
D39FR 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
Q32W 0503-001016 TR-DARLINGTON;2SB1626-P,PNP,30W,TO-220F,
D18FR 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
ULD2 0601-001432 LED;ROUND,BLUE,3mm,455nm
D18RL 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
ULD1 0601-001432 LED;ROUND,BLUE,3mm,455nm
D18RR 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
IC4 1203-000110 IC-NEGA.FIXED REG.;7912,TO-220,3P,-,PLAS
D18W 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
PIC4 1203-000242 IC-POSI.FIXED REG.;7812,TO-220,3P,-,PLAS
D19C 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
PIC3 1203-000242 IC-POSI.FIXED REG.;7812,TO-220,3P,-,PLAS
D18FL 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
PQ6 1203-000294 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS
D12 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
PQ2 1203-001589 IC-POSI.FIXED REG.;278R05,TO-220F,4P,-,P
D13 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
PQ1 1203-002560 IC-POSI.FIXED REG.;NJM7805,TO-220F,3P,-,
D14 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
AIC1 1203-002560 IC-POSI.FIXED REG.;NJM7805,TO-220F,3P,-,
D15 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
R99W 2003-000471 R-METAL OXIDE(S);10OHM,5%,2W,AA,TP
D18C 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
R100 2003-000473 R-METAL OXIDE(S);10OHM,5%,3W,AA,TP,6X16M
D21 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
R39 2003-000578 R-METAL OXIDE(S);220ohm,5%,2W,AA,TP,4x12
D28 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
R44 2003-000616 R-METAL OXIDE(S);27ohm,5%,2W,AA,TP,4x12m
D30 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
R012 2003-000710 R-METAL OXIDE(S);47ohm,5%,2W,AA,TP,4x12m
D31 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
R45 2003-000777 R-METAL OXIDE(S);68ohm,5%,2W,AA,TP,4x12m
D32 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
R98W 2009-000018 R-METAL PLATE;0.22ohm,10%,5W,CL,TP,5x14x
D20 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
R97W 2009-000018 R-METAL PLATE;0.22ohm,10%,5W,CL,TP,5x14x
D19FL 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
AC4 2201-002128 C-CERAMIC,DISC;4.7NF,20%,400V,Y5U,BK,15X
D19FR 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
AC3 2201-002128 C-CERAMIC,DISC;4.7NF,20%,400V,Y5U,BK,15X
D19RL 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
AC2 2201-002128 C-CERAMIC,DISC;4.7NF,20%,400V,Y5U,BK,15X
D19RR 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
AC1 2201-002128 C-CERAMIC,DISC;4.7NF,20%,400V,Y5U,BK,15X
D19W 0401-001090 DIODE-SWITCHING;1SS355,80V,225mA,SOD-323
PC5 2401-001052 C-AL;3300uF,20%,25V,GP,-,16x31.5,7.
AD6 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
C35 2401-001361 C-AL;470uF,20%,16V,BP,TP,13x20mm,5m
D22 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
AC9 2401-001413 C-AL;470uF,20%,35V,GP,-,10x20,5mm
D23 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
AC21 2401-001879 C-AL;10000uF,20%,16V,GP,TP,18x35.5m
D25 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
AC18 2401-001879 C-AL;10000uF,20%,16V,GP,TP,18x35.5m
PD1 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
AC22 2401-001959 C-AL;4700uF,20%,25V,GP,TP,18x35.5,7
AD4 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
AC23 2401-001959 C-AL;4700uF,20%,25V,GP,TP,18x35.5,7
AD1 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
AC20 2401-003116 C-AL;4700uF,20%,35V,-,BK,18X35.5,7.
AD11 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
AC19 2401-003116 C-AL;4700uF,20%,35V,-,BK,18X35.5,7.
AD2 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
PC50 2401-003681 C-AL;6800UF,##20%,16V,SHL,BK,16X31.
AD3 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
E-VR 3406-001047 SWITCH-ROTARY;5V DC,0.5mA,-,12mm
AD4 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
RE1 3501-001008 RELAY-POWER;12VDC,530MW,10000MA,1FORMC,1
D41C 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
RE5 3501-001197 RELAY-MINIATURE;12VDC,0.54W,44.4MA,1FORM
D41FL 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
RE6 3501-001197 RELAY-MINIATURE;12VDC,0.54W,44.4MA,1FORM
D41FR 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
RE7 3501-001197 RELAY-MINIATURE;12VDC,0.54W,44.4MA,1FORM
D41RL 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
RE2 3501-001214 RELAY-POWER;12V,0.45W,-,1FORMA,10MS,4MS
D41RR 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
AFS2 3601-000216 FUSE-CARTRIDGE;250V,2.5A,TIME-LAG,GLASS,
D40C 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
AFS3 3601-000319 FUSE;-,80mA,-,-,15.5mm
D40FL 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
ACW1 3711-000190 CONNECTOR-HEADER;1WALL,2P,1R,7.92MM,STRA
D40FR 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
ACW5 3711-000963 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
D40RL 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
ACW4 3711-000963 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH
D40RR 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
ACW3 3711-001098 CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH
D41W 0402-001484 DIODE-RECTIFIER;S2B,100V,1.5A,DO-214AA,T
CW7 3711-004110 CONNECTOR-HEADER;BOX,12P,1R,2MM,STRAIGHT
D40W 0402-001484 DIODE-RECTIFIER;S2B,100V,1.5A,DO-214AA,T
CW5 3711-004110 CONNECTOR-HEADER;BOX,12P,1R,2MM,STRAIGHT
AZD2 0403-000352 DIODE-ZENER;UZ4.7BM,4.7V,4.4-5.0V,500mW,
ACW2 3711-004848 CONNECTOR-HEADER;BOX,3P,1R,7.92MM,STRAIG
AZD1 0403-000354 DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D
CW6 3711-005184 CONNECTOR-HEADER;3WALL,6P,1R,2MM,STRAIGH
D100 0403-000379 DIODE-ZENER;UZP12B,12V,11.4-12.6V,1W,DO-
SPK1 3716-001179 TERMINAL-BLOCK;SOLDER,4P,6.3MM,60V,7A
3-4 Samsung Electronics
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
AZD3 0403-000379 DIODE-ZENER;UZP12B,12V,11.4-12.6V,1W,DO- Q17FL 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
PZD1 0403-000564 DIODE-ZENER;TZP16A,16V,15.3-17.1V,1W,DO- Q17C 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23
PZD2 0403-000564 DIODE-ZENER;TZP16A,16V,15.3-17.1V,1W,DO- Q20W 0501-002188 TR-SMALL SIGNAL;KSA992,PNP,500MW,TO-92,T
PZ1 0403-000570 DIODE-ZENER;UZP18B,18V,16.9-19.1V,1W,DO- Q21W 0501-002332 TR-SMALL SIGNAL;KSA910,PNP,800mW,TO-92L,
ZD7W 0403-001062 DIODE-ZENER;UDZ4.7B,4.55-4.75V,200mW,SOD Q1 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TO-
ZD8W 0403-001062 DIODE-ZENER;UDZ4.7B,4.55-4.75V,200mW,SOD Q50R 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
ZD6FR 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP Q50F 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
ZD6FL 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP Q50C 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT
ZD6C 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP Q12 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TO-
ZD6RL 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP ULD6 0601-001238 LED;ROUND,RED,3.1mm,697nm
ZD6RR 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP IC7 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
ZD6W 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP IC5 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
ZD5C 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP FIC6 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
ZD5FL 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP AIC2 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
ZD5FR 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP R99RR 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m
ZD5W 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP R99RL 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m
ZD5RR 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP R99FR 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m
ZD5RL 0403-001079 DIODE-ZENER;UDZ3.9B,7%,200MW,SOD-323,TP R99FL 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m
ZD8C 0403-001376 DIODE-ZENER;UDZ3.6B,3.6-3.845V,200mW,SOD R99C 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m
ZD8FL 0403-001376 DIODE-ZENER;UDZ3.6B,3.6-3.845V,200mW,SOD R41 2001-000052 R-CARBON(S);3.3Kohm,5%,1/2W,AA,TP,2.4x6.
ZD8FR 0403-001376 DIODE-ZENER;UDZ3.6B,3.6-3.845V,200mW,SOD AR4 2001-000052 R-CARBON(S);3.3Kohm,5%,1/2W,AA,TP,2.4x6.
ZD8RL 0403-001376 DIODE-ZENER;UDZ3.6B,3.6-3.845V,200mW,SOD R13 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
ZD8RR 0403-001376 DIODE-ZENER;UDZ3.6B,3.6-3.845V,200mW,SOD R10 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
ZD7C 0403-001376 DIODE-ZENER;UDZ3.6B,3.6-3.845V,200mW,SOD R65 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
ZD7FL 0403-001376 DIODE-ZENER;UDZ3.6B,3.6-3.845V,200mW,SOD R76FL 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
ZD7FR 0403-001376 DIODE-ZENER;UDZ3.6B,3.6-3.845V,200mW,SOD J2 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
ZD7RL 0403-001376 DIODE-ZENER;UDZ3.6B,3.6-3.845V,200mW,SOD AR3 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
ZD7RR 0403-001376 DIODE-ZENER;UDZ3.6B,3.6-3.845V,200mW,SOD R16 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
PSD1 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP R30C 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q25C 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R30F 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q23RR 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R85W 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q23RL 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R90W 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q23FR 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R14FL 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q25FL 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R14FR 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q25FR 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R14RL 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q25RL 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R14W 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q25RR 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R36RR 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
Q23FL 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R36C 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AQ2 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R33FR 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AQ3 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, J18 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
Q22C 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, AR9 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
Q22FL 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, AR15 2001-000702 R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3.2mm
Q23C 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R89W 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q22RR 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R86W 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
Q22RL 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, AR2 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
Q22FR 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, R72 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m
Q28FL 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92 AR7 2001-001045 R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.
Q28C 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92 R101 2001-001178 R-CARBON(S);680ohm,5%,1/2W,AA,TP,2.4x6.4
Q26RR 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92 PR010 2003-000468 R-METAL OXIDE(S);10OHM,5%,1W,AA,TP,3.3X9
Q26RL 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92 PR1 2003-000603 R-METAL OXIDE(S);270ohm,5%,1W,AA,TP,3.3x
Q28FR 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92 JW26 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
Q28RL 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92 JW27 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
Q28RR 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92 JW28 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
Q4 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92 JW25 2007-00002◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
