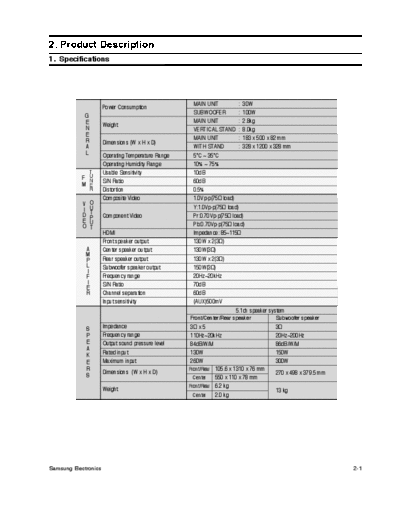

Image preview - the first page of the document



>> Download 04_Product Specifications documenatation <<

Text preview - extract from the document

2. Product Description
1. Specifications




                                                     MAIN UNIT          : 30W
                      Power Consumption
                                                     SUBWOOFER          : 100W
             G
             E                                       MAIN UNIT          : 2.8kg
                      Weight
             N                                       VERTICAL STAND : 8.0kg
             E
             R                                       MAIN UNIT          : 183 x 500 x 82 mm
                      Dimensions (W x H x D)
             A                                       WITH STAND         : 328 x 1200 x 328 mm
             L        Operating Temperature Range    5
