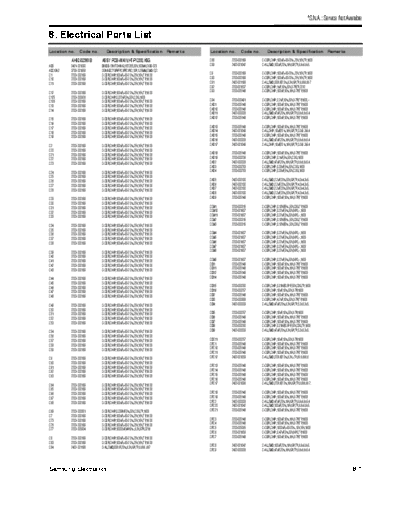

Image preview - the first page of the document
>> Download 10_Electrical Parts List documenatation <<
Text preview - extract from the document
*S.N.A. : Service Not Available
8. Electrical Parts List
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
AH92-02361B ASSY PCB-MAIN;HT-P1200,XSG C88 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
AD5 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323 C89 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.
ADCON2 3708-001958 CONNECTOR-FPC/FFC/PIC;13P,1.25MM,SMD-S,S
C1 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 C9 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C10 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 C90 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C11 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 C91 2402-001198 C-AL,SMD;330UF,20%,6.3V,GP,TP,6.6X6.6X7
C92 2203-001537 C-CER,CHIP;1nF,10%,50V,X7R,TP,2012
C12 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 C93 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C125 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608
C126 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 C94 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,-
C13 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C14 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CAD11 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C15 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C16 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C17 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C18 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD14 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C19 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CAD16 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
C2 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD17 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
C20 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C21 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD18 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C22 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD19 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608
C23 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD2 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CAD3 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C24 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD4 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608
C25 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C26 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD5 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
C27 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD6 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
C28 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD7 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
CAD8 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
C29 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CAD9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C30 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C31 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CCM1 2203-000315 C-CER,CHIP;0.12NF,5%,50V,C0G,TP,1608
C32 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CCM10 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
C33 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CCM11 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
CCM2 2203-000315 C-CER,CHIP;0.12NF,5%,50V,C0G,TP,1608
C34 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CCM3 2203-000315 C-CER,CHIP;0.12NF,5%,50V,C0G,TP,1608
C35 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C36 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CCM4 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
C37 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CCM5 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
C38 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CCM6 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
CCM7 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
C39 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CCM8 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
C40 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C41 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CCM9 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,-,1608
C42 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDI1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C43 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDI11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CDI12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C44 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDI14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C45 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C46 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDI15 2203-000280 C-CER,CHIP;0.01NF,0.5PF,50V,C0G,TP,1608
C47 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDI16 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608
C48 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDI2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CDI3 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
C49 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDI4 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C50 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C51 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDI5 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608
C52 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDI6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C53 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDI7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CDI8 2203-000280 C-CER,CHIP;0.01NF,0.5PF,50V,C0G,TP,1608
C54 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDI9 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
C56 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C57 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CDS11 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608
C58 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C59 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CFC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C6 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC12 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6
C60 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C61 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C62 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C63 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CFC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C64 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC17 2402-001096 C-AL,SMD;220UF,20%,16V,GP,TP,6.6X6.6X7.
C65 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C66 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC18 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C67 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C68 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC2 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CFC20 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.
C69 2203-000851 C-CER,CHIP;0.039NF,5%,50V,C0G,TP,1608 CFC21 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C7 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C73 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C76 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C77 2203-005934 C-CER,CHIP;10000nF,##10%,6.3V,X7R,3216 CFC5 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
CFC6 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,TP,1608
C8 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608 CFC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
C83 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
C84 2402-001198 C-AL,SMD;330UF,20%,6.3V,GP,TP,6.6X6.6X7 CFC8 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.
CFC9 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
Samsung Electronics 8-1
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
CHD1 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD50 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD100 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5. CHD51 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD52 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD101 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD53 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD102 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5. CHD54 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD103 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD104 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5. CHD55 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD105 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5. CHD56 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD57 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD106 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD58 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD107 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD59 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD108 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD109 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD6 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD118 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD60 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD61 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD119 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD62 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD12 2203-001071 C-CER,CHIP;0.056nF,5%,50V,C0G,1608 CHD63 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD120 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD121 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD64 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD122 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD65 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608
CHD66 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608
CHD123 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD68 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD124 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD125 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD126 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD71 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD127 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 CHD73 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD76 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD128 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD79 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD129 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5. CHD8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD13 2203-001071 C-CER,CHIP;0.056nF,5%,50V,C0G,1608
CHD130 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD80 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD131 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD82 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD83 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD132 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD84 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD133 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD85 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD134 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD135 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5. CHD86 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
CHD136 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD87 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
CHD88 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD137 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD138 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 CHD90 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD139 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
CHD14 2203-001071 C-CER,CHIP;0.056nF,5%,50V,C0G,1608 CHD92 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD140 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD93 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD94 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD141 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD95 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD142 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD96 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD143 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD144 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CHD98 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD15 2203-000405 C-CER,CHIP;0.18NF,5%,50V,C0G,TP,1608 CHD99 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CMO1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD16 2203-000405 C-CER,CHIP;0.18NF,5%,50V,C0G,TP,1608 CMO2 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CHD17 2203-000405 C-CER,CHIP;0.18NF,5%,50V,C0G,TP,1608 CMP1 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608
CHD18 2203-001071 C-CER,CHIP;0.056nF,5%,50V,C0G,1608
CHD19 2203-001071 C-CER,CHIP;0.056nF,5%,50V,C0G,1608 CMP101 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608
CHD2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP103 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CMP2 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608
CHD20 2203-001071 C-CER,CHIP;0.056nF,5%,50V,C0G,1608 CMP29 2203-001103 C-CER,CHIP;6.8nF,10%,50V,X7R,TP,1608,-
CHD21 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5. CMP45 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD23 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP46 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP47 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CMP48 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD25 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP49 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD26 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP50 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD27 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.
CHD28 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD29 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP60 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CMP61 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP62 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD31 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP64 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD32 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608
CHD34 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP66 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD35 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608 CMP67 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CMP68 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD36 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP69 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD37 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD38 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
CHD39 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5. CMP76 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD40 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP77 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CMP78 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD41 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4 CMP79 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD42 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP81 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD43 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD44 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP90 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD45 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP92 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CMP98 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD46 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CMP99 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CHD47 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CN106 AH39-00776A LEAD CONNECTOR;HT-P1200,3P,2MM,150MM,ANG
CHD48 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CHD49 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CN107 AH39-00805A WIRE HARNESS;HT-P1200,4P-4B F.L/W #28 10
CHD5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 CNIN 3711-005160 CONNECTOR-HEADER;BOX,6P,1R,2mm,SMD-S,SN,
8-2 Samsung Electronics
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
CNJA1 3711-005856 CONNECTOR-HEADER;NOWALL,28P,2R,2mm,ANGLE
CNMEC1 3711-005892 CONNECTOR-HEADER;NOWALL,34P,2R,2mm,STRAI D6 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323
CNMP1 3710-002204 CONNECTOR-SOCKET;28,2R,2mm,STRAIGHT,AUF, D7 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323
DAC1 2203-001132 C-CER,CHIP;0.68nF,5%,50V,NP0,TP,2012
CNOUT 3711-002533 CONNECTOR-HEADER;BOX,5P,1R,2MM,SMD-A,SN, DAC10 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CNSM1 3711-005626 CONNECTOR-HEADER;BOX,9P,1R,2MM,SMD-S,SN, DAC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CNSM2 3711-005211 CONNECTOR-HEADER;BOX,10P,1R,2MM,SMD-S,SN
CNU1 3708-001058 CONNECTOR-FPC/FFC/PIC;30P,1MM,STRAIGHT,S DAC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CNUP1 3708-001050 CONNECTOR-FPC/FFC/PIC;6P,1.25MM,ANGLE,SN DAC13 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
DAC14 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608
CON1 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 DAC15 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608
CON2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DAC2 2203-001132 C-CER,CHIP;0.68nF,5%,50V,NP0,TP,2012
COP1 2203-000239 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,2012
COP2 2203-000239 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,2012 DAC3 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608
COP3 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4 DAC4 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608
DAC5 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,1608
COP4 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 DAC6 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,1608
COP5 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 DAC7 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
CSM1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSM10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DAC8 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
CSM2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DAC9 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
DBD2 2007-000308 R-CHIP;10ohm,5%,1/8W,TP,2012
CSM3 2402-001198 C-AL,SMD;330UF,20%,6.3V,GP,TP,6.6X6.6X7 DBD3 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
CSM4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSM5 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
CSM6 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 DC106 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSM7 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 DC11 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
DC111 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSM8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC112 2203-000384 C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608
CSM9 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 DC113 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608
CSMP1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSMP10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC114 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608
CSMP11 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5. DC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
DC13 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CSMP12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSMP13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSMP14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSMP15 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5. DC16 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CSMP16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC17 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
DC18 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
CSMP17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC19 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
CSMP18 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC20 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
CSMP19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSMP2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC21 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CSMP20 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC22 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
DC23 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CSMP21 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC3 2203-000681 C-CER,CHIP;0.027nF,5%,50V,C0G,1608
CSMP22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC5 2203-000681 C-CER,CHIP;0.027nF,5%,50V,C0G,1608
CSMP23 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSMP24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC6 2203-000681 C-CER,CHIP;0.027nF,5%,50V,C0G,1608
CSMP25 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC8 2203-000681 C-CER,CHIP;0.027nF,5%,50V,C0G,1608
DC9 2203-000681 C-CER,CHIP;0.027nF,5%,50V,C0G,1608
CSMP26 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DC96 2203-001537 C-CER,CHIP;1nF,10%,50V,X7R,TP,2012
CSMP27 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DCF1 2203-001132 C-CER,CHIP;0.68nF,5%,50V,NP0,TP,2012
CSMP28 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSMP3 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5. DCF10 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CSMP4 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5. DCF11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
DCF12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSMP5 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 DCF13 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CSMP6 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 DCF14 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608
CSMP7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CSMP8 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4 DCF15 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608
CSMP9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 DCF16 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
DCF17 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
CU1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,- DCF2 2203-001132 C-CER,CHIP;0.68nF,5%,50V,NP0,TP,2012
CU10 2402-001009 C-AL,SMD;100uF,20%,6.3V,GP,TP,5.3x5.3x5 DCF3 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608
CU11 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-
CU12 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,- DCF4 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608
CU13 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 DCF5 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,1608
DCF6 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,1608
CU14 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4 DCF7 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
CU15 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,- DCF8 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
CU16 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-
CU17 2402-001009 C-AL,SMD;100uF,20%,6.3V,GP,TP,5.3x5.3x5 DCF9 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CU18 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 DCS1 2203-001132 C-CER,CHIP;0.68nF,5%,50V,NP0,TP,2012
DCS10 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CU19 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4 DCS11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CU2 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4 DCS12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
CU20 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,-
CU21 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 DCS13 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
CU3 2409-000123 C-EDL;47000uF,4uA,5.5V,-,BK,-,5mm DCS14 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608
DCS15 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608
CU4 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,- DCS2 2203-001132 C-CER,CHIP;0.68nF,5%,50V,NP0,TP,2012
CU5 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,- DCS3 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608
CU6 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.
CU7 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,- DCS4 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608
CU8 2402-000187 C-AL,SMD;0.22UF,20%,50V,-,TP,4X5.5MM DCS5 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,1608
DCS6 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,1608
CU9 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608,- DCS7 2402-000136 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5.3x5.2
D2 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323 DCS8 2402-000130 C-AL,SMD;2.2uF,20%,50V,GP,TP,4.3x4.3x5.
D3 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323
D4 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323 DCS9 2402-000008 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4
D5 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323 DHD12 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SOD-323
Samsung Electronics 8-3
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
DIC1 1002-001394 IC-D/A CONVERTER;WM8746ESD,24BITS,SSOP,2
DIC4 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m DRS10 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012
DIC5 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m DRS11 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DRS12 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DIC6 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m DRS13 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DIN1 3722-002326 JACK-DIN;13P,AU,BLK,ANGLE DRS14 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
DL50 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
DMO1 0403-001064 DIODE-ZENER;RLZ5.1B,4.94-5.2V,500MW,LL-3 DRS15 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DMO2 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500MW,LL- DRS16 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DRS17 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
DON1 0403-001008 DIODE-ZENER;RLZ5.6A,5.6V,5.28-5.55V,500m DRS18 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DON2 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500MW,LL- DRS19 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DR10 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DR17 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 DRS2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
DR18 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 DRS20 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
DRS21 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
DR19 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 DRS22 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DR20 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608 DRS23 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DR21 2007-001042 R-CHIP;56ohm,1%,1/10W,TP,1608
DR23 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 DRS24 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
DR24 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 DRS3 2007-000267 R-CHIP;1.8Kohm,5%,1/8W,TP,2012
DRS4 2007-000267 R-CHIP;1.8Kohm,5%,1/8W,TP,2012
DR25 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 DRS5 2007-001141 R-CHIP;7.5Kohm,5%,1/8W,TP,2012
DR34 2007-000308 R-CHIP;10ohm,5%,1/8W,TP,2012 DRS6 2007-001141 R-CHIP;7.5Kohm,5%,1/8W,TP,2012
DR36 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
DR37 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 DRS7 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012
DR38 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 DRS8 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012
DRS9 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012
DR39 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 DSM1 0402-000309 DIODE-RECTIFIER;1SR154-400,400V,1A,SOD-1
DR40 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 DU1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DR41 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608
DR8 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 DU10 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 DU11 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DU12 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF10 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012 DU13 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF11 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 DU14 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF12 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DRF13 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 DU15 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF14 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 DU16 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DU17 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF15 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 DU18 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF16 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 DU19 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF17 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DRF18 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 DU2 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF19 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 DU20 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DU21 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 DU22 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF20 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 DU23 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF21 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608
DRF22 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 DU24 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF23 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 DU25 0407-000116 DIODE-ARRAY;DAP202K,80V,100mA,CK2-3,SOT-
DU26 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF24 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 DU27 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF25 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 DU28 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF26 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
DRF3 2007-000267 R-CHIP;1.8Kohm,5%,1/8W,TP,2012 DU3 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF4 2007-000267 R-CHIP;1.8Kohm,5%,1/8W,TP,2012 DU4 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DU5 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF5 2007-001141 R-CHIP;7.5Kohm,5%,1/8W,TP,2012 DU6 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF6 2007-001141 R-CHIP;7.5Kohm,5%,1/8W,TP,2012 DU7 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF7 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012
DRF8 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012 DU8 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
DRF9 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012 DU9 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
ECC33 2203-000280 C-CER,CHIP;0.01NF,0.5PF,50V,C0G,TP,1608
DRR1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 ECC34 2203-000280 C-CER,CHIP;0.01NF,0.5PF,50V,C0G,TP,1608
DRR10 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012 EMC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
DRR11 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DRR12 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 EMC18 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608
DRR13 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 EMC19 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608
EMC20 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608
DRR14 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 EMC21 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608
DRR15 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 EMC22 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608
DRR16 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
DRR17 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 EMC23 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608
DRR18 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 EMC24 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608
EMC6 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
DRR19 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 EMR1 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
DRR2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 EMR2 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
DRR20 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
DRR21 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 EMR3 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
DRR22 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ER100 2011-000816 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP
ER101 2011-000816 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP
DRR23 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 ER102 2011-000816 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP
DRR24 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 ER103 2011-000816 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP
DRR3 2007-000267 R-CHIP;1.8Kohm,5%,1/8W,TP,2012
DRR4 2007-000267 R-CHIP;1.8Kohm,5%,1/8W,TP,2012 ER104 2011-000816 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP
DRR5 2007-001141 R-CHIP;7.5Kohm,5%,1/8W,TP,2012 ER105 2011-000816 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP
ER106 2011-000816 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP
DRR6 2007-001141 R-CHIP;7.5Kohm,5%,1/8W,TP,2012 ICAD1 1002-001392 IC-A/D CONVERTER;WM8775EDS,24BIT,SSOP,28
DRR7 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012 ICFF1 1003-001418 IC-MOTOR DRIVER;FAN8082,DIP,8P,-,-,1MA,S
DRR8 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012
DRR9 2007-000872 R-CHIP;4.7Kohm,5%,1/8W,TP,2012 ICON1 1003-001418 IC-MOTOR DRIVER;FAN8082,DIP,8P,-,-,1MA,S
DRS1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 ICOP1 0801-002518 IC-CMOS LOGIC;74LCX157,2-INPUT MULTIPLEX
8-4 Samsung Electronics
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
ICU1 0903-001405 IC-MICROCONTROLLER;LC87F5CC8A,8Bit,QFP,1
JHD3 3701-001320 CONNECTOR-HDMI;19P,2R,FEMALE,DIP,AU LMP37 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
L1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LMP4 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LMP43 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L18 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LMP5 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
L2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LMP6 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
L20 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
L23 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LMP7 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
L24 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LMP8 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LMX7 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
L26 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LON1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L27 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LOP1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L28 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
L29 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LSM1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L3 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LSM2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LSM3 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L33 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LSM4 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L40 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LSMP1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L51 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
L52 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LSMP2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L55 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LSMP3 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LSMP4 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L56 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LSMP5 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L57 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 LSMP6 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L60 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L61 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LSMP7 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
L66 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LSMP8 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LSMP9 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LAD1 2703-000398 INDUCTOR-SMD;10uH,10%,3225 LU1 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LAD10 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LU10 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LAD11 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LAD12 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LU11 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LAD13 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LU12 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LU13 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LAD3 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LU14 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LAD8 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LU15 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LAD9 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LAN5 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, LU16 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LD12 2007-000030 R-CHIP;560ohm,5%,1/8W,TP,2012 LU17 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LU1G 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LDI1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LU2 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LEU1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LU21 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LFC1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LFC2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LU23 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LHD10 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LU3 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LU4 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LHD11 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LU5 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LHD12 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LU6 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LHD13 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LHD14 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 LU8 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LHD15 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m LU9 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
MC10 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608
LHD16 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m MC105 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
LHD17 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m MC110 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
LHD18 2901-001302 FILTER-EMI SMD;20V,0.3A,-,-,2.0x1.2x1.3m
LHD19 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
LHD2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC16 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,TP,1608
MC17 2203-001052 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1608
LHD20 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC18 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608
LHD21 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
LHD3 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LHD4 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC20 2203-001052 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1608
LHD5 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC21 2203-001052 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1608
MC23 2203-005221 C-CER,CHIP;15nF,10%,50V,X7R,TP,1608,-
LHD6 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC24 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608
LHD7 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC3 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
LHD8 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LHD9 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC32 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
LLL30 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, MC35 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC36 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
LLL31 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, MC38 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608
LMO1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC39 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
LMP1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
LMP10 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
LMP11 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC40 2203-001103 C-CER,CHIP;6.8nF,10%,50V,X7R,TP,1608,-
MC41 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
LMP12 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC42 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
LMP13 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC43 2203-000646 C-CER,CHIP;0.024NF,5%,50V,C0G,TP,1608
LMP17 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LMP2 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, MC44 2203-000681 C-CER,CHIP;0.027nF,5%,50V,C0G,1608
LMP27 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, MC45 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608
MC46 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608
LMP28 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, MC47 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608
LMP29 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, MC48 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608
LMP3 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LMP30 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, MC49 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
LMP31 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, MC5 2203-005221 C-CER,CHIP;15nF,10%,50V,X7R,TP,1608,-
MC50 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
LMP32 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, MC51 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
LMP33 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, MC52 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608
LMP34 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP,
LMP35 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, MC6 2203-005221 C-CER,CHIP;15nF,10%,50V,X7R,TP,1608,-
LMP36 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 MC66 2203-000681 C-CER,CHIP;0.027nF,5%,50V,C0G,1608
Samsung Electronics 8-5
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
MC71 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC72 2402-001009 C-AL,SMD;100uF,20%,6.3V,GP,TP,5.3x5.3x5 MR6 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MC77 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,TP,1608 MR60 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR62 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MC8 2203-000815 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608 MR63 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P,TP,32
MC85 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 MR67 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P,TP,32
MC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608
MC90 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 MR68 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P,TP,32
MC93 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 MR72 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
MR73 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
MC95 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 MR9 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
MIC11 1107-001505 IC-FLASH MEMORY;49BV162AT,1Mx16/2Mx8Bit, MR94 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608
MIC14 1203-002935 IC-POSI.ADJUST REG.;AIC1117ACE,TO-252,3P
MIC2 0801-002683 IC-CMOS LOGIC;74HCT245,TRANSCEIVER,TSSOP MR98 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MIC20 1001-001170 IC-AUDIO SWITCH;CS8415A-CZ,RECEIVER&DECO MRX12 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
MRX28 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P,TP,32
MIC21 0802-001007 IC-CMOS LOGIC;74LCX244,BUFFER/LINE DRIVE MRX40 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608
MIC22 0801-002518 IC-CMOS LOGIC;74LCX157,2-INPUT MULTIPLEX MUR1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
MIC23 0802-001025 IC-CMOS LOGIC;74LCX374,D FILP-FLOP,TSSOP
MIC4 1204-002449 IC-PAL/NTSC DECODER;ES6637FDF,PQFP,256P, MUR2 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
MIC6 1103-001334 IC-EEPROM;K524A60X81,1KX8BIT,SOP,8P,5X4M MUR3 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
MUR4 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3
MIC9 1105-001535 IC-DRAM;M12L128168A-7T,4X2MX16BIT,TSOP OC1 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
ML14 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, OC2 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608
ML19 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1
ML21 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 OC3 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
ML22 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 OC4 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4
OL1 2703-000398 INDUCTOR-SMD;10uH,10%,3225
ML25 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115ohm/1 OL2 2703-000398 INDUCTOR-SMD;10uH,10%,3225
MQ10 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT-23,TP OPT1 0603-001164 OPTIC TRANSMITTER;5V,16Mb/s,-,-,650nm,40
MR1 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
MR10 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 OPT2 0603-001164 OPTIC TRANSMITTER;5V,16Mb/s,-,-,650nm,40
MR107 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA,TP, OR1 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
OR2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR11 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 R1 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012
MR118 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 R115 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
MR12 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
MR153 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P,TP,32 R116 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
MR154 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P,TP,32 R16 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
R17 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608
MR155 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P,TP,32 R173 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR157 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P,TP,32 R174 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR158 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P,TP,32
MR159 2011-000475 R-NET;33OHM,5%,1/16W,L,CHIP,8P,TP,32 R175 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
MR16 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 R176 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608
R177 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
MR163 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 R178 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608
MR164 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 R179 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
MR165 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
MR166 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 R180 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
MR167 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 R181 2007-001026 R-CHIP;560Kohm,5%,1/10W,TP,1608
R182 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608
MR168 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 R183 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608
MR176 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 R184 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
MR177 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
MR178 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 R185 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
MR179 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 R2 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608
R200 2007-0000◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
