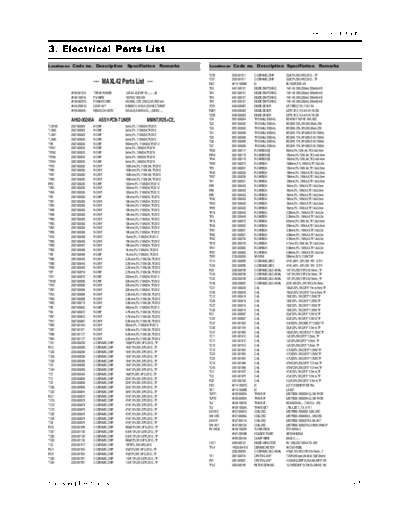

Image preview - the first page of the document
>> Download 20030125151045333_MAXL42_OMAX.BG015.E.12 documenatation <<
Text preview - extract from the document
*S.N.A. : Service Not Available
3. Electrical Parts List
Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks
TC50 2203-001611 C-CERAMIC,CHIP 22pF,5%,50V,NPO,2012,-,TP
TC51 2203-001611 C-CERAMIC,CHIP 22pF,5%,50V,NPO,2012,-,TP
***** MAXL42 Parts List ***** RIC1 AH14-10008E IC BU1923F,SOP.+5V
TD3 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
AH26-00127A TRANS POWER -,MAX-L42,E166*45,-,-,-,-,-,EI TD4 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
AH38-10001A FM-WIRE 1007#22,1500MM TD5 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
AH39-00257G POWER CORD MAX980,-,CP2,250V,2.5A,1650mm/ TD6 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
AH42-20001Q LOOP-ANT KS980214,18.5UH,CONNECTOR-2P TZD1 0403-000367 DIODE-ZENER UZ7.5BSC,7.5V,7.33-7.64
AH59-00004U REMOCON-ASSY MAX-L42,SAMSUNG,-,-,22KEY,-,-, RZD1 0403-000393 DIODE-ZENER UZP5.1B,5.1V,4.8-5.4V,1W,DO
TZD2 0403-000393 DIODE-ZENER UZP5.1B,5.1V,4.8-5.4V,1W,DO
AH92-00245A ASSY-PCB-TUNER MMN7,RDS+CE, TQ4 0501-000294 TR-SMALL SIGNAL KSA708-YTA,PNP,-80V,-60V,
TQ2 0501-000392 TR-SMALL SIGNAL KSC838-OTA,35V,30V,30mA,250
TJW100 2007-000029 R-CHIP 0ohm,5%,1/10W,DA,TP,2012
TQ3 0501-000392 TR-SMALL SIGNAL KSC838-OTA,35V,30V,30mA,250
TJW22 2007-000029 R-CHIP 0ohm,5%,1/10W,DA,TP,2012
TQ1 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
TJW41 2007-000029 R-CHIP 0ohm,5%,1/10W,DA,TP,2012
TQ5 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
TJW42 2007-000029 R-CHIP 0ohm,5%,1/10W,DA,TP,2012
TQ6 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
TR6 2007-000030 R-CHIP 560ohm,5%,1/10W,DA,TP,2012
TQ7 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
TR101 2007-000033 R-CHIP 0ohm,5%,1/8W,DA,TP,3216
TR30 2001-000117 R-CARBON(S) 68ohm,5%,1/2W,AA,TP,2.4x6.4mm
TR102 2007-000033 R-CHIP 0ohm,5%,1/8W,DA,TP,3216
RR1A 2001-000118 R-CARBON(S) 180ohm,5%,1/2W,AA,TP,2.4x6.4mm
TR103 2007-000033 R-CHIP 0ohm,5%,1/8W,DA,TP,3216
TR44 2001-000118 R-CARBON(S) 180ohm,5%,1/2W,AA,TP,2.4x6.4mm
TR104 2007-000033 R-CHIP 0ohm,5%,1/8W,DA,TP,3216
TR58 2001-000273 R-CARBON 100Kohm,5%,1/8W,AA,TP,1.8x3.2m
TR19 2007-000282 R-CHIP 100Kohm,5%,1/10W,DA,TP,2012
TR5 2001-000281 R-CARBON 100ohm,5%,1/8W,AA,TP,1.8x3.2mm
TR45 2007-000282 R-CHIP 100Kohm,5%,1/10W,DA,TP,2012
TR39 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR47 2007-000282 R-CHIP 100Kohm,5%,1/10W,DA,TP,2012
TR57 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR49 2007-000282 R-CHIP 100Kohm,5%,1/10W,DA,TP,2012
TR1 2001-000331 R-CARBON 12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RR2 2007-000290 R-CHIP 100ohm,5%,1/10W,DA,TP,2012
RR3 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR24 2007-000290 R-CHIP 100ohm,5%,1/10W,DA,TP,2012
RR4 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR43 2007-000290 R-CHIP 100ohm,5%,1/10W,DA,TP,2012
RR5 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR2 2007-000300 R-CHIP 10Kohm,5%,1/10W,DA,TP,2012
TR32 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR21 2007-000300 R-CHIP 10Kohm,5%,1/10W,DA,TP,2012
TR34 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR22 2007-000300 R-CHIP 10Kohm,5%,1/10W,DA,TP,2012
TR55 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR46 2007-000300 R-CHIP 10Kohm,5%,1/10W,DA,TP,2012
TR18 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
TR48 2007-000300 R-CHIP 10Kohm,5%,1/10W,DA,TP,2012
TR3 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
TR50 2007-000300 R-CHIP 10Kohm,5%,1/10W,DA,TP,2012
TR13 2001-000515 R-CARBON 220ohm,5%,1/8W,AA,TP,1.8x3.2mm
TR53 2007-000300 R-CHIP 10Kohm,5%,1/10W,DA,TP,2012
TR40 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR54 2007-000300 R-CHIP 10Kohm,5%,1/10W,DA,TP,2012
TR61 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
TR56 2007-000300 R-CHIP 10Kohm,5%,1/10W,DA,TP,2012
TR62 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
TR10 2007-000308 R-CHIP 10ohm,5%,1/10W,DA,TP,2012
TR42 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
TR20 2007-000409 R-CHIP 15Kohm,5%,1/10W,DA,TP,2012
TR16 2001-000745 R-CARBON 4.7ohm,5%,1/8W,AA,TP,1.8x3.2mm
TR28 2007-000457 R-CHIP 18Kohm,5%,1/10W,DA,TP,2012
TR41 2001-000802 R-CARBON 5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
TR52 2007-000468 R-CHIP 1Kohm,5%,1/10W,DA,TP,2012
TR57 2001-000802 R-CARBON 5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
TR9 2007-000468 R-CHIP 1Kohm,5%,1/10W,DA,TP,2012
TSR1 2103-000290 VR-SEMI 20Kohm,30%,1/10W,TOP
TR35 2007-000493 R-CHIP 2.2Kohm,5%,1/10W,DA,TP,2012
TC14 2201-000565 C-CERAMIC,DISC 47nF,+80% -20% 50V Y5V 12.5*4.
TR36 2007-000493 R-CHIP 2.2Kohm,5%,1/10W,DA,TP,2012
TC39 2201-000565 C-CERAMIC,DISC 47nF,+80% -20% 50V Y5V 12.5*4.
TR40 2007-000493 R-CHIP 2.2Kohm,5%,1/10W,DA,TP,2012
RC9 2202-000796 C-CERAMIC,MLC-AXIAL 1nF,10%,50V,Y5P,3.5x19mm,-,TP
TR7 2007-000518 R-CHIP 2.7Kohm,5%,1/10W,DA,TP,2012
TC40 2202-000796 C-CERAMIC,MLC-AXIAL 1nF,10%,50V,Y5P,3.5x19mm,-,TP
TR11 2007-000572 R-CHIP 220ohm,5%,1/10W,DA,TP,2012
TC42 2202-000796 C-CERAMIC,MLC-AXIAL 1nF,10%,50V,Y5P,3.5x19mm,-,TP
TR105 2007-000586 R-CHIP 22Kohm,5%,1/10W,DA,TP,2012
TC48 2202-000807 C-CERAMIC,MLC-AXIAL 22nF,+80-20%,25V,Y5V,3.5x19mm,
TR15 2007-000586 R-CHIP 22Kohm,5%,1/10W,DA,TP,2012
TC21 2401-000240 C-AL 100uF,20%,10V,GP,5*11mm,5mm,TP
TR37 2007-000586 R-CHIP 22Kohm,5%,1/10W,DA,TP,2012
TC46 2401-000240 C-AL 100uF,20%,10V,GP,5*11mm,5mm,TP
TR12 2007-000686 R-CHIP 3.3Kohm,5%,1/10W,DA,TP,2012
TC12 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
TR29 2007-000686 R-CHIP 3.3Kohm,5%,1/10W,DA,TP,2012
TC26 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
TR23 2007-000710 R-CHIP 3.9Kohm,5%,1/10W,DA,TP,2012
TC27 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
TR8 2007-000822 R-CHIP 390ohm,5%,1/10W,DA,TP,2012
TC30 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
TR4 2007-000872 R-CHIP 4.7Kohm,5%,1/10W,DA,TP,2012
RC1 2401-000907 C-AL 22uF,20%,16V,GP,5*11,5MM,TP
TR51 2007-000872 R-CHIP 4.7Kohm,5%,1/10W,DA,TP,2012
TC34 2401-000907 C-AL 22uF,20%,16V,GP,5*11,5MM,TP
TR17 2007-000981 R-CHIP 5.6Kohm,5%,1/10W,DA,TP,2012
TC37 2401-001022 C-AL 3.3UF,20%,50V,SME,5*11,5MM,TP
TR25 2007-001043 R-CHIP 56ohm,5%,1/10W,DA,TP,2012
TC38 2401-001164 C-AL 33uF,20%,16V,GP,5*11,5mm,TP
TR27 2007-001071 R-CHIP 6.8Kohm,5%,1/10W,DA,TP,2012
TC47 2401-001895 C-AL 100uF,20%,16V,GP,6.3*11,5MM,TP
TR38 2007-001177 R-CHIP 8.2Kohm,5%,1/10W,DA,TP,2012
TC11 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
TR44 2007-001177 R-CHIP 8.2Kohm,5%,1/10W,DA,TP,2012
TC17 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
TC41 2203-000239 C-CERAMIC,CHIP 100pF,5%,50V,NPO,2012,-,TP
TC19 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
RC2 2203-000260 C-CERAMIC,CHIP 10nF,10%,50V,X7R,2012,-,TP
TC16 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
TC20 2203-000260 C-CERAMIC,CHIP 10nF,10%,50V,X7R,2012,-,TP
TC23 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
TC28 2203-000260 C-CERAMIC,CHIP 10nF,10%,50V,X7R,2012,-,TP
TC25 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
TC29 2203-000260 C-CERAMIC,CHIP 10nF,10%,50V,X7R,2012,-,TP
TC18 2401-001968 C-AL 470nF,20%,50V,GP,5*11,5mm,TP
TC3 2203-000260 C-CERAMIC,CHIP 10nF,10%,50V,X7R,2012,-,TP
TC43 2401-001968 C-AL 470nF,20%,50V,GP,5*11,5mm,TP
TC44 2203-000260 C-CERAMIC,CHIP 10nF,10%,50V,X7R,2012,-,TP
TC4 2401-001975 C-AL 47uF,20%,16V,GP,5*11,5mm,TP
TC7 2203-000429 C-CERAMIC,CHIP 18pF,5%,50V,NPO,2012,-,TP
TC9 2401-001975 C-AL 47uF,20%,16V,GP,5*11,5mm,TP
TC1 2203-000609 C-CERAMIC,CHIP 22nF,10%,50V,X7R,2012,-,TP
RC6 2401-002180 C-AL 2.2uF,20%,50V,GP,5*11,5mm,TP
TC5 2203-000609 C-CERAMIC,CHIP 22nF,10%,50V,X7R,2012,-,TP
HIC1 AH14-10007G IC LC72131D,DIP,STICK PLL
TC99 2203-000609 C-CERAMIC,CHIP 22nF,10%,50V,X7R,2012,-,TP
TIC1 AH14-10008B IC LA1837
TC33 2203-000844 C-CERAMIC,CHIP 39nF,10%,50V,X7R,2012,-,TP
TLPF1 AH26-00005A TRANS-IF LKS75E00-X000264-2,LOW PASS
RC7 2203-000979 C-CERAMIC,CHIP 47nF,10%,50V,X7R,2012,-,TP
TLPF2 AH26-00005A TRANS-IF LKS75E00-X000264-2,LOW PASS
TC10 2203-000979 C-CERAMIC,CHIP 47nF,10%,50V,X7R,2012,-,TP
TL2 AH26-10001E TRANS-IF KS940228-09,-,-,7.6X12.0,-,450
TC13 2203-000979 C-CERAMIC,CHIP 47nF,10%,50V,X7R,2012,-,TP
TL3 AH26-10020A TRANS-DET -,7KLL,DET,-,7.8 ,91 F,1
TC15 2203-000979 C-CERAMIC,CHIP 47nF,10%,50V,X7R,2012,-,TP
LW OSC AH27-00007A COIL-OSC LKS7FB00-X000002-0,LW,OSC
TC35 2203-000979 C-CERAMIC,CHIP 47nF,10%,50V,X7R,2012,-,TP
MW OSC AH27-00008A COIL-OSC LKS75E00-X000280-0,-,MW,OSC
TC45 2203-000979 C-CERAMIC,CHIP 47nF,10%,50V,X7R,2012,-,TP
LW ANT AH27-00011A COIL-OSC LKS75E00-X0002276-0,LW,ANT
TC6 2203-000979 C-CERAMIC,CHIP 47nF,10%,50V,X7R,2012,-,TP
MW ANT AH27-00012A COIL-OSC LKS75E00-X000279-0,365UH,MWANT
RC8 2203-001058 C-CERAMIC,CHIP 560pF,5%,50V,NPO,2012,-,TP
FM PACK AH40-10025S TUNER PACK ST-F404VA-3
TC61 2203-001105 C-CERAMIC,CHIP 6.8nF,10%,50V,X7R,2012,-,TP
AH61-20540B HOLDER-TUNER ABS,94HB,BLK
TC62 2203-001105 C-CERAMIC,CHIP 6.8nF,10%,50V,X7R,2012,-,TP
AH65-30010A CLAMP-WIRE DALB-2,-,-,-,
TC32 2203-001132 C-CERAMIC,CHIP 680pF,5%,50V,NPO,2012,-,TP
VVC1 0405-000137 DIODE-VARACTOR KV-1260,20V,100NA,TO-92S
TC2 2203-001517 C-CERAMIC,CHIP 15PF,5%,50V,NPO,2012
TFL4 14529-304-610 CERAMIC-FILTER AHCM2-450BL
RC4 2203-001524 C-CERAMIC,CHIP 47pF,5%,50V,NPO,2012,-,TP
2202-000263 C-CERAMIC,MLC-AXIAL 470pF,10%,50V,Y5P,3.5x19mm,-,T
RC5 2203-001524 C-CERAMIC,CHIP 47pF,5%,50V,NPO,2012,-,TP
TX1 2801-000734 CRYSTAL-UNIT 7.2MHz,50ppm,28-AAM,12pF,30ohm
TC63 2203-001551 C-CERAMIC,CHIP 1.5nF,10%,50V,X7R,2012,-,TP
RX1 2801-003601 CRYSTAL-UNIT 4.332MHZ,30PPM,28-AAM,30PF,150
TC64 2203-001551 C-CERAMIC,CHIP 1.5nF,10%,50V,X7R,2012,-,TP
TFL2 2903-000105 FILTER-CERAMIC 10.7MS3G/BP,10.7MHZ+-25KHZ,180
Samsung Electronics 3-1
Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks
TFL1 2903-000119 FILTER-CERAMIC SFE10.7MJA-10-A JR35L 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TWA1 3710-001421 CONNECTOR-SOCKET 14P,1R,2MM,ANGLE,SN JR36R 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TJ2 3711-000814 CONNECTOR-HEADER BOX,2P,1R,2.5mm,ANGLE,SN JR39 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
3716-001156 TERMINAL-BLOCK SOLDER,2P,-,-,- JR40 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RR20 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AH92-00926A ASSY MAIN-PCB MAX-L45/VL45,L/BAND JR40L 2001-000302 R-CARBON 10ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR40R 2001-000302 R-CARBON 10ohm,5%,1/8W,AA,TP,1.8x3.2mm
RIC2 AC14-12001G IC-POSI.ADJUST REG. KA78L05Z-TA,TO-92,3P,-,PLASTIC
TR1 2001-000331 R-CARBON 12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AUD01 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
FR12L 2001-000411 R-CARBON 18Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AUD02 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
FR12R 2001-000411 R-CARBON 18Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AUD1 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
FR2L 2001-000411 R-CARBON 18Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AUD2 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
FR2R 2001-000411 R-CARBON 18Kohm,5%,1/8W,AA,TP,1.8x3.2mm
FD1 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
AR3L 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
FD2 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
AR3R 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JD1 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
FR4L 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JD2 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
FR4R 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JD3 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
JR34L 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RD8 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
JR34R 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RD15 0402-000127 DIODE-RECTIFIER 1N4002,100V,1A,DO-41
JR42L 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RD16 0402-000127 DIODE-RECTIFIER 1N4002,100V,1A,DO-41
JR42R 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RD17 0402-000127 DIODE-RECTIFIER 1N4002,100V,1A,DO-41
RR01 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RD18 0402-000127 DIODE-RECTIFIER 1N4002,100V,1A,DO-41
RR22 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RD3 0402-000127 DIODE-RECTIFIER 1N4002,100V,1A,DO-41
FR23 2001-000435 R-CARBON 1Mohm,5%,1/8W,AA,TP,1.8x3.2mm
RD4 0402-000127 DIODE-RECTIFIER 1N4002,100V,1A,DO-41
AR23L 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
RD5 0402-000127 DIODE-RECTIFIER 1N4002,100V,1A,DO-41
AR23R 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
RD10 0402-000151 DIODE-RECTIFIER 1N5392,100V,1.5A,DO-15
FR10L 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
RD11 0402-000151 DIODE-RECTIFIER 1N5392,100V,1.5A,DO-15
FR10R 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
RD12 0402-000151 DIODE-RECTIFIER 1N5392,100V,1.5A,DO-15
JL1R 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
RD13 0402-000151 DIODE-RECTIFIER 1N5392,100V,1.5A,DO-15
JR1L 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
FZD1 0403-000377 DIODE-ZENER UZP10B,10V,9.4-10.6V,1W,DO-
JR10L 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
RZD4 0403-000393 DIODE-ZENER UZP5.1B,5.1V,4.8-5.4V,1W,DO
JR10R 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
RZ0073 0403-000394 DIODE-ZENER UZP5.6B,5.6V,5.2-6.0V,1W,DO-41
JR2L 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
RZD5 0403-000396 DIODE-ZENER UZP6.8B,6.8V,6.4-7.2V,1W,DO-41
JR2R 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
RZ0076 0403-000396 DIODE-ZENER UZP6.8B,6.8V,6.4-7.2V,1W,DO-41
JR5L 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
RZD2 0403-000564 DIODE-ZENER TZP16A,16V,15.3-17.1V,1W,
JR5R 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
RZD3 0403-000564 DIODE-ZENER TZP16A,16V,15.3-17.1V,1W,
JR6L 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
JQ2L 0501-000010 TR-SMALL SIGNAL KSC1008-YTA,NPN,80V,60V,700mA,
JR6R 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
JQ2R 0501-000010 TR-SMALL SIGNAL KSC1008-YTA,NPN,80V,60V,700mA,
RR18 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
JQ3L 0501-000010 TR-SMALL SIGNAL KSC1008-YTA,NPN,80V,60V,700mA,
JR32 2001-000456 R-CARBON 2.2ohm,5%,1/4W,AA,TP,2.4x6.4mm
JQ3R 0501-000010 TR-SMALL SIGNAL KSC1008-YTA,NPN,80V,60V,700mA,
FR28L 2001-000472 R-CARBON 2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
RQ10 0501-000010 TR-SMALL SIGNAL KSC1008-YTA,NPN,80V,60V,700mA,
FR28R 2001-000472 R-CARBON 2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
AQ4 0501-000294 TR-SMALL SIGNAL KSA708-YTA,PNP,-80V,-60V,
AR01 2001-000515 R-CARBON 220ohm,5%,1/8W,AA,TP,1.8x3.2mm
JQ15 0501-000369 TR-SMALL SIGNAL KSC2331-Y-TA ,80V,60V,700mA
FR14 2001-000515 R-CARBON 220ohm,5%,1/8W,AA,TP,1.8x3.2mm
FQ4 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
FR18 2001-000515 R-CARBON 220ohm,5%,1/8W,AA,TP,1.8x3.2mm
JQ12L 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
AR11 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JQ12R 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
FR24 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JQ16 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
FR26 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JQ4L 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
FR28 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JQ4R 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
JR19L 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RQ3 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
JR19R 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RQ5 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
JR4 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AQ1L 0501-000407 TR-SMALL SIGNAL KSD471-YTA,40V,30V,1A,800m TP
RR12 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AQ1R 0501-000407 TR-SMALL SIGNAL KSD471-YTA,40V,30V,1A,800m TP
RR17 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JQ11L 0501-000407 TR-SMALL SIGNAL KSD471-YTA,40V,30V,1A,800m TP
RR0072 2001-000554 R-CARBON 270ohm,5%,1/8W,AA,TP,1.8x3.2mm
JQ11R 0501-000407 TR-SMALL SIGNAL KSD471-YTA,40V,30V,1A,800m TP
TR3 2001-000563 R-CARBON 27Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JQ5L 0501-000407 TR-SMALL SIGNAL KSD471-YTA,40V,30V,1A,800m TP
FR01 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
JQ5R 0501-000407 TR-SMALL SIGNAL KSD471-YTA,40V,30V,1A,800m TP
JR23 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
RQ11 0501-000407 TR-SMALL SIGNAL KSD471-YTA,40V,30V,1A,800m TP
JR3L 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
JQ14 0501-000610 TR-SMALL SIGNAL KSA928A,PNP,-30V,-30V,-2A,1W
JR3R 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
RQ2 0501-000610 TR-SMALL SIGNAL KSA928A,PNP,-30V,-30V,-2A,1W
JR30 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
RQ4 0501-000610 TR-SMALL SIGNAL KSA928A,PNP,-30V,-30V,-2A,1W
JSR1R 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
FQ1L 0504-000122 TR-DIGITAL KSR1009TA, 300MW,4.7KOHM,TO-9
RR7 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
FQ1R 0504-000122 TR-DIGITAL KSR1009TA, 300MW,4.7KOHM,TO-9
JR16L 2001-000613 R-CARBON 3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m
AQ2 0504-001003 TR-DIGITAL KSR2003TA,300mW,22K-22Kohm
JR16R 2001-000613 R-CARBON 3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m
FQ2 0504-001003 TR-DIGITAL KSR2003TA,300mW,22K-22Kohm
RR1 2001-000613 R-CARBON 3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m
JQ6 0504-001003 TR-DIGITAL KSR2003TA,300mW,22K-22Kohm
RR16 2001-000613 R-CARBON 3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m
JQ8 0504-001003 TR-DIGITAL KSR2003TA,300mW,22K-22Kohm
JR15 2001-000708 R-CARBON 39ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR17L 2001-000003 R-CARBON 330ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR12L 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR17R 2001-000003 R-CARBON 330ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR12R 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
FR1L 2001-000008 R-CARBON 15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR18L 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
FR1R 2001-000008 R-CARBON 15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR18R 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR41L 2001-000008 R-CARBON 15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR26 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR41R 2001-000008 R-CARBON 15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR28L 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR6R 2001-000022 R-CARBON(S) 33OHM,5%,1/2W,AA,TP,2.4*6.4M
JR28R 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR27 2001-000023 R-CARBON 47ohm,5%,1/4W,AA,TP,2.4x6.4mm
JR31 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
RR19 2001-000023 R-CARBON 47ohm,5%,1/4W,AA,TP,2.4x6.4mm
RR10 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
RR11 2001-000027 R-CARBON 100ohm,5%,1/4W,AA,TP,2.4x6.4mm
TR2 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
RR08 2001-000110 R-CARBON 10ohm,5%,1/4W,AA,TP,2.4x6.4mm
JR13 2001-000773 R-CARBON 470Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR24L 2001-000241 R-CARBON 1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR35R 2001-000773 R-CARBON 470Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR24R 2001-000241 R-CARBON 1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR36L 2001-000773 R-CARBON 470Kohm,5%,1/8W,AA,TP,1.8x3.2m
FR32L 2001-000258 R-CARBON 1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
FR5L 2001-000786 R-CARBON 47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
FR32R 2001-000258 R-CARBON 1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
FR6R 2001-000786 R-CARBON 47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR20L 2001-000258 R-CARBON 1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR29 2001-000786 R-CARBON 47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR20R 2001-000258 R-CARBON 1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR37L 2001-000786 R-CARBON 47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
FR21 2001-000273 R-CARBON 100Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR37R 2001-000786 R-CARBON 47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
FR22 2001-000273 R-CARBON 100Kohm,5%,1/8W,AA,TP,1.8x3.2m
FR7L 2001-000802 R-CARBON 5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
FR9 2001-000281 R-CARBON 100ohm,5%,1/8W,AA,TP,1.8x3.2mm
FR7R 2001-000802 R-CARBON 5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR21 2001-000281 R-CARBON 100ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR14 2001-000802 R-CARBON 5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR22L 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
FR25 2001-000857 R-CARBON 560ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR22R 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR2L 2001-000864 R-CARBON 56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR7 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR2R 2001-000864 R-CARBON 56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR11L 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR4L 2001-000864 R-CARBON 56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR11R 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR4R 2001-000864 R-CARBON 56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR25 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR6L 2001-000864 R-CARBON 56Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR33 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
3-2 Samsung Electronics
Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks
AR9 2001-000864 R-CARBON 56Kohm,5%,1/8W,AA,TP,1.8x3.2mm FC9 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
FR5R 2001-000864 R-CARBON 56Kohm,5%,1/8W,AA,TP,1.8x3.2mm JC12L 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
FR6L 2001-000864 R-CARBON 56Kohm,5%,1/8W,AA,TP,1.8x3.2mm JC12R 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
JR38 2001-000890 R-CARBON 6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m JC20L 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
RR10 2001-000890 R-CARBON 6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m JC20R 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
FR15L 2001-000977 R-CARBON 8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m JC21L 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
FR15R 2001-000977 R-CARBON 8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m JC21R 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
FR8L 2001-000977 R-CARBON 8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m JC7 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
FR8R 2001-000977 R-CARBON 8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m RC7 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
AR5L 2001-000995 R-CARBON 820ohm,5%,1/8W,AA,TP,1.8x3.2mm FC50 2401-000438 C-AL 10uF,20%,25V,GP,5*11,5mm,TP
AR5R 2001-000995 R-CARBON 820ohm,5%,1/8W,AA,TP,1.8x3.2mm RC8 2401-000475 C-AL 10uF,20%,50V,GP,5*11,5mm,TP
RR13 2001-000995 R-CARBON 820ohm,5%,1/8W,AA,TP,1.8x3.2mm RC03 2401-000778 C-AL 220uF,20%,10V,GP,6.3x11,5MM,TP
AR16 2001-001088 R-CARBON(S) 1Kohm,5%,1/2W,AA,TP,2.4x6.4mm JC11 2401-000795 C-AL 220uF,20%,16V,GP,8*12,5MM,TP
AR17 2001-001088 R-CARBON(S) 1Kohm,5%,1/2W,AA,TP,2.4x6.4mm RC0073 2401-000795 C-AL 220uF,20%,16V,GP,8*12,5MM,TP
RFR4 2001-001146 R-CARBON(S) 4.7ohm,5%,1/2W,AA,TP,2.4x6.4mm RC05 2401-000795 C-AL 220uF,20%,16V,GP,8*12,5MM,TP
RR3 2001-001146 R-CARBON(S) 4.7ohm,5%,1/2W,AA,TP,2.4x6.4mm AC3L 2401-001164 C-AL 33uF,20%,16V,GP,5*11,5mm,TP
RR5 2001-001153 R-CARBON(S) 47ohm,5%,1/2W,AA,TP,2.4x6.4mm AC3R 2401-001164 C-AL 33uF,20%,16V,GP,5*11,5mm,TP
RR6 2001-001153 R-CARBON(S) 47ohm,5%,1/2W,AA,TP,2.4x6.4mm AC897 2401-001164 C-AL 33uF,20%,16V,GP,5*11,5mm,TP
RR4 2003-000009 R-METAL OXIDE(S) 220ohm,5%,1W,AA,TP,3.3x9mm JC14L 2401-001465 C-AL 47uF,20%,10V,GP,5*11,5mm,TP
AR10L 2003-000689 R-METAL OXIDE(S) 4.7ohm,5%,1W,AA,TP,3.3x9mm JC14R 2401-001465 C-AL 47uF,20%,10V,GP,5*11,5mm,TP
AR10R 2003-000689 R-METAL OXIDE(S) 4.7ohm,5%,1W,AA,TP,3.3x9mm JC3L 2401-001465 C-AL 47uF,20%,10V,GP,5*11,5mm,TP
RR0073 2003-000732 R-METAL OXIDE(S) 560ohm,5%,1W,AA,TP,3.3x9mm JC3R 2401-001465 C-AL 47uF,20%,10V,GP,5*11,5mm,TP
RR03 2003-000765 R-METAL OXIDE(S) 680ohm,5%,1W,AA,TP,3.3x9mm RC0071 2401-001538 C-AL 47uF,20%,25V,GP,5*11,5mm,TP
RR04 2003-000765 R-METAL OXIDE(S) 680ohm,5%,1W,AA,TP,3.3x9mm JC9 2401-001895 C-AL 100uF,20%,16V,GP,6.3*11,5MM,TP
RR05 2003-000765 R-METAL OXIDE(S) 680ohm,5%,1W,AA,TP,3.3x9mm RC12 2401-001895 C-AL 100uF,20%,16V,GP,6.3*11,5MM,TP
RR06 2003-000765 R-METAL OXIDE(S) 680ohm,5%,1W,AA,TP,3.3x9mm RC19 2401-001895 C-AL 100uF,20%,16V,GP,6.3*11,5MM,TP
RR07 2003-000765 R-METAL OXIDE(S) 680ohm,5%,1W,AA,TP,3.3x9mm FC16 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
RR08 2003-000765 R-METAL OXIDE(S) 680ohm,5%,1W,AA,TP,3.3x9mm FC2L 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
JSR2L 2103-000248 VR-SEMI 200Kohm,30%,1/10W,TOP FC2R 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
JSR2R 2103-000248 VR-SEMI 200Kohm,30%,1/10W,TOP FC3L 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
JSR1L 2103-000492 VR-SEMI 5Kohm,30%,1/10W,TOP FC3R 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
RC16 2201-000163 C-CERAMIC,DISC 10nF,+80-20%,50V,Y5V,6.5*5,5MM FC4L 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
RC17 2201-000163 C-CERAMIC,DISC 10nF,+80-20%,50V,Y5V,6.5*5,5MM FC4R 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
RC20 2201-000163 C-CERAMIC,DISC 10nF,+80-20%,50V,Y5V,6.5*5,5MM FC5L 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
RC21 2201-000163 C-CERAMIC,DISC 10nF,+80-20%,50V,Y5V,6.5*5,5MM FC5R 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
AC10L 2201-000198 C-CERAMIC,DISC 10pF,0.5pF,50V,SL,4x3.5mm,5mm, RC005 2401-001912 C-AL 1uF,20%,50V,GP,5*11,5mm,TP
AC10R 2201-000198 C-CERAMIC,DISC 10pF,0.5pF,50V,SL,4x3.5mm,5mm, FC14L 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
JC88 2201-000282 C-CERAMIC,DISC 1NF,+80,-20%,50V,Y5V,TP,5*3.5 FC14R 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
JC999 2201-000282 C-CERAMIC,DISC 1NF,+80,-20%,50V,Y5V,TP,5*3.5 FC15 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
AC2L 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T FC18 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
AC2R 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T JC10 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
FC1L 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T JC31 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
FC1R 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T JC5L 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
FC13L 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T JC5R 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
FC13R 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T RC10 2401-001954 C-AL 4.7UF,20%,50V,GP,5*11,5MM,TP
JC10L 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T FC11 2401-001975 C-AL 47uF,20%,16V,GP,5*11,5mm,TP
JC10R 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T JC25 2401-001975 C-AL 47uF,20%,16V,GP,5*11,5mm,TP
JC16L 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T JC28 2401-001975 C-AL 47uF,20%,16V,GP,5*11,5mm,TP
JC16R 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T FC6L 2401-002180 C-AL 2.2uF,20%,50V,GP,5*11,5mm,TP
JC30L 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T FC6R 2401-002180 C-AL 2.2uF,20%,50V,GP,5*11,5mm,TP
JC30R 2201-000368 C-CERAMIC,DISC 220pF,10%,50V,SL,6.5*3.0,5mm,T FC7L 2401-002180 C-AL 2.2uF,20%,50V,GP,5*11,5mm,TP
FC01 2201-000470 C-CERAMIC,DISC 330pF,10%,50V,SL,8x4mm,5mm,TP FC7R 2401-002180 C-AL 2.2uF,20%,50V,GP,5*11,5mm,TP
AC1L 2201-000557 C-CERAMIC,DISC 470pF,10%,50V,SL,10.0X4.0mm,5m JC13L 2401-002180 C-AL 2.2uF,20%,50V,GP,5*11,5mm,TP
AC1R 2201-000557 C-CERAMIC,DISC 470pF,10%,50V,SL,10.0X4.0mm,5m JC13R 2401-002180 C-AL 2.2uF,20%,50V,GP,5*11,5mm,TP
RC02 2201-000565 C-CERAMIC,DISC 47nF,+80% -20% 50V Y5V 12.5*4. JC15L 2401-002180 C-AL 2.2uF,20%,50V,GP,5*11,5mm,TP
RC04 2201-000565 C-CERAMIC,DISC 47nF,+80% -20% 50V Y5V 12.5*4. JC15R 2401-002180 C-AL 2.2uF,20%,50V,GP,5*11,5mm,TP
JC23L 2201-000601 C-CERAMIC,DISC 560pF,10%,50V,Y5P,5.0*3.0,5MM, RC01 2401-002180 C-AL 2.2uF,20%,50V,GP,5*11,5mm,TP
JC23R 2201-000601 C-CERAMIC,DISC 560pF,10%,50V,Y5P,5.0*3.0,5MM, RC5 2401-002180 C-AL 2.2uF,20%,50V,GP,5*11,5mm,TP
JC50 2201-000783 C-CERAMIC,DISC 100nF,+80%,-20%,50V,Y5V,-,5mm, RL2 2701-000178 INDUCTOR-AXIAL 33uH,10%,2.8x7mm,BAL03ST330K
FC60 2202-000231 C-CERAMIC,MLC-AXIAL 330pF,10%,50V,Y5P,3.5x19mm,-,T JL1 2701-000298 INDUCTOR-AXIAL AX470UH 04
FC61 2202-000231 C-CERAMIC,MLC-AXIAL 330pF,10%,50V,Y5P,3.5x19mm,-,T RL1 2701-000298 INDUCTOR-AXIAL AX470UH 04
JC51 2202-000780 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,3.5x19mm JLPF1L AH26-10002W COIL-TRAP BIAS-TRAP105K,BIAS-TRAP,32DB,9
FC12L 2202-000806 C-CERAMIC,MLC-AXIAL 220pF,10%,50V,Y5P,3.5x19mm,-,T JLPF1R AH26-10002W COIL-TRAP BIAS-TRAP105K,BIAS-TRAP,32DB,9
FC12R 2202-000806 C-CERAMIC,MLC-AXIAL 220pF,10%,50V,Y5P,3.5x19mm,-,T JL2 AH26-10003C COIL-TRAP PCHNS-5371EQJ,BIAS-TRAP,-,-,85
JC1L 2301-000370 C-FILM,PEF 1.8nF,10%,50V,5.5x12x3,TP JCW3 AH39-00201A LEAD CONNECTOR-ASSY 51004-03/35023-03,250MM,3P
JC1R 2301-000370 C-FILM,PEF 1.8nF,10%,50V,5.5x12x3,TP OCW AH39-00201A LEAD CONNECTOR-ASSY 51004-03/35023-03,250MM,3P
JC24L 2301-000370 C-FILM,PEF 1.8nF,10%,50V,5.5x12x3,TP RCW1 AH39-00245A LEAD CONNECTOR ASSY MX-G50,#1007,22AWG,UL,8P,160MM
JC24R 2301-000370 C-FILM,PEF 1.8nF,10%,50V,5.5x12x3,TP AH61-00250B BRACKET-HEAT SINK -,SECC 0.8T,-,-,-,OPTION,MX-J1
AC9L 2301-000375 C-FILM,PEF 100nF,10%,50V,11x12.5x6.5,TP AH62-00023A HEAT SINK MAIN -,ALS EXTRU,-,-,-,-,-,MX-J100
AC9R 2301-000375 C-FILM,PEF 100nF,10%,50V,11x12.5x6.5,TP AH62-30061A HEAT SINK AL,AV330R,-,-,-,H40
FC10L 2301-000375 C-FILM,PEF 100nF,10%,50V,11x12.5x6.5,TP RQ1 0502-000419 TR-POWER -,PNP,25W,TO-220F,BK,100-200
FC10R 2301-000375 C-FILM,PEF 100nF,10%,50V,11x12.5x6.5,TP RIC1 0502-001197 TR-POWER KSD1406,NPN,25000MW,TO-220F
FC9L 2301-000375 C-FILM,PEF 100nF,10%,50V,11x12.5x6.5,TP RQ9 0502-001197 TR-POWER KSD1406,NPN,25000MW,TO-220F
FC9R 2301-000375 C-FILM,PEF 100nF,10%,50V,11x12.5x6.5,TP FIC2 1201-000163 IC-OP AMP 4560,SOP,8P,150MIL,DUAL,100V/m
JC26 2301-000404 C-FILM,PEF 2.2nF,10%,50V,5.5x12x3,TP JIC1 1201-000358 IC-PREAMP S1A0291*01-A0B0,24SDIP
JC27 2301-000404 C-FILM,PEF 2.2nF,10%,50V,5.5x12x3,TP FIC1 1204-001465 IC-VOLUME/TONE CONT. TDA7440D,SOP,28,18.1,PLASTIC,1
JC22L 2301-000407 C-FILM,PEF 2.7nF,10%,50V,5.5x12x3,TP AR14L 2003-000390 R-METAL OXIDE(S) 0.27OHM,5%,2W,AA,TP,
JC22R 2301-000407 C-FILM,PEF 2.7nF,10%,50V,5.5x12x3,TP AR14R 2003-000390 R-METAL OXIDE(S) 0.27OHM,5%,2W,AA,TP,
JC29 2301-000407 C-FILM,PEF 2.7nF,10%,50V,5.5x12x3,TP AR15L 2003-000390 R-METAL OXIDE(S) 0.27OHM,5%,2W,AA,TP,
JC17L 2301-000412 C-FILM,PEF 22nF,10%,50V,8x12x4,TP AR15R 2003-000390 R-METAL OXIDE(S) 0.27OHM,5%,2W,AA,TP,
JC17R 2301-000412 C-FILM,PEF 22nF,10%,50V,8x12x4,TP RC9 2401-000230 C-AL 100uF,20%,100V,GP,10x20mm,5mm,
JC4L 2301-000412 C-FILM,PEF 22nF,10%,50V,8x12x4,TP AC13 2401-000871 C-AL 220uF,20%,50V,GP,10x16mm,5mm,
JC4R 2301-000412 C-FILM,PEF 22nF,10%,50V,8x12x4,TP RC3 2401-001942 C-AL 3300uF,20%,35V,GP,18x37mm,7.5m
JC8L 2301-000412 C-FILM,PEF 22nF,10%,50V,8x12x4,TP FCW1 3708-001195 FPC-CONNECTOR 27P,ST
JC8R 2301-000412 C-FILM,PEF 22nF,10%,50V,8x12x4,TP JCW3 3711-000907 CONNECTOR-HEADER BOX,3P,1R,2mm,STRAIGHT,SN
FC8L 2301-000454 C-FILM,PEF 5.6nF,10%,50V,6x12x3,TP ACW1 3711-001137 CONNECTOR-HEADER BOX,8P,1R,2MM,STRAIGHT,SN
FC8R 2301-000454 C-FILM,PEF 5.6nF,10%,50V,6x12x3,TP JCW1 3711-003107 CONNECTOR-HEADER BOX,3P,1R,2.5MM,-,BRASS
JC19L 2301-000462 C-FILM,PEF 6.8nF,10%,50V,6x12x3,TP JCW2 3711-003111 CONNECTOR-HEADER BOX,6P,1R,2.5mm,-,BRASS
JC19R 2301-000462 C-FILM,PEF 6.8nF,10%,50V,6x12x3,TP TCW1 3711-004109 CONNECTOR-HEADER 3WALL,14P,1R,2MM,STRAIG
AC6 2401-000357 C-AL 100UF,0.2,50V,GP,8*12,5MM,SSL SPK JACK 3716-000209 TERMINAL-BLOCK ,-,-,60V,7A
AC8 2401-000357 C-AL 100UF,0.2,50V,GP,8*12,5MM,SSL 3722-000377 JACK-RCA 4P/2C,3.5mm,#16~22,SN
AC4L 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP 3809-001215 CABLE-FLAT 30V,80C,250mm,27P,1.25mm,UL289
AC4R 2401-000419 C-AL 10UF,20%,16V,GP,5*11,5MM,TP
Samsung Electronics 3-3
Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks
AH92-00927A ASSY FRONT-PCB MAX-L45/42 FRONT-PCB UR126 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR127 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UD1 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
UR130 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UD10 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
UR131 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UD11 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
UR18 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UD15-18 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
UR62 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UD21-23 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
UR63 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UD24 0401-000101 DIODE-SWITCHING 1N4148,100V,200mA,500mW,4nS
UR64 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UD12-14 0402-000127 DIODE-RECTIFIER 1N4002,100V,1A,DO-41
UR65 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UJW70 0402-000127 DIODE-RECTIFIER 1N4002,100V,1A,DO-41
UR66 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UQ1 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
UR67 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UQ7 0501-000398 TR-SMALL SIGNAL KSC945-YTA,NPN,60V,50V,150MA,
UR68 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UQ10 0501-000407 TR-SMALL SIGNAL KSD471-YTA,40V,30V,1A,800m TP
UR98 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UQ11 0501-000407 TR-SMALL SIGNAL KSD471-YTA,40V,30V,1A,800m TP
VF126 2001-000429 R-CARBON 1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UQ5 0501-000610 TR-SMALL SIGNAL KSA928A,PNP,-30V,-30V,-2A,1W
UR19 2001-000435 R-CARBON 1Mohm,5%,1/8W,AA,TP,1.8x3.2mm
UQ6 0501-000610 TR-SMALL SIGNAL KSA928A,PNP,-30V,-30V,-2A,1W
UR1 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
UQ8 0501-000610 TR-SMALL SIGNAL KSA928A,PNP,-30V,-30V,-2A,1W
UR105 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
UQ2 0504-000118 TR-DIGITAL KSR1003TA,NPN,300MW,22K-22KOHM
UR122 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
UQ3 0504-000118 TR-DIGITAL KSR1003TA,NPN,300MW,22K-22KOHM
UR128 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
UQ4 0504-000118 TR-DIGITAL KSR1003TA,NPN,300MW,22K-22KOHM
UR132 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
UQ9 0504-000118 TR-DIGITAL KSR1003TA,NPN,300MW,22K-22KOHM
UR2 2001-000449 R-CARBON 2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
UQ12 0504-001003 TR-DIGITAL KSR2003TA,300mW,22K-22Kohm
UR54 2001-000472 R-CARBON 2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR88 2001-000008 R-CARBON 15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR57 2001-000472 R-CARBON 2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR89 2001-000008 R-CARBON 15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR87 2001-000472 R-CARBON 2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR92 2001-000008 R-CARBON 15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR3 2001-000508 R-CARBON 220Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR115 2001-000019 R-CARBON(S) 10ohm,5%,1/2W,AA,TP,2.4x6.4mm
UR4 2001-000515 R-CARBON 220ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR99 2001-000019 R-CARBON(S) 10ohm,5%,1/2W,AA,TP,2.4x6.4mm
UR90 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR22 2001-000221 R-CARBON 1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR91 2001-000522 R-CARBON 22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR75 2001-000221 R-CARBON 1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR108 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR97 2001-000221 R-CARBON 1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR109 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR101 2001-000241 R-CARBON 1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR110 2001-000591 R-CARBON 3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR112 2001-000241 R-CARBON 1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR118 2001-000613 R-CARBON 3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR23 2001-000241 R-CARBON 1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR55 2001-000613 R-CARBON 3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR79 2001-000241 R-CARBON 1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR56 2001-000613 R-CARBON 3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR85 2001-000241 R-CARBON 1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR100 2001-000660 R-CARBON 33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR96 2001-000241 R-CARBON 1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR113 2001-000660 R-CARBON 33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR24 2001-000258 R-CARBON 1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR93 2001-000660 R-CARBON 33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR86 2001-000258 R-CARBON 1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR121 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR95 2001-000258 R-CARBON 1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR25 2001-000734 R-CARBON 4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR103 2001-000273 R-CARBON 100Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR94 2001-000780 R-CARBON 470ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR107 2001-000273 R-CARBON 100Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR102 2001-000786 R-CARBON 47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR10 2001-000290 R-CARBON 10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
