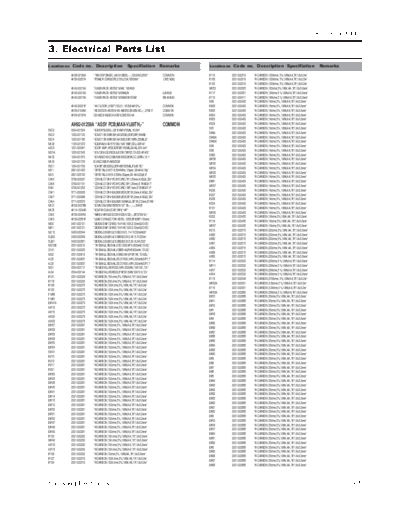

Image preview - the first page of the document
![20030125151045333_MAXVB630FH_HAO[1].0000060944.E.12](/pics/5c2e94404311a.gif)
>> Download 20030125151045333_MAXVB630FH_HAO[1].0000060944.E.12 documenatation <<
Text preview - extract from the document
*S.N.A. : Service Not Available
3. Electrical Parts List
Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks
AH26-00180A "TRANS POWER;-,MAX-VB630,-,-,120/240V,253V" COMMON R119 2001-000319 "R-CARBON;120Kohm,5%,1/8W,AA,TP,1.8x3.2m"
AH39-00257A "POWER CORD;CP2,250V,2.5A,1830MM" CP2(VDE) R106 2001-000319 "R-CARBON;120Kohm,5%,1/8W,AA,TP,1.8x3.2m"
R105 2001-000319 "R-CARBON;120Kohm,5%,1/8W,AA,TP,1.8x3.2m"
AH40-00010A TUNER-PACK ASSY;FM/AM T-BAND MR53 2001-000325 "R-CARBON;120ohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH40-00012A TUNER-PACK ASSY;FM/MW/LW L-BAND R117 2001-000331 "R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH40-00013A TUNER-PACK ASSY;FM/MW/SW1/SW2 SW-BAND R110 2001-000411 "R-CARBON;18Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
SR0 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH42-20001P "ANT LOOP;-,KS971120-01,18.5UH##10%,-" COMMON R806 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH59-01048A "REMOCON-ASSY;MAX-WB650,SAMSUNG,-,-,27KEY" COMMON R805 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH59-00167A CD-MECHA/DECK ASSY;CMS300-VA COMMON R804 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
R803 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH92-01259A "ASSY PCB;MAX-VL69TH,-" COMMON R209 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
SR1 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
SIC2 0904-001524 "IC-DSP;5L9290,-,QFP,48P,472MIL,16.934"
SR4A 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
SIC3 1003-001100 "IC-MOTOR DRIVER;KA9259D,SOP,28P,184MIL"
SR42A 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
SIC4 1003-001162 "IC-MOTOR DRIVER;KA3082,SIP,10PIN,25MIL,D"
SR40A 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MIC6 1105-001372 "IC-DRAM;K4E151512D,1MX16BIT,SOJ,42P,40"
SR4 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AIC3 1201-000461 "IC-OP AMP;4558,SOP,8P,150MIL,DUAL,20V/mV"
SR3 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MQ1A 1203-001543 "IC-VOLTAGE REGULATOR;78R33,TO-220,4P,400"
SR23 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MIC3 1204-001370 "IC-VIDEO ENCODER;W9952QP,PLCC,32PIN,15.1"
MR36 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MIC4 1204-001723 IC-DECODER;W9923QF
MR35 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
SIC1 1204-001799 "IC-ASP;KB9226,LQFP,48P,393MIL,PLASTIC"
MR34 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MX1 2801-001423 "CRYSTAL-UNIT;16.9344MHz,17ppm,28-AAM,18p"
MR33 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MX2 2801-003130 "CRYSTAL-UNIT;40.5MHz,30ppm,28-AAA,20pF,8"
MR25 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
CW5 3708-000307 "CONNECTOR-FPC/FFC/PIC;7P,1.25mm,ANGLE,SN"
DR61 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
CW6 3708-001131 "CONNECTOR-FPC/FFC/PIC;5P,1.25mm,STRAIGHT"
MR37 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
SW1 3708-001252 "CONNECTOR-FPC/FFC/PIC;16P,1mm,STRAIGHT-F"
R208 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
CW1 3711-000906 "CONNECTOR-HEADER;BOX,3P,1R,2mm,ANGLE,SN"
R207 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
CW7 3711-000988 "CONNECTOR-HEADER;BOX,5P,1R,2mm,ANGLE,SN"
R206 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
CW4 3711-003379 "CONNECTOR-HEADER;NOWALL,3P,1R,2.5mm,STRA"
R204 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MIC1 AH09-00076B "IC MICOM;MSM66587A-127TB,-,-,-,-,-,64KB"
R131 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MIC5 AH14-10004R "IC;M74HCU04,SOP,TAPE 14P"
MR39 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
CW2 AH39-00345A "WIRE HARNESS;G3HI-3CD/VCD,-,-,8P,370MM,-"
R202 2001-000435 "R-CARBON;1Mohm,5%,1/8W,AA,TP,1.8x3.2mm"
CW3 AH39-20561P "LEAD CONNECTOR ASSY;-,5295,PHR,6P,150mm,"
R118 2001-000435 "R-CARBON;1Mohm,5%,1/8W,AA,TP,1.8x3.2mm"
MD2 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
MR57 2001-000435 "R-CARBON;1Mohm,5%,1/8W,AA,TP,1.8x3.2mm"
MD1 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
R210 2001-000515 "R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm"
MZ10 0403-000344 "DIODE-ZENER;UZ3.9B,3.9V,3.7-4.1V,500mW,D"
AR33 2001-000515 "R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm"
SZD2 0403-000358 "DIODE-ZENER;UZ5.6BSB,5.6V,5.46-5.7V,500m"
AR32 2001-000515 "R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm"
SZD1 0403-000361 "DIODE-ZENER;UZ6.2BSB,6.2V,5.99-6.24V,500"
AR31 2001-000515 "R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm"
MQ10B 0501-000010 "TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92,"
AR24 2001-000515 "R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm"
Q101 0501-000323 "TR-SMALL SIGNAL;KSB564A,PNP,800mW,TO-92,"
AR28 2001-000515 "R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm"
MQ2 0501-000610 "TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,"
AR30 2001-000515 "R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm"
AQ5 0501-000637 "TR-SMALL SIGNAL;2SC1740S,NPN,300mW,SPT,T"
R114 2001-000522 "R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AQ3 0501-000637 "TR-SMALL SIGNAL;2SC1740S,NPN,300mW,SPT,T"
MR11 2001-000522 "R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MQ1 0504-000117 "TR-DIGITAL;KSR1002,NPN,300MW,10K/10K,TO-"
AR17 2001-000522 "R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AQ4 0504-000144 "TR-DIGITAL;KSR2002,PNP,300MW,10K/10K,TO-"
AR14 2001-000522 "R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
R121 2001-000008 "R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
R113 2001-000548 "R-CARBON;270Kohm,5%,1/8W,AA,TP,1.8x3.2m"
R116 2001-000009 "R-CARBON;20Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MR52A 2001-000591 "R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m"
R128 2001-000273 "R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m"
R115 2001-000591 "R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m"
R125 2001-000273 "R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m"
MR53A 2001-000660 "R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
FMR2 2001-000273 "R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m"
DR15 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
FMR1 2001-000273 "R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m"
DR11 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR41A 2001-000273 "R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m"
DR10 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
AR12 2001-000273 "R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m"
DR1 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
AR15 2001-000273 "R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m"
DR16 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
AR20 2001-000273 "R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m"
DR4 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
AR22 2001-000273 "R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m"
DR39 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR57 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR38 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR58 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR37 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR59 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR36 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR56 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR35 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR55 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR34 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR54 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR33 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
SR41 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR40 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
R213 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR9 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
R212 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR8 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
R211 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR7 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
R201 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR6 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR60 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR5 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR53 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR44 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR46 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR43 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR45 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR42 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR41 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR32 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR14 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR23 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR13 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR22 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR12 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR21 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR52 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR20 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR51 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR2 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR50 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR19 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR47 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR18 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR48 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR17 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR49 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR24 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
R132 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR31 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
MR40 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR30 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
AR16 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR3 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
AR13 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR29 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
R108 2001-000302 "R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm"
DR28 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
R127 2001-000319 "R-CARBON;120Kohm,5%,1/8W,AA,TP,1.8x3.2m"
DR27 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
R124 2001-000319 "R-CARBON;120Kohm,5%,1/8W,AA,TP,1.8x3.2m"
DR26 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm"
Samsung Electronics 3-1
Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks
DR25 2001-000666 "R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm" C215 2401-000240 "C-AL;100uF,20%,10V,GP,TP,5x11,5"
R123 2001-000702 "R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3.2mm" C217 2401-000240 "C-AL;100uF,20%,10V,GP,TP,5x11,5"
SR42 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m" MCE3A 2401-000240 "C-AL;100uF,20%,10V,GP,TP,5x11,5"
SR39 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m" MCE3D 2401-000240 "C-AL;100uF,20%,10V,GP,TP,5x11,5"
SR38 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m" MCE5 2401-000240 "C-AL;100uF,20%,10V,GP,TP,5x11,5"
R210B 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m" C101 2401-000240 "C-AL;100uF,20%,10V,GP,TP,5x11,5"
R210A 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m" C107 2401-000240 "C-AL;100uF,20%,10V,GP,TP,5x11,5"
PR20 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m" C212 2401-000240 "C-AL;100uF,20%,10V,GP,TP,5x11,5"
MR24A 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m" C133 2401-000240 "C-AL;100uF,20%,10V,GP,TP,5x11,5"
MR23A 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m" C123 2401-000438 "C-AL;10uF,20%,25V,GP,-,5x11,5mm"
R129 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm" ACE2 2401-000438 "C-AL;10uF,20%,25V,GP,-,5x11,5mm"
R110A 2001-000850 "R-CARBON;560Kohm,5%,1/8W,AA,TP,1.8x3.2m" ACE1 2401-000438 "C-AL;10uF,20%,25V,GP,-,5x11,5mm"
R126 2001-000864 "R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm" ACE10 2401-000459 "C-AL;10uF,20%,35V,GP,TP,5.5x7mm,5mm"
R120 2001-000864 "R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm" ACE3 2401-000459 "C-AL;10uF,20%,35V,GP,TP,5.5x7mm,5mm"
R104 2001-000864 "R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm" MC108 2401-000475 "C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm"
R103 2001-000864 "R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm" C132 2401-000778 "C-AL;220uF,20%,10V,GP,6.3x11,5MM,TP"
R102 2001-000864 "R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm" C101A 2401-000778 "C-AL;220uF,20%,10V,GP,6.3x11,5MM,TP"
R101 2001-000864 "R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm" C120A 2401-000830 "C-AL;220uF,20%,25V,GP,TP,8x11.5,5"
MR52 2001-000938 "R-CARBON;68ohm,5%,1/8W,AA,TP,1.8x3.2mm" ACE4 2401-001092 "C-AL;330uF,20%,10V,GP,-,8x11.5,5mm"
MR51 2001-000969 "R-CARBON;75ohm,5%,1/8W,AA,TP,1.8x3.2mm" ACE4A 2401-001364 "C-AL;470uF,20%,16V,GP,TP,10x12.5,5"
R112 2001-000989 "R-CARBON;820Kohm,5%,1/8W,AA,TP,1.8x3.2m" C114 2401-001625 "C-AL;6.8uF,20%,50V,GP,TP,5x11,5"
R133 2001-001000 "R-CARBON;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm" SCE17 2401-001893 "C-AL;100uF,20%,16V,GP,6*7,5MM,TP"
PR50 2001-001004 "R-CARBON;82ohm,5%,1/4W,AA,TP,2.4x6.4mm" SCE7A 2401-001893 "C-AL;100uF,20%,16V,GP,6*7,5MM,TP"
MR10B 2001-001006 "R-CARBON;82ohm,5%,1/8W,AA,TP,1.8x3.2mm" C120 2401-001968 "C-AL;470nF,20%,50V,GP,TP,5x11mm,5mm"
R107 2001-001006 "R-CARBON;82ohm,5%,1/8W,AA,TP,1.8x3.2mm" C106 2401-001968 "C-AL;470nF,20%,50V,GP,TP,5x11mm,5mm"
MC8V 2201-000163 "C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,7" ACE8 2401-001975 "C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm"
MC8B 2201-000163 "C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,7" ACE9 2401-001975 "C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm"
MC21B 2201-000163 "C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,7" MCE1 2401-001975 "C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm"
MC21A 2201-000163 "C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,7" MCE3 2401-001975 "C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm"
C201A 2201-000163 "C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,7" MCE4 2401-001975 "C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm"
MC2 2201-000247 "C-CERAMIC,DISC;0.015nF,5%,50V,NP0,TP,5x3" ML3 2701-000146 "INDUCTOR-AXIAL;2.2uH,10%,2.5x3.4mm"
MC19 2201-000247 "C-CERAMIC,DISC;0.015nF,5%,50V,NP0,TP,5x3" ML1 2701-000150 "INDUCTOR-AXIAL;2.7uH,5%,2.4x3.4mm"
MC18 2201-000247 "C-CERAMIC,DISC;0.015nF,5%,50V,NP0,TP,5x3" ML2 2701-000197 "INDUCTOR-AXIAL;5.6uH,10%,2.5x3.4mm"
MC1 2201-000247 "C-CERAMIC,DISC;0.015nF,5%,50V,NP0,TP,5x3" MB1 3301-000297 "CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,"
C111B 2201-000432 "C-CERAMIC,DISC;2pF,0.3pF,50V,CH,TP,5.0x3" MB2 3301-000297 "CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,"
C122 2201-000646 "C-CERAMIC,DISC;68nF,+80-20%,50V,Y5V,TP,8" AH41-00344A "PCB MAIN;G3HI-3CD/VCD,FR-1,####,-,1.6T,"
MC8A 2201-000751 "C-CERAMIC,DISC;0.039nF,5%,50V,NP0,TP,5x3" MIC2 AJ11-12001A "MASK ROM-SRAM;W24257A,SOJ,-"
MC20 2202-000216 "C-CERAMIC,MLC-AXIAL;.027NF,5%,50V,SL,TP,"
MC17 2202-000231 "C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP" AH97-00857A "ASSY CDP DECK;-,-,G3HI-3CD/VCD"
C128 2202-000644 "C-CERAMIC,MLC-AXIAL;33nF,10%,50V,X7R,TP,"
3302-000159 "MAGNET-FERRITE;AC,-,3500-3800G,2.6-3.2MG"
C119 2202-000644 "C-CERAMIC,MLC-AXIAL;33nF,10%,50V,X7R,TP,"
3809-001121 "CABLE-FLAT;30V,80C,220MM,16P,1MM,UL2896"
C105 2202-000644 "C-CERAMIC,MLC-AXIAL;33nF,10%,50V,X7R,TP,"
6003-000276 "SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(YEL),SWC"
SC49 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH32-10001F "SENSOR;KPI-L06,-,-,-,-,-,-"
SC48 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH38-12001A "WIRE-TRAY;UL2896-E-P-1.25,140"
SC47 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH39-20559G "LEAD CONNECTOR ASSY;-,51004-0200,-,2P,10"
SC46 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH41-10455A "PCB-SW;XPC,197*163*1.6T"
MC9A 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH41-10456A "PCB-SENSOR;XPC,197*163*1.6T,-,-,-,-,-,-,"
MC9 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH60-10051A "SCREW-TAPTITE;-,-,FE,-,B,M3,L8,-,-,-"
MC26 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH60-10107A "SCREW-TAPTITE;-,-,ZPC2,-,+,M3,L12,-,YEL,"
MC25 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH60-10180A "SCREW-TAP TITE;-,MSWR,M2.6,L10,BWH,+,-,-"
MC12 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH60-10184A "SCREW-TAP TITE;-,-,M2.6,L8,PWH,-,PI10,-,"
C129 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH61-00225A "BRACKET-CHUCK;CMS-300,SECC T0.8,-,-,-,-,"
C124 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH61-00837A "BASE-MAIN;CMS-300,ABS BLK,-,-,-,-,-"
C116 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH62-00001A "HEAT SINK--CD;-,-,-,-,-,-,-,MAX-900"
C115 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH63-00003A "SHEET--HIMERON;RC-A260Y,HIMERON,0.5T,15,"
AC12 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH63-00068B "SHEET-CHUCK;MAXN75,HYMERON SHEET,0.45,-,"
AC11 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH63-00324A "TRAY-ROULLETE;CMS-300,ABS BLK,-,-,-,-,-,"
C130 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH63-00325A "TRAY-DISC;CMS-300,ABS BLK,-,-,-,-,-,-"
MC10 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH63-70081C "SHEET-HYMERON;-,T0.3,L39,-,W32,-,DVC500R"
MC11 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5"
AH66-10008A "PULLEY-MOTOR;POM,BLK,CMS-CR3"
MC16 2202-000781 "C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP"
AH66-20186A "GEAR-PULLEY;-,POM (M90-44),-,WHT,-,CMS-3"
C111A 2202-000781 "C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP"
AH66-20187A "GEAR-LOAD;-,POM (M90-44),M1.0/0.8,Z14/68"
AC5 2202-000791 "C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP"
AH66-20188B "GEAR-CAM;CMS-300,POM(M90-44),M1/1,Z80/8"
AC6 2202-000791 "C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP"
AH66-20189B "GEAR-TRAY;CMS-300,POM(M90-44),M1/1.5,Z20"
C117 2202-000796 "C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3"
AH66-20190B "GEAR-CONVERT;CMS-300,POM(M90-44),M1/1.5,"
C112 2202-000796 "C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3"
AH66-20191A "GEAR-SYNCRO;-,ABS(HF-380),-,Z18,NTR,PCD1"
C102 2202-000796 "C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3"
AH66-20192A "GEAR-WORM;-,POM (M90-44),M0.5,-,-,PCD4.5"
SC45 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH66-20193A "GEAR-ROULETTE;-,POM (M90-44),M0.8,Z14,-,"
MC21 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH66-30098A "LEVER-LIFTER;-,ABS(BLK),-,-,-,CMS-300D"
C218 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH66-60034A "BELT-LOAD;-,CR,T1.5,10%,L155.24,BLK,CMS-"
C216 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH66-80022A "SLIDER-CAM;CMS-300,ABS,T2.5,-,-,NTR,-"
MC9V 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH66-90053A "TRAY-CHUCK UNION;CMSA3,ABS,-,-,-,-,BLK,G"
MC8 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH68-50254B "LABEL-SERIAL;ART PAPER,T0.1,L10,W45,-,-,"
MC6 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH69-20056A "CUSHION-ROULETTE;HYMERON,-,-,-,BLK,CMS-C"
MC5 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH69-20338A "CUSHION-TRAY;-,HYMERON,0.3,PI5.0,-,-,CMS"
MC4 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH69-20342A "CUSHION-MOTOR;-,HYMERON,0.4,37,14,-,-"
C201 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH73-10031A "RUBBER-CD;RUBBER,-,RCD380,-"
C134 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH73-10034A "RUBBER-CD(G);SI,-,CMS-300D,40 GREEN"
C121 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
C113 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AJ59-20150F "DECK-LDP;CVM55R2/EXP,-,-,-,-"
C111 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
3405-000101 "SWITCH-MICRO;1.6V,1A,70gf,SPST"
C103 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
3710-000544 "CONNECTOR-SOCKET;42140-2203 3P ,1R,2.5MM"
C204 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
3711-000826 "CONNECTOR-HEADER;BOX,2P,1R,2mm,ANGLE,SN"
C209 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH31-10021A "MOTOR-DC;RF-500TB,9VDC/130mA,"
C213 2202-000797 "C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,"
AH31-12001A MOTOR-LOADING;FF-030PN-09210
C127 2202-000806 "C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP"
C125 2202-000814 "C-CERAMIC,MLC-AXIAL;390pF,10%,50V,Y5P,TP"
AH91-60150C "ASSY CDP DECK;CMS-D73SG6(U)/JVC,CMS-300D"
MC13 2202-000825 "C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP"
3409-001078 "SWITCH-LEAF;16Vdc,500mA,10gf,SPST"
C203 2202-000829 "C-CERAMIC,MLC-AXIAL;820pF,10%,50V,Y5P,3."
AH30-00007A "PICK UP;SOH-AD3,-,-,-,100*80*45,D73SG6"
C104 2202-000848 "C-CERAMIC,MLC-AXIAL;1.5nF,30%,50V,Y5S,TP"
AH81-00614A "A/S-SHAFT-PU;-,METAL,-,-,-,-,-"
C126 2202-000850 "C-CERAMIC,MLC-AXIAL;2.2NF,20%,16V,Y5R"
AH81-00614B "A/S-SCREW;-,METAL,AJ60-00601D,-,-,-,-"
MC15 2202-000851 "C-CERAMIC,MLC-AXIAL;270PF,10%,50V,Y5P,TP"
AH81-00614C "A/S-SCREW;-,METAL,6003-000294,-,-,-,-"
C118 2301-000375 "C-FILM,PEF;100nF,10%,TP,50V,11x12.5x6.5,"
AH81-00614D "A/S-WASHER;-,PBT,AJ60-00608A,-,-,-,-"
C124A 2301-000456 "C-FILM,PEF;56nF,10%,50V,-,9.5x12.5x5mm,-"
AH81-00614E "A/S-GEAR(C);-,PBT,AJ66-00006A,-,-,-,-"
3-2 Samsung Electronics
Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks
AH81-00614F "A/S-GEAR(B);-,PBT,AJ66-00005A,-,-,-,-" UR70 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH81-00614G "A/S-GEAR(A);-,PBT,AJ66-00004A,-,-,-,-" UR71 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH81-00614H "A/S-MOTOR-FEED;-,-,AJ31-00601E,-,-,-,-" UR42 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH81-00614J "A/S-MOTOR-PCB ASSY;-,-,AJ41-00601S,-,-,-" UR27 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH81-00614K "A/S-CONNECTOR;-,-,AJ37-00601A,-,-,-,-" UR28 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR3 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH92-01375H ASSY PCB-FRONT;MAX-WB650 UR39 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR4 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UIC2 0904-001621 "IC-I/O CONTROLLER;PT8300,16BIT,SOP,28P,3"
UR40 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UIC3 0904-001621 "IC-I/O CONTROLLER;PT8300,16BIT,SOP,28P,3"
UR41 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MIC1 1201-001572 "IC-PREAMP;2011,SIP,7P,17MIL,SINGLE,47,PL"
UR86 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MVR1 2101-001052 "VR-ROTARY;10KOHM,10%,0.05W,TOP"
UR87 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UX2 2801-001394 "CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY,12.5"
UR9 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UX1 2802-001174 "RESONATOR-CERAMIC;10MHZ,0.5%,BK,8X3.5X3M"
UR92 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UVR1 3406-001047 "SWITCH-ROTARY;5V DC,0.5mA,-,12mm"
UR93 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UVR3 3406-001047 "SWITCH-ROTARY;5V DC,0.5mA,-,12mm"
UR94 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UVR2 3406-001050 "SWITCH-ROTARY;5V DC,0.5mA,click,12mm"
UR95 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
VCW1 3708-000449 "CONNECTOR-FPC/FFC/PIC;7P,1.25mm,STRAIGHT"
UR85 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UCW4 3708-000451 "CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH"
UR72 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UCW2 3708-000451 "CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH"
UR73 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UCW1 3708-000451 "CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH"
UR8 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UCW5 3708-000451 "CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH"
UR80 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UCW7 3708-000454 "CONNECTOR-FPC/FFC/PIC;22P,1.25mm,STRAIGH"
UR81 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UCW3 3708-000454 "CONNECTOR-FPC/FFC/PIC;22P,1.25mm,STRAIGH"
UR82 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UCH1 3711-000827 "CONNECTOR-HEADER;BOX,2P,1R,2mm,STRAIGHT,"
UR84 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UCH2 3711-001018 "CONNECTOR-HEADER;BOX,5P,1R,2mm,STRAIGHT,"
UR100 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
HJACK1 3722-000351 "JACK-PHONE;11P,3.5PI,AG,BLK,-"
UR10 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MJACK2 3722-001190 "JACK-PHONE;9P/2C,6.43PI,AU,BLK,RC6701(EI"
UR1 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MJACK1 3722-001190 "JACK-PHONE;9P/2C,6.43PI,AU,BLK,RC6701(EI"
UR137 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
RE-EYE AC59-60060A "MODULE REMOCON;GP1U281R,SHARP,38KHZ,-,-,"
UR138 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UVFD1 AH07-00066A "VF DISPLAY;HNA-16LM24T,MAX-B550/570/VB55"
UR139 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UIC1 AH11-00074B "MASK ROM;LC876748A-50K1,MAX-VB630,48K,-"
UR14 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UCA2 AH39-00101A "LEAD CONNECTOR ASSY;-,5295,51004,5P,150M"
UR101 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UCA1 AH39-00109A "LEAD CONNECTOR ASSY;-,5295,51004,2P,140M"
UR135 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH39-50001L "WIRE HARNESS;RING,1007#24,200MM,BLK"
UR13 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH39-50001N "WIRE HARNESS;RING,1007#24,250MM,BLK"
UR122 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
AH61-00521A "HOLDER-VFD;MAXL65,ABS,-,-,-,BLK,-"
UR121 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD17 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
UR120 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD3 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
UR12 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD22 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
UR11 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD2 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
UR180 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD18 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
UR181 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD20 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UR2 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD21 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UR23 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD23 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UR24 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD27 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UR25 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD30 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UR26 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD15 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UR179 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD16 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UR140 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UD19 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UR141 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UZD2 0403-000393 "DIODE-ZENER;UZP5.1B,5.1V,4.8-5.4V,1W,DO-"
UR142 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UZD1 0403-000393 "DIODE-ZENER;UZP5.1B,5.1V,4.8-5.4V,1W,DO-"
UR143 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UQ2 0501-000398 "TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T"
UR15 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UQ1 0501-000398 "TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T"
UR16 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UQ6 0501-000407 "TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9"
UR176 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UQ5 0501-000407 "TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9"
UR21 2001-000295 "R-CARBON;10MOHM,5%,1/8W,AA,TP,1.8X3.2MM"
UQ4 0501-000407 "TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9"
UR19 2001-000362 "R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm"
UQ3 0501-000407 "TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9"
UR133 2001-000405 "R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM"
UQ9 0501-000610 "TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,"
UR131 2001-000405 "R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM"
UQ8 0501-000610 "TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,"
UR111 2001-000405 "R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM"
UQ7 0501-000610 "TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,"
UR109 2001-000405 "R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM"
UQ12 0504-000118 "TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TO-"
UR108 2001-000405 "R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM"
UQ11 0504-000118 "TR-DIGITAL;KSR1003,NPN,300MW,22K/22K,TO-"
UR89 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
ULD1 0601-001238 "LED;ROUND,RED,3.1mm,697nm"
UR128 2001-000429 "R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
ULD2 0601-001238 "LED;ROUND,RED,3.1mm,697nm"
UR22 2001-000435 "R-CARBON;1Mohm,5%,1/8W,AA,TP,1.8x3.2mm"
ULD3 0601-001238 "LED;ROUND,RED,3.1mm,697nm"
MR4 2001-000435 "R-CARBON;1Mohm,5%,1/8W,AA,TP,1.8x3.2mm"
ULD4 0601-001238 "LED;ROUND,RED,3.1mm,697nm"
UR88 2001-000449 "R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m"
ULD5 0601-001238 "LED;ROUND,RED,3.1mm,697nm"
UR17 2001-000449 "R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m"
MR5 2001-000005 "R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR110 2001-000449 "R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR62 2001-000008 "R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MR6 2001-000449 "R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR69 2001-000008 "R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
MR2 2001-000449 "R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR150 2001-000027 "R-CARBON;100ohm,5%,1/4W,AA,TP,2.4x6.4mm"
UR18 2001-000508 "R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR106 2001-000037 "R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4"
UR44 2001-000522 "R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR107 2001-000037 "R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4"
UR124 2001-000522 "R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR90 2001-000221 "R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR145 2001-000591 "R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR129 2001-000221 "R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR52 2001-000613 "R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR130 2001-000241 "R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR61 2001-000660 "R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR91 2001-000241 "R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR68 2001-000660 "R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR112 2001-000258 "R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m"
MR1 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m"
MR40 2001-000273 "R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR57 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m"
MR3 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR56 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR170 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR55 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR171 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR53 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR172 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR51 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR74 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
MR7 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR75 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR132 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR76 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR146 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR77 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR46 2001-000734 "R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m"
UR78 2001-000281 "R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR35 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR43 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR34 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR5 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR33 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR54 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR36 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR6 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR37 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
UR7 2001-000290 "R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm"
Samsung Electronics 3-3
Location no Code no. Description Specifiation Remarks Location no Code no. Description Specifiation Remarks
UR38 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm" RC1 2401-001943 "C-AL;3300uF,20%,50V,GP,BK,25x40mm,1"
UR134 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm" RC4 2401-003755 "C-AL;6800UF,20%,35V,BP,TP,22X40MM,1"
UR200 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm" RC3 2401-003755 "C-AL;6800UF,20%,35V,BP,TP,22X40MM,1"
UR29 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm" RSW1 3408-000177 "SWITCH-SLIDE;250V,5A,DPDT,-OFF-" OPTION
UR30 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm" RRL1 3501-001008 "RELAY-POWER;12Vdc,530mW,10A,1FormC,15mS,"
UR31 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm" RF2 3601-000248 "FUSE-CARTRIDGE;250V,2A,TIME-LAG,GLASS,5x"
UR32 2001-000786 "R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm" RF1 3601-000282 "FUSE;250V,4A,TIME-LAG,GLASS,5.2x20m"
UR20 2001-000850 "R-CARBON;560Kohm,5%,1/8W,AA,TP,1.8x3.2m" TCW1 3708-000122 "CONNECTOR-FPC/FFC/PIC;11P,1.25mm,ANGLE,S"
UR119 2001-000890 "R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m" FCW4 3708-000181 "CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH"
UR113 2001-000995 "R-CARBON;820ohm,5%,1/8W,AA,TP,1.8x3.2mm" FCW2 3708-000181 "CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH"
UR127 2001-000995 "R-CARBON;820ohm,5%,1/8W,AA,TP,1.8x3.2mm" FCW1 3708-000181 "CONNECTOR-FPC/FFC/PIC;16P,1.25mm,STRAIGH"
UR60 2001-001192 "R-CARBON(S);820ohm,5%,1/2W,AA,TP,2.4x6.4" RCW2 3711-000190 "CONNECTOR-HEADER;1WALL,2P,1R,7.92mm,STRA"
UR59 2001-001192 "R-CARBON(S);820ohm,5%,1/2W,AA,TP,2.4x6.4" VCW2 3711-000820 "CONNECTOR-HEADER;BOX,2P,1R,2.5mm,STRAIGH"
UR58 2001-001192 "R-CARBON(S);820ohm,5%,1/2W,AA,TP,2.4x6.4" DCW2 3711-000907 "CONNECTOR-HEADER;BOX,3P,1R,2mm,STRAIGHT,"
URV1 2103-000341 "VR-SEMI;2Kohm,30%,1/10W,TOP" CCW1 3711-001137 "CONNECTOR-HEADER;BOX,8P,1R,2mm,STRAIGHT,"
UC11 2201-000300 "C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5" RCW1 3711-003075 "CONNECTOR-HEADER;NOWALL,6P,1R,8mm,STRAIG"
HC2 2201-000300 "C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5" DCW3 3711-003107 "CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH"
HC1 2201-000300 "C-CERAMIC,DISC;1nF,20%,50V,Y5T,TP,5x3,5" DCW1 3711-003111 "CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH"
UC8 2201-000389 "C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3" RCW5 3711-003112 "CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH"
UC7 2201-000389 "C-CERAMIC,DISC;0.022nF,5%,50V,NP0,TP,5x3" ACW1 3711-003113 "CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH"
ZC2 2201-000565 "C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12" AJCK 3722-000377 "JACK-PIN;4P/2C,3.5mm,SN,BLK,#16~22"
ZC1 2201-000565 "C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12" VJACK1 3722-000379 "JACK-PIN;4P/2C,3.5mm,#16~22,SN"
UC35 2201-000565 "C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12" 6003-000283 "SCREW-TAPTITE;BH,+,B,M3,L8,ZPC(YEL),SM20"
UC3 2201-000565 "C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12" 6003-000283 "SCREW-TAPTITE;BH,+,B,M3,L8,ZPC(YEL),SM20"
UC15 2201-000565 "C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12" AH26-00135C TRANS POWER-XFO TRANS POWER;XFO TRANS PO
UC10 2201-000565 "C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12" DL2 AH26-10002W "TRANS TRAP-COIL;BIAS-TRAP105K,BIAS-TRAP,"
UC1 2201-000565 "C-CERAMIC,DISC;47nF,+80% -20% 50V Y5V 12" DL1 AH26-10002W "TRANS TRAP-COIL;BIAS-TRAP105K,BIAS-TRAP,"
UC17 2201-000783 "C-CERAMIC,DISC;100nF,+80-20%,50V,Y5V,TP," DL4 AH26-10003C "TRANS TRAP-COIL;PCHNS-5371EQJ,BIAS-TRAP,"
UC60 2202-000780 "C-CERAMIC,MLC-AXIAL;100nF,+80-20%,50V,Y5" RL2 AH27-90001A "COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-"
UC25 2202-000796 "C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3" RL1 AH27-90001A "COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-"
UC24 2202-000796 "C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3" VJCK1 AH37-00005A "JACK--RCA;1P,S-440B,YELLOW,-,SHIELD PLAT"
UC21 2202-000796 "C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3" VCW1 AH39-00362A "LEAD CONNECTOR ASSY;MAX-VL69,#1007,26,UL"
UC18 2202-000796 "C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3" AH61-40014A "SUPPORT-RIVET;-,-,-,-,-,-,-"
UC19 2202-000796 "C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3" AH62-00044A "HEAT SINK-,IC;MAX-L85,AL 3.0T,-,-,-,-,-,"
UC20 2202-000796 "C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3" AH62-30062C "HEAT SINK-TR;RCD-1650,AL,-,EXTR,BLK,-,RC"
ZC3 2202-000854 "C-CERAMIC,MLC-AXIAL;47nF,30%,50V,Y5R,TP," AH63-00278A "COVER-PCB;MAX-WL85,PVC 0.5T,-,-,-,-,CLR,"
MC4 2401-000438 "C-AL;10uF,20%,25V,GP,-,5x11,5mm" WJMP1 AH65-30013A "CLAMP-CORD;-,-,-,-,-,-"
UC9 2401-000475 "C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm" TD2 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
UC2 2401-000475 "C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm" TD1 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
MC5 2401-001022 "C-AL;3.3UF,20%,50V,GP,TP,5X11,5" RD8 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
UC13 2401-001355 "C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5" KD2 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
UC27 2401-001893 "C-AL;100uF,20%,16V,GP,6*7,5MM,TP" DD1 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
UC26 2401-001893 "C-AL;100uF,20%,16V,GP,6*7,5MM,TP" FD1 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
MC1 2401-001893 "C-AL;100uF,20%,16V,GP,6*7,5MM,TP" KD1 0401-000101 "DIODE-SWITCHING;1N4148,100V,200mA,DO-35,"
UC5 2401-001893 "C-AL;100uF,20%,16V,GP,6*7,5MM,TP" RD4 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UC4 2401-001893 "C-AL;100uF,20%,16V,GP,6*7,5MM,TP" RD5 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UC36 2401-001893 "C-AL;100uF,20%,16V,GP,6*7,5MM,TP" RD50 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UC16 2401-001893 "C-AL;100uF,20%,16V,GP,6*7,5MM,TP" RD6 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UC14 2401-001893 "C-AL;100uF,20%,16V,GP,6*7,5MM,TP" RD7 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UC100 2401-001893 "C-AL;100uF,20%,16V,GP,6*7,5MM,TP" RD1 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
MC6 2401-001912 "C-AL;1uF,20%,50V,GP,5*11,5mm,TP" RD12 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
MC3 2401-001912 "C-AL;1uF,20%,50V,GP,5*11,5mm,TP" RD14 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UC12 2401-001919 "C-AL;2.2uF,20%,50V,GP,4*7,5MM,TP" RD2 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
UC6 2401-001931 "C-AL;220nF,20%,50V,-,TP,4x7mm,5" RD3 0402-000127 "DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP"
MC2 2401-001975 "C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm" RD13 0402-000151 "DIODE-RECTIFIER;1N5392,100V,1.5A,DO-15,T"
MC30 2401-002180 "C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm" RZD7 0403-000352 "DIODE-ZENER;UZ4.7BM,4.7V,4.4-5.0V,500mW,"
HL2 2701-000111 "INDUCTOR-AXIAL;100uH,10%,2.5x3.4mm" RZD1 0403-000354 "DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D"
HL1 2701-000111 "INDUCTOR-AXIAL;100uH,10%,2.5x3.4mm" KZD1 0403-000354 "DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D"
HR2 2701-000177 "INDUCTOR-AXIAL;33uH,10%,2.5x3.4mm" FZD1 0403-000372 "DIODE-ZENER;UZ9.1BM,9.1V,8.7-9.4V,500mW,"
HR1 2701-000177 "INDUCTOR-AXIAL;33uH,10%,2.5x3.4mm" RZD5 0403-000380 "DIODE-ZENER;UZP13B,13V,12.4-14.1V,1W,DO-"
PCB1 AH41-00448A "PCB-PCB FRONT;MAX-WB650/VB630/675,-,-,-," RZD6 0403-000396 "DIODE-ZENER;UZP6.8B,6.8V,6.4-7.2V,1W,DO-"
RZD3 0403-000564 "DIODE-ZENER;TZP16A,16 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
