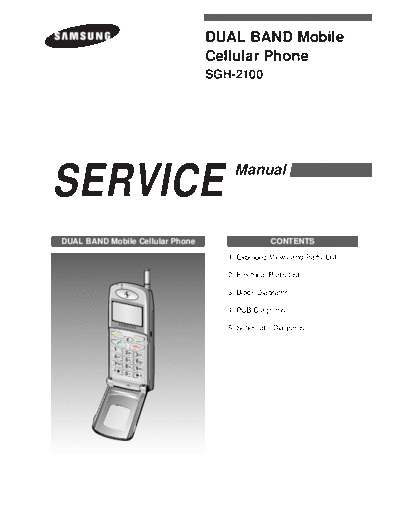

Image preview - the first page of the document
>> Download Samsung SGH-2100 service manual documenatation <<
Text preview - extract from the document
DUAL BAND Mobile
Cellular Phone
SGH-2100
SERVICE Manual
DUAL BAND Mobile Cellular Phone CONTENTS
1. Exploded Views and Parts List
2. Electrical Parts List
3. Block Diagrams
4. PCB Diagrams
5. Schematic Diagrams
1
2ABC 3 DEF
4 GHI
5 JKL 6MNO
7PQRS
8TUV 9WXYZ
0
ELECTRONICS
Samsung Electronics Co.,Ltd.
Printed in Korea
05/1999 Rev 1.0
GH68-00542A
Exploded Views and Parts List
1. Exploded Views and Parts List
1-1 Main
6
1
7
2
8
3
9
10 18
4 11
5 19
20
21
12
13 22
14
15
16 23
17
24
27 25
28 26
29 32
33
30 20
34
31 35
36
37
40
38
41
39 42
43
44
45
46
47
Exploded Views and Parts List 1-1
1-2 Main Parts List
NO DESCRIPTION SEC.CODE Q'TY REMARK
1 HALF-MIRROR GH72-00274A 1
2 TAPE-H/DUMMY GH74-00197A 1
3 H/FLIP GH72-00381A 1
4 MARGNETIC 937-312008AA 1
5 LABEL-FLIP GH68-11192A 1
6 TAPE WINDOE BOHO GH72-10001A 1
7 WINDOW LCD GH72-00139A 1
8 TAPE-WINDOW GH74-40520A 1
9 REFLETOR LED GH72-41576A 1
10 COVER EAR-JACK GH73-40726A 1
11 KEY VOLUMN GH73-40724A 1
12 HINGE-HOUSING GH72-41360A 2
13 SHAFT-HINGE GH72-41057A 2
14 HINGE-CAM GH61-80002A 2
15 SPRING-HINGE GH70-10680A 2
16 HOUSING-CAP GH72-41056A 2
17 KEY MAIN GH72-41756A 1
18 CLOTH-BUZZER GH63-20001A 1
19 FRONT-COVER GH72-41742A 1
20 SHIELD STRIP(C) GH71-10641A 2
21 SHIELD STRIP(B) GH71-10640A 1
22 SPONGE-LCD GH74-40521A 1
23 RUBBER-BUZZER GH73-40723A 1
24 SUPPORT SPK GH74-00131A
25 BACKUP TAPE GH74-40518A 1
26 KEY PCB GH59-00025A 1
27 HOLDER MIC GH73-40641A 1
28 SPK SPONGE GH74-10604A 1
29 SHIELD-FRAME GH72-41753A 1
30 MAIN PCB GH92-00740A 1
31 COVER CONNECTOR GH73-40686A 1
32 JACK-COVER GH73-10514A 1
33 ANTENNA CON. GH71-00020A 1
34 VIBRATOR GH31-10004A 1
35 ANTENNA BRK GH71-00021A 1
36 ANT GH42-00012A 1
37 REAR-COVER GH72-417423A 1
38 SCREW-MACHINE 6001-001046 4
1-2 Exploded Views and Parts List
NO DESCRIPTION SEC.CODE Q'TY REMARK
39 LABEL MAIN GH68-00352A 1
40 SPRING-LOCKER GH70-10516A 1
41 LOCKER-MAIN GH72-41373A 1
42 SPRING-SIM GH70-00006A 2
43 COVER-SIM GH72-00088A 1
45 BATTERY SLIM GH43-00029A
46 BATTERY STD GH43-00027A
47 BATTERY LONG GH43-00028A
Exploded Views and Parts List 1-3
1-3 Travel Adaptor
A B
C
1-4 Travel Adaptor Parts List
TYPE SEC CODE REMARK
A GH96-01143A CHINA
B GH96-01146A EUROPE
C GH96-01095A UNITED KINGDOM
1-4 Exploded Views and Parts List
1-5 Desk Top Charger
SEC CODE : GH44-00046A
1
2
5 4
3
6
7
8
9
10
11
12
13
14
16
15
Exploded Views and Parts List 1-5
1-6 Desk Top Charger Parts List
NO DESCRIPTION SEC.CODE Q'TY REMARK
1 UPPER-CASE 1
2 GATE-LABEL 1
3 BATTERY-HOUSING 1
4 HANDY-LOCKER 2
5 SCREW-TAPPING 4
6 BATTERY-LOCKER 2
7 HANGER-SPRING(R), (L) 1, 1
8 SCREW-TAPPING 3
9 CONTACT-PLATE 8
10 CONTACT-HOUSING 2
11 PCB 1
12 SCREW-TAPPING 1
13 LOWER-CASE 1
14 FOOT-RUBBER 4
15 LABEL NAME 1
16 SCREW-TAPPING 4
1-6 Exploded Views and Parts List
1-7 Ciger Light Adaptor
1-8 Ciger Light Adaptor Parts List
DESCRIPTION SEC CODE REMARK
Ciger Light Adaptor Code GH44-00040A BLACK
Exploded Views and Parts List 1-7
1-8
SEC CODE : GH96-00800A
1-9 Hands Free Kit
Phone Microphone
Hands-Free Box
Speaker
Antenna
CAL. S/W
Cradle
Red (Battery (+))
Exploded Views and Parts List
Black (GND) Bracket
Orange (ignition)
White (Stereo Mute) Bracket
1-10 Test Zig
TEST JIG GH80-10508A
DATA CABLE GH39-30532A
1-11 Earphone
EARPHONE GH96-00820A
Exploded Views and Parts List 1-9
2 Electrical Parts List
2-1 Main Parts List
LOCATION SEC.CODE DESCRIPTIONS
D401,D801 0401-001033 MCL4154,25V,200mA,M-MELF,TP
D253,D255,D808 0404-001044 UPS5817,20V,1A,SMD,TP
D400 0404-001054 HSMS-2805,70V,15mA,SOT-143,TP
D600 0405-001051 SMV1249,4.7V,50NA,SOT-23,TP
D176,D177 0406-001051 SMS05C,6V,300W,SOT-23-6
D252 0407-001002 DAN222,80V,300mA,CA2-3,EM3,TP
D901,D902 0407-001006 DA221,20V,100mA,C2-3,EM3,TR
D251 0407-001007 UMN1,80V,25mA,CA4-2,UM5,TR
Q152,Q950,Q951 0501-002011 2SD2114K,NPN,200mW,SOT-23,TP,8
Q300 0501-002037 BFP405,NPN,55mW,SOT-343,TP,50-
Q601,Q604 0501-002196 BFS17W,NPN,280mW,SOT-323,TP,20
U307 0501-002205 BCR400W,NPN,-,SOT-343,TP,-
Q151,Q153 0504-000167 RN1102,NPN,100MW,10K/10K,SSM,TP
Q255,Q256,Q257 0504-000168 RN1104,NPN,100MW,47K/47K,SSM,TP
Q500 0505-000110 2N7002,N,60V,115mA,5ohm,200mW,
U501,U502 0505-001131 TP0101T,P,-12V,-500mA,690mohm,
Q957 0505-001332 FDG6301,N,25V,0.22A,4OHM,.3W,SC70-6
Q600 0506-000173 BFS480,NPN,2,80mW,SOT-363,TP,3
U128,U252,U302,U303 0506-001004 UMC5N,NPN/PNP,2,50V,-,-100mA,3
U400,U403,U412,U813 0506-001004 UMC5N,NPN/PNP,2,50V,-,-100mA,3
LED100 0601-000276 CHIP,Y/GRN,1.6x2.0mm,570nm
U902,U903 0801-000022 7S00,NAND GATE,SOP,5P,49MIL,SINGLE,TP,PLASTIC,-,-,-,-40TO+85C,200MW,-,25MA,-,-
U900,U901,U904,U906 0801-000794 7S08,AND GATE,SOT-25,5P,63MIL,
U905 0801-002345 7S04FU,INVERTER,SOP,5P,-,-,TP,
U413,U414 0801-002349 7S66,BILATERAL SWITCH,SOP,5P,5
U962,U963 1001-001088 MAX4544EUT-T,-,SOT-23,6P,-,SINGLE,13V,-40TO+85C,PLASTIC,571MW,60 OHM,75NS,100NS,
U203 1103-001090 24C128,16Kx8BIT,SOP,8P,150MIL,
U105 1106-001272 4MBIT,TSOP,32P,813MIL,100NS,3V,-,PLASTIC,-40TO+85C,15UA,CMOS,-
U103 1107-001062 1Mx8BIT,SON,46P,-,100n
U104 1107-001158 1MX16BIT,SOP,46P,90MIL,120NS,3V,-,PLASTIC,-40TO+85CC,5UA,CMOS,-
U406 1201-001018 7131,SOT-23,5P,-,SINGLE,70dB,P
U127 1201-001212 925,TSSOP,16P,150MIL,DUAL,200MV,PLASTIC,14V,-,-40TO+125C,80DB,1.3V/US,1NA,15NA,3
U604 1201-001248 0916,SOT-143,4P,-,-,2.7V,-,6Vd
U402 1201-001299 RF-K,8P,-,SINGLE,-,-,8V,
U408 1201-001411 RF-K,5P,-,-,-,MODULE,8V,3W,-30TO+100C,-,-,-,-,-
U960 1202-001022 75W56,SSOP,8P,110MIL,DUAL,7V,C
U801,U803,U805,U806 1203-001285 5205,SOT-23,5P,150MIL,PLASTIC,
U810,U811 1203-001285 5205,SOT-23,5P,150MIL,PLASTIC,
2-1 Electrical Parts List
LOCATION SEC.CODE DESCRIPTIONS
U809 1203-001511 809,SOT-23,3P,-,PLASTIC,0.3/6.
U253 1203-001515 SSOP,16P,150MIL,PLASTIC,3
U804 1203-001592 1015,SOT-23A-5,5P,59MIL,PLASTI
U812 1203-001702 SOP,10P,112MIL,PLASTIC,2/5.5V,444MW,-40TO+85C,220MA,1.3V,TP
U102 1203-001740 1555,SOP,16P,150MIL,PLASTIC,-0.3/12V,-,-0TO+70C,20MA,4.75/5.25V,ST
U301 1204-001006 SOP,20P,205MIL,PLASTIC,3
U300,U305 1205-001307 SOP,16P,197MIL,PLASTIC
U200 1205-001327 QFP,144P,14MIL,PLAST
U950 1205-001697 TQFP,80P,472MIL,PLASTIC,3V,-,-,TR,VLSI
U202 1206-001009 RS5C372A,SOP,8P,173MIL,PLASTIC
U603 1209-001220 SOP,20,173MIL,PLASTIC,
U500 1209-001233 SSOP,28P,-,PLASTIC,5.5V,-,-20TO+85C,TP
TH1 1404-001005 47Kohm,5%,4050K,2.0mW/C,TP
D179 1405-001018 14V,-,1.6x0.8mm,TP
D103,D104,D819 1405-001019 5.6V,-,1.6x0.8mm,TP
D101,D102 1405-001072 5V,20A,1.6X0.8X0.9MM,TP
R113,R114 2007-000072 47ohm,5%,1/16W,DA,TP,1608
R105,R129,R135,R163 2007-000138 100ohm,5%,1/16W,DA,TP,1005
R177,R178,R179,R182 2007-000138 100ohm,5%,1/16W,DA,TP,1005
R183,R185,R186,R187 2007-000138 100ohm,5%,1/16W,DA,TP,1005
R188,R621,R653,R970 2007-000138 100ohm,5%,1/16W,DA,TP,1005
R644 2007-000139 220ohm,5%,1/16W,DA,TP,1005
R160,R220,R221,R529 2007-000140 1Kohm,5%,1/16W,DA,TP,1005
R611,R646,R811,R951 2007-000140 1Kohm,5%,1/16W,DA,TP,1005
R954 2007-000140 1Kohm,5%,1/16W,DA,TP,1005
R640 2007-000141 2.2Kohm,5%,1/16W,DA,TP,1005
R309,R609 2007-000142 2.7Kohm,5%,1/16W,DA,TP,1005
R162,R351 2007-000143 4.7Kohm,5%,1/16W,DA,TP,1005
R606,R628 2007-000145 6.2Kohm,5%,1/16W,DA,TP,1005
R603 2007-000146 6.8Kohm,5%,1/16W,DA,TP,1005
R104,R152,R205,R210 2007-000148 10Kohm,5%,1/16W,DA,TP,1005
R232,R235,R238,R253 2007-000148 10Kohm,5%,1/16W,DA,TP,1005
R256,R363,R418,R419 2007-000148 10Kohm,5%,1/16W,DA,TP,1005
R605,R630,R637,R906 2007-000148 10Kohm,5%,1/16W,DA,TP,1005
R907,R952,R962,R963 2007-000148 10Kohm,5%,1/16W,DA,TP,1005
R984,R985 2007-000148 10Kohm,5%,1/16W,DA,TP,1005
R300 2007-000152 20Kohm,5%,1/16W,DA,TP,1005
R622 2007-000153 22Kohm,5%,1/16W,DA,TP,1005
R126,R208,R218,R219 2007-000157 47Kohm,5%,1/16W,DA,TP,1005
R352,R353 2007-000157 47Kohm,5%,1/16W,DA,TP,1005
R257 2007-000159 56Kohm,5%,1/16W,DA,TP,1005
R100,R101,R102,R151 2007-000162 100Kohm,5%,1/16W,DA,TP,1005
Electrical Parts List 2-2
LOCATION SEC.CODE DESCRIPTIONS
R153,R209,R212,R213 2007-000162 100Kohm,5%,1/16W,DA,TP,1005
R214,R215,R222,R231 2007-000162 100Kohm,5%,1/16W,DA,TP,1005
R251,R252,R254,R255 2007-000162 100Kohm,5%,1/16W,DA,TP,1005
R263,R264,R528,R812 2007-000162 100Kohm,5%,1/16W,DA,TP,1005
R972,R980 2007-000162 100Kohm,5%,1/16W,DA,TP,1005
R610,R639 2007-000164 150Kohm,5%,1/16W,DA,TP,1005
R131,R184,R326,R327 2007-000171 0ohm,5%,1/16W,DA,TP,1005
R361,R505,R531,R624 2007-000171 0ohm,5%,1/16W,DA,TP,1005
R631,R647,R800,R809 2007-000171 0ohm,5%,1/16W,DA,TP,1005
R828,R955,R968,R978 2007-000171 0ohm,5%,1/16W,DA,TP,1005
R986,L312 2007-000171 0ohm,5%,1/16W,DA,TP,1005
R180,R181,R308,R500 2007-000172 10ohm,5%,1/16W,DA,TP,1005
R501,R502,R503,R504 2007-000172 10ohm,5%,1/16W,DA,TP,1005
R517,R524,R527,R601 2007-000172 10ohm,5%,1/16W,DA,TP,1005
R602,R607,R633,R638 2007-000172 10ohm,5%,1/16W,DA,TP,1005
R650,R989,R990 2007-000172 10ohm,5%,1/16W,DA,TP,1005
R651,R654 2007-000173 22ohm,5%,1/16W,DA,TP,1005
R515,R516,R518 2007-000932 470ohm,5%,1/16W,DA,TP,1005
R130,R136,R417 2007-001119 680ohm,5%,1/16W,DA,TP,1005
R428 2007-001217 82ohm,5%,1/16W,DA,TP,1005
R623,R625,R627 2007-001288 18ohm,5%,1/16W,DA,TP,1005
R431 2007-001295 39ohm,5%,1/16W,DA,TP,1005
R305,R364,R410,R420 2007-001298 51ohm,5%,1/16W,DA,TP,1005
R511,R519,R520,R648 2007-001298 51ohm,5%,1/16W,DA,TP,1005
R649 2007-001298 51ohm,5%,1/16W,DA,TP,1005
R445 2007-001301 68ohm,5%,1/16W,DA,TP,1005
R404,R406,R617 2007-001305 120ohm,5%,1/16W,DA,TP,1005
R430,R432 2007-001306 150ohm,5%,1/16W,DA,TP,1005
R306,R311,R316,R317 2007-001307 180ohm,5%,1/16W,DA,TP,1005
R510,R613,R805 2007-001308 200ohm,5%,1/16W,DA,TP,1005
R128,R134 2007-001311 270ohm,5%,1/16W,DA,TP,1005
R356,R357,R365,R526 2007-001313 330ohm,5%,1/16W,DA,TP,1005
R950,R953 2007-001313 330ohm,5%,1/16W,DA,TP,1005
R525,R612 2007-001316 820ohm,5%,1/16W,DA,TP,1005
R507,R512 2007-001317 910ohm,5%,1/16W,DA,TP,1005
R629 2007-001323 3Kohm,5%,1/16W,DA,TP,1005
R354,R608 2007-001325 3.3Kohm,5%,1/16W,DA,TP,1005
R618,R643 2007-001339 180Kohm,5%,1/16W,DA,TP,1005
R413 2007-002797 560OHM,5%,1/16W,DA,TP,1005
R301 2007-003020 4.3KOHM,5%,1/16W,DA,TP,1005
R427,R429 2007-003030 91OHM,5%,1/16W,DA,TP,1005
R304 2007-003112 27OHM,5%,1/16W,DA,TP,1005
2-3 Electrical Parts List
LOCATION SEC.CODE DESCRIPTIONS
R407 2007-007001 3.9KOHM,5%,1/16W,DA,TP,1005
R521 2007-007090 11KOHM,5%,1/16W,DA,TP,1005
R362 2007-007096 160OHM,5%,1/16W,DA,TP,1005
R132,R137,R259 2007-007107 100Kohm,1%,1/16W,DA,TP,1005
R265 2007-007133 300ohm,1%,1/16W,DA,TP,1005
R261 2007-007135 18Kohm,1%,1/16W,DA,TP,1005
R434,R619,R903,R905 2007-007137 1.2Kohm,1%,1/16W,DA,TP,1005
R522 2007-007141 240OHM,5%,1/16W,DA,TP,1005
R904,R987 2007-007142 10Kohm,1%,1/16W,DA,TP,1005
R514,R523,R626,R645 2007-007195 3.9OHM,5%,1/16W,DA,TP,1005
R652 2007-007195 3.9OHM,5%,1/16W,DA,TP,1005
R262,R416 2007-007309 12Kohm,1%,1/16W,DA,TP,1005
R414 2007-007310 8.2Kohm,1%,1/16W,DA,TP,1005
R412 2007-007311 22Kohm,1%,1/16W,DA,TP,1005
R409 2007-007316 3.3Kohm,1%,1/16W,DA,TP,1005
R200,R201,R202,R203 2007-007317 2.2Kohm,1%,1/16W,DA,TP,1005
R901 2007-007317 2.2Kohm,1%,1/16W,DA,TP,1005
R121,R127,R133,R303 2007-007318 1Kohm,1%,1/16W,DA,TP,1005
R313,R415 2007-007318 1Kohm,1%,1/16W,DA,TP,1005
R266 2007-007470 7.5Kohm,1%,1/16W,DA,TP,1005
R435,R655 2007-007588 1.8Kohm,1%,1/16W,DA,TP,1005
R258 2007-007590 82Kohm,1%,1/16W,DA,TP,1005
R260 2007-007592 270Kohm,1%,1/16W,DA,TP,1005
R979,R981 2007-007627 16Kohm,1%,1/16W,DA,TP,1005
R983 2007-007630 14Kohm,1%,1/16W,DA,TP,1005
R355,R900,R902 2007-007788 332OHM,1%,1/16W,DA,TP,1005
C524 2203-000151 1.5nF,5%,50V,NPO,TP,2012,-
C117 2203-000189 100nF,+80-20%,25V,Y5V,TP,1608,
C215,C216,C217,C218 2203-000233 100pF,5%,50V,NPO,TP,1005,-
C303,C318,C337,C362 2203-000233 100pF,5%,50V,NPO,TP,1005,-
C368,C411,C416,C501 2203-000233 100pF,5%,50V,NPO,TP,1005,-
C502,C503,C508,C509 2203-000233 100pF,5%,50V,NPO,TP,1005,-
C516,C521,C623,C628 2203-000233 100pF,5%,50V,NPO,TP,1005,-
C635,C642 2203-000233 100pF,5%,50V,NPO,TP,1005,-
C300,C307,C348 2203-000278 10pF,0.5pF,50V,NPO,TP,1005,-
C445 2203-000311 120pF,5%,50V,NPO,TP,1005,-
C310,C512,C514,C539 2203-000330 12pF,5%,50V,NPO,TP,1005,-
C604 2203-000330 12pF,5%,50V,NPO,TP,1005,-
C625 2203-000359 150pF,5%,50V,NPO,TP,1005,-
C316,C951,C958,C959 2203-000386 15pF,5%,50V,NPO,TP,1005,-
C968,C970 2203-000386 15pF,5%,50V,NPO,TP,1005,-
C207,C311,C351,C352 2203-000438 1nF,10%,50V,X7R,TP,1005,-
Electrical Parts List 2-4
LOCATION SEC.CODE DESCRIPTIONS
C354,C356,C361,C371 2203-000438 1nF,10%,50V,X7R,TP,1005,-
C373,C375,C379,C504 2203-000438 1nF,10%,50V,X7R,TP,1005,-
C522,C621,C637,C641 2203-000438 1nF,10%,50V,X7R,TP,1005,-
C966,C967 2203-000438 1nF,10%,50V,X7R,TP,1005,-
C624 2203-000455 1nF,5%,50V,NPO,TP,2012,-
C177 2203-000509 2.2pF,0.25pF,50V,NPO,TP,1608,-
C409 2203-000585 220pF,10%,50V,X7R,TP,1005,-
C950,C956 2203-000604 22nF,10%,25V,X7R,TP,1608,-
C305,C330,C374,C376 2203-000628 22pF,5%,50V,NPO,TP,1005,-
C378,C415,C505,C506 2203-000628 22pF,5%,50V,NPO,TP,1005,-
C515,C611,C617 2203-000628 22pF,5%,50V,NPO,TP,1005,-
C405,C418,C423,C428 2203-000679 27pF,5%,50V,NPO,TP,1005,-
C454,C457,C458,C459 2203-000679 27pF,5%,50V,NPO,TP,1005,-
C460,C510,C511,C517 2203-000679 27pF,5%,50V,NPO,TP,1005,-
C520,C529,C530,C632 2203-000679 27pF,5%,50V,NPO,TP,1005,-
C633,C639 2203-000679 27pF,5%,50V,NPO,TP,1005,-
C346 2203-000696 2pF,0.25pF,50V,NPO,TP,1005,-
C609 2203-000725 3.9nF,10%,50V,X7R,TP,1005,-
C614 2203-000800 33nF,10%,25V,X7R,TP,1608,-
C302,C306,C319,C467 2203-000812 33pF,5%,50V,NPO,TP,1005,-
C610 2203-000836 390pF,10%,50V,X7R,TP,1005,-
C325 2203-000854 39pF,5%,50V,NPO,TP,1005,-
C128,C136 2203-000885 4.7nF,10%,25V,X7R,TP,1005,-
C304,C357,C810,C819 2203-000940 470pF,10%,50V,X7R,TP,1005,-
C862,C867 2203-000940 470pF,10%,50V,X7R,TP,1005,-
C321,C350,C377,C647 2203-001017 4pF,0.25pF,50V,NPO,TP,1005,-
C518,C519 2203-001072 56pF,5%,50V,NPO,TP,1005,-
C165, C166, C167, C168 2203-001101 6.8nF,10%,25V,X7R,TP,1005,-
C507,C513 2203-001153 68pF,5%,50V,NPO,TP,1005,-
C315,C540 2203-001178 6pF,0.5pF,50V,NPO,TP,1005,-
C314,C339 2203-001201 7pF,0.5pF,50V,NPO,TP,1005,-
C131,C139 2203-001211 8.2nF,10%,50V,X7R,TP,1608,-
C410,C430 2203-001221 820pF,10%,50V,X7R,TP,1005,-
C613 2203-001259 8pF,0.5pF,50V,NPO,TP,1005,-
C169 2203-001402 220nF,+80-20%,16V,Y5V,TP,1608,
C523 2203-001408 270pF,5%,50V,COG,TP,1608,-
C170,C171,C172,C173 2203-001598 2.2uF,+80-20%,16V,Y5V,TP,2012,
C429 2203-002525 560pF,10%,50V,X7R,TP,1005,-
C317,C991,C993,C954 2203-003054 9PF,0.25PF,50V,CH,TP,1005,-
C969,C996,C997 2203-003054 9PF,0.25PF,50V,CH,TP,1005,-
C313,C341,C353 2203-005050 1.8pF,0.25pF,50V,NPO,TP,1005,-
C210,C528,C603,C644 2203-005054 4.7pF,0.25pF,50V,NPO,TP,1005,-
2-5 Electrical Parts List
LOCATION SEC.CODE DESCRIPTIONS
C606 2203-005057 8.2pF,0.25pF,50V,NPO,TP,1005,-
C100,C102,C106,C107 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C126,C134,C141 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C201,C204,C205 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C206,C214,C254,C258 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C259,C260,C261,C322 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C358,C363,C372,C500 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C608,C618,C634,C800 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C851,C853,C855,C869 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C874,C901,C902,C903 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C904,C905,C961,C964 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C971,C972,C973,C974 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C990 2203-005061 100nF,+80-20%,16V,Y5V,TP,1005,
C257,C364,C533,C534 2203-005065 1uF,+80-20%,10V,Y5V,TP,1608,-
C535,C536,C638,C669 2203-005065 1uF,+80-20%,10V,Y5V,TP,1608,-
C830,C831,C872 2203-005065 1uF,+80-20%,10V,Y5V,TP,1608,-
C127,C135 2203-005138 1.8nF,10%,50V,X7R,TP,1005,-
C342,C645 2203-005158 2.2pF,0.25pF,50V,NPO,TP,1005,0
C629 2203-005195 10nF,5%,25V,COH,TP,3216,-
C349 2203-005234 1.2pF,0.25pF,50V,NPO,TP,1005,0
C602,C646 2203-005444 3pF,0.1pF,50V,NPO,TP,1005,-
C957,C962 2203-005481 47nF,10%,10V,X7R,TP,1005,-
C963 2203-005481 47nF,10%,10V,X7R,TP,1005,-
C365,C616,C955 2203-005562 10uF,+80-20%,10V,Y5V,TP,3216,-
C108,C200,C211,C262 2203-005607 10NF,10%,16V,X7R,BK,1005
C333,C359,C360,C433 2203-005607 10NF,10%,16V,X7R,BK,1005
C435,C531,C600,C601 2203-005607 10NF,10%,16V,X7R,BK,1005
C605,C607,C615,C620 2203-005607 10NF,10%,16V,X7R,BK,1005
C622,C626,C627,C630 2203-005607 10NF,10%,16V,X7R,BK,1005
C636,C801,C828,C850 2203-005607 10NF,10%,16V,X7R,BK,1005
C852,C854,C859,C870 2203-005607 10NF,10%,16V,X7R,BK,1005
C979,C612 2203-005607 10NF,10%,16V,X7R,BK,1005
C252,C253 2404-000203 3.3uF,10%,16V,-,TP,3216,-
C953 2404-001039 47uF,20%,6.3V,GP,TP,3528,-
C464,C871,C873 2404-001083 220uF,20%,6.3V,LZ,TP,7125,-
C203 2404-001086 4.7uF,20%,6.3V,GP,TP,2012,-
C103,C104,C255,C256 2404-001105 10UF,20%,6.3V,GP,TP,2012
C436,C805,C806,C816 2404-001105 10UF,20%,6.3V,GP,TP,2012
C817,C826,C827,C832 2404-001105 10UF,20%,6.3V,GP,TP,2012
C845,C860,C861,C868 2404-001105 10UF,20%,6.3V,GP,TP,2012
L126,L128 2703-000217 470uH,10%,2.5x3.2x2mm
L127,L129 2703-001071 330uH,10%,3.2x2.5x2mm
Electrical Parts List 2-6
LOCATION SEC.CODE DESCRIPTIONS
L302 2703-001172 100nH,5%,1.6x0.8x0.8mm
L401 2703-001174 33nH,5%,1.6x0.8x0.8mm
L301,L303,L320,L501 2703-001732 56nH,5%,1.6x0.8x0.8mm
L327 2703-001179 10nH,5%,1x0.5x0.5mm
L175 2703-001290 2.7nH, HK1608 1.6x0.8x0.8mm
L307,L326 2703-001263 4.7nH,10%,1x0.5x0.5mm
L502,L503 2703-001308 68nH,5%,1.6x0.8x0.8mm
L600 2703-001409 12nH,10%,1x0.5x0.5mm
L250,L324 2703-001595 47nH,5%,1.0x0.5x0.5mm
L325,L402 2703-001708 5.6nH,10%,1.0x0.5x0.5mm
L800 2703-001716 22uH,20%,6.60x4.45x2.92mm
L323 2703-001722 18nH,5%,1.0x0.5x0.5mm
L321,L322,L405,L406 2703-001723 33nH,5%,1.0x0.5x0.5mm
L504,L505 2703-001723 33nH,5%,1.0x0.5x0.5mm
L500,L507 2703-001726 27nH,5%,1x0.5x0.5mm
L328,L329,L602 2703-001727 22nH,5%,1x0.5x0.5mm
L604 2703-001728 1.5nH,0.3nH,1x0.5x0.5mm
L308 2703-001730 15nH,5%,1x0.5x0.5mm
L305,L309,L403,L607 2703-001734 6.8nH,5%,1x0.5x0.5mm
L306,L310,L319 2703-001735 3.9nH,10%,1x0.5x0.5mm
L603,L606 2703-001737 2.7nH,0.3nH,1x0.5x0.5mm
L251 2703-001740 10uH,20%,6.6x4.45x2.8mm
L300,L601 2703-001794 120NH,2%,1.8X1.12X1.02MM
L318 2703-001798 2.2NH,0.3NH,1.0X0.5X0.5MM
X201 2801-003747 .032768MHZ,30PPM,28-ACM,9PF,50OHM,TP
X600 2806-001190 1171-1216MHZ,-,-,TP,3V,8MA
X501 2806-001194 1747MHZ,-,10-+2.0DBM,TP,2.75V,-
X500 2806-001199 897.5MHZ,-,-,TP,3V,60MA
X601 2809-001220 13MHz,5ppm,10Kohm//10pF,TP,3V,
F305 2903-001203 BP,13MHZ,-,6DB,1DB,TP,-
F303 2904-001093 1842.5MHz,75MHz,1dB,TP,-,-
F300 2904-001146 246MHz,QCC12B,TP,4dB,LOW-LOSS,
F301 2904-001147 942.5MHz,DCC6,TP,2.3dB,LOW-LOS
F304 2904-001170 1.8425GHZ,-,1.0DB,TP,1805-1880MHZ/2.4DB,1765MHZ-1785MHZ/15DB
F302 2904-001175 942.5MHZ,35MHZ,1DB,TP,3.2DB,619MHZ-905MHZ/27DB
U401 2909-001086 942.5MHZ,897.5MHZ,1.1/1.1DB,TP,-,-
F200,F201 3301-001208 AB,1.6x0.8x0.8mm,-,-
J100 3709-001088 6P,2.54mm,SMD-S,AU
M950 3710-001105 2P,1R,1.27mm,SMD-S,AU
J151 3710-001117 24P,2R,0.8mm,SMD,SN
J176 3710-001302 18P,1R,0.5mm,SMD-A,AUF
J901 3722-001303 6P,2.6mm,AG,BLK,NO
2-7 Electrical Parts List
LOCATION SEC.CODE DESCRIPTIONS
C863 4302-001081 -,.25MAH,COIN,0.03MA,-,-
U401 4709-001174 890~915/1710~1785MHZ,14DB,24DB,2.0X1.25X1.0,TP
J180 GH07-00007A SGH-2100,UG-11B02-FLHTX-A,-,-,38.4X47.7X5.0
W176 GH39-00022A SGH-2100,HANKHE SEMI ANTCABLE,-,-,-,-
Electrical Parts List 2-8
3-1
3-1 Main RF
3 Block Diagrams
RxEGSM
(925~960MHz) DEMODEN
VMID
GSMTX2 DCSTX2 RxEN_FEGSM
U300 IRXP
GSM F301 F302 F300 F305
O◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
