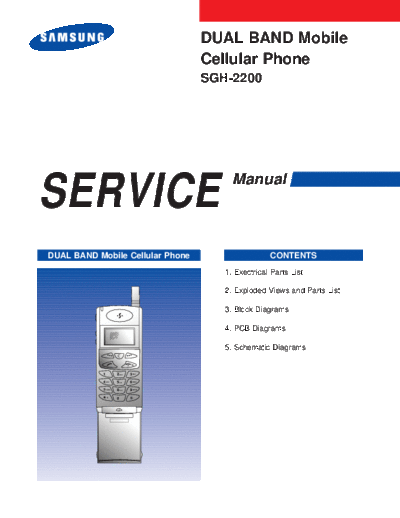

Image preview - the first page of the document
>> Download Samsung SGH-2200 service manual documenatation <<
Text preview - extract from the document
DUAL BAND Mobile
Cellular Phone
SGH-2200
SERVICE Manual
DUAL BAND Mobile Cellular Phone CONTENTS
1. Exectrical Parts List
2. Exploded Views and Parts List
3. Block Diagrams
4. PCB Diagrams
5. Schematic Diagrams
/
1 2 ABC 3 DEF
4 GHI 5 JKL 6 MNO
7 PQRS 8 TUV 9 WXYZ
+ 0
ELECTRONICS
Samsung Electronics Co.,Ltd.
GH68-00540A
1999.7. Rev.1.0
DUAL BAND Mobile
Cellular Phone
SGH-2200
SERVICE Manual
DUAL BAND Mobile Cellular Phone CONTENTS
1. Exectrical Parts List
2. Exploded Views and Parts List
3. Block Diagrams
4. PCB Diagrams
5. Schematic Diagrams
/
1 2 ABC 3 DEF
4 GHI 5 JKL 6 MNO
7 PQRS 8 TUV 9 WXYZ
+ 0
1. Exectrical Parts List
Design LOC Q DESCRIPTION SEC REMARK
ZD2 1 DIODE-SWITCHING,MCL4154 0401-001033
ZD8 1 DIODE-ZENER,UDZ6.8B 0403-001172
D4 1 DIODE-SCHOTTKY,PRLL5819 0404-001005
ZD1 1 DIODE-SCHOTTKY,UPS5817 0404-001044
ZD9 1 DIODE-SCHOTTKY,UPS5817 0404-001044
ZD12 1 DIODE-TVS,SM05 0406-001005
ZD3 1 DIODE-TVS,SM12 0406-001012
ZD10 1 DIODE-TVS,SMS05C 0406-001051
ZD5 1 DIODE-TVS,SMF05 0406-001084
ZD6 1 DIODE-TVS,SMF05 0406-001084
ZD7 1 DIODE-TVS,SMF05 0406-001084
ZD8 1 DIODE-TVS,SMF05 0406-001084
D5 1 DIODE-ARRAY,DAN222 0407-001002
D6 1 DIODE-ARRAY,DAN222 0407-001002
D1 1 DIODE-ARRAY,DA221 0407-001006
D2 1 DIODE-ARRAY,UMN1 0407-001007
Q3 1 TR-SMALL SIGNAL,2SC4081 0501-000218
Q4 1 TR-SMALL SIGNAL,2SD2114K 0501-002011
Q7 1 TR-SMALL SIGNAL,2SD2114K 0501-002011
Q10 1 TR-SMALL SIGNAL,BFP420 0501-002096
Q9 1 TR-SMALL SIGNAL,BFP520 0501-002226
Q14 1 TR-DIGITAL,DTC144EE 0504-000168
Q15 1 TR-DIGITAL,DTC144EE 0504-000168
Q16 1 TR-DIGITAL,DTC144EE 0504-000168
Q5 1 TR-DIGITAL,DTC114YE 0504-001012
Q8 1 TR-DIGITAL,DTC114YE 0504-001012
U32 1 TR-ARRAY,UMZ1N 0506-000151
U7 1 TR-ARRAY,UMC5NTL 0506-001004
LED1 1 LED,CHIP,Y/GRN 0601-000276
U31 1 IC-CMOS LOGIC,7W74FU 0801-002001
U39 1 IC-CMOS LOGIC,7W74FU 0801-002001
U34 1 IC-CMOS LOGIC,7W126FU 0801-002315
U33 1 IC-CMOS LOGIC,7W08FU 0801-002397
U38 1 IC-CMOS LOGIC,7W08FU 0801-002397
U8 1 IC-EEPROM,24LC128 1103-001090
U4 1 IC-SRAM,KM616U4110 1106-001274
U6 1 IC-FLASH MEMORY,MBM29LV160B 1107-001158
U27 1 IC-POWER AMP,PF01411 1201-001299
U30 1 IC-POWER AMP,PF0414B 1201-001411
U19 1 IC-OP AMP,MAX4040 1201-001425
U16 1 IC-POSI.FIXED REG.,LP2980AIM5X-3.3 1203-001305
U13 1 IC-VOLTAGE REGULATOR,LP2981AIM5X-3.0 1203-001454
U9 1 IC-RESET,MAX809REUR-T 1203-001511
U44 1 IC-BATTERY,LT1510-5CGN 1203-001515
U14 1 IC-VOLTAGE REGULATOR,LP2982AIM5X-3.0 1203-001701
Exectrical Parts List 1-1
Design LOC Q DESCRIPTION SEC REMARK
U15 1 IC-VOLTAGE REGULATOR,LP2982AIM5X-3.0 1203-001701
U17 1 IC-VOLTAGE REGULATOR,LP2982AIM5X-3.0 1203-001701
U18 1 IC-VOLTAGE REGULATOR,LP2982AIM5X-3.0 1203-001701
U20 1 IC-VOLTAGE REGULATOR,LP2982AIM5X-3.0 1203-001701
U12 1 IC-DC/DC CONVERTER,MAX1676 1203-001702
U36 1 IC-DC/DC CONVERTER,LTC1555CGN 1203-001740
U2 1 IC-DATA COMM.,AD6421AST 1205-001645
U10 1 IC-COMM. CONTROLLER,AD6426XST 1205-001646
U26 1 IC-TRANSCEIVER,HD155121F 1205-001653
U24 1 IC-SYNTHESIZER,LMX2336LTMX 1209-001161
U23 1 IC-ETC, LINEAR,HD155171T 1209-001208
TH1 1 THERMISTOR-NTC,47Kohm,5%,4050K,2.0mW/C,TP 1404-001005
V1 1 VARISTOR.5.6V,-,1.6x0.8mm,TP 1405-001019
V2 1 VARISTOR.5.6V,-,1.6x0.8mm,TP 1405-001019
V3 1 VARISTOR.5.6V,-,1.6x0.8mm,TP 1405-001019
R142 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R143 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R225 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R26 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R261 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R301 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R61 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R62 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R63 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R66 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R67 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R68 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R69 1 R-CHIP,100ohm,5%,1/16W,DA,TP,1005 2007-000138
R73 1 R-CHIP,220ohm,5%,1/16W,DA,TP,1005 2007-000139
R74 1 R-CHIP,220ohm,5%,1/16W,DA,TP,1005 2007-000139
R104 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R18 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R268 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R269 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R272 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R78 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R81 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R83 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R84 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R85 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R86 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R87 1 R-CHIP,1Kohm,5%,1/16W,DA,TP,1005 2007-000140
R113 1 R-CHIP,2.2Kohm,5%,1/16W,DA,TP,1005 2007-000141
R31 1 R-CHIP,2.2Kohm,5%,1/16W,DA,TP,1005 2007-000141
R32 1 R-CHIP,2.2Kohm,5%,1/16W,DA,TP,1005 2007-000141
R43 1 R-CHIP,2.2Kohm,5%,1/16W,DA,TP,1005 2007-000141
1-2 Exectrical Parts List
Design LOC Q DESCRIPTION SEC REMARK
R90 1 R-CHIP,2.2Kohm,5%,1/16W,DA,TP,1005 2007-000141
R105 1 R-CHIP,2.7Kohm,5%,1/16W,DA,TP,1005 2007-000142
R130 1 R-CHIP,4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143
R21 1 R-CHIP,4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143
R22 1 R-CHIP,4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143
R23 1 R-CHIP,4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143
R24 1 R-CHIP,4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143
R27 1 R-CHIP,4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143
R71 1 R-CHIP,4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143
R72 1 R-CHIP,4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143
R89 1 R-CHIP,4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143
R79 1 R-CHIP,8.2Kohm,5%,1/16W,DA,TP,1005 2007-000147
R101 1 R-CHIP,10Kohm,5%,1/16W,DA,TP,1005 2007-000148
R306 1 R-CHIP,10Kohm,5%,1/16W,DA,TP,1005 2007-000148
R307 1 R-CHIP,10Kohm,5%,1/16W,DA,TP,1005 2007-000148
R128 1 R-CHIP,15Kohm,5%,1/16W,DA,TP,1005 2007-000151
R283 1 R-CHIP,47Kohm,5%,1/16W,DA,TP,1005 2007-000157
R44 1 R-CHIP,47Kohm,5%,1/16W,DA,TP,1005 2007-000157
R168 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R231 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R232 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R233 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R235 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R239 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R240 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R242 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R25 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R28 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R282 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R29 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R302 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R305 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R40 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R41 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R42 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R46 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R47 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R88 1 R-CHIP,100Kohm,5%,1/16W,DA,TP,1005 2007-000162
R132 1 R-CHIP,0ohm,5%,1/16W,DA,TP,1005 2007-000171
R292 1 R-CHIP,0ohm,5%,1/16W,DA,TP,1005 2007-000171
R299 1 R-CHIP,0ohm,5%,1/16W,DA,TP,1005 2007-000171
R300 1 R-CHIP,0ohm,5%,1/16W,DA,TP,1005 2007-000171
R304 1 R-CHIP,0ohm,5%,1/16W,DA,TP,1005 2007-000171
R48 1 R-CHIP,0ohm,5%,1/16W,DA,TP,1005 2007-000171
R93 1 R-CHIP,0ohm,5%,1/16W,DA,TP,1005 2007-000171
R94 1 R-CHIP,0ohm,5%,1/16W,DA,TP,1005 2007-000171
Exectrical Parts List 1-3
Design LOC Q DESCRIPTION SEC REMARK
R95 1 R-CHIP,0ohm,5%,1/16W,DA,TP,1005 2007-000171
R102 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R118 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R119 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R120 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R121 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R122 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R123 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R124 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R125 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R247 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R259 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R263 1 R-CHIP,10ohm,5%,1/16W,DA,TP,1005 2007-000172
R264 1 R-CHIP,22ohm,5%,1/16W,DA,TP,1005 2007-000173
R265 1 R-CHIP,22ohm,5%,1/16W,DA,TP,1005 2007-000173
R116 1 R-CHIP,47ohm,5%,1/16W,DA,TP,1005 2007-000174
R117 1 R-CHIP,47ohm,5%,1/16W,DA,TP,1005 2007-000174
R169 1 R-CHIP,10Mohm,5%,1/16W,DA,TP,1608 2007-000305
R290 1 R-CHIP,470ohm,5%,1/16W,DA,TP,1005 2007-000932
R291 1 R-CHIP,470ohm,5%,1/16W,DA,TP,1005 2007-000932
R141 1 R-CHIP,82ohm,5%,1/16W,DA,TP,1005 2007-001217
R134 1 R-CHIP,18ohm,5%,1/16W,DA,TP,1005 2007-001288
R135 1 R-CHIP,18ohm,5%,1/16W,DA,TP,1005 2007-001288
R136 1 R-CHIP,18ohm,5%,1/16W,DA,TP,1005 2007-001288
R137 1 R-CHIP,18ohm,5%,1/16W,DA,TP,1005 2007-001288
R266 1 R-CHIP,33ohm,5%,1/16W,DA,TP,1005 2007-001292
R129 1 R-CHIP,51ohm,5%,1/16W,DA,TP,1005 2007-001298
R160 1 R-CHIP,51ohm,5%,1/16W,DA,TP,1005 2007-001298
R162 1 R-CHIP,68ohm,5%,1/16W,DA,TP,1005 2007-001301
R163 1 R-CHIP,68ohm,5%,1/16W,DA,TP,1005 2007-001301
R138 1 R-CHIP,120ohm,5%,1/16W,DA,TP,1005 2007-001305
R152 1 R-CHIP,120ohm,5%,1/16W,DA,TP,1005 2007-001305
R153 1 R-CHIP,120ohm,5%,1/16W,DA,TP,1005 2007-001305
R161 1 R-CHIP,120ohm,5%,1/16W,DA,TP,1005 2007-001305
R106 1 R-CHIP,150ohm,5%,1/16W,DA,TP,1005 2007-001306
R164 1 R-CHIP,150ohm,5%,1/16W,DA,TP,1005 2007-001306
R133 1 R-CHIP,180ohm,5%,1/16W,DA,TP,1005 2007-001307
R50 1 R-CHIP,200ohm,5%,1/16W,DA,TP,1005 2007-001308
R11 1 R-CHIP,1.2Kohm,5%,1/16W,DA,TP,1005 2007-001319
R14 1 R-CHIP,1.2Kohm,5%,1/16W,DA,TP,1005 2007-001319
R295 1 R-CHIP,1.2Kohm,5%,1/16W,DA,TP,1005 2007-001319
R296 1 R-CHIP,1.2Kohm,5%,1/16W,DA,TP,1005 2007-001319
R103 1 R-CHIP,3.3Kohm,5%,1/16W,DA,TP,1005 2007-001325
R267 1 R-CHIP,15OHM,5%,1/16W,DA,TP,1005 2007-002965
R115 1 R-CHIP,300OHM,5%,1/16W,DA,TP,1005 2007-007008
R274 1 R-CHIP,300OHM,5%,1/16W,DA,TP,1005 2007-007008
1-4 Exectrical Parts List
Design LOC Q DESCRIPTION SEC REMARK
R114 1 R-CHIP,75KOHM,5%,1/16W,DA,TP,1005 2007-007021
R7 1 R-CHIP,475Kohm,1%,1/16W,DA,TP,1005 2007-007098
R278 1 R-CHIP,18Kohm,1%,1/16W,DA,TP,1005 2007-007135
R158 1 R-CHIP,4.7Kohm,1%,1/16W,DA,TP,1005 2007-007136
R154 1 R-CHIP,1.2Kohm,1%,1/16W,DA,TP,1005 2007-007137
R91 1 R-CHIP,27Kohm,1%,1/16W,DA,TP,1005 2007-007138
R111 1 R-CHIP,10Kohm,1%,1/16W,DA,TP,1005 2007-007142
R150 1 R-CHIP,10Kohm,1%,1/16W,DA,TP,1005 2007-007142
R277 1 R-CHIP,12Kohm,1%,1/16W,DA,TP,1005 2007-007309
R151 1 R-CHIP,22Kohm,1%,1/16W,DA,TP,1005 2007-007311
R157 1 R-CHIP,20Kohm,1%,1/16W,DA,TP,1005 2007-007312
R76 1 R-CHIP,20Kohm,1%,1/16W,DA,TP,1005 2007-007312
R126 1 R-CHIP,6.8Kohm,1%,1/16W,DA,TP,1005 2007-007313
R127 1 R-CHIP,6.8Kohm,1%,1/16W,DA,TP,1005 2007-007313
R144 1 R-CHIP,6.8Kohm,1%,1/16W,DA,TP,1005 2007-007313
R145 1 R-CHIP,6.8Kohm,1%,1/16W,DA,TP,1005 2007-007313
R146 1 R-CHIP,6.8Kohm,1%,1/16W,DA,TP,1005 2007-007313
R147 1 R-CHIP,6.8Kohm,1%,1/16W,DA,TP,1005 2007-007313
R148 1 R-CHIP,6.8Kohm,1%,1/16W,DA,TP,1005 2007-007313
R149 1 R-CHIP,6.8Kohm,1%,1/16W,DA,TP,1005 2007-007313
R156 1 R-CHIP,6.8Kohm,1%,1/16W,DA,TP,1005 2007-007313
R51 1 R-CHIP,200Kohm,1%,1/16W,DA,TP,1005 2007-007334
R276 1 R-CHIP,7.5Kohm,1%,1/16W,DA,TP,1005 2007-007470
R56 1 R-CHIP,150Kohm,1%,1/16W,DA,TP,1005 2007-007489
R57 1 R-CHIP,91Kohm,1%,1/16W,DA,TP,1005 2007-007529
R271 1 R-CHIP,56Kohm,1%,1/16W,DA,TP,1005 2007-007538
R155 1 R-CHIP,1.8Kohm,1%,1/16W,DA,TP,1005 2007-007588
R55 1 R-CHIP,68Kohm,1%,1/16W,DA,TP,1005 2007-007589
R77 1 R-CHIP,82Kohm,1%,1/16W,DA,TP,1005 2007-007590
R279 1 R-CHIP,270Kohm,1%,1/16W,DA,TP,1005 2007-007592
C112 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C113 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C114 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C115 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C116 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C117 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C119 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C120 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C121 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C162 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C23 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C24 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C241 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C242 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C244 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C25 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
Exectrical Parts List 1-5
Design LOC Q DESCRIPTION SEC REMARK
C26 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C70 1 C-CERAMIC,CHIP,100pF,5%,50V,NPO,TP,1005,- 2203-000233
C100 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C102 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C103 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C104 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C105 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C106 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C107 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C125 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C217 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C225 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C226 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C280 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C296 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C297 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C45 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C46 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C66 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C69 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C74 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C90 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C94 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C95 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C96 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C97 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C98 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C99 1 C-CERAMIC,CHIP,10nF,10%,16V,X7R,TP,1005,- 2203-000254
C147 1 C-CERAMIC,CHIP,10pF,0.5pF,50V,NPO,TP,1005,- 2203-000278
C149 1 C-CERAMIC,CHIP,10pF,0.5pF,50V,NPO,TP,1005,- 2203-000278
C150 1 C-CERAMIC,CHIP,10pF,0.5pF,50V,NPO,TP,1005,- 2203-000278
C152 1 C-CERAMIC,CHIP,10pF,0.5pF,50V,NPO,TP,1005,- 2203-000278
C245 1 C-CERAMIC,CHIP,10pF,0.5pF,50V,NPO,TP,1005,- 2203-000278
C209 1 C-CERAMIC,CHIP,150pF,5%,50V,NPO,TP,1005,- 2203-000359
C246 1 C-CERAMIC,CHIP,15pF,5%,50V,NPO,TP,1005,- 2203-000386
C269 1 C-CERAMIC,CHIP,15pF,5%,50V,NPO,TP,1005,- 2203-000386
C271 1 C-CERAMIC,CHIP,15pF,5%,50V,NPO,TP,1005,- 2203-000386
C54 1 C-CERAMIC,CHIP,15pF,5%,50V,NPO,TP,1005,- 2203-000386
C144 1 C-CERAMIC,CHIP,18pF,5%,50V,NPO,TP,1005,- 2203-000425
C179 1 C-CERAMIC,CHIP,18pF,5%,50V,NPO,TP,1005,- 2203-000425
C183 1 C-CERAMIC,CHIP,18pF,5%,50V,NPO,TP,1005,- 2203-000425
C184 1 C-CERAMIC,CHIP,18pF,5%,50V,NPO,TP,1005,- 2203-000425
C109 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C110 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C131 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C132 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
1-6 Exectrical Parts List
Design LOC Q DESCRIPTION SEC REMARK
C134 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C135 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C136 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C137 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C139 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C140 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C142 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C143 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C240 1 C-CERAMIC,CHIP,1nF,10%,50V,X7R,TP,1005,- 2203-000438
C122 1 C-CERAMIC,CHIP,1pF,0.25pF,50V,NPO,TP,1005,- 2203-000466
C189 1 C-CERAMIC,CHIP,1pF,0.25pF,50V,NPO,TP,1005,- 2203-000466
C207 1 C-CERAMIC,CHIP,1pF,0.25pF,50V,NPO,TP,1005,- 2203-000466
C176 1 C-CERAMIC,CHIP,220pF,10%,50V,X7R,TP,1005,- 2203-000585
C177 1 C-CERAMIC,CHIP,22pF,5%,50V,NPO,TP,1005,- 2203-000628
C178 1 C-CERAMIC,CHIP,22pF,5%,50V,NPO,TP,1005,- 2203-000628
C164 1 C-CERAMIC,CHIP,24pF,5%,50V,NPO,TP,1005,- 2203-000643
C165 1 C-CERAMIC,CHIP,24pF,5%,50V,NPO,TP,1005,- 2203-000643
C194 1 C-CERAMIC,CHIP,24pF,5%,50V,NPO,TP,1005,- 2203-000643
C195 1 C-CERAMIC,CHIP,24pF,5%,50V,NPO,TP,1005,- 2203-000643
C196 1 C-CERAMIC,CHIP,24pF,5%,50V,NPO,TP,1005,- 2203-000643
C239 1 C-CERAMIC,CHIP,24pF,5%,50V,NPO,TP,1005,- 2203-000643
C270 1 C-CERAMIC,CHIP,24pF,5%,50V,NPO,TP,1005,- 2203-000643
C126 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C127 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C128 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C129 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C130 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C157 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C158 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C160 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C161 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C222 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C223 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C227 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C228 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C238 1 C-CERAMIC,CHIP,27pF,5%,50V,NPO,TP,1005,- 2203-000679
C185 1 C-CERAMIC,CHIP,2pF,0.25pF,50V,NPO,TP,1005,- 2203-000696
C186 1 C-CERAMIC,CHIP,2pF,0.25pF,50V,NPO,TP,1005,- 2203-000696
C187 1 C-CERAMIC,CHIP,2pF,0.25pF,50V,NPO,TP,1005,- 2203-000696
C201 1 C-CERAMIC,CHIP,33pF,5%,50V,NPO,TP,1005,- 2203-000812
C202 1 C-CERAMIC,CHIP,33pF,5%,50V,NPO,TP,1005,- 2203-000812
C204 1 C-CERAMIC,CHIP,33pF,5%,50V,NPO,TP,1005,- 2203-000812
C267 1 C-CERAMIC,CHIP,33pF,5%,50V,NPO,TP,1005,- 2203-000812
C293 1 C-CERAMIC,CHIP,33pF,5%,50V,NPO,TP,1005,- 2203-000812
C294 1 C-CERAMIC,CHIP,39pF,5%,50V,NPO,TP,1005,- 2203-000854
C295 1 C-CERAMIC,CHIP,39pF,5%,50V,NPO,TP,1005,- 2203-000854
Exectrical Parts List 1-7
Design LOC Q DESCRIPTION SEC REMARK
C166 1 C-CERAMIC,CHIP,3pF,0.25pF,50V,NPO,TP,1005,- 2203-000870
C167 1 C-CERAMIC,CHIP,3pF,0.25pF,50V,NPO,TP,1005,- 2203-000870
C211 1 C-CERAMIC,CHIP,3pF,0.25pF,50V,NPO,TP,1005,- 2203-000870
C2 1 C-CERAMIC,CHIP,47pF,5%,50V,NPO,TP,1005,- 2203-000995
C289 1 C-CERAMIC,CHIP,47pF,5%,50V,NPO,TP,1005,- 2203-000995
C156 1 C-CERAMIC,CHIP,4pF,0.25pF,50V,NPO,TP,1005,- 2203-001017
C203 1 C-CERAMIC,CHIP,4pF,0.25pF,50V,NPO,TP,1005,- 2203-001017
C224 1 C-CERAMIC,CHIP,5.6nF,10%,25V,X7R,TP,1005,- 2203-001033
C200 1 C-CERAMIC,CHIP,820pF,10%,50V,X7R,TP,1005,- 2203-001221
C212 1 C-CERAMIC,CHIP,8pF,0.5pF,50V,NPO,TP,1005,- 2203-001259
C213 1 C-CERAMIC,CHIP,8pF,0.5pF,50V,NPO,TP,1005,- 2203-001259
C214 1 C-CERAMIC,CHIP,8pF,0.5pF,50V,NPO,TP,1005,- 2203-001259
C237 1 C-CERAMIC,CHIP,8pF,0.5pF,50V,NPO,TP,1005,- 2203-001259
C123 1 C-CERAMIC,CHIP,0.5pF,0.25pF,50V,NPO,TP,1005,- 2203-001383
C154 1 C-CERAMIC,CHIP,0.5pF,0.25pF,50V,NPO,TP,1005,- 2203-001383
C205 1 C-CERAMIC,CHIP,0.5pF,0.25pF,50V,NPO,TP,1005,- 2203-001383
C188 1 C-CERAMIC,CHIP,1.5pF,0.25pF,50V,NPO,TP,1005,1 2203-001385
C229 1 C-CERAMIC,CHIP,47nF,10%,16V,Y5V,TP,1005,1.0mm 2203-001432
C278 1 C-CERAMIC,CHIP,47nF,10%,16V,Y5V,TP,1005,1.0mm 2203-001432
C279 1 C-CERAMIC,CHIP,47nF,10%,16V,Y5V,TP,1005,1.0mm 2203-001432
C153 1 C-CERAMIC,CHIP,5pF,0.25pF,50V,X7R,TP,1005,1.0 2203-001437
C52 1 C-CERAMIC,CHIP,2.2uF,+80-20%,16V,Y5V,TP,2012, 2203-001598
C55 1 C-CERAMIC,CHIP,2.2uF,+80-20%,16V,Y5V,TP,2012, 2203-001598
C56 1 C-CERAMIC,CHIP,2.2uF,+80-20%,16V,Y5V,TP,2012, 2203-001598
C59 1 C-CERAMIC,CHIP,2.2uF,+80-20%,16V,Y5V,TP,2012, 2203-001598
C60 1 C-CERAMIC,CHIP,2.2uF,+80-20%,16V,Y5V,TP,2012, 2203-001598
C72 1 C-CERAMIC,CHIP,2.2uF,+80-20%,16V,Y5V,TP,2012, 2203-001598
C198 1 C-CERAMIC,CHIP,330pF,10%,50V,X7R,TP,1005,- 2203-002443
C174 1 C-CERAMIC,CHIP,560pF,10%,50V,X7R,TP,1005,- 2203-002525
C175 1 C-CERAMIC,CHIP,560pF,10%,50V,X7R,TP,1005,- 2203-002525
C199 1 C-CERAMIC,CHIP,560pF,10%,50V,X7R,TP,1005,- 2203-002525
C20 1 C-CERAMIC,CHIP,51pF,5%,50V,CH,TP,1005,- 2203-002968
C151 1 C-CERAMIC,CHIP,9PF,0.25PF,50V,CH,TP,1005,- 2203-003054
C243 1 C-CERAMIC,CHIP,9PF,0.25PF,50V,CH,TP,1005,- 2203-003054
C145 1 C-CERAMIC,CHIP,1.8pF,0.25pF,50V,NPO,TP,1005,- 2203-005050
C155 1 C-CERAMIC,CHIP,3.3pF,0.25pF,50V,NPO,TP,1005,- 2203-005052
C170 1 C-CERAMIC,CHIP,8.2pF,0.25pF,50V,NPO,TP,1005,- 2203-005057
C171 1 C-CERAMIC,CHIP,8.2pF,0.25pF,50V,NPO,TP,1005,- 2203-005057
C172 1 C-CERAMIC,CHIP,8.2pF,0.25pF,50V,NPO,TP,1005,- 2203-005057
C173 1 C-CERAMIC,CHIP,8.2pF,0.25pF,50V,NPO,TP,1005,- 2203-005057
C10 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C11 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C12 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C13 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C16 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C219 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
1-8 Exectrical Parts List
Design LOC Q DESCRIPTION SEC REMARK
C22 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C220 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C250 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C251 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C252 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C253 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C255 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C256 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C257 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C258 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C259 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C260 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C261 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C272 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C273 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C28 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C287 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C288 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C290 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C291 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C30 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C32 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C33 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C34 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C35 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C36 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C37 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C38 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C4 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C40 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C41 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C43 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C48 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C5 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C6 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C62 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C7 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C8 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C9 1 C-CERAMIC,CHIP,100nF,+80-20%,16V,Y5V,TP,1005, 2203-005061
C254 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C282 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C283 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C284 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C285 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C31 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C58 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
Exectrical Parts List 1-9
Design LOC Q DESCRIPTION SEC REMARK
C64 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C76 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C77 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C78 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C81 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C88 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C89 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C91 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C92 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C93 1 C-CERAMIC,CHIP,1uF,+80-20%,10V,Y5V,TP,1608,- 2203-005065
C146 1 C-CERAMIC,CHIP,1.2pF,0.25pF,50V,NPO,TP,1005,0 2203-005234
C87 1 C-FILM,CHIP,22nF,5%,16V,TP,3.2x1.6x0.8,- 2301-001199
C82 1 C-FILM,CHIP,6.8nF,5%,16V,TP,2012,- 2301-001213
C80 1 C-FILM,CHIP,10nF,5%,16V,TP,2012,- 2301-001230
C84 1 C-FILM,CHIP,680pF,5%,50V,TP,2012,- 2301-001231
C83 1 C-FILM,CHIP,470pF,5%,50V,TP,2012,- 2301-001232
C79 1 C-FILM,CHIP,2.2nF,5%,50V,TP,2012,- 2301-001233
C263 1 C-TA,CHIP,3.3uF,20%,16V,-,TP,3216,- 2404-000335
C264 1 C-TA,CHIP,3.3uF,20%,16V,-,TP,3216,- 2404-000335
C42 1 C-TA,CHIP,10uF,20%,10V,GP,TP,3216,3.2 2404-001020
C49 1 C-TA,CHIP,10uF,20%,10V,GP,TP,3216,3.2 2404-001020
C50 1 C-TA,CHIP,10uF,20%,10V,GP,TP,3216,3.2 2404-001020
C51 1 C-TA,CHIP,10uF,20%,10V,GP,TP,3216,3.2 2404-001020
C57 1 C-TA,CHIP,10uF,20%,10V,GP,TP,3216,3.2 2404-001020
C61 1 C-TA,CHIP,10uF,20%,10V,GP,TP,3216,3.2 2404-001020
C63 1 C-TA,CHIP,10uF,20%,10V,GP,TP,3216,3.2 2404-001020
C65 1 C-TA,CHIP,10uF,20%,10V,GP,TP,3216,3.2 2404-001020
C73 1 C-TA,CHIP,10uF,20%,10V,GP,TP,3216,3.2 2404-001020
C44 1 C-TA,CHIP,220uF,20%,6.3V,LZ,TP,7125,- 2404-001083
C67 1 C-TA,CHIP,220uF,20%,6.3V,LZ,TP,7125,- 2404-001083
C86 1 C-TA,CHIP,220uF,20%,6.3V,LZ,TP,7125,- 2404-001083
C14 1 C-TA,CHIP,10UF,20%,6.3V,GP,TP,2012 2404-001105
C262 1 C-TA,CHIP,10UF,20%,6.3V,GP,TP,2012 2404-001105
L17 1 INDUCTOR-SMD,47nH,5%,2.29x1.73x1.52mm 2703-001044
L18 1 INDUCTOR-SMD,47nH,5%,2.29x1.73x1.52mm 2703-001044
L22 1 INDUCTOR-SMD,120nH,5%,2.29x1.73x1.52mm 2703-001069
L23 1 INDUCTOR-SMD,27nH,10%,1x0.5x0.5mm 2703-001181
L5 1 INDUCTOR-SMD,1.5nH,0.3nH,1.6x0.8x0.8mm 2703-001267
L1 1 INDUCTOR-SMD,47uH,20%,6.6x4.45x2.5mm 2703-001556
L13 1 INDUCTOR-SMD,33nH,5%,1.0x0.5x0.5mm 2703-001723
L14 1 INDUCTOR-SMD,33nH,5%,1.0x0.5x0.5mm 2703-001723
L24 1 INDUCTOR-SMD,8.2nH,5%,1x0.5x0.5mm 2703-001733
L8 1 INDUCTOR-SMD,6.8nH,5%,1x0.5x0.5mm 2703-001734
L2 1 INDUCTOR-SMD,2.7nH,0.3nH,1x0.5x0.5mm 2703-001737
L20 1 INDUCTOR-SMD,68nH,5%,2.29x1.73x1.52mm 2703-001745
L19 1 INDUCTOR-SMD,82nH,5%,2.29x1.73x1.52mm 2703-001746
1-10 Exectrical Parts List
Design LOC Q DESCRIPTION SEC REMARK
L10 1 INDUCTOR-SMD,4.7nH,0.3nH,1.0x0.5x0.5mm 2703-001747
L12 1 INDUCTOR-SMD,4.7nH,0.3nH,1.0x0.5x0.5mm 2703-001747
L15 1 INDUCTOR-SMD,4.7nH,0.3nH,1.0x0.5x0.5mm 2703-001747
L27 1 INDUCTOR-SMD,4.7nH,0.3nH,1.0x0.5x0.5mm 2703-001747
L6 1 INDUCTOR-SMD,4.7nH,0.3nH,1.0x0.5x0.5mm 2703-001747
L7 1 INDUCTOR-SMD,3.9nH,0.3nH,1.0x0.5x0.5mm 2703-001751
L25 1 INDUCTOR-SMD,10UH,20%,4.45X6.6X2.5MM 2703-001781
L11 1 INDUCTOR-SMD,10NH,5%,1.0X0.5X0.5MM 2703-001786
L4 1 INDUCTOR-SMD,10NH,5%,1.0X0.5X0.5MM 2703-001786
L9 1 INDUCTOR-SMD,10NH,5%,1.0X0.5X0.5MM 2703-001786
L16 1 INDUCTOR-SMD,3.3NH,0.3NH,1.0X0.5X0.5MM 2703-001790
OSC1 1 CRYSTAL-SMD,MC-156 2801-003760
OSC4 1 OSCILLATOR-VCO,VOU0540N30KRA 2806-001176
OSC3 1 OSCILLATOR-VCO,QVC101747RT-4042 2806-001195
OSC2 1 OSCILLATOR-VCO,QVC101615RT-4041 2806-001196
U22 1 OSCILLATOR-VCTCXO13MHz,5ppm,10Kohm//10pF,TP,3V, 2809-001220
E1 1 FILTER-EMI SMD,50V,300mA,-,470pF,2x1.25x0.5,T 2901-001116
E4 1 FILTER-EMI SMD,50V,300mA,-,470pF,2x1.25x0.5,T 2901-001116
E5 1 FILTER-EMI SMD,50V,300mA,-,470pF,2x1.25x0.5,T 2901-001116
E6 1 FILTER-EMI SMD,50V,300mA,-,470pF,2x1.25x0.5,T 2901-001116
E7 1 FILTER-EMI SMD,50V,300mA,-,470pF,2x1.25x0.5,T 2901-001116
E2 1 FILTER-EMI SMD,NFM2012P13C474 2901-001162
F3 1 FILTER-SAW,B4822 2904-001092
F1 1 FILTER-SAW,FAR-G6CH-1G8425-L224 2904-001166
F2 1 FILTER-SAW,FAR-G6CH-1G8425-L224 2904-001166
U21 1 FILTER-DUPLEXER,SHS-L090D 2909-001086
CN4 1 CONNECTOR-CARD EDGE,1-338063-9 3709-001121
M1 1 CONNECTOR-SOCKET,24-8005-002-000-867 3710-001105
M2 1 CONNECTOR-SOCKET,24-8005-002-000-867 3710-001105
CN3 1 CONNECTOR-SOCKET,MQ/S179-SAA-18P/4 3710-001302
CN1 1 CONNECTOR-SOCKET,AXK5F30535P 3710-001415
CN5 1 JACK-PHONE,02-699B0-53BKA 3722-001303
B1 1 BATTERY-POLYMER,PAS614L-VL3 4302-001026
U29 1 COUPLER-DIRECTION,LDC15D190A007A 4709-001144
- 1 SPEAKER,LT301 3001-001099
Exectrical Parts List 1-11
2. Exploded View and its Parts List
2-1 Main Exploded View
2-2 Main Parts List
2-3 Test Zig
2-4 RF Cabel
2-5 Test Connection Method
2-6 Travel Adaptor
2-7 Travel Adaptor parts List
2-8 Ciger Light Adaptor
2-9 Ciger Light Adaptor Part List
2-10 Hands Free Kit Diagram
2-11 Hands Free Kit
2-11-1 Hands Free Kit Ass'y
2-12 Hands Free Car Kit Option
2-12-1 Hands Free Car Kit Ass'y
2-13 Hands Free Kit Packing
2-13-1 Hands Free Kit Packing Exploded View
2-13-2 Hands Free Kit Packing Parts List
2-1 Exploded View and its Parts List
2-1 Main Exploded View
1
2
3
6
7 4 15
8 16
17
9 5 18
19
20
10
11
12
13 21
14 22
23
24
25
26
27
28 29
30
31
34
35
32
33 36
37
41 38
39
42 40
43
44
Exploded View and its Parts List 2-2
2-2 Main Parts List
NO DESCRIPTION SEC. CODE Q'TY REMARK
1 TAPE WINDOW BOHO GH72-10001A 1 W
2 LCD WINDOW GH72-00093A 1 W
3 WINDOW TAPE GH74-00039A 1 W
4 DUMMY KEY GH72-00108A 1 F
5 DUMMY KEY TAPE GH74-00053A 1 F
6 DUMMY FLIP GH72-00094A 1 FLIP
7 DUMMY FLIP TAPE GH74-00038A 1 FLIP
8 LOGO BADGE GH68-20008A 1
9 FLIP COVER GH68-20008A 1 FLIP
10 HINGE HOUSING GH72-41293A 2 F
11 SHAFT HINGE GH72-41554A 2 F
12 CAM HINGE GH72-41055A 2 F
13 HINGE SPRING GH70-10608A 2 F
14 HOUSING CAP GH72-41056A 2 F
15 DUMMY FRONT GH72-00084A 1 F
16 DUMMY MANFSA GH74-00204A 1 F
17 DUMMY TAPE GH74-00040A 1 F
18 SPEAKER MANGSA GH74-00208A 1
19 LED LENS GH72-00082A 1 F
20 FRONT COVER GH72-00083A 1 F
21 SPEAKER GH39-00030A 1
22 VOLUME KEY GH73-00025A 1
23 LCD SPONGE GH74-00041A 1 F
24 3X4 KEY GH72-00095A 1
25 KEY PCB GH59-00041A 1
26 MIC HOLDER GH73-00026A 1
27 SHIELD CAN GH72-00089A 1
28 BUZZER HOLDER GH73-00024A 1
29 SPONGE SPEAKER GH74-00142A 1
30 JACK-COVER GH73-00116A 1
31 MAIN PBA GH92-00742A 1
32 CONNECTOR COVER GH73-40639A 1
33 REAR COVER GH72-00086A 1 R
34 EARPHONE COVER GH73-00027A 1
35 STRIP FINGER GH71-10639A 1 R
36 ANTENA GH42-00006A 1
37 LOCKER SPRING GH70-10516A 1 R
38 MAIN LOCKER GH72-00087A 1 R
39 SIM SPRING GH70-00006A 2 R
40 SIM COVER GH72-00088A 1 R
41 SCREW M2X6 6001-001046A 4
42 MAIN LABEL GH68-00333A 1
43 STD BATTERY (BTL1030MB) GH43-10314A 1
44 LONG BATTERY (BTL163DLB) GH43-00089A 1
W WINDOW ASS'Y GH97-00929A
F FRONT ASS'Y GH97-00938A
FLI FLIP ASS'Y GH97-00944A
R REAR ASS'Y GH97-00935A
2-3 Exploded View and its Parts List
2-3 Test Jig
DEBUG : Cal,
To.PC : Down Load
JIG
Switch
DTR BOOT AUTO
ON/OFF ON/OFF ON/OFF
Cal. up down up
Down Load up up up
2-4 RF Cabel
RF CABLE
Exploded View and its Parts List 2-4
2-5
2-5 Test Connection Method
HP8922P
POWER SUPPLY
HP 83220E
3.8V
RF IN/OUT
Exploded View and its Parts List
JIG SGH-2200
1 DEBUG : Cal,
2 To.PC : Down Load
2-6 Travel Adaptor
A B
C
2-7 Travel Adaptor Parts List
Type SEC Code Remark
A GH44-30548A CHINA
B GH44-30549A EUROPE
C GH44-30547A UNITED KINGDOM
Exploded View and its Parts List 2-6
2-8 Ciger Light Adaptor
2-9 Ciger Light Adaptor Part List
Description SEC Code Remark
Ciger Light Adaptor COde GH44-30546A BLACK
2-7 Exploded View and its Parts List
2-10 Hands Free Kit Diagram
Exploded View and its Parts List 2-8
2-11 Hands Free Kit
2-11-1 Hands Free Kit Ass'y
MOUNTING BRACKET
2-9 Exploded View and its Parts List
2-12 Hands Free Car Kit Option
2-12-1 Hands Free Car Kit Ass'y
Phone
Micro Phone
Yellow(Ignition)
White(Stereo Mute)
Red(Vehicle Battery)
Black(GND)
Exploded View and its Parts List 2-10
2-13 Hands Free Kit Packing
2-13-1 Hands Free Kit Packing Exploded View
1
6
5 7 8
2
3 4
9
2-11 Exploded View and its Parts List
2-13-2 Hands Free Kit Packing Parts List
No DESCRIPTION CODE Q'TY REMARK
1 User Manual 1
2 External Mic 1
3 Power cable 1
4 External speaker 1
5 Cradle 1
6 Install Bracket for cradle 1
7 Hands free Box 1
8 Install Bracket for hands-free box 1
9 Unit Box 1
Exploded View and its Parts List 2-12
3-1
Mixer 1
1805-1880MHz
LNA Mixer 2
I
Rx IF SAW LC .I
SAW Filter Filter PGA I&Q Demo.
(45MHz) Q
filter (225MHz)
925-960MHz .Q
LNA
45MHz
3-1 RF Block Diagram
CLK
Serial data SDATA
bias circuit interface LE
3. Block Diagram
Rx filter
Dual synth. GSM : 1150-1185MHz
PCN : (Rx) 1580-1655MHz
(Tx) 1575-1650MHz 270MHz
90◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
