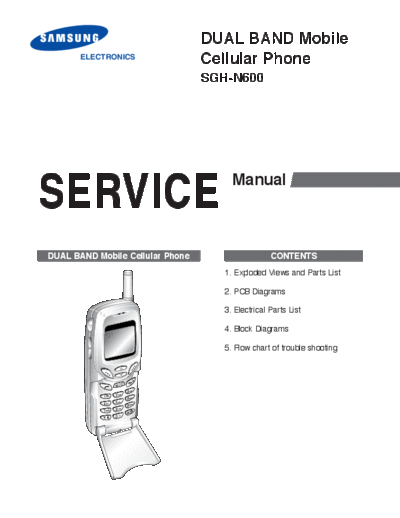

Image preview - the first page of the document
>> Download Samsung SGH-N600 service manual documenatation <<
Text preview - extract from the document
DUAL BAND Mobile
ELECTRONICS
Cellular Phone
SGH-N600
SERVICE Manual
DUAL BAND Mobile Cellular Phone CONTENTS
1. Exploded Views and Parts List
2. PCB Diagrams
3. Electrical Parts List
4. Block Diagrams
5. Flow chart of trouble shooting
ELECTRONICS
Samsung Electronics Co.,Ltd.
Printed in Korea
02/2002 Rev 1.0
GH68-02698A
1. Exploded Views and Parts List
1-1 Main
1-2 Main Parts List
1-3 Travel Adapter
1-4 Travel Adapter Parts List
1-5 Battery Charger
1-6 Test Jig
1-6-1 Test Jig
1-7 normal EAR Microphone
1-8 Data Kit
2. PCB Diagrams
2-1 Main Top
2-2 Main Bottom
3. Electrical Parts List
3-1 Main Parts List Top
3-2 Main Parts List Bottom
4. Block Diagrams
4-1 Main Base Band
4-2 Main RF
4-2-1 RF Tx Part
4-2-2 RF Rx Part
5. Flow chart of trouble shooting
5-1 Power ON
5-2 Initial
5-3 Charging Part
5-4 Sim Part
5-5 Microphone Part
5-6 Speaker Part
5-7 Key Data Input
5-8 Alert tone
5-9 Ring Indicator
5-10 Back Light
5-11 GSM Receiver
5-12 GSM Transmit
5-13 DCS Receiver
5-14 DCS Transmit
1. SGH-N600 Exploded Views and Parts List
1-1 Main
1
2
1-1
3
4
1-1
5
6
9
7
8
10
11 12
13
14
15
16
18
17
SGH-N600 Exploded Views and Parts List 1-1
1-2 Main Parts List
Location No. Description SEC CODE Remark
1 FRONT COVER ASS'Y GH75-01722A
1-1 FLIP COVER GH75-01721A
2 SPEAKER 3001-001253
3 MIC ASS'Y GH59-00240B
4 MAIN PBA GH92-01280A
4-1 LCD GH07-00131A
5 KEY PAD GH75-01705A
6 COVER CONNECTOR GH73-01079B
7 KEY PCB GH59-00326A
8 SHIELD COVER GH72-03206B
9 REAR SHIELD COVER GH71-00586A
10 SPEAKER 3001-001199
11 MOTOR GH31-00033A
12 ANTENNA GH42-00137A
13 MOBILE CAP GH73-00892B
14 VOL KEY GH75-01490A
15 REAR COVER ASS'Y GH75-01626A
16 SCREW 6001-000883
17 SCREW CAP GH73-00891B
18 BATTERY GH43-00435B
1-2 SGH-N600 Exploded Views and Parts List
1-3 Travel Adapter
A
1-4 Travel Adapter Parts List
TYPE SEC CODE REMARK
A GH44-00184A EUROPE
1-5 Battery Charger
1-6 Test Jig
TEST JIG GH80-10508A
SGH-N600 Exploded Views and Parts List 1-3
TEST JIG CABLE GH39-00079A
RF JIG CABLE GH39-00094A
DM CABLE GH39-00080A
1-4 SGH-N600 Exploded Views and Parts List
1-6-1 Test Jig
DC
POWER
SUPPLY
8922 or 8960
WIRELESS COMMVNCATIONS
TEST SET
RF JIG CABLE
TE
ST
JIG
232 CABLE
TEST JIG CABLE
1-7 Normal EAR Microphone
Wearable EAR Microphone GH59-00330A
1-8 Data Kit
DATA KIT GH39-00078A
SGH-N600 Exploded Views and Parts List 1-5
2-1
R142
R140
LED201 Q104
R138
2-1 Main Top
R137
Q102 Q103 SPK1
ZD105
ZD104
2. PCB Diagrams
V108 V109
R352
R350
C370
C372
R353
R339
C369 R338
R340
R336 C367
U310 R334 R333
R337 C365
C368 R335
C366
C382 R349
C363
C127
R109
R110
R108
R107
R227 C251
C128
C129
U683
C131
C132
R111
R226 R112
C123
C248
C125
C126
C124
C249
CN101
C259
C258
C257
C256
C255
C254
C253
C252
R172
R173
R174
R178
C303
U304
F102
F103
U114 C175 C180
C105
R355 C302
C301
C221 R232
U118
U301
R301
R231
U122
C177 R170
C179 R168
C178 R169
C176 R171
R202 R210R211
U111
C182
R181
R195
C181
R180
C246 C218 TP2
R223 C244 C209 R214 TP1
R221 C229 R213
Q109 T7
R200 R182
R197
U121
R167
R190
C243 F101 C140 C208 C230 R212
C241
R185 R163 R189
R222
C215
C207
R192 R184
C245
C240
C220
C214
C242 R219 C198 C219
C142
C141 OSC102
C188
C192
R176
U130 U109
R115 C225 C185 C203
C139 C226 R194 C204
R204
R208
R193
C227 R183 R196
R120
R123
C228 C206 R187
R206 C197 T1
C261 C260 R161
R175 R191
C195 C193
U107
C174
C173
C191 Q101
C135
C205 R188
R139
U117 R203 R141
F100
R179
R121 U105
R224
U123
R144
R118 R119 C187 R145
Q105
R228
C398 C196
R146
C217
R201
D102
R207 C184 R148
R147
C155
R177
OSC300 AR101
C186
C190
C194
C189
C183 R229 R143 R149
U115
C397
U110
C160
C158
U113 R157
T2
R186
R156
T5
R217
R158
ZD103
T3 T4
T6
AR102 AR103 T15
C166
R155
C167
C136
R117
C137
V102
U106 C201
C199
C200
C202 V103
MIC1
T8 T9 T10 T11 T12 T13 T14 T16 T17 T18 T19 TP20 TP21 TP22 TP23
SGH-N600 PCB Diagrams
2-2
V116 V115
J301 C216
CN103
C168 CN105 C224
R230
C169
V101
C211 V107
V104
C231C232
C247
C239
C210
2-2 Main Bottom
U120 C213
ANT1
C212
C374 U682
L316
C396
L318
CN104
V105 V106
C378
U312 L319
L320
C362 L317 C345
C380
C377 C376 C344 R319
F305 F301 L310 C340 L306
U314 U313 C336 C339 C333
R332
R351
C352
C347
C353 C351
C379
R346
L314
C383 C331
R317 C330
C343
C349
L313
L312
L311
L308
Q304 C337 F302
C322
R321
C355
C334
C381
R348
L307
C329
L303
C364
C335
Q303
C325
R316
C332 L304
C354
U307
C328
C323
C321
C338
U311
C341
C375
R344 Q305
C350 L309
C324
F303
C348
R320
C346
Q302
C326 C342
R315
C327
F304
L305
SW2 SW1
C361 R331
R341 R325
R342
R329
C319
C316
R343
R310
R330
C359 R326 C360 C356
R328
C317
R323 C314
R308 C312
C318
U306 L301
U305
C357 C358
R313 C315 L302 C320
R324 R322
U308 C386 R311 R306
R312
Q301
R309
R305 R307
C311 C313
C385
R302
R303
U303
C163
U124
U678 U679
C306
R128 C304
U302
C308
C309
R304
C310 C143 C144 R127
C307
C305
U112
Q106
R102
C164
R154 C114
C134
R152
C165
R153
U101
C108
C113
V118 R105
U102
V117 C121 U100
C116 R103
V121
C100
V119
C103 C102
V125 C112 C101
V120
CN102 V124
C104
V123 V122 U104
C120
D100 R101
C109
M100
C110 C111
R113
U103
C115 C122 C119 C117 C118 C133 TH100
C130
C161
C162
C223
C222
C233
CN106
C145
C234 V110
V113
V114
C238
U681 V112 V111 U680
ZD102
ZD101
CN220
SGH-N600 PCB Diagrams
3. Electrical Parts List
3-1 Main Parts List Top
NO Reference SEC Code Part Description Vendor Part No
1 AR101 2011-001345 R-CHIP;EXB28V103JX EXB28V103JX
2 AR102 2011-001344 R-CHIP;EXB28V101JX EXB28V101JX
3 AR103 2011-001344 R-CHIP;EXB28V101JX EXB28V101JX
4 C123 2203-006053 C-CERAMIC,CHIP;C105Z,1UF,10V GRM188R61A105KA61D
5 C124 2203-006053 C-CERAMIC,CHIP;C105Z,1UF,10V GRM188R61A105KA61D
6 C125 2203-006053 C-CERAMIC,CHIP;C105Z,1UF,10V GRM188R61A105KA61D
7 C126 2203-006053 C-CERAMIC,CHIP;C105Z,1UF,10V GRM188R61A105KA61D
8 C127 2203-006053 C-CERAMIC,CHIP;C105Z,1UF,10V GRM188R61A105KA61D
9 C128 2203-005061 C-CERAMIC,CHIP;C104Z,100NF,16V GRP155F51C104ZA01E
10 C129 2203-005061 C-CERAMIC,CHIP;C104Z,100NF,16V GRP155F51C104ZA01E
11 C130 2203-005061 C-CERAMIC,CHIP;C104Z,100NF,16V GRP155F51C104ZA01E
12 C131 2203-005061 C-CERAMIC,CHIP;C104Z,100NF,16V GRP155F51C104ZA01E
13 C132 2203-001405 C-CERAMIC,CHIP;C223K,22NF,50V GRP155F51E223ZD01E
14 C135 2203-000233 C-CERAMIC,CHIP;C101J,100PF,50V GRP1555C1H101JD01E
15 C136 2203-005061 C-CERAMIC,CHIP;C104Z,100NF,16V GRP155F51C104ZA01E
16 C137 2203-002443 C-CERAMIC,CHIP;C331K,330PF,50V GRP155R71H331KD01E
17 C139 2203-000438 C-CERAMIC,CHIP;C102K,1NF,50V GRP155R71H102KA01E
18 C140 2203-005061 C-CERAMIC,CHIP;C104Z,100NF,16V GRP155F51C104ZA01E
19 C141 2404-001086 C-TA,CHIP;4.7UF/6.3V TESVSPOJ475M8RTJ
20 C142 2203-005061 C-CERAMIC,CHIP;C104Z,100NF,16V GRP155F51C104ZA01E
21 C155 2203-005061 C-CERAMIC,CHIP;C104Z,100NF,16V GRP155F51C104ZA01E
22 C158 2203-005065 C-CERAMIC,CHIP;C105Z,1UF,10V GRM188F51A105ZC01D
23 C166 2203-005061 C-CERAMIC,CHIP;C104Z,100NF,16V GRP155F51C104ZA01E
24 C167 2203-005061 C-CERAMIC,CHIP;C104Z,100NF,16V GRP155F51C104ZA01E
25 C173 2203-003054 C-CERAMIC,CHIP;C090C,9PF,50V GRP1555C1H9R0DZ01E
26 C174 2203-000679 C-CERAMIC,CHIP;C270J,27PF,50V GRP1555C1H270JZ01E
