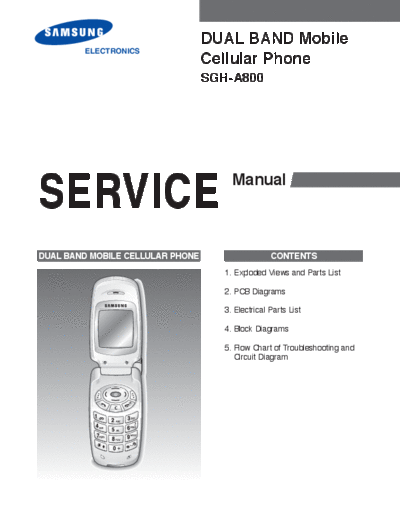

Image preview - the first page of the document
>> Download Samsung SGH-A800 service manual documenatation <<
Text preview - extract from the document
DUAL BAND Mobile
ELECTRONICS
Cellular Phone
SGH-A800
SERVICE Manual
DUAL BAND MOBILE CELLULAR PHONE CONTENTS
1. Exploded Views and Parts List
2. PCB Diagrams
3. Electrical Parts List
4. Block Diagrams
5. Flow Chart of Troubleshooting and
Circuit Diagram
ELECTRONICS
Samsung Electronics Co.,Ltd.
Printed in Korea
11/2002 Rev 1.0
GH68-03108A
1. Exploded Views and Parts List
1-1 Main
1-2 Main Parts List
1-3 Travel Adapter
1-4 Travel Adapter Parts List
1-5 Ciger Light Adapter
1-6 Ciger Light Adapter Parts List
1-7 Test Jig
1-8 Wearable EAR Microphone
1-9 Data Kit
1-10 Battery Charger
2. PCB Diagrams
2-1 Main Top
2-2 Main Bottom
3. Electrical Parts List
3-1 Main Parts List Top
3-2 Main Parts List Bottom
4. Block Diagrams
4-1 Main Base Band
4-2 Main RF
4-2-1 RF Transmit Part
4-2-2 RF Receive Part
5. Flow chart of Troubleshooting and Circuit Diagram
5-1 Power ON
5-2 Initial
5-3 Charging Part
5-4 Sim Part
5-5 Microphone Part
5-6 Speaker Part
5-7 Key Data Input
5-8 Receiver Part
5-9 Ring Indicator
5-10 Back Light (for Main & Sub LCD)
5-11 Back Light (for Key)
5-12 GSM Receiver
5-13 GSM Transmit
5-14 DCS Receiver
5-15 DCS Transmit
Exploded Views and Parts List 1-1
1. Exploded Views and Parts List
1-1 Main
1
2
3
11
4
5
12 6
13 16
9 7
14
10
15
8
18
17
22
19
20 24
21
23
1-2 Exploded Views and Parts List
1-2 Main Parts List
Location
No. Description SEC CODE Remark
1 DUAL WINDOW LCD GH72-04824A
2 FOLDER DUMMY GH75-02119A
3 FOLDER UPPER GH75-02117A
4 LCD GH07-00181A
5 MOTOR 3101-001328
6 SPEAKER 3001-001319
7 FOLDER LOWER GH75-02118A
8 WINDOW LCD GH72-04823A
9 SCREW 6001-001285
10 SCREW SHEET GH74-02895A
11 FRONT COVER GH75-02116A
12 KEYPAD GH75-02136A
13 VOLKEY F-PCB GH59-00474A
14 MAIN PBA GH92-01334A
15 DOME SHEET GH59-00475A
16 MIC GH59-00476A
17 CONNECTOR COVER GH73-01282A
18 RF COVER GH73-01281A
19 ANTENNA GH42-00201A
20 REAR COVER GH75-02121A
21 SCREW CAP GH73-01283A
22 VOLUME KEY GH75-02120A
23 SCREW 6001-000464
24 BATTERY GH43-00667A
Exploded Views and Parts List 1-3
SGH-A800 COLOR & CODE
COLOR
SILVER Dark Silver Dark Blue Royal Blue
ITEM
FOLDER UPPER GH75-02117A GH75-02117B GH75-02117C GH75-02117D
FOLDER LOWER GH75-02118A GH75-02118B GH75-02118C GH75-02118D
FRONT COVER GH75-02116A GH75-02116B GH75-02116C GH75-02116D
REAR COVER GH75-02121A GH75-02121B GH75-02121C GH75-02121D
FOLDER DUMMY GH75-02119A GH75-02119B GH75-02119C GH75-02119D
COLOR
SILVER Dark Silver Dark Blue Royal Blue
ITEM
FOLDER UPPER GH72-04819A GH72-04819B GH72-04819C GH72-04819D
FOLDER LOWER GH72-04822A GH72-04822B GH72-04822C GH72-04822D
FRONT COVER GH72-04825A GH72-04825B GH72-04825C GH72-04825D
REAR COVER GH72-04827A GH72-04827B GH72-04827C GH72-04827D
FOLDER DUMMY GH72-04821A GH72-04821B GH72-04821C GH72-04821D
COLOR
SILVER Dark Silver Dark Blue Royal Blue
ITEM
MAIN LOCKER GH72-04828A GH72-04828B GH72-04828C GH72-04828D
EARPHONE COVER GH72-05132A GH72-05132B GH72-05132C GH72-05132D
DAMPER(L) GH73-01276A GH73-01276B GH73-01276C GH73-01276D
MIC HOLDER GH73-01277A GH73-01277B GH73-01277C GH73-01277D
SCREW CAP SHEET GH74-02895A GH74-02895B GH74-02895C GH74-02895D
COLOR
SILVER Dark Silver Dark Blue Royal Blue
ITEM
SCREW CAP GH73-01283A GH73-01283B GH73-01283C GH73-01283D
MOBILE CAP GH73-01281A GH73-01281B GH73-01281C GH73-01281D
I/F CONN COVER GH73-01282A GH73-01282B GH73-01282C GH73-01282D
SHEET REAR GH74-03415A GH74-03415B GH74-03415C GH74-03415D
1-4 Exploded Views and Parts List
1-3 Travel Adapter
A B
C D
1-4 Travel Adapter Parts List
TYPE SEC CODE REMARK
A GH44-00171A CHINA
B GH44-00184A EUROPE
C GH44-00171C UNITED KINGDOM
D Gh44-00171E TAIWAN
Exploded Views and Parts List 1-5
1-5 Ciger Light Adapter
1-6 Ciger Light Adapter Parts List
DESCRIPTION SEC CODE REMARK
Ciger Light Adapter Code GH44-00170A BLACK
1-6 Exploded Views and Parts List
1-7 Test Jig
TEST JIG GH80-10508A
TEST JIG CABLE GH39-00079A
RF JIG CABLE GH39-00174A
Exploded Views and Parts List 1-7
1-7 Test Jig
DC
POWER
SUPPLY
8922 or 8960
WIRELESS COMMUNICATIONS
TEST SET
RF JIG CABLE
TE
ST
JIG
232 CABLE
TEST JIG CABLE
1-8 Exploded Views and Parts List
1-8 Wearable EAR Microphone
Wearable EAR Microphone GH59-00322A
1-9 Data Kit
DATA KIT GH39-00078A
Exploded Views and Parts List 1-9
1-10 Battery Charger
BATTERY CHARGER GH44-00279A
1-10 Exploded Views and Parts List
PCB Diagrams
R217 Q201
C234
R414
C312 C313
2-1 Main Top
C437
C311 C443
R309 C432
R307 U203
R310 U200
R214 LAMP207
C201 R204
U301 C315 C203
R308
2. PCB Diagrams
R200
C200
R201
C310
Q702
R712 R713
R430
R305
R304
C308
R306
C307
C309
UP
INT
SOFT1
SOFT2
LEFT
RIGHT
LAMP202 LAMP201
R210 R209
DOWN LAMP206
R213
H101
END
SEND
V201
V202
TP424
CLR
R605
C421
C419
R413
C202
R203
C422
L401 TH200
C442
L402 C423 C420
TP423
CN201
R208 R207
LAMP203 LAMP200
C400
C402
C441 L400
C401
C416
R417
C412
C415
C417 C414
TP411 C413
R212 R211
TP410 LAMP205 LAMP204
TP421
TP413
TP412
TP415
DIGIT1 DIGIT4 DIGIT7 SYMBOL*
C424 C425 C428
DIGIT3 DIGIT6 DIGIT9 SYMBOL#
DIGIT2 DIGIT5 DIGIT8 DIGIT10
V400 C426 V401
R422 R215R216 L300
U202
R416
C132
C113
Q200
C102
C304
U103
U100
C133
C103 V315 C305 MIC400
C112
R425 R426 C114
2-1
2-2
CON700
ANT700
EAR400
C204
C230 R224 V405 R221
R222 C212
C205 C208
C206 R225
Q400
R223 C209
C711 H103 C207 CN200 R226
C712
L700
C213 C210
R438
R437
C433
V404
R229 R227
C231 C211
C237 R228
C714
R710
U700 C232 C235
R219 V403 C233 R220 C306 C236
R708 R709
U704
C716 L701
C240
C715
U703
U230
C603 R714 C601
F600
R704 R707
L600
U600
R706 R711
C602
Q701
C606
F601
L601
C605
C710
C707
C608
C708 C706 C701
U701
C700
C709 C612
U503
R502 C514
U702 R703
U601
C609 C604
R705
C705
C510
C511
L500
C702
R702 R701
R700
R412
C611 C600 C610
R602 R600 C703 C704
C500 R603
R604
C501
C607 R601
U500
C502
R606
R607
R608 R610 C509
R500
R421
C713 C717
R609 R611 C512
C504 C503
C505
C506
U501
L501
Q700 C508
U502
U401
R404 R419R420
C110 R427
C108
C507 C513
C431 R501
R424
C107 C118
C130
U106
R406
R409
R405
U111
C491
C490
R423
C406 C405 C407 C408
OSC400
D100
R407 C438 C435 C436
C411 C434 C430 C429
TP414
C410 C409 R402R403 R401 R400
R113 R408
R107
R108
R105
R106
C119
R101
C111 R505
U112
R504
C109
R503
ZD1 U201 U101 V203
R439 R431 R435 R432
R418 R410 C418
U400
CN100 R311
R303
Q301
U300
R109
R110
C117 R104 R103 R312
R102
U105
C116
U104 Q100
R300 R411
R313
U302 R302
R301
R415 C302 C301
V302 C439 R100 C104
D101
H100 C115 C106 C427
C105
C316
V300
H102
V301 C440
V307 R428
V309 R429
C300
V303
V305
V304
V308
V306
V310
C101
CN300
2-2 Main Bottom
PCB Diagrams
JP403 JP402 JP400 JP401 JT302 JT6 JT300 JT301 JT309 JT307 JT308 JT305 JT306 JT304 JT303
3. Electrical Parts List
3-1 Main Parts List Top
NO Refer SEC Part Description Vendor Part No.
ence CODE
1 C234 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" GRP1555C1H270JZ01E
2 R414 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" RC1005J104CS
3 C312 2404-001086 "C-TA,CHIP" "4.7uF,20%,6.3V,GP,TP,2012,-" TESVSPOJ475M8RTJ
4 C313 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" MCH153F104ZK
5 C311 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" CM05CG101J50AT
6 C437 2203-005444 "C-CERAMIC,CHIP" "0.003nF,0.1pF,50V,NP0,TP,1005" GRP1555C1H3R0BZ01E
7 R309 2007-000161 R-CHIP "82Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ823X
8 R307 2007-007771 R-CHIP "0OHM,5%,1/16W,DA,TP,1005" ERJ2GEJ0R0E
9 R310 2007-007090 R-CHIP "11KOHM,5%,1/16W,DA,TP,1005" ERJ2GEJ113X
10 C315 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" MCH153F104ZK
11 R308 2007-000153 R-CHIP "22Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ223X
12 C310 2203-005483 "C-CERAMIC,CHIP" "68nF,10%,10V,X5R,TP,1005,-" GRP155R61A683KA01E
13 C309 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" MCH153F104ZK
14 C307 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" MCH153F104ZK
15 Q200 0501-002202 TR-SMALL SIGNAL "MMBT2222AWT1,NPN,150mW,SOT-323" MMBT2222AWT1
16 Q702 0504-001058 TR-DIGITAL "RN4985,NPN/PNP,200mW,2.2Kohm/ RN4985-TE85L
47Kohm,UMD6,TP"
17 U202 0504-001060 TR-DIGITAL "BCR08PN,NPN/PNP,250mW,2.2Kohm/ BCR08PN
47Kohm,SOT-363,TP"
18 LAMP200 0601-001547 LED "CHIP,BLUE,1.1X0.8MM,468NM" SLS-NNBL102TS
19 LAMP201 0601-001547 LED "CHIP,BLUE,1.1X0.8MM,468NM" SLS-NNBL102TS
20 LAMP202 0601-001547 LED "CHIP,BLUE,1.1X0.8MM,468NM" SLS-NNBL102TS
21 LAMP203 0601-001547 LED "CHIP,BLUE,1.1X0.8MM,468NM" SLS-NNBL102TS
22 LAMP204 0601-001547 LED "CHIP,BLUE,1.1X0.8MM,468NM" SLS-NNBL102TS
23 LAMP205 0601-001547 LED "CHIP,BLUE,1.1X0.8MM,468NM" SLS-NNBL102TS
24 LAMP206 0601-001547 LED "CHIP,BLUE,1.1X0.8MM,468NM" SLS-NNBL102TS
25 LAMP207 0601-001547 LED "CHIP,BLUE,1.1X0.8MM,468NM" SLS-NNBL102TS
26 U200 0801-002540 IC-CMOS LOGIC "7SZ19,DECODER,SOP,6P,49MIL,SINGLE,TP, NC7SZ19P6X
PLASTIC,-,-,0.55V,-40to+85C,-,4.125V,1uA,-,"
27 Q201 1003-001440 IC-POWER DRIVER "MDC3105LT1,SOT-23,3P,49MIL,-,500MA,TP," MDC3105LT1
PLASTIC,6V,-40TO+85C,225MA,-,-
28 U203 1009-001010 IC-HALL EFFECT S/W "A3212ELH-SAMSUNG,SC-59A,3P,82MIL,TP, A3212ELHLT-SAMSUNG
BICMOS,PLASTIC,3.5V,2MA,-40TO+85C,-,-,-,340K"
29 U103 1203-002076 IC-VOLTAGE "2985,SOT-23,5P,63MIL,PLASTIC,2.9/3.1V,-, LP2985AIM5X-3.0
REGULATOR -40to+125C,350mA,-,TP"
30 U100 1203-002077 IC-VOLTAGE "2985,SOT-23,5P,63MIL,PLASTIC,3.284/3.416V,-, LP2985AIM5X-3.3
REGULATOR -40to+125C,350mA,-,TP"
31 U301 1204-001811 IC-MELODY "YMU759-QE2,QFN,32P,-,PLASTIC,6V,-, YMU759-QE2
-20TO+85C,TP,-"
Electrical Parts List 3-1
NO Refer SEC Part Description Vendor Part No.
ence CODE
32 TH200 1404-001221 THERMISTOR-NTC "47Kohm,-,4050K,1mW/C,-,-,TP" NCP15WB473J04RC
33 V400 1405-001082 VARISTOR "5.6V,20A,1x0.5x0.6mm,TP" VC040205X150R
34 V401 1405-001082 VARISTOR "5.6V,20A,1x0.5x0.6mm,TP" VC040205X150R
35 V315 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" VC040214X300
36 V201 1405-001110 VARISTOR "18V,20A,1X0.5X0.6MM,TP" AVLC 14S 02 050
37 V202 1405-001110 VARISTOR "18V,20A,1X0.5X0.6MM,TP" AVLC 14S 02 050
38 R215 2007-000137 R-CHIP "2Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ202X
39 R217 2007-000143 R-CHIP "4.7Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ472X
40 R413 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
41 R712 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
42 R713 2007-000152 R-CHIP "20Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ203X
43 R204 2007-000157 R-CHIP "47Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ473X
44 R422 2007-000157 R-CHIP "47Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ473X
45 R203 2007-000159 R-CHIP "56Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ563X
46 R200 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
47 R201 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
48 R304 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
49 R305 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
50 R416 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
51 R417 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
52 R425 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
53 R426 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
54 R430 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
55 R306 2007-001325 R-CHIP "3.3Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ332X
56 R207 2007-007009 R-CHIP "75OHM,5%,1/16W,DA,TP,1005" ERJ2GEJ750X
57 R208 2007-007009 R-CHIP "75OHM,5%,1/16W,DA,TP,1005" ERJ2GEJ750X
58 R209 2007-007009 R-CHIP "75OHM,5%,1/16W,DA,TP,1005" ERJ2GEJ750X
59 R210 2007-007009 R-CHIP "75OHM,5%,1/16W,DA,TP,1005" ERJ2GEJ750X
60 R211 2007-007009 R-CHIP "75OHM,5%,1/16W,DA,TP,1005" ERJ2GEJ750X
61 R212 2007-007009 R-CHIP "75OHM,5%,1/16W,DA,TP,1005" ERJ2GEJ750X
62 R213 2007-007009 R-CHIP "75OHM,5%,1/16W,DA,TP,1005" ERJ2GEJ750X
63 R214 2007-007009 R-CHIP "75OHM,5%,1/16W,DA,TP,1005" ERJ2GEJ750X
64 C441 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" CM05CG101J50AT
65 C442 2203-000233 "C-CERAMIC,CHIP" "0.1nF,5%,50V,NP0,TP,1005" CM05CG101J50AT
66 C103 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AT
67 C113 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AT
68 C114 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AT
69 C402 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AT
70 C412 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AT
71 C413 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AT
72 C414 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AT
73 C419 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AT
74 C420 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AT
Electrical Parts List 3-2
NO Refer SEC Part Description Vendor Part No.
ence CODE
75 C422 2203-000254 "C-CERAMIC,CHIP" "10nF,10%,16V,X7R,TP,1005,-" CM05X7R103K16AT
76 C308 2203-000438 "C-CERAMIC,CHIP" "1nF,10%,50V,X7R,TP,1005,-" CM05X7R102K50AH
77 C304 2203-000679 "C-CERAMIC,CHIP" "0.027nF,5%,50V,NP0,TP,1005" CM05CG270J50AT
78 C400 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" CM05CG330J50AT
79 C401 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" CM05CG330J50AT
80 C415 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" CM05CG330J50AT
81 C416 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" CM05CG330J50AT
82 C417 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" CM05CG330J50AT
83 C421 2203-000812 "C-CERAMIC,CHIP" "0.033nF,5%,50V,NP0,TP,1005" CM05CG330J50AT
84 C424 2203-000854 "C-CERAMIC,CHIP" "0.039nF,5%,50V,NP0,TP,1005" CM05CG390J50AT
85 C432 2203-003054 "C-CERAMIC,CHIP" "0.009nF,0.25pF,50V,NP0,TP,1005" C1005CG1H090CT
86 C425 2203-001017 "C-CERAMIC,CHIP" "0.004nF,0.25pF,50V,NP0,TP,1005" CM05CG040C50AT
87 C428 2203-001017 "C-CERAMIC,CHIP" "0.004nF,0.25pF,50V,NP0,TP,1005" CM05CG040C50AT
88 C203 2203-002443 "C-CERAMIC,CHIP" "0.33nF,10%,50V,X7R,TP,1005" CL05B331KBNC
89 C423 2203-003054 "C-CERAMIC,CHIP" "0.009nF,0.25pF,50V,NP0,TP,1005" "C-CERAMIC,CHIP"
90 C100 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" MCH153F104ZK
91 C200 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" MCH153F104ZK
92 C201 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" MCH153F104ZK
93 C202 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" MCH153F104ZK
94 C305 2203-005061 "C-CERAMIC,CHIP" "100nF,+80-20%,16V,Y5V,TP,1005" MCH153F104ZK
95 C132 2203-005065 "C-CERAMIC,CHIP" "1000nF,+80-20%,10V,Y5V,TP,1608" CL10F105ZPNC
96 C133 2203-005065 "C-CERAMIC,CHIP" "1000nF,+80-20%,10V,Y5V,TP,1608" CL10F105ZPNC
97 C102 2404-001105 "C-TA,CHIP" "10UF,20%,6.3V,GP,TP,2012" TAJR106M006R
98 C112 2404-001105 "C-TA,CHIP" "10UF,20%,6.3V,GP,TP,2012" TAJR106M006R
99 L300 2703-002206 INDUCTOR-SMD "39NH,5%,1.0X0.5X0.5MM" CIH05T39NJNC
100 L400 2703-002206 INDUCTOR-SMD "39NH,5%,1.0X0.5X0.5MM" CIH05T39NJNC
101 L401 2703-002206 INDUCTOR-SMD "39NH,5%,1.0X0.5X0.5MM" CIH05T39NJNC
102 C443 2203-003054 "C-CERAMIC,CHIP" "0.009nF,0.25pF,50V,NP0,TP,1005" "C-CERAMIC,CHIP"
103 L402 2703-002206 INDUCTOR-SMD "39NH,5%,1.0X0.5X0.5MM" CIH05T39NJNC
3-3 Electrical Parts List
3-2 Main Parts List Bottom
NO Refer SEC Part Description Vendor Part No.
ence CODE
1 Q700 0504-001058 TR-DIGITAL "RN4985,NPN/PNP,200mW,2.2Kohm/47Kohm,UMD6,TP" RN4985-TE85L
2 Q701 0504-001058 TR-DIGITAL "RN4985,NPN/PNP,200mW,2.2Kohm/47Kohm,UMD6,TP" RN4985-TE85L
3 U201 0504-001060 TR-DIGITAL "BCR08PN,NPN/PNP,250mW,2.2Kohm/47Kohm,SOT-363,TP" BCR08PN
4 Q400 0505-001332 FET-SILICON "FDG6301,N,25V,0.22A,4OHM,.3W,SC70-6" FDG6301N
5 U101 0505-001423 FET-SILICON "FDG6323L,N/P,-,-,-,0.3W,SC70-6" FDG6323L
6 U105 0506-001004 TR-ARRAY "UMC5N,NPN/PNP,2,50V,-,-100mA,3" UMC5NTR
7 U401 1001-001145 IC-ANALOG SWITCH "MAX4599EXT,-,SC70,6P,49MIL,SINGLE,5.5V,- MAX4599EXT-T
40to+85C,PLASTIC,245mW,60ohm,25ns,30ns,0"
8 U230 1001-001183 IC-ANALOG SWITCH "MAX4684EUB,-,TSSOP,10P,114MIL,DUAL,3.3V,- MAX4684EUB
40TO+85CC,PLASTIC,444MW,0.8OHM,30NS,50N"
9 U300 1109-001218 IC-ETC. MEMORY "LRS1806,4MX16/1MX16BIT,BGA,72P,11X8MM,85NS,3V, LRS1806A
10%,PLASTIC,-25TO+85C,80UA,CMOS,TR"
10 U701 1201-001785 IC-POWER AMP "08122,-,8P,-,DUAL,34DB,-,7V,-,-25TO+100C,-,-,-,-,-" PF08122B-10-TB
11 U500 1203-001454 IC-VOLTAGE "2981,SOT-23,5P,59MIL,PLASTIC,3" LP2981AIM5X-3.0
REGULATOR 4.2#TR
12 U104 1203-002127 IC-BATTERY "1734,SOT-23,6P,150MIL,PLASTIC,4.7/5.3V,-, LTC1734ES6-
0to+70C,1A,-,TP"
13 U106 1203-002247 IC-VOL. DETECTOR "S-809,SOT-23-5,5P,-,-,-,150MW,-40TO+85C,50MA,-,TP" S-80926ALMP-
DAP-T2
14 U501 1203-002598 IC-VOLTAGE "2981,SOT-23,5P,2.92X1.6MM,PLASTIC,2.8V,-, LP2981AIM5X-2.8
REGULATOR -40TO+125C,100MA,-,TP"
15 U112 1203-002599 IC-VOLTAGE "2981,SOT-23,5P,2.92X1.6MM,PLASTIC,2.5V,-, LP2981AIM5X-2.5
REGULATOR -40TO+125C,100MA,-,TP"
16 U111 1203-002599 IC-VOLTAGE "2981,SOT-23,5P,2.92X1.6MM,PLASTIC,2.5V,-, LP2981AIM5X-2.5
REGULATOR -40TO+125C,100MA,-,TP"
17 U400 1205-002035 IC-COMM. "VP40581B,FBGA,180P,-,PLASTIC,3.3V,-,-40TO+85C, VP40581E3
CONTROLLER TR,ONEC PROCESSOR"
18 U600 1205-002248 IC-TRANSCEIVER "SI4200DB-BM,MLP,32P,5X5MM,-,3V,-,-20TO+85C, SI4200DB-BM
TP,DUALBAND TRANSCEIVER"
19 U601 1205-002185 IC-INTERFACE "SI4201-BM,MLP,20P,4X4MM,-,3V,-,-20TO+85C,TP, SI4201-BM
UNIVERSAL BASEBAND"
20 U702 1209-001379 "IC-ETC, LINEAR" "HD155173ANPEL,-,16P,-,-,3.4V,240MW,-25TO+85C,TP" HD155173ANPSEL
21 U503 1209-001434 IC-PLL/SYNTHESISER "SI4133T-BM,MLP,28P,5X5MM,-,3V,-,-20TO+85C,TP" SI4133T-BM
22 V300 1405-001082 VARISTOR "5.6V,20A,1x0.5x0.6mm,TP" VC040205X150R
23 V301 1405-001082 VARISTOR "5.6V,20A,1x0.5x0.6mm,TP" VC040205X150R
24 V403 1405-001082 VARISTOR "5.6V,20A,1x0.5x0.6mm,TP" VC040205X150R
25 V404 1405-001082 VARISTOR "5.6V,20A,1x0.5x0.6mm,TP" VC040205X150R
26 V405 1405-001082 VARISTOR "5.6V,20A,1x0.5x0.6mm,TP" VC040205X150R
27 V310 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" VC040214X300
28 V309 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" VC040214X300
29 V308 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" VC040214X300
30 V307 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" VC040214X300
Electrical Parts List 3-4
NO Refer SEC Part Description Vendor Part No.
ence CODE
31 V306 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" VC040214X300
32 V305 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" VC040214X300
33 V304 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" VC040214X300
34 V303 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" VC040214X300
35 V302 1405-001093 VARISTOR "14V,20A,1x0.5x0.6mm,TP" VC040214X300
36 V203 1405-001110 VARISTOR "18V,20A,1X0.5X0.6MM,TP" AVLC 14S 02 050
37 R500 2007-000138 R-CHIP "100ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ101X
38 R419 2007-000139 R-CHIP "220ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ221X
39 R427 2007-000139 R-CHIP "220ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ221X
40 R100 2007-000140 R-CHIP "1Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ102X
41 R428 2007-000141 R-CHIP "2.2Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ222X
42 R429 2007-000141 R-CHIP "2.2Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ222X
43 R109 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
44 R300 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
45 R407 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
46 R412 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
47 R415 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
48 R501 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
49 R603 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
50 R711 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
51 R311 2007-000148 R-CHIP "10Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ103X
52 R418 2007-000152 R-CHIP "20Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ203X
53 R714 2007-000152 R-CHIP "20Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ203X
54 R105 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
55 R106 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
56 R107 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
57 R108 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
58 R110 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
59 R301 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
60 R302 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
61 R303 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
62 R408 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
63 R410 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
64 R411 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
65 R421 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
66 R432 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
67 R435 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
68 R437 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
69 R438 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
70 R312 2007-000162 R-CHIP "100Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ104X
71 R423 2007-000168 R-CHIP "470Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ474X
72 R609 2007-000242 R-CHIP "1.5Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ152X
73 R101 2007-000831 R-CHIP "39Kohm,5%,1/16W,DA,TP,1005" ERJ2GEJ393X
3-5 Electrical Parts List
NO Refer SEC Part Description Vendor Part No.
ence CODE
74 R706 2007-001217 R-CHIP "82ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ820X
75 R707 2007-001217 R-CHIP "82ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ820X
76 R600 2007-001295 R-CHIP "39ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ390X
77 R604 2007-001295 R-CHIP "39ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ390X
78 R502 2007-001298 R-CHIP "51ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ510X
79 R503 2007-001298 R-CHIP "51ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ510X
80 R504 2007-001298 R-CHIP "51ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ510X
81 R505 2007-001298 R-CHIP "51ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ510X
82 R709 2007-001301 R-CHIP "68ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ680X
83 R710 2007-001301 R-CHIP "68ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ680X
84 R611 2007-001305 R-CHIP "120ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ121X
85 R704 2007-001305 R-CHIP "120ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ121X
86 R420 2007-002796 R-CHIP "510ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ511X
87 R424 2007-002796 R-CHIP "510ohm,5%,1/16W,DA,TP,1005" ERJ2GEJ511X
88 R219 2007-003001 R-CHIP "12OHM,5%,1/16W,DA,TP,1005" TSR16GJ120V
89 R220 2007-003001 R-CHIP "12OHM,5%,1/16W,DA,TP,1005" TSR16GJ120V
90 R104 2007-007107 R-CHIP "100Kohm,1%,1/16W,DA,TP,1005" MCR01MZSF1003
91 R700 2007-007142 R-CHIP "10Kohm,1%,1/16W,DA,TP,1005" ERJ2RKF103X
92 R701 2007-007142 R-CHIP "10Kohm,1%,1/16W,DA,TP,1005" ERJ2RKF103X
93 R705 2007-007142 R-CHIP "10Kohm,1%,1/16W,DA,TP,1005" ERJ2RKF103X
94 R601 2007-007307 R-CHIP "150ohm,1%,1/16W,DA,TP,1005" RK73H1ETP1500F
95 R602 2007-007307 R-CHIP "150ohm,1%,1/16W,DA,TP,1005" RK73H1ETP1500F
96 R606 2007-007307 R-CHIP "150ohm,1%,1/16W,DA,TP,1005" RK73H1ETP1500F
97 R607 2007-007307 R-CHIP "150ohm,1%,1/16W,DA,TP,1005" RK73H1ETP1500F
98 R708 2007-007307 R-CHIP "150ohm,1%,1/16W,DA,TP,1005" RK73H1ETP1500F
99 R703 2007-007311 R-CHIP "22Kohm,1%,1/16W,DA,TP,1005" RK73H1ETP2202F
100 R401 2007-007317 R-CHIP "2.2Kohm,1%,1/16W,DA,TP,1005" MCR01MZSF2201
101 R400 2007-007317 R-CHIP "2.2Kohm,1%,1/16W,DA,TP,1005" MCR01MZSF2201
102 R221 2007-007318 R-CHIP "1Kohm,1%,1/16W,DA,TP,1005" MCR01MZSF1001
103 R222 2007-007318 R-CHIP "1Kohm,1%,1/16W,DA,TP,1005" MCR01MZSF1001
104 R223 2007-007318 R-CHIP "1Kohm,1%,1/16W,DA,TP,1005" MCR01MZSF1001
105 R224 2007-007318 R-CHIP "1Kohm,1%,1/16W,DA,TP,1005" MCR01MZSF1001
106 R225 2007-007318 R-CHIP "1Kohm,1%,1/16W,DA,TP,1005◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
