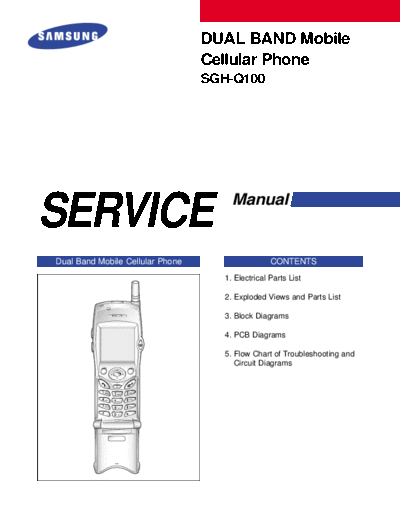

Image preview - the first page of the document
>> Download Samsung SGH-Q100 service manual documenatation <<
Text preview - extract from the document
DUAL BAND Mobile
Cellular Phone
SGH-Q100
SERVICE Manual
Dual Band Mobile Cellular Phone CONTENTS
1. Electrical Parts List
2. Exploded Views and Parts List
3. Block Diagrams
4. PCB Diagrams
5. Flow Chart of Troubleshooting and
Circuit Diagrams
C
DEF
ABC
GHI MNO
JKL
PQRS WXYZ
TUV
1. SGH-Q100 MAIN Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
0 GH92-00827A - PBA MAIN-SGHQ100 MP ASS'Y;SGH-Q100, SEUK, UNKD, MP PB
1 3002-001103 AU501 BUZZER-MAGNETIC;93 dB, 3.6 V, 90mA, 2, 550Hz, BK
1 2404-001134 C1001, C1002, C1003 C-TA, CHIP;100 uF, 20 %, 6.3 V, LZ, TP, 4028
1 2203-001239 C1005, C1015, C1023 C-CERAMIC, CHIP;0.082 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000696 C1006, C1016, C1020 C-CERAMIC, CHIP;0.002 nF, 0.25 pF, 50 V, NP0, TP, 1005
1 2203-000254 C1008, C1009, C1019 C-CERAMIC, CHIP;10 nF, 10 %, 16 V, X7R, TP, 1005, -
1 2203-005571 C101, C103, C105, C112 C-CERAMIC, CHIP;10000 nF, +80-20 %, 6.3 V, Y5 V, TP, 2012
1 2203-005446 C1010, C902, R901 C-CERAMIC, CHIP;0.0027 nF, 0.1 pF, 50 V, NP0, TP, 1005
1 2203-000995 C1011, C942, R1019 C-CERAMIC, CHIP;0.047 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000233 C1012, C1036, C1037 C-CERAMIC, CHIP;0.1 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000812 C1013, C1045, C804 C-CERAMIC, CHIP;0.033 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-001072 C1014 C-CERAMIC, CHIP;0.056 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-001124 C1017, C1018, C1024 C-CERAMIC, CHIP;680 pF, 10 %, 50 V, X7R, TP, 1005, -
1 2203-005065 C102, C104, C106, C110 C-CERAMIC, CHIP;1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
1 2203-000628 C1021, C611, C612 C-CERAMIC, CHIP;0.022 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000696 C1022, C958 C-CERAMIC, CHIP;0.002 nF, 0.25 pF, 50 V, NP0, TP, 1005
1 2203-000254 C1028, C1030, C111 C-CERAMIC, CHIP;10 nF, 10 %, 16 V, X7R, TP, 1005, -
1 2203-005383 C1029 C-CERAMIC, CHIP;7 pF, 0.1 pF, 50 V, NPO, TP, 1005, -
1 2203-000425 C1031, C905 C-CERAMIC, CHIP;0.018 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-005061 C1033, C115, C201, C203 C-CERAMIC, CHIP;100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
1 2203-001259 C1035, C1044, C944 C-CERAMIC, CHIP;0.008 nF, 0.5 pF, 50 V, NP0, TP, 1005
1 2203-000233 C1038, C1039, C1041 C-CERAMIC, CHIP;0.1 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-001383 C1040 C-CERAMIC, CHIP;0.0005 nF, 0.25 pF, 50 V, NP0, TP, 1005
1 2203-000466 C1050 C-CERAMIC, CHIP;0.001 nF, 0.25 pF, 50 V, NP0, TP, 1005
1 2404-001105 C107, C108, C117, C205 C-TA, CHIP;10 uF, 20 %, 6.3 V, GP, TP, 2012
1 2203-005065 C113, C120, C204, C303 C-CERAMIC, CHIP;1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
1 2203-002494 C116 C-CERAMIC, CHIP;470 nF, 10 %, 16 V, X7R, TP, 2012
1 2203-000233 C118, C210 C-CERAMIC, CHIP;0.1 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000254 C119, C510, C602, C603 C-CERAMIC, CHIP;10 nF, 10 %, 16 V, X7R, TP, 1005, -
1 2203-005571 C126 C-CERAMIC, CHIP;10000 nF, +80-20 %, 6.3 V, Y5 V, TP, 2012
1 2203-005562 C202 C-CERAMIC, CHIP;10000 nF, +80-20 %, 10 V, Y5 V, TP, 3216
1 2404-001105 C206, C812, C926, C966 C-TA, CHIP;10 uF, 20 %, 6.3 V, GP, TP, 2012
1 2203-005061 C207, C208, C315, C316 C-CERAMIC, CHIP;100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
SAMSUNG Proprietary-Contents may change without notice
1-1
SGH-Q100 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
1 2203-000812 C211, C212, C213, C214 C-CERAMIC, CHIP;0.033 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000812 C215, C216, C217, C218 C-CERAMIC, CHIP;0.033 nF, 5 %, 50 V, NP0, TP, 1005
1 2703-001180 C305 INDUCTOR-SMD;15 nH, 5 %, 1 x 0.5 x 0.5 mm
1 2203-000870 C308 C-CERAMIC, CHIP;0.003 nF, 0.25 pF, 50 V, NP0, TP, 1005
1 2203-000233 C309, C617 C-CERAMIC, CHIP;0.1 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-001103 C313 C-CERAMIC, CHIP;6.8 nF, 10 %, 50 V, X7R, TP, 1608, -
1 2203-000189 C314 C-CERAMIC, CHIP;100 nF, +80-20 %, 25 V, Y5 V, TP, 1608,
1 2203-005496 C320 C-CERAMIC, CHIP;220 nF, +80-20 %, 10 V, Y5 V, TP, 1005
1 2203-005065 C404, C407, C520, C717 C-CERAMIC, CHIP;1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
1 2404-001100 C410, C811, C915 C-TA, CHIP;33 uF, 20 %, 6.3 V, GP, TP, 3719, -
1 2203-005061 C411, C506, C508, C601 C-CERAMIC, CHIP;100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
1 2203-001239 C421, C422 C-CERAMIC, CHIP;0.082 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000311 C425 C-CERAMIC, CHIP;0.12 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-005509 C501, C502, C503 C-CERAMIC, CHIP;330 nF, +80-20 %, 10 V, Y5 V, TP, 1005
1 2404-001101 C522 C-TA, CHIP;1 uF, 20 %, 16 V, GP, TP, 2012, -
1 2203-000254 C604, C605, C606, C607 C-CERAMIC, CHIP;10 nF, 10 %, 16 V, X7R, TP, 1005, -
1 2203-000254 C608, C609, C613, C614 C-CERAMIC, CHIP;10 nF, 10 %, 16 V, X7R, TP, 1005, -
1 2203-005061 C610, C713, C715, C720 C-CERAMIC, CHIP;100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
1 2203-000254 C615, C703, C704, C708 C-CERAMIC, CHIP;10 nF, 10 %, 16 V, X7R, TP, 1005, -
1 2203-000233 C618, C619, C620, C621 C-CERAMIC, CHIP;0.1 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-001405 C622, C121 C-CERAMIC, CHIP;22 nF, +80-20 %, 25 V, Y5 V, TP, 1005
1 2203-000233 C701, C702, C705, C706 C-CERAMIC, CHIP;0.1 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000254 C709, C710, C711, C712 C-CERAMIC, CHIP;10 nF, 10 %, 16 V, X7R, TP, 1005, -
1 2203-000254 C718, C729, C732, C801 C-CERAMIC, CHIP;10 nF, 10 %, 16 V, X7R, TP, 1005, -
1 2203-005061 C721, C722, C814, C815 C-CERAMIC, CHIP;100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
1 2203-005065 C723, C724, C725 C-CERAMIC, CHIP;1000 nF, +80-20 %, 10 V, Y5 V, TP, 1608
1 2203-000330 C780, C781, C782, C783 C-CERAMIC, CHIP;0.012 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-001437 C784 C-CERAMIC, CHIP;5 pF, 0.25 pF, 50 V, X7R, TP, 1005, 1.0
1 2203-000254 C802, C806, C807, C917 C-CERAMIC, CHIP;10 nF, 10 %, 16 V, X7R, TP, 1005, -
1 2203-000233 C805, C809, C813 C-CERAMIC, CHIP;0.1 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-005552 C808 C-CERAMIC, CHIP;0.0022 nF, 0.1 pF, 50 V, NP0, TP, 1005
1 2404-001086 C810 C-TA, CHIP;4.7 uF, 20 %, 6.3 V, GP, TP, 2012, -
1 2203-000812 C816, C817, C922, C962 C-CERAMIC, CHIP;0.033 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000438 C818, C913, C914, C919 C-CERAMIC, CHIP;1 nF, 10 %, 50 V, X7R, TP, 1005, -
SAMSUNG Proprietary-Contents may change without notice
1-2
SGH-Q100 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
1 2203-000654 C823, C824, C825, C977 C-CERAMIC, CHIP;270 pF, 10 %, 50 V, X7R, TP, 1005, -
1 2203-005234 C901, C907 C-CERAMIC, CHIP;0.0012 nF, 0.25 pF, 50 V, NP0, TP, 1005
1 2203-005050 C908 C-CERAMIC, CHIP;0.0018 nF, 0.25 pF, 50 V, NP0, TP, 1005
1 2203-000679 C918, C928, C976, C982 C-CERAMIC, CHIP;0.027 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000438 C923, C924, C929, C930 C-CERAMIC, CHIP;1 nF, 10 %, 50 V, X7R, TP, 1005, -
1 2203-000359 C925 C-CERAMIC, CHIP;0.15 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000438 C931, C939, C951, C979 C-CERAMIC, CHIP;1 nF, 10 %, 50 V, X7R, TP, 1005, -
1 2203-005061 C932, C934, C954, C957 C-CERAMIC, CHIP;100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
1 2703-001737 C935, C937 INDUCTOR-SMD;2.7 nH, 0.3 nH, 1 x 0.5 x 0.5 mm
1 2703-001734 C936, L912 INDUCTOR-SMD;6.8 nH, 5 %, 1 x 0.5 x 0.5 mm
1 2203-000278 C938 C-CERAMIC, CHIP;0.01 nF, 0.5 pF, 50 V, NP0, TP, 1005
1 2301-001214 C940 C-FILM, CHIP;4.7 nF, 5 %, 16 V, TP, 2012, -
1 2301-001387 C941 C-FILM, CHIP;0.82 nF, 5 %, 50 V, TP, 2012, -
1 2203-001153 C943 C-CERAMIC, CHIP;0.068 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-005061 C959 C-CERAMIC, CHIP;100 nF, +80-20 %, 16 V, Y5 V, TP, 1005
1 2404-001088 C963 C-TA, CHIP;2.2 uF, 20 %, 6.3 V, GP, TP, 2012, -
1 2203-000812 C964, C967, C968, C969 C-CERAMIC, CHIP;0.033 nF, 5 %, 50 V, NP0, TP, 1005
1 2203-000254 C965, C980 C-CERAMIC, CHIP;10 nF, 10 %, 16 V, X7R, TP, 1005, -
1 2203-000812 C970, C978 C-CERAMIC, CHIP;0.033 nF, 5 %, 50 V, NP0, TP, 1005
1 2301-001475 C972 C-FILM, CHIP;3.9 nF, 5 %, 16 V, TP, 2.0 x 1.25 x 0.9 mm
1 2301-001230 C973 C-FILM, CHIP;10 nF, 5 %, 16 V, TP, 2012, -
1 2301-001231 C974 C-FILM, CHIP;680 pF, 5 %, 50 V, TP, 2012, -
1 2301-001197 C975 C-FILM, CHIP;0.39 nF, 5 %, 50 V, TP, 2 x 1.25 x 0.8 mm, -
1 2203-000438 C981 C-CERAMIC, CHIP;1 nF, 10 %, 50 V, X7R, TP, 1005, -
1 3710-001492 CN201 CONNECTOR-SOCKET;40P, 2R, 0.5MM, SMD-S, A uF
1 3710-001600 CN301 CONNECTOR-SOCKET;18P, 1R, 0.5 mm, SMD-A, A uF
1 3722-001380 CN401 JACK-PHONE;6P, 2.6PI, AG, BLK, -
1 3710-001105 CN501 CONNECTOR-SOCKET;2P, 1R, 1.27 mm, SMD-S, AU
1 3711-004621 CN601 CONNECTOR-HEADER;BOX, 14P, 2R, 0.5 mm, SMD-S, A uF
1 3709-001121 CN801 CONNECTOR-CARD EDGE;6P, 2.54 mm, SMD-S, AU
1 0401-001033 D101 DIODE-SWITCHING;MCL4154, 25 V, 200 mA, M-MELF, TP
1 0407-001002 D201, D502 DIODE-ARRAY;DAN222, 80 V, 300 mA, CA2-3, EM3, TP
1 1405-001082 D202, D203, D204 VARISTOR;5.6 V, 20 A, 1 x 0.5 x 0.6 mm, TP
1 1405-001082 D205, D206 VARISTOR;5.6 V, 20 A, 1 x 0.5 x 0.6 mm, TP
SAMSUNG Proprietary-Contents may change without notice
1-3
SGH-Q100 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
1 1405-001018 D301, D303 VARISTOR;14 V, -, 1.6 x 0.8 mm, TP
1 0407-000115 D501 DIODE-ARRAY;DAN202U, 80 V, 100 mA, CA2-3, SC-70,
1 4709-001214 F1001 COUPLER-DIRECTION;880-915 MHz, 19.5+-1 dB, 13 dB, 2.0X1.
1 4709-001213 F1002 COUPLER-DIRECTION;1710-1785 MHz, 14+-1 dB, 12 dB, 2.0X1.
1 2904-001096 F1003 FILTER-SAW;1.8425GHz, 75 MHz, +-37.5 MHz/2.5 dB, TP, +-15
1 2904-001271 F1004 FILTER-SAW;947.5 MHz, 25 MHz, +-12.5 MHz/1.4 dB, TP, +-12.
1 2904-001226 F901 FILTER-SAW;942.5 MHz, 35 MHz, 925-960 MHz/2 dB, TP, 925-96
1 2904-001227 F902 FILTER-SAW;225 MHz, 0.26 MHz, +-67.5 kHz/2 dB, TP, 5.5 dB, -
1 2904-001228 F903 FILTER-SAW;1.8425GHz, -, 1805-1880 MHz/1 dB, TP, 1805-18
1 4709-001217 F904 FREQ-DISTRIBUTER;880-960 MHz, 1710-1880 MHz, 0.7 dB, 4 W,
1 2703-001190 L1001 INDUCTOR-SMD;15 nH, 5 %, 1.6 x 0.8 x 0.8 mm
1 2703-001132 L1002, L1008, L914 INDUCTOR-SMD;4.7 nH, 5 %, 1.6 x 0.8 x 0.8 mm
1 2703-001288 L1004 INDUCTOR-SMD;2.7 nH, 0.5 nH, 1.6 x 0.8X0.8 mm
1 2703-001167 L1005 INDUCTOR-SMD;8.2 nH, 10 %, 1.6 x 0.8 x 0.8 mm
1 2703-001207 L1006, L1007 INDUCTOR-SMD;6.8 nH, 5 %, 1.6 x 0.8X0.8 mm
1 2703-001258 L1009 INDUCTOR-SMD;3.3 nH, 0.3 nH, 1.6 x 0.8 x 0.8 mm
1 3301-001105 L101 CORE-FERRITE;AB, 1.6 x 0.8 x 0.8 mm, -, -
1 3301-001208 L201, L202 CORE-FERRITE BEAD;AB, 1.6 x 0.8 x 0.8 mm, -, -
1 2703-001204 L302 INDUCTOR-SMD;1.2 nH, 0.3 nH, 1.6 x 0.8X0.8 mm
1 2703-002052 L303 INDUCTOR-SMD;1.5 mH, 20 %, 3.8 x 3.8 x 2.0 mm
1 2703-001853 L514 INDUCTOR-SMD;10 uH, 20 %, 6 x 6 x 1.8 mm
1 2703-001673 L529, L903, L906 INDUCTOR-SMD;120 nH, 5 %, 1.8 x 1.12 x 1.02 mm
1 2703-001918 L901, L905 INDUCTOR-SMD;150 nH, 2 %, 1.6 x 0.8 x 0.8 mm
1 2703-001545 L902, L907 INDUCTOR-SMD;47 nH, 5 %, 1.8 x 1.12 x 1.02 mm
1 2703-001175 L904 INDUCTOR-SMD;56 nH, 5 %, 1.6 x 0.8 x 0.8 mm
1 2703-001748 L909 INDUCTOR-SMD;5.6 nH, 0.3 nH, 1.0 x 0.5 x 0.5 mm
1 2703-001685 L910 INDUCTOR-SMD;82 nH, 5 %, 1.7 x 1.14 x 1.02 mm
1 2703-001726 L911 INDUCTOR-SMD;27 nH, 5 %, 1 x 0.5 x 0.5 mm
1 2007-007771 L915, R113 R-CHIP;0 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2703-001422 L916, L918 INDUCTOR-SMD;22 nH, 5 %, 1.6 x 0.8 x 0.8 mm
1 2203-002668 L919 C-CERAMIC, CHIP;0.0005 nF, 0.1 pF, 50 V, NP0, TP, 1005
1 0601-001094 LED601 LED;CHIP, Y-GRN, 0.8 x 1.1 mm, 570nm
1 4302-001081 M101 BATTERY-LI(2ND);-, .25MAH, COIN, 0.03 mA, -, -
1 2801-004052 OSC601 CRYSTAL-SMD;0.032768 MHz, -, 28-ACM, 12.5PF, 50 ohm, TP
SAMSUNG Proprietary-Contents may change without notice
1-4
SGH-Q100 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
1 2809-001237 OSC801 OSCILLATOR-VCTCXO;13 MHz, 5ppm, 10K ohm//10 pF, TP, 3 V, 2m
1 2806-001233 OSC901 OSCILLATOR-VCO;1167 MHz/1615 MHz, -, 0+-3 dBm, TP, 2.85 V,
1 2806-001232 OSC902 OSCILLATOR-VCO;1080 MHz, -, -6to0 dBm, TP, 2.85 V, 6.5mA
1 2806-001231 OSC903 OSCILLATOR-VCO;897.5 MHz/1747.5 MHz, -, -, TP, 2.85 V, 20m
1 GH41-00123A PCB PCB-SGHQ100 MAIN;SGH-Q100, FR-4, 6L, -, 0.86T, 118X155M
1 0504-001012 Q1001, Q1002, Q1003 TR-DIGITAL;DTC114YE, NPN, 150 mW, 10K/47K, EMT3, TP
1 0504-000168 Q101, Q102, Q114, Q201 TR-DIGITAL;RN1104, NPN, 100 mW, 47K/47K, SSM, TP
1 0504-000168 Q202, Q203, Q204, Q205 TR-DIGITAL;RN1104, NPN, 100 mW, 47K/47K, SSM, TP
1 0501-002011 Q301, Q502 TR-SMALL SIGNAL;2SD2114K, NPN, 200 mW, SOT-23, TP, 8
1 0501-000162 Q302, Q501 TR-SMALL SIGNAL;2SA1576, PNP, 200 mW, SOT-323, TP, 180-3
1 0504-000167 Q503, Q601 TR-DIGITAL;RN1102, NPN, 100 mW, 10K/10K, SSM, TP
1 2007-001288 R1001, R1016, R907 R-CHIP;18 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-007008 R1002, R1003, R1011 R-CHIP;300 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000139 R1004 R-CHIP;220 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-007132 R1005, R1015 R-CHIP;15 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007142 R1006, R607 R-CHIP;10 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-001301 R1008, R1009, R1013 R-CHIP;68 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-007139 R101, R1012 R-CHIP;47 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007311 R1010 R-CHIP;22 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-001301 R1014, R928 R-CHIP;68 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-007008 R1017, R1018, R204 R-CHIP;300 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000162 R102, R116, R210 R-CHIP;100 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000148 R1020, R1021, R1022 R-CHIP;10 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000140 R1023, R302, R303, R304 R-CHIP;1 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000148 R1024, R115, R211, R222 R-CHIP;10 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-001319 R103, R939 R-CHIP;1.2 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000172 R107, R507, R613, R734 R-CHIP;10 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000157 R108, R109, R212, R213 R-CHIP;47 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-007771 R114, R117, R218, R402 R-CHIP;0 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-007107 R201, R203, R720, R721 R-CHIP;100 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007791 R202 R-CHIP;9.1 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007308 R205, R209 R-CHIP;33 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007309 R206 R-CHIP;12 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007592 R207 R-CHIP;270 kohm, 1 %, 1/16 W, DA, TP, 1005
SAMSUNG Proprietary-Contents may change without notice
1-5
SGH-Q100 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
1 2007-007135 R208 R-CHIP;18 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-000157 R214, R215, R216, R305 R-CHIP;47 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000140 R307, R308, R309, R321 R-CHIP;1 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000137 R310, R503 R-CHIP;2 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000157 R311, R511, R512, R520 R-CHIP;47 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000143 R312, R508, R509, R923 R-CHIP;4.7 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000839 R313 R-CHIP;39 ohm, 5 %, 1/16 W, DA, TP, 1608
1 2007-000164 R317 R-CHIP;150 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000140 R322, R323, R324 R-CHIP;1 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000162 R401, R408, R426, R812 R-CHIP;100 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000148 R403, R404, R406, R502 R-CHIP;10 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000161 R405, R803 R-CHIP;82 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000141 R407 R-CHIP;2.2 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-001119 R427 R-CHIP;680 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000148 R504, R514, R601, R608 R-CHIP;10 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-007771 R510, R513, R604, R616 R-CHIP;0 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000097 R603 R-CHIP;47 kohm, 5 %, 1/16 W, DA, TP, 1608
1 2007-000932 R605, R912 R-CHIP;470 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000170 R606, R808, R118 R-CHIP;1 Mohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000157 R609, R610 R-CHIP;47 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-007771 R617, R806, R810, R811 R-CHIP;0 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-007317 R701, R702, R711, R712 R-CHIP;2.2 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007134 R703, R704, R709, R710 R-CHIP;39 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007312 R705, R706, R707, R708 R-CHIP;20 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-000148 R714, R110, R223 R-CHIP;10 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000166 R716 R-CHIP;300 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-007312 R718, R719, R722, R723 R-CHIP;20 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007107 R724, R725, R727 R-CHIP;100 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007334 R726 R-CHIP;200 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007698 R728, R729, R730, R731 R-CHIP;5.1 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-007698 R732, R733 R-CHIP;5.1 kohm, 1 %, 1/16 W, DA, TP, 1005
1 2007-000172 R801, R802, R809, R902 R-CHIP;10 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000151 R804 R-CHIP;15 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000174 R805, R911, R943 R-CHIP;47 ohm, 5 %, 1/16 W, DA, TP, 1005
SAMSUNG Proprietary-Contents may change without notice
1-6
SGH-Q100 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
1 2007-000159 R807 R-CHIP;56 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000162 R813, R814, R815 R-CHIP;100 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000172 R903, R906, R908, R915 R-CHIP;10 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-001284 R905, R926 R-CHIP;4.7 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-007771 R909, R914, R929 R-CHIP;0 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000147 R917 R-CHIP;8.2 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-001325 R921 R-CHIP;3.3 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000172 R922, R927, R930, R941 R-CHIP;10 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-000138 R931, R932 R-CHIP;100 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2703-001733 R933 INDUCTOR-SMD;8.2 nH, 5 %, 1 x 0.5 x 0.5 mm
1 2007-000153 R934 R-CHIP;22 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-001217 R938 R-CHIP;82 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-001298 R940 R-CHIP;51 ohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-001325 R942 R-CHIP;3.3 kohm, 5 %, 1/16 W, DA, TP, 1005
1 2007-001311 R944 R-CHIP;270 ohm, 5 %, 1/16 W, DA, TP, 1005
1 1209-001292 U1001 IC-ETC, LINEAR;HD155171NP01EL, QFP, 24P, 165MIL, PLAST
1 1201-001583 U1002 IC-POWER AMP;08109, QFP, 16P, -, -, -, PLASTIC, 8 V, -, -30t
1 0801-000794 U1003, U503 IC-CMOS LOGIC;7S08, AND GATE, SOT-25, 5P, 63MIL,
1 0504-001042 U1004, U1005, U1008 TR-DIGITAL;BCR10PN, NPN/PNP, 250 mW, 10K/10K,
1 2909-001084 U1006 FILTER-DUPLEXER;942.5 MHz, 897.5 MHz, 1/1.2DB, TP, -, -
1 1203-001985 U101 IC-VOLTAGE REGULATOR;2005, QFP, 48P, 276MIL, PLASTIC, 1
1 1107-001225 U1010 IC-FLASH MEMORY;9BV1604, 1M x 16/2M x 8Bit, uBGA, 48P, -, 1
1 2203-001124 U1011 C-CERAMIC, CHIP;680 pF, 10 %, 50 V, X7R, TP, 1005, -
1 0504-001071 U1012 TR-DIGITAL;UMD9N, NPN/PNP, 150 mW, 4.7, UMT6, TP
1 1203-001917 U102 IC-VOLTAGE REGULATOR;5213, SOT-23, 5P, 50MIL, PLASTIC,
1 0801-002212 U103 IC-CMOS LOGIC;7S02, NOR GATE, SC-70, 5P, 63MIL, SINGLE,
1 0505-001423 U104, U703 FET-SILICON;FDG6323L, N/P, -, -, -, 0.3 W, SC70-6
1 1203-001515 U201 IC-BATTERY;1510, SSOP, 16P, 150MIL, PLASTIC, 3
1 1003-001226 U302 IC-POWER DRIVER;D361A, SOP, 8P, 120MIL, SINGLE, 90 mA, TP
1 1001-001088 U401 IC-ANALOG SWITCH;MAX4544EUT-T, -, SOT-23, 6P, -, SINGLE
1 1106-001301 U501 IC-SRAM;1337, 262K x 16Bit, CSP, 72P, -, 85nS, 3 V, -, PLASTI
1 0504-001042 U502 TR-DIGITAL;BCR10PN, NPN/PNP, 250 mW, 10K/10K,
1 GH09-00015A U601 IC MICOM-SGHQ100;TR09BFSBD17IN-DB
1 1209-001219 U602 IC-SENSOR;LM60C, SOT-23, 3P, 115MIL, PLASTIC
SAMSUNG Proprietary-Contents may change without notice
1-7
SGH-Q100 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
1 1204-001693 U701 IC-SIGNAL PROCESSOR;CSP1089-FSBGA, BGA, 100P, 393MIL,
1 1201-001007 U702 IC-OP AMP;2274, SOP, 14P, -, DUAL, 15V/ mV, PLA
1 1001-001099 U704 IC-ANALOG MULTIPLEX;BU4551BF V, CMOS, SSOP, 16P, 173MIL
1 0801-002345 U801 IC-CMOS LOGIC;7S04, INVERTER, SOT-353, 5P, 49MIL, SINGL
1 1203-001289 U802 IC-DC/DC CONVERTER;1555, SOP, 16P, 150MIL, PLASTIC, -0
1 1209-001308 U901 IC-PLL/SYNTHESISER;HD155131TF, QFP, 56P, 290MIL, PLAST
1 0404-001044 ZD202, ZD203 DIODE-SCHOTTKY;UPS5817, 20 V, 1A, SMD, TP
1 1405-001082 ZD302 VARISTOR;5.6 V, 20A, 1 x 0.5 x 0.6 mm, TP
1 0406-001084 ZD303 DIODE-TVS;SMF05, 6/-/- V, 200 W, -
1 1405-001082 ZD305, ZD306, ZD307 VARISTOR;5.6 V, 20 A, 1 x 0.5 x 0.6 mm, TP
1 1405-001082 ZD308, ZD309, ZD310 VARISTOR;5.6 V, 20 A, 1 x 0.5 x 0.6 mm, TP
1 1405-001082 ZD311, ZD312, ZD401 VARISTOR;5.6 V, 20 A, 1 x 0.5 x 0.6 mm, TP
1 1405-001082 ZD402, ZD403, ZD404 VARISTOR;5.6 V, 20 A, 1 x 0.5 x 0.6 mm, TP
1 1405-001082 ZD405 VARISTOR;5.6 V, 20 A, 1 x 0.5 x 0.6 mm, TP
SAMSUNG Proprietary-Contents may change without notice
1-8
2. SGH-Q100 Exploded View and its Parts List
2-1. Cellular phone Exploded View
1-1
1
1-2
1-3
NG
SU
M
SA
1-4
3 5 2
6
4
7
11 8
12 9
13 10
14
14-1
15 17
16
SAMSUNG Proprietary-Contents may change without notice
2-1
SGH-Q100 Exploded view and its Part List
2-2. Cellular phone Parts List (D/GRAY)
NO DESCRIPTION SEC.CODE REMARK
1 FRONT COVER ASS'Y GH75-00638A SA
1-1 FRONT PIECE GH72-01195A SNA
1-2 LCD WINDOW GH72-01201A SNA
1-3 FLIP COVER (BADGE) GH72-01299A SA
1-4 SIDE KEY ASS'Y GH75-00640A SNA
2 KEY PAD GH72-01494A SA
3 BUZZER HOLDER GH73-00348A SA
4 BUZZER 3002-001103 SA
5 SPEAKER 3001-001214 SA
6 LCD GH07-00040A SA
7 MIC HOLDER GH73-00347A SA
8 MAIN PBA GH92-00827A SA
9 MIC 3003-001034 SA
10 COVER-CONNECTOR GH73-00350A SA
11 SHIED COVER GH72-01197A SA
12 ANTENNA GH42-00063A SA
13 MOTOR GH96-00855A SA
14 REAR COVER ASS'Y GH75-00639A SA
14-1 EAR-JACK COVER GH73-00349A SNA
15 DECORATION GH72-01206A SA
16 SCREW(M2, L6) x 4EA 6001-001046 SA
17 BATTERY GH43-00233A SA 540 mAh
GH43-00221A SA 900 mAh
2-3. Cellular phone Parts List (BLUE)
NO DESCRIPTION SEC.CODE REMARK
1 FRONT COVER ASS'Y GH75-00638B SA
1-1 FRONT PIECE GH72-01195A SNA
1-2 LCD WINDOW GH72-01201A SNA
1-3 FLIP COVER (BADGE) GH72-01299B SA
1-4 SIDE KEY ASS'Y GH75-00640A SNA
2 KEY PAD GH72-01494A SA
3 BUZZER HOLDER GH73-00348A SA
4 BUZZER 3002-001103 SA
5 SPEAKER 3001-001214 SA
6 LCD GH07-00040A SA
7 MIC HOLDER GH73-00347A SA
8 MAIN PBA GH92-00827A SA
9 MIC 3003-001034 SA
10 COVER-CONNECTOR GH73-00350A SA
11 SHIED COVER GH72-01197A SA
12 ANTENNA GH42-00063A SA
13 MOTOR GH96-00855A SA
14 REAR COVER ASS'Y GH75-00639A SA
14-1 EAR-JACK COVER GH73-00349A SNA
15 DECORATION GH72-01206A SA
16 SCREW(M2, L6) x 4EA 6001-001046 SA
17 BATTERY GH43-00233A SA 540 mAh
GH43-00221A SA 900 mAh
SAMSUNG Proprietary-Contents may change without notice
2-2
SGH-Q100 Exploded view and its Part List
2-4. Cellular phone Parts List (WINE RED)
NO DESCRIPTION SEC.CODE REMARK
1 FRONT COVER ASS'Y GH75-00638C SA
1-1 FRONT PIECE GH72-01195A SNA
1-2 LCD WINDOW GH72-01201A SNA
1-3 FLIP COVER (BADGE) GH72-01299C SA
1-4 SIDE KEY ASS'Y GH75-00640A SNA
2 KEY PAD GH72-01494A SA
3 BUZZER HOLDER GH73-00348A SA
4 BUZZER 3002-001103 SA
5 SPEAKER 3001-001214 SA
6 LCD GH07-00040A SA
7 MIC HOLDER GH73-00347A SA
8 MAIN PBA GH92-00827A SA
9 MIC 3003-001034 SA
10 COVER-CONNECTOR GH73-00350A SA
11 SHIED COVER GH72-01197A SA
12 ANTENNA GH42-00063A SA
13 MOTOR GH96-00855A SA
14 REAR COVER ASS'Y GH75-00639A SA
14-1 EAR-JACK COVER GH73-00349A SNA
15 DECORATION GH72-01206A SA
16 SCREW(M2, L6) x 4EA 6001-001046 SA
17 BATTERY GH43-00233A SA 540 mAh
GH43-00221A SA 900 mAh
2-5. Cellular phone Parts List (GREEN)
NO DESCRIPTION SEC.CODE REMARK
1 FRONT COVER ASS'Y GH75-00638D SA
1-1 FRONT PIECE GH72-01195A SNA
1-2 LCD WINDOW GH72-01201A SNA
1-3 FLIP COVER (BADGE) GH72-01299D SA
1-4 SIDE KEY ASS'Y GH75-00640A SNA
2 KEY PAD GH72-01494A SA
3 BUZZER HOLDER GH73-00348A SA
4 BUZZER 3002-001103 SA
5 SPEAKER 3001-001214 SA
6 LCD GH07-00040A SA
7 MIC HOLDER GH73-00347A SA
8 MAIN PBA GH92-00827A SA
9 MIC 3003-001034 SA
10 COVER-CONNECTOR GH73-00350A SA
11 SHIED COVER GH72-01197A SA
12 ANTENNA GH42-00063A SA
13 MOTOR GH96-00855A SA
14 REAR COVER ASS'Y GH75-00639A SA
14-1 EAR-JACK COVER GH73-00349A SNA
15 DECORATION GH72-01206A SA
16 SCREW(M2, L6) x 4EA 6001-001046 SA
17 BATTERY GH43-00233A SA 540 mAh
GH43-00221A SA 900 mAh
SAMSUNG Proprietary-Contents may change without notice
2-3
SGH-Q100 Exploded view and its Part List
2-6. Test Jig (GH80-00161A)
G
KTA
D S
SD
/L
DS[
5A S/W UG
032 JIG
80-0 TEST TRONICS DEB
G
U
GH RS
EB
C
GP ELE
D
.2V +
TE
R4
ST
OWE
PA
-P
K C
S/W S
D
ON S
ER
POW
Data Cable Test Cable
SWITCH
MODE AUTO SDS DOWNLOAD DEBUG SDS DEBUG
S/W S/W S/W D/L
D/L HIGH LOW HIGH LOW CONNECT N.C
CAL HIGH LOW LOW HIGH CONNECT N.C
SAMSUNG Proprietary-Contents may change without notice
2-4
ANTENNA
MIXER 1
LC 45 MHz CSP1089 TRIDENT
GSM:925 MHz 960 MHz RX MIXER 2 FILTER
LNA SAW
IF I,Q
RF SAW PGA DEMOD I,Q
DCS:1805 MHz 1880 MHz
FILTER
225 MHz 270 MHz
RX
LNA
SAW
SERIAL DATA
DSP16000
RF INTERFACE
FILTER 1/2
GSM :1150 MHz 1185 MHz
DCS:RX:1580 MHz 1655 MHz
TX :1575 MHz 1650 MHz
3-1. RF Solution Block Diagram
SERIAL
RF VCO DATA, ARM7TDMI
CLK,
FEM RF 1/2
LE
SYNTH
IF VCO
3-1
IF OCTL
3. SGH-Q100 Block Diagrams
1/2 1/6
SYNTH
SIGNALS
LPF DCS:270 MHz
1080 MHz RF
SWITCH 1/2
DRIVER
LPF GSM:540 MHz
GSM:270 MHz GSM:270 MHz
DCS:135 MHz DCS:135 MHz
GSM:880 MHz 915 MHz TX VCO DAI
LOOP I,Q
PAM PD MODULATOR I,Q
FILTER
SAMSUNG Proprietary-Contents may change without notice
DCS:1710 MHz 1785 MHz
GSM:880 MHz 915 MHz
DCS:1710 MHz 1785 MHz
AUDIO UI DSP JTAG
POWER X-TAL
(DC/DC, CHARGER) 13 MHz
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
