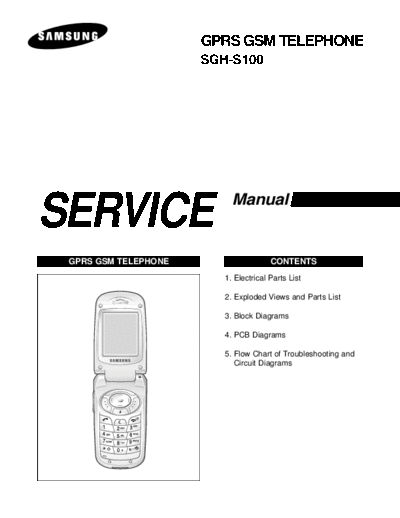

Image preview - the first page of the document
>> Download Samsung SGH-S100 service manual documenatation <<
Text preview - extract from the document
GPRS GSM TELEPHONE
SGH-S100
SERVICE Manual
GPRS GSM TELEPHONE CONTENTS
1. Electrical Parts List
2. Exploded Views and Parts List
3. Block Diagrams
4. PCB Diagrams
5. Flow Chart of Troubleshooting and
Circuit Diagrams
1. SGH-S100 MAIN Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
0 GH92-01302A - PBA MAIN-SGHS100;SGH-S100,XEF,FRAN,-,-,-,-,-,-
1 GH71-00434A ANT1 NPR-ANT CONTACT;SCH-X210,ST,T0.2,-,-
1 2203-000995 C1000,C1004,C1006 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,1005
1 2203-005482 C1003,C1020 C-CERAMIC,CHIP;100nF,10%,10V,X5R,TP,1005,-
1 2203-000233 C1005,C1008,C1013 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1005
1 2203-005288 C1007,C1011,C1014 C-CERAMIC,CHIP;0.001nF,0.1pF,50V,NP0,TP,1005
1 2203-000812 C1009,C1010,C103 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,1005
1 2203-001598 C101,C105,C111,C112 C-CERAMIC,CHIP;2200nF,+80-20%,16V,Y5V,TP,2012
1 2203-002687 C1012 C-CERAMIC,CHIP;1.2nF,10%,50V,X7R,TP,1005
1 2203-005288 C1015,C1017,C1019 C-CERAMIC,CHIP;0.001nF,0.1pF,50V,NP0,TP,1005
1 2203-000233 C1016,C1024,C1027 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1005
1 2203-000359 C1018 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1005
1 2203-000278 C1021,C803,C806 C-CERAMIC,CHIP;0.01nF,0.5pF,50V,NP0,TP,1005
1 2404-001100 C1022 C-TA,CHIP;33uF,20%,6.3V,GP,TP,3719,-
1 2404-001297 C1023,C1039 C-TA,CHIP;68UF,20%,10V,LR,TP,4028
1 2203-002677 C1025 C-CERAMIC,CHIP;0.75pF,0.1pF,50V,CH,TP,1005,-
1 2203-000654 C1026,C401,C416 C-CERAMIC,CHIP;270pF,10%,50V,X7R,TP,1005,-
1 2203-005383 C1038 C-CERAMIC,CHIP;7pF,0.1pF,50V,NPO,TP,1005,-
1 2203-005061 C104,C108,C124,C201 C-CERAMIC,CHIP;100nF,+80-20%,16V,Y5V,TP,1005
1 2203-000812 C106,C107,C923,R430 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,1005
1 2203-005483 C109 C-CERAMIC,CHIP;68nF,10%,10V,X5R,TP,1005,-
1 2203-001598 C113,C114,C116,C120 C-CERAMIC,CHIP;2200nF,+80-20%,16V,Y5V,TP,2012
1 2404-001088 C115,C117 C-TA,CHIP;2.2uF,20%,6.3V,GP,TP,2012,-
1 2203-000233 C118,C213,C214,C219 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1005
1 2203-000254 C119,C200,C504,C600 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1005,-
1 2203-001598 C123 C-CERAMIC,CHIP;2200nF,+80-20%,16V,Y5V,TP,2012
1 2404-001105 C125 C-TA,CHIP;10UF,20%,6.3V,GP,TP,2012
1 2404-001268 C126 C-TA,CHIP;10UF,20%,10V,-,TP,2.2X1.25X1.0
1 2203-005061 C202,C206,C302,C402 C-CERAMIC,CHIP;100nF,+80-20%,16V,Y5V,TP,1005
1 2203-005065 C203,C204,C400,C414 C-CERAMIC,CHIP;1000nF,+80-20%,10V,Y5V,TP,1608
1 2203-005509 C205 C-CERAMIC,CHIP;330nF,+80-20%,10V,Y5V,TP,1005
1 2203-000995 C211,C212,C425,C426 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,1005
1 2203-000438 C215,C216,C217,C411 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1005,-
1 2203-000233 C220,C221,C222,C223 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1005
1 2203-000233 C224,C225,C407,C424 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1005
SAMSUNG Proprietary-Contents may change without notice
1-1
SGH-S100 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
1 2203-005055 C301 C-CERAMIC,CHIP;0.0056nF,0.25pF,50V,NP0,TP,1005
1 2203-001405 C403,C611,C903,C905 C-CERAMIC,CHIP;22nF,+80-20%,25V,Y5V,TP,1005
1 2404-001086 C404,C410 C-TA,CHIP;4.7uF,20%,6.3V,GP,TP,2012,-
1 2203-000885 C405 C-CERAMIC,CHIP;4.7nF,10%,25V,X7R,TP,1005,-
1 2203-005061 C408,C412,C417,C512 C-CERAMIC,CHIP;100nF,+80-20%,16V,Y5V,TP,1005
1 2404-001151 C409 C-TA,CHIP;33UF,20%,6.3V,LZ,TP,3216
1 2203-000438 C413,C415,C801,C802 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1005,-
1 2203-001239 C427 C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,1005
1 2007-007771 C428,R104,R105,R106 R-CHIP;0OHM,5%,1/16W,DA,TP,1005
1 2203-005061 C513,C516,C517,C518 C-CERAMIC,CHIP;100nF,+80-20%,16V,Y5V,TP,1005
1 2203-005061 C519,C612,C711 C-CERAMIC,CHIP;100nF,+80-20%,16V,Y5V,TP,1005
1 2203-005496 C601,C602,C709 C-CERAMIC,CHIP;220nF,+80-20%,10V,Y5V,TP,1005
1 2203-000254 C603,C604,C605,C606 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1005,-
1 2203-000254 C607,C608,C609,C610 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1005,-
1 2203-000254 C613,C712,C713,C714 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1005,-
1 2203-000233 C614,C900,C901,C902 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1005
1 2203-000628 C615,C616 C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,1005
1 2203-000679 C617 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,1005
1 2203-001153 C707 C-CERAMIC,CHIP;0.068nF,5%,50V,NP0,TP,1005
1 2203-000585 C708 C-CERAMIC,CHIP;220pF,10%,50V,X7R,TP,1005,-
1 2203-005065 C710 C-CERAMIC,CHIP;1000nF,+80-20%,10V,Y5V,TP,1608
1 2203-000254 C715,C716,C717,C718 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1005,-
1 2203-000254 C719,C800,C805,C807 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1005,-
1 2203-000438 C804 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1005,-
1 2203-000254 C808,C809 C-CERAMIC,CHIP;10nF,10%,16V,X7R,TP,1005,-
1 2203-001405 C906,C908,C910,C914 C-CERAMIC,CHIP;22nF,+80-20%,25V,Y5V,TP,1005
1 2203-000233 C911,C916,C918,C919 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1005
1 2203-001405 C915,C917,C921 C-CERAMIC,CHIP;22nF,+80-20%,25V,Y5V,TP,1005
1 2203-000233 C920,C924,C925 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,1005
1 2203-000995 C922 C-CERAMIC,CHIP;0.047nF,5%,50V,NP0,TP,1005
1 3709-001187 CN100 CONNECTOR-CARD EDGE;6P,2.54MM,SMD-A,-
1 3705-001248 CN1001 CONNECTOR-COAXIAL;-,-,50MOHM,50OHM,0.3DB
1 3711-004289 CN200 CONNECTOR-HEADER;BOX,30P,2R,0.5MM,SMD-S,AUF
1 3711-004623 CN201 CONNECTOR-HEADER;BOX,20P,2R,0.5mm,SMD-S,AUF
1 3710-001545 CN302 CONNECTOR-SOCKET;24P,1R,0.5MM,SMD-A,AUF
1 3722-001842 CN401 JACK-PHONE;4P,2.3PI,AU,BLK,-
SAMSUNG Proprietary-Contents may change without notice
1-2
SGH-S100 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
1 1405-001082 D202,D203,D204,ZD300 VARISTOR;5.6V,20A,1x0.5x0.6mm,TP
1 0406-001152 D301 DIODE-TVS;SD05,6/-/-/,350W,SOD-323
1 4709-001279 F1000 COUPLER-DIRECTION;897.5+-17.5MHZ,18+-1DB,26DB,1.6X
1 4709-001278 F1001 COUPLER-DIRECTION;1850+-140MHZ,19.7+-1.4DB,25DB,1.
1 2909-001180 F1002 FILTER-DUPLEXER;942.5MHZ,897.5MHZ,0.2/0.5DB,TP,-,-
1 2904-001390 F1004 FILTER-SAW;942.5MHZ,-,1.0DB,TP,2.3DB,-
1 2904-001410 F1005 FILTER-SAW;1.96GHZ,-,1930-1990MHZ/2.4DB,TP,1930-19
1 2904-001403 F1006 FILTER-SAW;1.8425GHZ,-,1805-1880MHZ/2.0DB,TP,1805-
1 2901-001193 F200,F201,F202,F203 FILTER-EMI SMD;25V,0.1A,-,35pF,3.2x1.6x0.75MM,TP
1 2901-001193 F204 FILTER-EMI SMD;25V,0.1A,-,35pF,3.2x1.6x0.75MM,TP
1 2703-001288 L1000 INDUCTOR-SMD;2.7nH,0.5nH,1.6x0.8X0.8mm
1 2703-001512 L1001 INDUCTOR-SMD;27nH,5%,1.8x1.12x1.02mm
1 2703-002165 L1002 INDUCTOR-SMD;7.5nH,5%,1.6x1.12x1.02mm
1 2703-001751 L1004,L900 INDUCTOR-SMD;3.9nH,0.3nH,1.0x0.5x0.5mm
1 2703-001747 L1005 INDUCTOR-SMD;4.7nH,0.3nH,1.0x0.5x0.5mm
1 2703-002471 L1006 INDUCTOR-SMD;6.2NH,5%,1608
1 3301-001105 L801 CORE-FERRITE;AB,1.6x0.8x0.8mm,-,-
1 0604-001146 LED200 PHOTO-IRDA;-,875NM,500MW,30DEG,TP
1 4302-001119 M101 BATTERY-LI(2ND);3V,0.1MAH,-,-,3.1V,-
1 2801-004116 OSC601 CRYSTAL-UNIT;0.032768MHZ,20PPM,28-ABK,12.5FF,65KOH
1 2809-001260 OSC801 OSCILLATOR-VCTCXO;13MHZ,3PPM,10KOHM//10PF,TP,3V,-
1 0504-000168 Q100 TR-DIGITAL;RN1104,NPN,100MW,47K/47K,SSM,TP
1 0502-001201 Q101 TR-POWER;ZXT13P20DE6,PNP,1100MW,SOT-23-6,TP,300-90
1 0501-000225 Q400 TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP,120-5
1 0504-000167 Q700,Q701,Q702 TR-DIGITAL;RN1102,NPN,100MW,10K/10K,SSM,TP
1 2007-001319 R100 R-CHIP;1.2Kohm,5%,1/16W,DA,TP,1005
1 2007-007311 R1000 R-CHIP;22Kohm,1%,1/16W,DA,TP,1005
1 2007-007142 R1001,R111,R611 R-CHIP;10Kohm,1%,1/16W,DA,TP,1005
1 2007-007309 R1002 R-CHIP;12Kohm,1%,1/16W,DA,TP,1005
1 2007-000138 R1003,R1004,R1008 R-CHIP;100ohm,5%,1/16W,DA,TP,1005
1 2007-001301 R1005,R1006 R-CHIP;68ohm,5%,1/16W,DA,TP,1005
1 2007-000138 R1009 R-CHIP;100ohm,5%,1/16W,DA,TP,1005
1 2007-000172 R101,R200,R400,R506 R-CHIP;10ohm,5%,1/16W,DA,TP,1005
1 2007-001288 R1010,R1014 R-CHIP;18ohm,5%,1/16W,DA,TP,1005
1 2007-007008 R1011,R1012,R1015 R-CHIP;300OHM,5%,1/16W,DA,TP,1005
1 2007-000174 R1013,R1017 R-CHIP;47ohm,5%,1/16W,DA,TP,1005
SAMSUNG Proprietary-Contents may change without notice
1-3
SGH-S100 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
1 2007-007008 R1016 R-CHIP;300OHM,5%,1/16W,DA,TP,1005
1 2007-007698 R1018 R-CHIP;5.1Kohm,1%,1/16W,DA,TP,1005
1 2007-000167 R102 R-CHIP;390Kohm,5%,1/16W,DA,TP,1005
1 2007-007200 R103,R709,R710 R-CHIP;2.4OHM,5%,1/16W,DA,TP,1005
1 2007-000758 R110,R804 R-CHIP;330Kohm,5%,1/16W,DA,TP,1005
1 2007-007139 R112 R-CHIP;47Kohm,1%,1/16W,DA,TP,1005
1 2007-001323 R113 R-CHIP;3Kohm,5%,1/16W,DA,TP,1005
1 2007-000140 R303,R307,R308,R309 R-CHIP;1Kohm,5%,1/16W,DA,TP,1005
1 2007-000157 R305,R306,R608,R609 R-CHIP;47Kohm,5%,1/16W,DA,TP,1005
1 2007-000140 R310,R423 R-CHIP;1Kohm,5%,1/16W,DA,TP,1005
1 2007-007771 R312,R429,R700,R711 R-CHIP;0OHM,5%,1/16W,DA,TP,1005
1 2007-003001 R401 R-CHIP;12OHM,5%,1/16W,DA,TP,1005
1 2007-000159 R403,R406,R408,R421 R-CHIP;56Kohm,5%,1/16W,DA,TP,1005
1 2007-000775 R404,R407,R412 R-CHIP;33Kohm,5%,1/16W,DA,TP,1005
1 2007-000148 R405,R420,R424 R-CHIP;10Kohm,5%,1/16W,DA,TP,1005
1 2007-000141 R409,R414 R-CHIP;2.2Kohm,5%,1/16W,DA,TP,1005
1 2007-001119 R410 R-CHIP;680ohm,5%,1/16W,DA,TP,1005
1 2007-001325 R413 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1005
1 2007-000162 R415,R600,R701,R713 R-CHIP;100Kohm,5%,1/16W,DA,TP,1005
1 2007-001333 R422 R-CHIP;18Kohm,5%,1/16W,DA,TP,1005
1 2007-000172 R606,R715,R800,R805 R-CHIP;10ohm,5%,1/16W,DA,TP,1005
1 2007-000170 R610 R-CHIP;1Mohm,5%,1/16W,DA,TP,1005
1 2007-007308 R612,R613 R-CHIP;33Kohm,1%,1/16W,DA,TP,1005
1 2007-002796 R712 R-CHIP;510ohm,5%,1/16W,DA,TP,1005
1 2007-000162 R714 R-CHIP;100Kohm,5%,1/16W,DA,TP,1005
1 2007-002797 R801,R802 R-CHIP;560ohm,5%,1/16W,DA,TP,1005
1 2007-007771 R803,R901 R-CHIP;0OHM,5%,1/16W,DA,TP,1005
1 1203-002568 U100 IC-VOLTAGE REGULATOR;PSC2006,MLCC,68P,10X10MM,PLAS
1 1209-001379 U1000 IC-ETC, LINEAR;HD155173ANPEL,-,16P,-,-,3.4V,240MW,
1 1201-001864 U1001 IC-POWER AMP;08123,-,8P,13.75X8MM,DUAL,-,-,4.5V,-,
1 3711-004621 U1002 CONNECTOR-HEADER;BOX,14P,2R,0.5mm,SMD-S,AUF
1 1203-002127 U101 IC-BATTERY;1734,SOT-23,6P,150MIL,PLASTIC,4.7/5.3V,
1 0506-001052 U102 TR-ARRAY;UMH9N,NPN,2,150MW,SC-88,TP,68-
1 1001-001152 U400 IC-ANALOG MULTIPLEX;MAX4624EU-T,-,SOT23,6P,173MIL,
1 1204-001811 U401 IC-MELODY;YMU759-QE2,QFN,32P,-,PLASTIC,6V,-,-20TO+
1 1109-001226 U501,U502 IC-ETC. MEMORY;28F6408W30,4MX16/512KX16BIT,CSP,80P
SAMSUNG Proprietary-Contents may change without notice
1-4
SGH-S100 Electrical Parts List
Level SEC Code Design LOC DESCRIPTIONS
1 GH09-00020A U601 IC MICOM-SGHS100;TR09WQTEB17IN2B-DT,SGH-S100,-,-,-
1 1209-001219 U602 IC-SENSOR;LM60C,SOT-23,3P,115MIL,PLASTIC
1 1204-001984 U700 IC-SIGNAL PROCESSOR;CSP1093CR1-RT10-DB,FSBGA,108P,
1 0504-001042 U701,U702,U703 TR-DIGITAL;BCR10PN,NPN/PNP,250mW,10K/10K,
1 0801-002345 U801 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,49MIL,SINGL
1 1205-002185 U900 IC-INTERFACE;SI4201-BM,MLP,20P,4X4MM,-,3V,-,-20TO+
1 1205-002184 U901 IC-TRANSCEIVER;SI4200-BM,MLP,32P,5X5MM,-,3V,-,-20T
1 1209-001434 U902 IC-PLL/SYNTHESISER;SI4133T-BM,MLP,28P,5X5MM,-,3V,-
1 1405-001082 ZD302,ZD303,ZD309 VARISTOR;5.6V,20A,1x0.5x0.6mm,TP
1 0406-001084 ZD305,ZD311 DIODE-TVS;SMF05,6/-/-V,200W,-
1 1405-001082 ZD310,ZD401,ZD402 VARISTOR;5.6V,20A,1x0.5x0.6mm,TP
1 1405-001082 ZD404,ZD405 VARISTOR;5.6V,20A,1x0.5x0.6mm,TP
SAMSUNG Proprietary-Contents may change without notice
1-5
2. SGH-S100 Exploded View and its Parts List
2-1. Cellular phone Exploded View
1
2
3
10
4
5
12
6
11
13
9
7
15
8
14
16
18
19
17
20
22
21
SAMSUNG Proprietary-Contents may change without notice
2-1
SGH-S100 Exploded view and its Part List
2-2. Cellular phone Parts List
SEC CODE
Location Description Remark
No. Silver
1 DUAL LCD WINDOW GH72-04715A
2 SUB, FOLDER UPPER GH75-02078A
3 LCD ASS'Y GH07-00179A
4 MOTOR 3101-001295
5 SPEAKER 3001-001297
6 SUB FOLDER LOWER GH75-02079A
7 SCREW 6001-001478
8 SCREW CAP GH74-02036A
9 MAIN LCD WINDOW GH72-04716A
10 SUB, FRONT GH75-02076A
11 MIC GH59-00138A
12 KEY PAD ASS'Y GH75-02124A
13 VOLUME KEY ASS'Y GH75-02123A
14 SHIELD COVER GH75-02203A
15 KEY-PCB GH59-00425A
16 MAIN PBA GH92-01302A
17 CONNECTOR COVER GH73-01230A
18 ANTENNA GH42-00193A
19 R/F COVER GH73-01229A
20 SUB, REAR COVER ASS'Y GH75-02077A
21 SCREW 6001-001479
22 BATTERY GH43-00558A 720 mAH
GH43-00563A 900 mAH
SAMSUNG Proprietary-Contents may change without notice
2-2
SGH-S100 Exploded view and its Part List
2-3. Test Jig (GH80-00865A)
G
KTA
D S
SD
/L
DS[
5A S/W UG
086 JIG
80-0 TEST TRONICS DEB
G
U
GH RS
EB
C
GP ELE
D
+
4.2V
TE
ST
ER
-POW
PA
K C
S/W S
SD N O
ER
POW
Data Link Cable Test Cable RF Cable
(GH39-00152A) (GH39-00165A) (GH39-00093A)
SWITCH
MODE POWER SDS DEBUG SDS DEBUG
ON S/W S/W D/L
D/L HIGH LOW LOW CONNECT N.C
CAL HIGH LOW LOW CONNECT N.C
SAMSUNG Proprietary-Contents may change without notice
2-3
SGH-S100 Exploded view and its Part List
2-4. Test Jig
DC
POWER
SUPPLY
8922 or 8960
WIRELESS COMMUNICATIONS
TEST SET
RF JIG CABLE
TES
T JI
G
232 CABLE
TEST JIG CABLE
SAMSUNG Proprietary-Contents may change without notice
2-4
3. SGH-S100 Block Diagrams
3-1. RF Solution Block Diagram
SAMSUNG Proprietary-Contents may change without notice
3-1
SGH-S100 Block Diagrams
3-2. Base Band Solution Block Diagram
SAMSUNG Proprietary-Contents may change without notice
3-2
SGH-S100 Block Diagrams
MEMO
SAMSUNG Proprietary-Contents may change without notice
3-3
4. SGH-S100 PCB Diagrams
1. Main PCB Top Diagram
SAMSUNG Proprietary-Contents may change without notice
4-1
SGH-S100 PCB Diagrams
2. Main PCB Bottom Diagram
SAMSUNG Proprietary-Contents may change without notice
4-2
5.SGH-S100 Flow Chart of Troubleshooting and
Circuit Diagrams
5-1. Power ON
SAMSUNG Proprietary-Contents may change without notice
5-1
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-2. Initial
5-3. Sim Part
SAMSUNG Proprietary-Contents may change without notice
5-2
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-4. Charging Part
5-5. Microphone Part
SAMSUNG Proprietary-Contents may change without notice
5-3
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-6. Speaker Part
SAMSUNG Proprietary-Contents may change without notice
5-4
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-7. PCS Transmitter
SAMSUNG Proprietary-Contents may change without notice
5-5
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-8. PCS Receiver
SAMSUNG Proprietary-Contents may change without notice
5-6
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-9. Back Light
5-10. Alert Tone
SAMSUNG Proprietary-Contents may change without notice
5-7
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-11. GSM Receiver
SAMSUNG Proprietary-Contents may change without notice
5-8
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-12. GSM Transmitter
SAMSUNG Proprietary-Contents may change without notice
5-9
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-13. DCS Receiver
SAMSUNG Proprietary-Contents may change without notice
5-10
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-14. DCS Transmitter
SAMSUNG Proprietary-Contents may change without notice
5-11
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
MEMO
SAMSUNG Proprietary-Contents may change without notice
5-12
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-15. Power Circuit Diagram
SAMSUNG Proprietary-Contents may change without notice
5-13
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-16. LCD & KEYPAD & EMI FILTER & JTAG & IRDA Connector Circuit Diagram
SAMSUNG Proprietary-Contents may change without notice
5-14
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-17. I/F Connector Circuit Diagram
SAMSUNG Proprietary-Contents may change without notice
5-15
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-18. Audio Circuit Diagram
SAMSUNG Proprietary-Contents may change without notice
5-16
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-19. Memory & Buzzer Circuit Diagram
SAMSUNG Proprietary-Contents may change without notice
5-17
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-20. Trident Circuit Diagram
SAMSUNG Proprietary-Contents may change without notice
5-18
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-21. CSP1089 Circuit Diagram
SAMSUNG Proprietary-Contents may change without notice
5-19
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-22. X-TAL(13 MHz) & SIM Circuit Diagram
SAMSUNG Proprietary-Contents may change without notice
5-20
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-23. Bright3 Circuit Diagram
SAMSUNG Proprietary-Contents may change without notice
5-21
SGH-S100 Flow Chart of Troubleshooting and Circuit Diagrams
5-24. Transmitter & Receiver Circuit Diagram
SAMSUNG Proprietary-Contents may change without notice
5-22
ELECTRONICS
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
