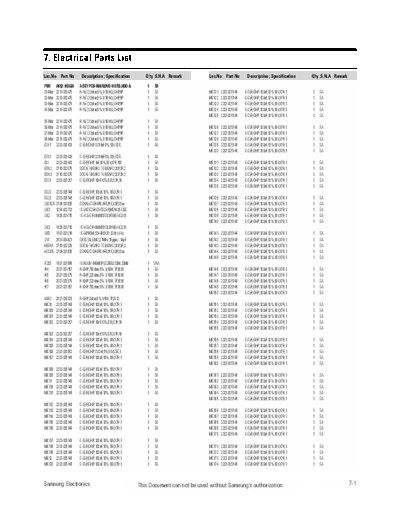

Image preview - the first page of the document
>> Download electrical_part_list documenatation <<
Text preview - extract from the document
7. Electrical Parts List
Loc.No Part No Description ; Specification Q'ty S.N.A Remark Loc.No Part No Description ; Specification Q'ty S.N.A Remark
P001 AK92-01363A ASSY PCB-MAIN;DVD-HR755,HDD & 1 SA
01-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA MC121 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
02-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA MC122 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
03-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA MC123 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
04-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA MC124 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC125 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
05-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA
06-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA MC126 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
07-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA MC127 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
08-Mar 2011-000475 R-NET;33ohm,5%,1/16W,L,CHIP,8P 1 SA MC128 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
CDY1 2203-000426 C-CER,CHIP;0.018nF,5%,50V,C0G, 1 SA MC129 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC130 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
CDY2 2203-000426 C-CER,CHIP;0.018nF,5%,50V,C0G, 1 SA
CL1 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,160 1 SA MC131 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
CON2 3710-002075 SOCKET-BOARD TO BOARD;30P,2R,2 1 SA MC132 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
CON3 3710-002075 SOCKET-BOARD TO BOARD;30P,2R,2 1 SA MC133 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
CSD1 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,16 1 SA MC134 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC135 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
CSD2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
CSD3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC136 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
DECKCN 3708-001935 CONNECTOR-FPC/FFC/PIC;40P,0.5m 1 SA MC137 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
DIC1 1204-002733 IC-ENCODER/DECODER;MS9405-CBZ, 1 SA MC138 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
DIC2 1105-001715 IC-VIDEO RAM;M13S128168,K4D261 1 SA MC139 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC140 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
DIC3 1105-001715 IC-VIDEO RAM;M13S128168,K4D261 1 SA
DIC5 1103-001218 IC-EEPROM;524AB0X91,32Kbit,4Kx 1 SA MC141 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
DY1 2801-004621 CRYSTAL-SMD;27MHz,15ppm,-,14pF 1 SA MC142 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
HCON1 3710-002326 SOCKET-BOARD TO BOARD;30P,2R,2 1 SA MC143 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
HDDCN 3708-001935 CONNECTOR-FPC/FFC/PIC;40P,0.5m 1 SA MC144 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC145 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
IC203 1107-001588 IC-FLASH MEMORY;S29GL032M,32Mb 1 SNA
IR4 2007-001157 R-CHIP;750ohm,5%,1/10W,TP,1608 1 SA MC146 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
IR5 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA MC147 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
IR6 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA MC148 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
IR7 2007-001157 R-CHIP;750ohm,5%,1/10W,TP,1608 1 SA MC149 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC150 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
KAR2 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
MC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC151 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC100 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC152 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC101 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC153 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC102 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,16 1 SA MC154 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC155 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC103 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,16 1 SA
MC104 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC156 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC105 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC157 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC106 2203-000552 C-CER,CHIP;0.02nF,5%,50V,C0G,1 1 SA MC158 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC107 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC159 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC160 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC108 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC109 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC161 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC162 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC110 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC163 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC111 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC164 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC165 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC112 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC113 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC166 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC114 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC167 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC115 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC168 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC116 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC169 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC170 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC117 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC118 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC171 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC119 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC172 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC173 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC120 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MC174 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
Samsung Electronics This Document can not be used without Samsung's authorization 7-1
Electrical Parts List
Loc.No Part No Description ; Specification Q'ty S.N.A Remark Loc.No Part No Description ; Specification Q'ty S.N.A Remark
MC175 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA ME81 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA
ME85 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA
MC176 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA ME87 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4. 1 SA
MC177 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MPR1 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA
MC178 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MPR3 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA
MC179 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC180 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MPR4 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
MPR5 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA
MC181 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MPR6 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA
MC182 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR100 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC183 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR101 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC184 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC185 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR102 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MR103 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC186 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR104 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC187 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR106 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC188 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MC189 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR111 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR113 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MC190 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR114 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MC191 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR115 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC192 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR116 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC193 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC194 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR117 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA
MR118 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA
MC195 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR119 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA
MC196 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR120 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MC197 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR122 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA
MC202 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC203 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA MR123 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
MR124 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MC205 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA MR125 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MC206 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA MR131 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC207 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA MR132 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC208 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA
MC209 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA MR191 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
MR201 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC210 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA MR300 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,160 1 SA
MC211 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA MR301 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,160 1 SA
MC212 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP 1 SA MR304 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MC213 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC214 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR309 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA
MR310 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA
MC215 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR311 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
MC216 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR312 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA
MC217 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR322 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA
MC218 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC219 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR324 3301-001309 BEAD-SMD;47ohm,1608,TP,-,- 1 SA
MR332 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA
MC221 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR338 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA
MC222 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR339 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,160 1 SA
MC223 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR342 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA
MC224 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
MC225 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR343 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA
MR344 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
MC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR345 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA
MC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR346 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA
MC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA MR355 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
MCK1A 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
ME1 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA MR358 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR359 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
ME2 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA MR364 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
ME70 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA MR365 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
ME72 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA MR4 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
ME74 2402-001086 C-AL,SMD;100UF,20%,16V,WT,TP,6 1 SA
ME80 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA MR400 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR401 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
7-2 This Document can not be used without Samsung's authorization Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Q'ty S.N.A Remark Loc.No Part No Description ; Specification Q'ty S.N.A Remark
MR402 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA PR24 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA
MR403 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR404 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA PR25 2007-001056 R-CHIP;6.2Kohm,5%,1/10W,TP,160 1 SA
PR26 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
MR405 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA PR27 2007-000965 R-CHIP;5.1Kohm,5%,1/10W,TP,160 1 SA
MR406 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA PR28 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
MR407 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA PR29 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR450 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
MR451 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA PR3 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PR30 2007-000073 R-CHIP;91ohm,5%,1/10W,TP,1608 1 SA
MR452 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA PR5 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR5 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,160 1 SA PR6 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
MR500 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,160 1 SA PR7 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR501 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,160 1 SA
MR502 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA PR8 2007-000381 R-CHIP;13Kohm,5%,1/10W,TP,1608 1 SA
PR9 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
MR503 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA PX1 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28 1 SA
MR504 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R100 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR505 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R101 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR701 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR702 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA R102 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA
R70 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA
MRK2 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,160 1 SA R71 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MROP1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA R72 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA
PC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA R73 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PC11 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA R74 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA
R75 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PC13 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G, 1 SA R76 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA R77 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA
PC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA R78 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA
PC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PC17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA R79 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA
R97 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA
PC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA R98 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA
PC3 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V 1 SA R99 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,160 1 SA
PC4 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V 1 SA RB10 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
PC5 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V 1 SA
PC6 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V 1 SA RB11 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA RC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PC8 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1 1 SA RC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA RC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PCB AK41-00665A PCB-MAIN;DVD-HR755,FR4,4,00,T1 0.5 SNA
PE1 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6 1 SA RC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
RC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,1 1 SA
PE2 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3 1 SA RCP1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
PIC1 1205-001988 IC-DATA COMM./GEN.;TSB41AB1-PA 1 SA RCP2 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
PL1 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA RCP3 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
PL2 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA
PL3 3301-001670 BEAD-SMD;60ohm,2012,3000mA,TP, 1 SA RE1 2402-001237 C-AL,SMD;330uF,◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
