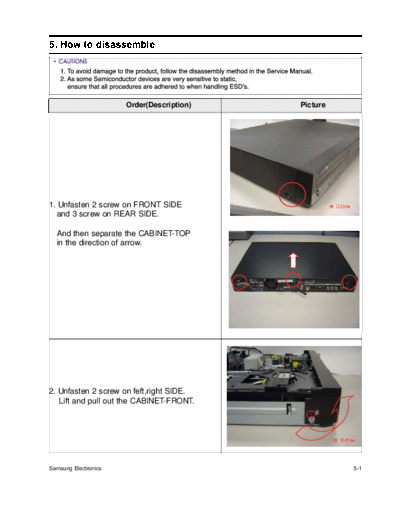

Image preview - the first page of the document
Disassembly & Reassembly


>> Download Disassembly & Reassembly documenatation <<

Text preview - extract from the document
5. How to disassemble




                      Order(Description)   Picture




1. Unfasten 2 screw on FRONT SIDE
  and 3 screw on REAR SIDE.

  And then separate the CABINET-TOP
  in the direction of arrow.




2. Unfasten 2 screw on feft,right SIDE.
   Lift and pull out the CABINET-FRONT.




Samsung Electronics                                  5-1
               Order(Description)   Picture




3. Remove the wire connected ot
  CANINET-FRONT.




4. Unfasten 4 screw and 2 wire.




5. Remove wires between PCBs.




5-2                                           Samsung Electronics
                      Order(Description)   Picture




6. Remove 6 screw on the PCBs.




7. Unfasten 7 screw on the rear-cabinet.




Samsung Electronics                                  5-3
