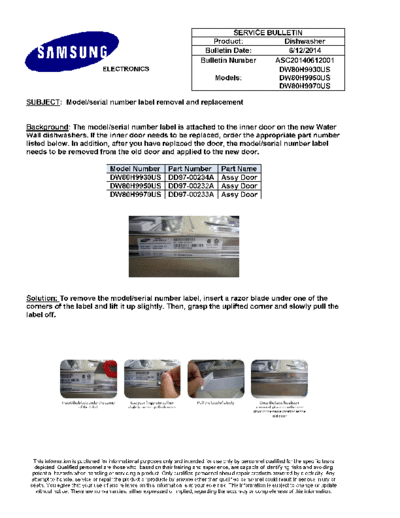

Image preview - the first page of the document



>> Download ASC20140612001 documenatation <<

Text preview - extract from the document

                                                                                      SERVICE BULLETIN
                                                                                Product:          Dishwasher
                                                                             Bulletin Date:        6/12/2014
                                                                            Bulletin Number     ASC20140612001
                                 ELECTRONICS                                                     DW80H9930US
                                                                                Models:          DW80H9950US
                                                                                                 DW80H9970US

SUBJECT: Model/serial number label removal and replacement


Background: The model/serial number label is attached to the inner door on the new Water
Wall dishwashers. If the inner door needs to be replaced, order the appropriate part number
listed below. In addition, after you have replaced the door, the model/serial number label
needs to be removed from the old door and applied to the new door.

                                    Model Number              Part Number            Part Name
                                    DW80H9930US               DD97-00234A            Assy Door
                                    DW80H9950US               DD97-00232A            Assy Door
                                    DW80H9970US               DD97-00233A            Assy Door




Solution: To remove the model/serial number label, insert a razor blade under one of the
corners of the label and lift it up slightly. Then, grasp the uplifted corner and slowly pull the
label off.




  This information is published for informational purposes only and intended for use only by personnel qualified for the specific tasks
   depicted. Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding
  potential hazards when handling or servicing a product. Only qualified personnel should repair products powered by electricity. Any
 attempt to handle, service or repair the product or products by anyone other than qualified personnel could result in serious injury or
 death. You agree that your use of and reliance on this information is at your sole risk. This information is subject to change or update
   without notice. There are no warranties, either expressed or implied, regarding the accuracy or completeness of this information.
Before re-attaching the label, locate the correct position for the label on the door. Refer to
the picture below for the correct position.




                                                                                     6.9"
