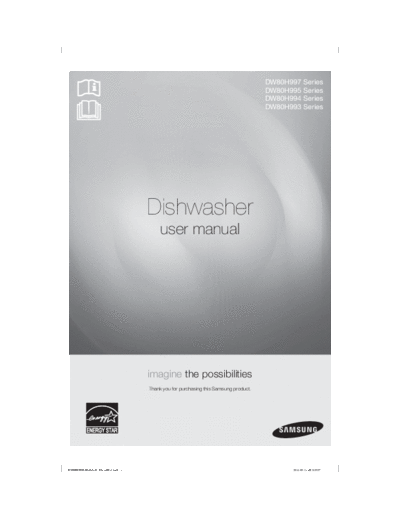

Image preview - the first page of the document
>> Download DW80H9950-00149A-03_EN_CFR_MES documenatation <<
Text preview - extract from the document
DW80H997 Series
DW80H995 Series
DW80H994 Series
DW80H993 Series
Dishwasher
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
DW80H9950-00149A-03_EN_140811.indd 1 2014-08-11 6:25:27
contents
SETTING UP YOUR DISHWASHER 6 Unpacking your dishwasher
6
6 Checking parts
7 Meeting installation requirements
USING YOUR DISHWASHER 8 Control panel
8
12 Cycle selector
12 Progress displays
13 Basic guidelines
15 Adjusting the angle of the plate supports
16 Adjusting the height of the upper rack
16 Loading the lower rack
17 Loading the upper rack
18 Using the 3rd (cutlery) rack (for some
models)
19 Using the cutlery basket
20 Using detergent
21 Using rinse aid
CLEANING AND MAINTAINING YOUR 22 Cleaning the exterior
DISHWASHER 22 Cleaning the interior
22
22 Cleaning the nozzles
23 Cleaning the filter
23 Storing your dishwasher
CYCLES 24 Cycle chart
24
TROUBLESHOOTING 25 Check these points if your dishwasher...
25
28 Information codes
APPENDIX 29 Helping the environment
29
29 Specifications
English - 2
DW80H9950-00149A-03_EN_140811.indd Sec9:2 2014-08-11 6:25:31
safety information
Congratulations on your new Samsung Dish washer. This manual contains important
information on the installation, use, and care of your appliance. Please take time to
read this manual to take full advantage of your washer's many benefits and features.
WHAT YOU NEED TO KNOW ABOUT THE SAFETY INSTRUCTIONS
01 safety information
Warnings and Important Safety Instructions in this manual do not cover all
possible conditions and situations that may occur. It is your responsibility to use
common sense, caution, and care when installing, maintaining, and operating
your washer.
IMPORTANT SAFETY INSTRUCTIONS
What the icons and signs in this user manual mean:
Hazards or unsafe practices that may result in severe personal injury or death.
To reduce the risk of fire, explosion, electric shock, or personal injury when using
WARNING your washer, follow these basic safety precautions:
Hazards or unsafe practices that may result in minor personal injury or property
CAUTION
damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicity.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Note
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
SAVE THESE INSTRUCTIONS
English - 3
DW80H9950-00149A-03_EN_140811.indd Sec1:3 2014-08-11 6:25:31
safety information
WARNING
WARNING : When using your dishwasher, follow basic precautions, including the following:
1. Read all instructions before using the dishwasher.
2. Use the dishwasher only for its intended function.
3. Use only detergents or wetting agents recommended for use in a dishwasher and keep them
out of the reach of children.
4. When loading items to be washed:
- locate sharp items so that they are not likely to damage the door seal, and
- load sharp knives with the handles up to reduce the risk of cut-type injuries.
5. Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For
plastic items not so marked, check the manufacturer's recommendations.
6. Do not touch the HEATING ELEMENT during or immediately after use.
7. Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.
8. Do not tamper with controls.
9. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
10. To reduce the risk of injury, do not allow children to play in or on a dishwasher.
11. Under certain conditions, hydrogen gas may be produced in a hot-water system that has
not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water
system has not been used for such a period, before using the dishwasher turn on all hot-
water faucets and let the water flow from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame
during this time.
12. Remove the door to the washing compartment when removing an old dishwasher from
service or discarding it.
WARNING:
WARNING This product contains chemicals known to the State of California to cause cancer and
reproductive toxicity.
