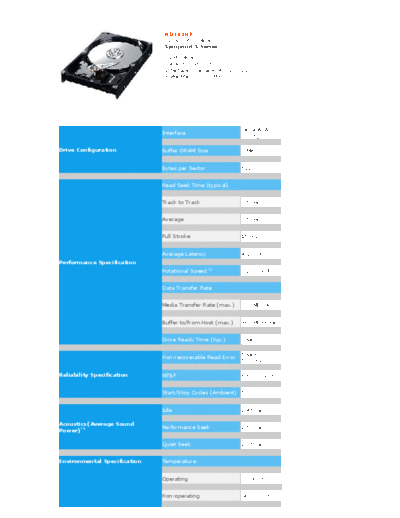

Image preview - the first page of the document
>> Download Samsung HD161HJ documenatation <<
Text preview - extract from the document
HD161HJ
Spinpoint S Series
Spinpoint S Series
S166 Series
Capacity : 160 GB
Interface : Serial ATA 3.0 Gbps
BufferMemory : 8 MB
Serial ATA
Interface
3.0Gbps
Drive Configuration Buffer DRAM Size 8 MB
Bytes per Sector 512
Read Seek Time (typical)
Track to Track 0.8 ms
Average 8.9 ms
Full Stroke 18 ms
Average Latency 4.17 ms
Performance Specification
2
Rotational Speed 7,200 RPM
Data Transfer Rate
Media Transfer Rate (max.) 300 MB/sec
Buffer to/from Host (max.) 967 Mbits/sec
Drive Ready Time (typ.) 8 sec
1 sector in
Non-recoverable Read Error
1014bits
Reliability Specification MTBF 600,000 POH
Start/Stop Cycles (Ambient) 50,000
Idle 2.45 Bel
Acoustics(Average Sound
Performance Seek 2.80 Bel
Power)3
Quiet Seek 2.75 Bel
Environmental Specification Temperature
Operating 0 ~ 60 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
