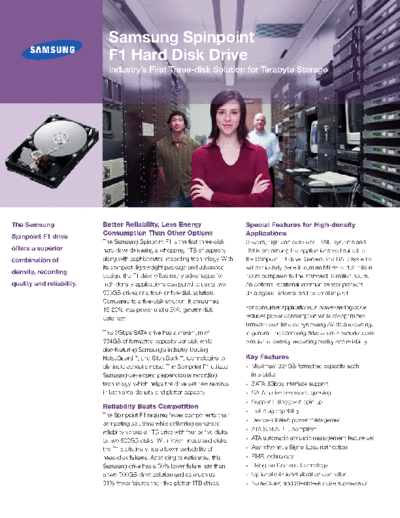

Image preview - the first page of the document
>> Download Samsung Spinpoint F1 documenatation <<
Text preview - extract from the document
Samsung Spinpoint
F1 Hard Disk Drive
Industry's First Three-disk Solution for Terabyte Storage
The Samsung Better Reliability, Less Energy Special Features for High-density
Consumption Than Other Options Applications
Spinpoint F1 drive
The Samsung Spinpoint F1 is the first three-disk Servers, high-end desktops, RAID systems and
offers a superior hard drive delivering a whopping 1TB of capacity DVRs are among the applications well suited to
combination of along with sophisticated recording technology. With the Spinpoint F1 drive. Servers and RAID systems
its compact, lightweight package and advanced will particularly benefit from an MTBF of 1.2 million
density, recording
design, the F1 drive offers many advantages for hours compared to the standard .6 million hours.
quality and reliability. high-density applications compared to using two An optional rotational vibration sensor protects
500GB drives or a four- or five-disk solution. data against internal and external impact.
Compared to a five-disk solution, it consumes
15-20% less power and a 30% greater disk For consumer applications, a power-saving code
data rate. reduces power consumption while AV-optimized
firmware cuts time delays during AV data recording.
This 3Gbps SATA drive has a maximum of In general, the Samsung drive offers a superior com-
334GB of formatted capacity per disk while bination of density, recording quality and reliability.
also featuring Samsung's industry-leading
NoiseGuardTM, and SilentSeekTM, technologies to Key Features
eliminate acoustic noise. The Spinpoint F1 utilizes ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
