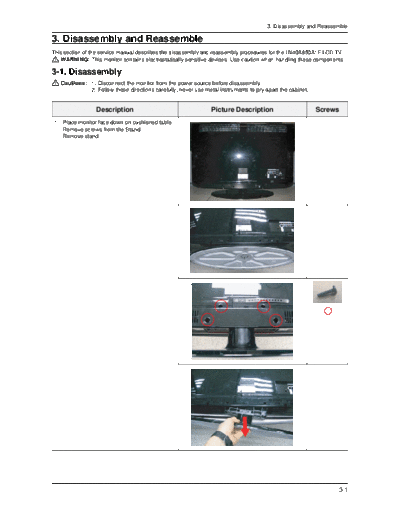

Image preview - the first page of the document



>> Download Disassembly & Reassembly documenatation <<

Text preview - extract from the document

                                                                                       3. Disassembly and Reassemble

3. Disassembly and Reassemble
This section of the service manual describes the disassembly and reassembly procedures for the LN40A650A1F LCD TV.
    WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling these components.

3-1. Disassembly
   Cautions: 1. Disconnect the monitor from the power source before disassembly.
             2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.


                 Description                                    Picture Description                        Screws
 1. Place monitor face down on cushioned table.
    Remove screws from the Stand.
    Remove stand.




                                                                                                                3-1
3. Disassembly and Reassemble


                 Description          Picture Description   Screws
2. Remove the screws of rear-cover.




3. Lift up the rear-cover.




* Fan is used in 40" only




3-2
                                                              3. Disassembly and Reassemble


                 Description                 Picture Description               Screws
4. Remove the screws of IP and main board.




* 32" model hasn't shield case.

5. Remove the speakers and screws of inlet
   socket.




                                                                                       3-3
3. Disassembly and Reassemble


                Description              Picture Description   Screws
6. Remove the screws of Stand BKLT.
   Lift up the Stand BKLT.




7. Remove the Side AV Ass'y (only 46")




3-4
                                                                 3. Disassembly and Reassemble


                Description                     Picture Description               Screws
8-1. Remove the screws of bracket. (32")




8-2. Remove the screws of bracket. (40")




8-3. Remove the screws of bracket. (46", 52")




* Caution: Don't place excessive pressure
           on wall mount bracket during
           disassembly.
           It may become bent or damaged.




                                                                                          3-5
3. Disassembly and Reassemble


                Description                                 Picture Description   Screws
9. Remove the screws on Panel.




 Reassembly procedures are in the reverse order of disassembly procedures.
