5. Exploded View & Part List
5. Exploded View & Part List

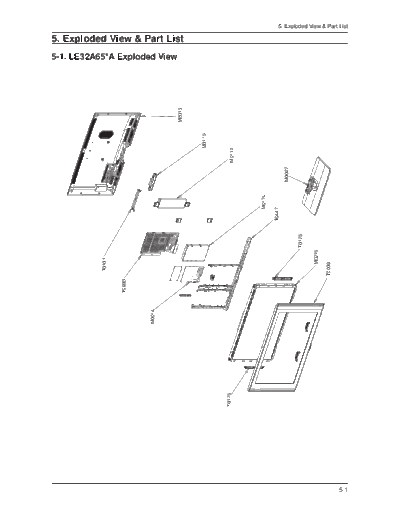

5-1. LE32A65*A Exploded View
M0013
M0115
M0112
M0027
M0174
T0447
T0175
M0215
T0101
T0003
T0603
M0014
T0175
5-1
5. Exploded View & Part List
5-1-2. LE32A65*A Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06848D ASSY COVER P-FRONT;32,L650A,EO(SD),PC(CL 1 S.A
M0215 BN07-00537A LCD-PANEL;LTF320HA02 1 S.A
T0175 BN96-06818B ASSY SPEAKER P;8ohm,CORAL,L450,10W,4pin, 1 S.A
T0447 BN96-04681A ASSY PCB MAIN-AMLCD;LE32A656A1FXXC 1 S.N.A
M0014 BN94-01741Q ASSY PCB MAIN;LE32A656A1FXCS 1 S.A
M0115 BN61-02947A BRACKET-STAND LINK;JASMINE 32",SECC,T1.6 1 S.N.A
M0013 BN96-06888G ASSY COVER P-REAR;32,L650,EO(TSED),ABS+P 1 S.A
M0027 BN96-07211B ASSY STAND P-BASE;32,L650,ABS+PMMA,HB,RD 1 S.A
5-2
M0013
T0172
T0603
M0112
M0596
T0047 M0014
M0175 T0172
M0215 M0146
T0275
T0003
M0112
M0146
T0175 M0174
5-2. LE37A65*A/ LE37A616A Exploded View
M0115
M0027
T0023
T0175
T0023
5. Exploded View & Part List
5-3
5. Exploded View & Part List
5-2-1. LE37A65*A Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06841A ASSY COVER P-FRONT;37,L650,EO,,PC(CLEAR) 1 S.A
M0215 BN07-00545A LCD-PANEL;T370HW02 V6 1 S.A
T0447 BN96-07787B ASSY BRACKET P-PANEL;37,L650,EO,GASKET 1 S.N.A
M0027 BN96-06866A ASSY STAND P-BASE;37,L650A,,ABS+PMMA,HB, 1 S.A
M0115 BN61-03711A BRACKET-STAND LINK;BRACKET-STAND-LINK 37 1 S.N.A
M0146 BN61-03712A BRACKET-PANEL TOP;BRACKET-PANEL-TOP 37,S 1 S.N.A
T0175 BN96-06045A ASSY SPEAKER P,8ohm,Peony/Rose 46/52 Mid-Range 2 S.A
M0014 BN94-01741H ASSY PCB MAIN;LE37A656A1FXXC 1 S.A
M0013 BN96-06871A ASSY COVER P-REAR;37,L650A,ABS+PMMA,HB,B 1 S.A
5-2-2. LE37A616A Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06841C ASSY COVER P-FRONT;46F71,UO,PC+ABS,V0,BK 1 S.A
M0215 BN07-00545A LCD-PANEL;V460H1-L01 1 S.A
T0447 BN96-07787B ASSY BRACKET P-PANEL;46M71,UO,-,-,-,MOSE 1 S.N.A
M0027 BN96-06866A ASSY STAND P-BASE;46M7,-,ABS+PMMA,HB,BK2 1 S.A
M0115 BN61-03711A BRACKET-STAND LINK;46M7,SECC,T1.6 1 S.N.A
M0146 BN61-03712A BRACKET-PANEL TOP;46F71,SECC,T1.6,MOSEL- 2 S.N.A
T0175 BN96-06818B ASSY SPEAKER P,8ohm,Peony/Rose 46/52 Mid-Range 2 S.A
M0014 BN94-01741L ASSY PCB MAIN-CMO;LNT466FX/XAA 1 S.A
M0174 BN44-00216A IP BOARD;SIP460A,46" TULIP,30mA,75mA,150 1 S.A
M0013 BN96-06871B ASSY COVER P-REAR;46F71,UO,HIPS,V0,BK500 1 S.A
5-4
M0013
T0172
M0112
M0146
M0146
T0603
M0175 M0596
M0014
M0215
T0275
T0172
T0003 T0447
5-3. LE40A65*A/ LE40A616A Exploded View
M0174
M0115
T0175
M0027
T0023
T0023
T0175
5. Exploded View & Part List
5-5
5. Exploded View & Part List
5-3-1. LE40A65*A Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06842C ASSY COVER P-FRONT;40,L650A,EO(SD),PC(CL 1 S.A
T0175 BN96-06809A ASSY SPEAKER P;8ohm,P750 50",Down Firing 1 S.A
M0215 BN07-00529A LCD-PANEL;LTF400HC01 1 S.A
T0447 BN96-06883C ASSY BRACKET P-PANEL;40,L650,UO,,,,,GASK 1 S.N.A
M0027 BN96-06259B ASSY STAND P-BASE;40AA1,ABS+PMMA,HB,RD02 1 S.A
M0115 BN61-02882A BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-, 1 S.N.A
M0146 BN61-03414A BRACKET-PANEL TOP;PEONY52,SECC T1.2 2 S.N.A
M0014 BN94-01741B ASSY PCB MAIN-AMLCD;LE40A656A1FXXC 1 S.A
M0175 BN96-07244B ASSY BOARD P-TOUCH FUNCTION&IR;LN46A650A 1 S.A
M0013 BN96-06874A ASSY COVER P-REAR;40,L650A,ABS+PMMA,HB,B 1 S.A
5-3-2. LE40A616A Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06842P ASSY COVER P-FRONT;40,L650A,EO(SD),PC(CL 1 S.A
T0175 BN96-06809B ASSY SPEAKER P;8ohm,P750 50",Down Firing 1 S.A
M0215 BN07-00568A LCD-PANEL;LTF400HC01 1 S.A
T0447 BN96-06883C ASSY BRACKET P-PANEL;40,L650,UO,,,,,GASK 1 S.N.A
M0027 BN96-06259B ASSY STAND P-BASE;40AA1,ABS+PMMA,HB,RD02 1 S.A
M0115 BN61-02882A BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-, 1 S.N.A
M0146 BN61-03414A BRACKET-PANEL TOP;PEONY52,SECC T1.2 2 S.N.A
M0014 BN94-01741M ASSY PCB MAIN-AMLCD;LE40A656A1FXXC 1 S.A
M0175 BN96-07244B ASSY BOARD P-TOUCH FUNCTION&IR;LN46A650A 1 S.A
M0013 BN96-06874C ASSY COVER P-REAR;40,L650A,ABS+PMMA,HB,B 1 S.A
5-6
M0013
T0172
M0112
M0146
M0146
T0603
M0175 M0596
M0014
5-4. LE46A65*A Exploded View
M0215
T0275
T0172
T0003 T0447
M0174
M0115
T0175
M0027
T0023
T0023
T0175
5. Exploded View & Part List
5-7
5. Exploded View & Part List
5-4-1. LE46A65*A Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06844C ASSY COVER P-FRONT;46,L650A,EO(SD),PC(CL 1 S.A
T0175 BN96-06809A ASSY SPEAKER P;8ohm,P750 50",Down Firing 1 S.A
M0215 BN07-00530A LCD-PANEL;LTF460HE01 1 S.A
T0447 BN96-06885D ASSY BRACKET P-PANEL;46,L650,UO,GASKET 1 S.N.A
M0027 BN96-06873A ASSY STAND P-BASE;46,L650A,,ABS+PMMA,HB, 1 S.A
M0115 BN61-03790A BRACKET-STAND LINK;AMBER 46,SECC,T1.6,-, 1 S.N.A
M0146 BN61-03415A BRACKET-PANEL TOP;PEONY 46,SECC T1.2 4 S.N.A
M0014 BN94-01741C ASSY PCB MAIN-AMLCD;LE46A656A1FXXC 1 S.A
M0175 BN96-07244B ASSY BOARD P-TOUCH FUNCTION&IR;LN46A650A 1 S.A
M0013 BN96-06878A ASSY COVER P-REAR;46,L650A,ABS+PMMA,HB,B 1 S.A
5-8
M0013
T0172
M0112
M0146
M0146
T0603
M0175 M0596
M0014
5-5. LE52A65*A Exploded View
M0215
T0275
T0172
T0003 T0447
M0174
M0115
T0175
M0027
T0023
T0023
T0175
5. Exploded View & Part List
5-9
5. Exploded View & Part List
5-5-1. LE52A65*A Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06845C ASSY COVER P-FRONT;52,L650A,EO(SD),PC(CL 1 S.A
T0175 BN96-06809C ASSY SPEAKER P;8ohm,L530 52",Down Firing 1 S.A
M0215 BN07-00531A LCD-PANEL;LTF520HE01,10bit,52inch,1.07B, 1 S.A
T0447 BN96-06887C ASSY BRACKET P-PANEL;52,L650A,UO,AMBER,G 1 S.N.A
M0027 BN96-06875A ASSY STAND P-BASE;52,L650A,,ABS+PMMA,HB, 1 S.A
M0115 BN61-03109A BRACKET-STAND LINK;TULIP-SIDE 46,SECC,T1 1 S.N.A
M0146 BN61-03056A BRACKET-PANEL TOP;TULIP52,SECC,T1.2 4 S.N.A
M0014 BN94-01741D ASSY PCB MAIN-AMLCD;LE52A656A1FXXC 1 S.A
M0175 BN96-07503B ASSY BOARD P-TOUCH FUNCTION&IR;LN52A650A 1 S.A
M0013 BN96-06884A ASSY COVER P-REAR;52,L650A,ABS+PMMA,HB,B 1 S.A
5-10
5. Exploded View & Part List
5-6. LE32A65*A Parts List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
LE32A656A1FXCS LE32A656A1F,N46A/32AA1-GAM,32,LCD-TV,KAZ
0.1 M0001 BN90-01523D ASSY COVER FRONT;32,L650,EO(SD),,,,AMBER 1 S.N.A
..2 T0003 BN96-06840D ASSY COVER P-FRONT;32,L650A,EO(SD),,PC(C 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.A
...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 0.74 S.N.A
...3 M0112 BN63-04139D COVER-FRONT;32,L650,EO(SD),PC(CLR)+PC(RO 1 S.N.A
...3 BN96-06843A ASSY HOLDER P-BOSS BOTTOM;32,L650A,,ABS, 1 S.N.A
....4 BN61-03261L BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE 0.65 S.N.A
....4 BN61-03793A HOLDER-BOSS BOTTOM;32,L650,ABS,HB,-,-,-, 1 S.N.A
....4 BN61-03261Q BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE 0.06 S.N.A
...3 BN96-06846A ASSY HOLDER P-BOSS TOP;32,L650A,,ABS,HB, 1 S.N.A
....4 BN61-03261K BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE, 0.71 S.N.A
....4 BN61-03791A HOLDER-BOSS TOP;32,L650,ABS,HB,-,-,-,WH1 1 S.N.A
....4 BN61-03261Q BOSS-TAPE;AMBER,ACRYL,T1.1,W12.0mm,WHITE 0.06 S.N.A
...3 M0146 BN96-07244D ASSY BOARD P-POWER & IR;LE32A656A1F,CT50 1 S.A
...3 BN96-07658B ASSY HOLDER P-BOSS SIDE;32,L650A,ABS+PMM 2 S.N.A
....4 BN61-03261A BOSS-TAPE;Tulip,ACRYL,T1.1,W12mm,GRAY,TA 0.08 S.N.A
....4 BN61-04074B HOLDER-BOSS SIDE;32,L650,ABS+PMMA,HB,BK2 1 S.N.A
...3 T0069 BN60-00027N SPACER-FELT;L650 32,FELT,383,0.5,20 2 S.N.A
...3 T0069 BN60-00027T SPACER-FELT;L650 32,FELT,700,0.5,20 2 S.N.A
...3 CCM1 BN63-04755A COVER-SHEET;AMBER,PE,T0.05,W150mm,200M,6 3 S.N.A
0.1 M0216 BN90-01580B ASSY STAND;32,L650,AMBER 1 S.N.A
..2 T0524 6902-000241 BAG PE;HDPE/NITRON,T0.5/T0.012,W600,L600 1 S.N.A
..2 M0027 BN96-07211B ASSY STAND P-BASE;32,L650,ABS+PMMA,HB,RD 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A
...3 BN61-02232A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 S.N.A
...3 BN61-02233A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 S.N.A
...3 BN61-02236A BRACKET-HINGE SWIVEL;BORDEAUX 32,SECC,T1 1 S.N.A
...3 BN61-02942A BRACKET-STAND BOTTOM;32,BORDEAUX PLUS,SE 1 S.N.A
...3 T0920 BN61-03679A GUIDE-STAND;32L450,PC+GF 20%,-,-,-,BK500 1 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.4 S.N.A
...3 T0004 BN63-03102D COVER-STAND BASE;32,L650,ABS+PMMA,HB,RD0 1 S.N.A
...3 M0126 BN73-00052C RUBBER-FOOT;LCD TV,CR RUBBER,T2.0 DIA19, 4 S.N.A
0.1 M0002 BN90-01609A ASSY COVER REAR;32,L650,EO,AMBER 1 S.N.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 1 S.A
..2 M0013 BN96-06888G ASSY COVER P-REAR;32,L650,EO(TSED),ABS+P 1 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A
...3 T0069 AA63-60131N SPACER-FELT;L2,FELT,280*10,BLK,T0.5 2 S.N.A
...3 T0101 BN61-03348A BRACKET-WALL;LCD TV 32,SECC T1.2,-,-,-,- 4 S.N.A
...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 0.7 S.N.A
...3 M0006 BN63-04442C COVER-REAR;32,L650,SO,ABS+PMMA,HB,BK23,H 1 S.N.A
...3 T0071 BN64-00776C INLAY-TERMINAL;L650,EO(iDTV),PS SHEET,T0 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,LDPE,-,-,BLK,- 1 S.N.A
..2 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 11 S.A
5-11
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
..2 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 1 S.A
..2 M0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 1 S.A
0.1 BN91-02180A ASSY SHIELD-SQE;LE32A656A1FX* 1 S.N.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 6 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 1 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 4 S.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 6 S.A
..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A
..2 T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 S.A
..2 M2893 BN39-00849C LEAD CONNECTOR;LNT4081FX/XAA,UL1007 #26, 1 S.A
..2 T0764 BN44-00208A SMPS-LCDTV;MK32P5T,SEM,AC/DC,137W,AC100 1 S.A
..2 M0115 BN61-02947A BRACKET-STAND LINK;JASMINE 32",SECC,T1.6 1 S.N.A
..2 M0107 BN63-03039A SHIELD-COVER;MURANO40,PCM,T0.5,IDTV 1 S.N.A
..2 T0447 BN96-04681A ASSY BRACKET P-PANEL;-,32R81,-,-,-,-,AM, 1 S.N.A
...3 M0131 AA63-01437A GASKET;Bordeaux,Conductive Fabric,20mm,9 1 S.N.A
...3 M0131 AA63-01438A GASKET;Bordeaux,Conductive Fabric,7mm,8m 1 S.N.A
...3 BN61-02199B BRACKET-GUIDE POWER;Bordeaux 32,SECC,T1. 1 S.N.A
...3 BN61-02200A BRACKET-GUIDE POWER L;Bordeaux 32,SECC,T 1 S.N.A
...3 M0146 BN61-02970A BRACKET-PANEL TOP;32 BORDEAUX PLUS,SECC, 1 S.N.A
...3 BN61-02974A BRACKET-PANEL BOTTOM;32 BORDEAUX PLUS,SE 1 S.N.A
...3 BN61-02978A BRACKET-GUIDE MAIN;32 BORDEAUX PLUS,SECC 1 S.N.A
...3 M0131 BN63-03327A GASKET;BORDEAUX PLUS,Conductive Fabric,2 1 S.N.A
...3 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 6 S.A
...3 M0114 BN61-02500A HOLDER-WIRE;NYLON6.6,NATURAL 3 S.N.A
..2 T0175 BN96-06818B ASSY SPEAKER P;8ohm,CORAL,L450,10W,4pin, 1 S.A
..2 M0214 BN96-07518A ASSY CABLE P-FLAT LVDS;LE32A556P1FXXC,FF 1 S.A
..2 BN98-01352G ASSY K/D-CONNECT;32A656,,,,BH39-00362G,B 1 S.N.A
...3 M2893 BH39-00362G LEAD CONNECTOR;SONOMA,UL1007#26,5PIN,100 1 S.A
...3 M2893 BN39-00802A LEAD CONNECTOR;LE32R86BDX,UL1007#26,UL/C 1 S.A
...3 M0254 BN61-02875M HOLDER-SIDE AV;40,L650,EO,ABS+PMMA,HB,-, 1 S.N.A
0.1 BN91-02219A ASSY LCD-AMLCD;LE32A656A1FXXC 1 S.N.A
..2 M0215 BN07-00537A LCD-PANEL;LTF320HA02 1 S.A
0.1 M0003 BN92-03198M ASSY BOX;32AA1,CIS,AMBER 1 S.N.A
..2 BN69-02595P BOX-SET;32L650,CB,A-01,DW-75,YEL,-,-,-,- 1.02 S.N.A
0.1 M0113 BN92-03203A ASSY P/MATERIAL;32,AMBER,(650) 1 S.N.A
..2 T0376 6902-000061 BAG AIR;LDPE,T0.2,W500,L1000,TRP,-,-,-,3 0.032 S.N.A
..2 T0376 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,-,-,-, 0.005 S.N.A
..2 T0003 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 4.99 S.N.A
..2 M0081 6902-000609 BAG ROLL;LDPE,T0.05,W2400,L1000,TRP,-,-, 0.063 S.N.A
..2 T0524 6902-000738 BAG PE;HDPE/HDPE/NITRON,T0.015/T0.015/T1 1 S.N.A
..2 T0214 BN74-00008A TAPE-OPP MASKING;OPP-2,T0.05,W100,L800M, 2.1 S.N.A
0.1 M0019 BN92-03369D ASSY LABEL;LE32A656A1FXRU 1 S.N.A
5-12
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
0.1 M0045 BN92-03500S ASSY ACCESSORY;LE32A656A1FXCS 1 S.N.A
..2 M0045 BN96-07435B ASSY ACCESSORY-CABLE;LE32A656A1FXXC 1 S.A
...3 T0268 3903-000145 CBF-POWER CORD;DT,EU,FP3/YES,U(IEC C13-R 1 S.A
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,-,9 1 S.N.A
...3 T0074 BN59-00706A REMOCON;TM-98A,49,EUROPE_IDTV_L650 1 S.A
...3 T0531 BN63-04294B COVER-BOTTOM;32,L650,HIPS,HB,BK500,AMBER 1 S.N.A
...3 BN96-01800A ASSY ACCESSORY-SCREW ZIPPER;ROME32,-,-,- 1 S.N.A
....4 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
....4 ACCESSORY 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,-,-,2- 1 S.N.A
...3 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 S.N.A
..2 M0045 BN96-07435N ASSY ACCESSORY-MANUAL;LE32A656A1FXCS 1 S.A
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,-,9 1 S.N.A
...3 AA68-03242K MANUAL FLYER-02,SAFETY GUIDE;comm,Samsun 1 S.N.A
...3 T0175 AA68-03278B MANUAL FLYER-01,WARRANTY CARD;CIS All mo 1 S.N.A
...3 M0156 BN68-01412G MANUAL USERS-01;COMM,SAMSUNG,Eng/Kaz,CIS 1 S.N.A
...3 BP68-00597A MANUAL FLYER-02,W/C;COMM,SAMSUNG,RUS,RUS 1 S.N.A
0.1 M0017 BN91-02187Q ASSY CHASSIS;LE32A656A1FXCS 1 S.N.A
..2 M0014 BN94-01741Q ASSY PCB MAIN;LE32A656A1FXCS 1 S.A
...3 T0245 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 1.25 S.N.A
...3 JA3114_NSI 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A
...3 JA3208_OP 3701-001480 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 S.A
...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A
...3 CN330 3711-000058 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN 1 S.A
...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004531 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG 1 S.A
...3 CN330 3711-004712 HEADER-BOARD TO CABLE;BOX,9P,1R,2mm,STRA 1 S.A
...3 CN330 3711-005842 HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR 1 S.A
...3 JA330 3722-000143 JACK-PHONE;1P(VER),AG,BLK,ANGLE 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 CN3108_NSI 3722-002275 JACK-DIN;4P,-,SN,BLK,- 1 S.A
...3 CN3111_NSI 3722-002546 JACK-USB;4P/1C,AU,BLK,ANGLE,A type 1 S.N.A
...3 JA3202 3722-002681 JACK-SCART;42P,SN,BLK 1 S.A
...3 JA333 3722-002690 JACK-PIN;3P,Ni,RED/WHT/YEL,ANGLE 1 S.A
...3 JA333 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002691 JACK-PIN;2P,Ni,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002703 JACK-PIN;3P,Ni,GRN/BLU/RED,STRAIGHT 1 S.A
...3 CIS3 BN40-00120A TUNER;TDHG6-K10A,TDHG6-K10A,DVB-T,181CH, 1 S.A
...3 M0131 BN63-03550A GASKET;BORDEAUX PLUS,Conductive Fabric,1 2 S.N.A
...3 T0603 BN63-04510A SHIELD-PCB MAIN;PEARL32, EO,TOP,SPTE,T0. 1 S.N.A
...3 T0603 BN63-04512A SHIELD-PCB MAIN;PEARL32,EO,BOT,SPTE T0.3 1 S.N.A
...3 SUB09_MTK BN73-00024E SILICON/RUBBER-GAPPAD;EDISON 24,SILICON+ 1 S.N.A
...3 SUB10_FBE BN73-00176B SILICON/RUBBER-GAPPAD;EDISON 24,SILICON+ 1 S.N.A
...3 HDCP BN97-00688B ASSY HDCP;MT8202 IC HDCP Key' 1 S.N.A
....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 S.N.A
...3 T0174 BN97-02128Q ASSY SMD;LE32A656A1FXCS 1 S.N.A
....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45um,96.5Sn/ 2.999 S.N.A
5-13
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 D1104 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3101 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3102 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3103 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3104 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3105 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3106 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3108 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3109 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3144 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3146 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3147 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3149 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3150 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3151 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3152 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3153 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3154 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3155 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3158 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3159 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3161 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3162 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3163 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3164_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3165 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3166 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3167_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3168 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3169_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3170 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3171_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3172_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3173 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3174_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3175_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3176_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3177_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3178_4HDM 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3195 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3196 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3197 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3198 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3200 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3201 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3202 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3203 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3204 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3206 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3207 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3254 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
5-14
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 D3255 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3256 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D5501_CEC 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D2105 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D2106 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D2201 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3118 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3120 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3123 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D5104 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D5105 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D5201 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A
....4 D2107 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3115 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3125 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3126 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3129 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3132 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3134 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3137 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3148 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3186_NSID 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3205 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D5103 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D5111 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A
....4 D5101 0403-000584 DIODE-ZENER;VLZ3V6B,3.6/3.845V,500mW,SOD 1 S.N.A
....4 D3141 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3156 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3160_4HDM 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3191 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3199 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A
....4 D1111 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A
....4 D0254 0404-001307 DIODE-SCHOTTKY;SSC54,20V,5000mA,DO-214AB 1 S.A
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 S.A
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 S.A
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 S.A
....4 D3119 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3122 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3138 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3139 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3179 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3180 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3182_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3183_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3184_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3185_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3188_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3189_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3190_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
5-15
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 D3251 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3252 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3208 0406-001181 DIODE-TVS;NUP4201MR6,6/-/-V,500W,TSOP-6 1 S.A
....4 D2104 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D2108 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D2110 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7201 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7202 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7203 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7204 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7205 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7206 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 Q7001 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, 1 S.A
....4 Q7002 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, 1 S.A
....4 Q5201 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A
....4 Q7402 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A
....4 Q1104 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q1111 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q2102 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3102 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3106 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3107 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3111 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3112 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3113 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3114 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3115_4HDM 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3151_NPN 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3152_NPN 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5104 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5108 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5109 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5202 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q6101_DIM 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q2101 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A
....4 Q2103 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A
....4 Q3104 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A
....4 Q3109 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A
....4 Q1101_L 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q1102_50HZ 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3103 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3105 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3108 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3110 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3153_NPN 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3116 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.A
....4 Q3117 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
5-16
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A
....4 IC104 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP 1 S.A
....4 IC104 0801-002172 IC-CMOS LOGIC;74LCX16244,BUFFER/LINE DRI 1 S.A
....4 IC104 0801-002172 IC-CMOS LOGIC;74LCX16244,BUFFER/LINE DRI 1 S.A
....4 IC104 0801-002172 IC-CMOS LOGIC;74LCX16244,BUFFER/LINE DRI 1 S.A
....4 IC104 0801-002432 IC-CMOS LOGIC;74LVC244,8BIT BUFFER/DRIVE 1 S.N.A
....4 IC104 0801-002630 IC-CMOS LOGIC;74AHCT1G08,2-INPUT AND GAT 1 S.A
....4 IC104 0801-002633 IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S 1 S.A
....4 IC104 0801-002633 IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S 1 S.A
....4 IC104 0801-002633 IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S 1 S.A
....4 IC104 0801-002633 IC-CMOS LOGIC;7WBD3125,2bit BUS SWITCH,S 1 S.A
....4 IC104 0801-003239 IC-CMOS LOGIC;74LVC1G00,2-input NAND Gat 1 S.A
....4 IC104 0801-003239 IC-CMOS LOGIC;74LVC1G00,2-input NAND Gat 1 S.A
....4 IC5110 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A
....4 IC106 1001-001513 IC-VIDEO SWITCH;TMDS351PAG,TQFP,64P,9x9m 1 S.A
....4 IC5108 1001-001523 IC-ANALOG MULTIPLEX;74HC4052PW,TSSOP,16P 1 S.A
....4 IC107 1002-001482 IC-D/A CONVERTER;WM8521H9GED/R,16bit,SOI 1 S.A
....4 IC2102 1002-001509 IC-A/D&D/A CONVERTER;MT8291,24bit,LQFP,4 1 S.A
....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 S.A
....4 IC112 1103-001410 IC-EEPROM;S-24CS08AFJ-TB-1GE,8Kbit,1Kx8, 1 S.A
....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A
....4 IC5104 1105-001862 IC-DDR2 SDRAM;K4T56163QI-ZCF7,DDR2 SDRAM 1 S.A
....4 IC5106 1105-001862 IC-DDR2 SDRAM;K4T56163QI-ZCF7,DDR2 SDRAM 1 S.A
....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A
....4 T0124 1201-002677 IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA 1 S.A
....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A
....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A
....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A
....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A
....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A
....4 IC3104 1203-003394 IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4 1 S.A
....4 IC7206 1203-003394 IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4 1 S.A
....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A
....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A
....4 IC5102 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 S.A
....4 IC2103 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A
....4 IC7402 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A
....4 T0087 1203-004816 IC-POSI.FIXED REG.;KIA78D015F,DPAK,3P,6. 1 S.A
....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A
....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A
....4 IC012 1203-005218 IC-POSI.ADJUST REG.;AP1086DL,TO-252,3P,6 1 S.A
....4 IC118 1204-002779 IC-VIDEO PROCESS;S4LF122X01,PBGA,208P,17 1 S.A
....4 IC7001 1204-002861 IC-DECODER;UPD61211GM-104-GAA-A,QFP,216P 1 S.A
5-17
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 IC118 1204-002869 IC-VIDEO PROCESS;MT8226FJ,BGA,569P,31x31 1 S.A
....4 D3107 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 D3110 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 D3111_4HDM 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 D3113 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 D5502 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 R110 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 S.A
....4 R110 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 S.A
....4 R110 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 S.A
....4 R110 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 S.A
....4 R110 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 S.A
....4 R110 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 S.A
....4 R110 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 S.A
....4 R110 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 S.A
....4 R110 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
5-18
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000083 R-CHIP;3Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000096 R-CHIP;30Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000096 R-CHIP;30Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000104 R-CHIP;150Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
5-19
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
5-20
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
