Image preview - the first page of the document
>> Download Exploded View & Part List documenatation <<
Text preview - extract from the document
5. Exploded View & Part List
5. Exploded View & Part List

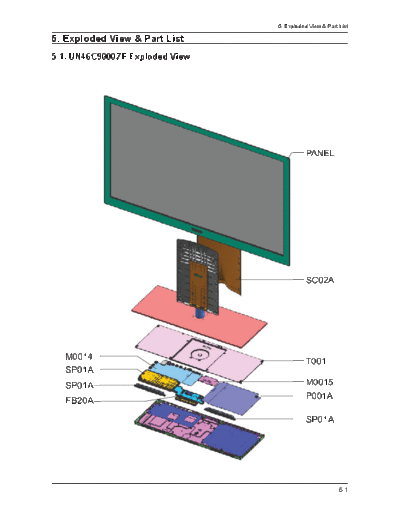

5-1. UN46C9000ZF Exploded View
PANEL
SC02A
M0014
T001
SP01A
SP01A M0015
P001A
FB20A
SP01A
5-1
5. Exploded View & Part List
5-2. UN46C9000ZF Parts List
Location No. Code No. Description & Specification Q'ty SA/SNA Remark
FB20A BN96-14587A ASSY BOARD P-TOUCH FUNCTION;UC9Z 46,MGMP 1 SA
M0014 BN94-03519A ASSY PCB MAIN;UN46C9000ZFXZA 1 SA
M0015 BN94-03610A ASSY PCB MISC-MAIN BOX SECOND;UN46C9000Z 1 SA
P001A BN44-00364A DC VSS-LED TV PD BD;PD55BF2_ZDY,PD55BF2_ 1 SA
PANEL BN07-00879A LCD-PANEL;A030DN01,6bit,2.95,262K,4:1,62 1 SNA
SC02A BN96-14599A ASSY COVER P-GUIDE STAND;UC9000,PC,V0,BK 1 SA
SP01A BN96-13901A ASSY SPEAKER P;8ohm,4pin,15,9015 unit (2 1 SA
SP01A BN96-13902A ASSY SPEAKER P;4ohm,4pin,25W,160mm,9030 1 SA
T001 BN63-06891A COVER-TOP;UC9000,PC+ABS,T2.5,BK0007,UO,L 1 SNA
5-2
5. Exploded View & Part List
5-2-1. UN46C9000ZF Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
0.1 BN91-05555A ASSY SHIELD;UN46C9000ZFXZA 1 SNA
..2 T0081 6001-002283 SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 19 SNA
..2 M0081 6003-000337 SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR 20 SA
..2 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 8 SA
..2 EC13 BN39-01342A LEAD CONNECTOR;UN55C9000ZFXZA,Lead Conne 1 SA
..2 EC13 BN39-01344A LEAD CONNECTOR;UN55C9000ZFXZA,Lead Conne 1 SA
..2 P001A BN44-00364A DC VSS-LED TV PD BD;PD55BF2_ZDY,PD55BF2_ 1 SA
..2 T001 BN63-06891A COVER-TOP;UC9000,PC+ABS,T2.5,BK0007,UO,L 1 SNA
..2 T0066 BN96-12845D ASSY POWER CORD;125/7A, UL/CSA,LP-11WL,V 1 SA
..2 SP01A BN96-13901A ASSY SPEAKER P;8ohm,4pin,15,9015 unit (2 1 SA
..2 SP01A BN96-13902A ASSY SPEAKER P;4ohm,4pin,25W,160mm,9030 1 SA
..2 BN96-14105A ASSY COVER P-MAIN BOX;UC9000 46/55,UO,PC 1 SNA
...3 BN61-06375A BRACKET-STAND BOT;UC9000,UO,LO,KO,PHILIP 1 SNA
...3 BN63-06884A SHEET-INSULATOR POWER;PC T0.43 1 SNA
...3 BN63-06885A SHEET-INSULATOR PCB;PC T0.43 1 SNA
...3 AC352 BN63-06892A COVER-SIDE;UC9000,UO,PC+ABS,T3.0,V0,BK00 1 SNA
...3 BN64-01366A GRILLE-SPEAKER FRONT;UC9000,PET,T0.35 1 SNA
...3 AG060 BN64-01367A GRILLE-SPEAKER L;UC9000,PET,T0.35 1 SNA
...3 AG070 BN64-01392A GRILLE-SPEAKER R;UC9000,PET,T0.35 1 SNA
...3 6001-002624 SCREW-MACHINE;FH,+,M3,L4,BLK,SWRCH18A 10 SNA
...3 BN73-00286A RUBBER-FOOT;UC9000,RUBBER,16*33,T3,BLK 7 SNA
..2 FL06 BN96-14108C ASSY CABLE P-FPCB LVDS CABLE;C9000,FPCB 1 SA
..2 FB20A BN96-14587A ASSY BOARD P-TOUCH FUNCTION;UC9Z 46,MGMP 1 SA
..2 SC02A BN96-14599A ASSY COVER P-GUIDE STAND;UC9000,PC,V0,BK 1 SA
...3 BN60-00209A SPACER-DUAL LOCK;UC9000,CLEAR,W20,SJ 457 9 SNA
...3 BN63-06883A COVER-GUIDE STAND;UC9000,PC,V0,BK0007,TI 1 SNA
..2 BN73-00241A SILICON/RUBBER-GAPPAD;UN55B9000XF,SILICO 4 SNA
..2 T0081 6001-000581 SCREW-MACHINE;PH,+,M4,L12,NI PLT,SWRCH18 2 SNA
..2 CB02 BN61-06671A BRACKET-FRAME;UC9000,ALCOT-SA1C,Wall Mou 1 SNA
..2 6001-000378 SCREW-MACHINE;FH,+,M4,L8,NI PLT,SWRCH18A 3 SNA
..2 CIS1 0203-001586 TAPE-FILAMENT;#893,0.15,25,55 0.24 SNA
0.1 M0017 BN91-05557A ASSY CHASSIS;UN46C9000ZFXZA 1 SNA
..2 M0015 BN94-03726A ASSY PCB MISC-MAIN BOX SECOND;DP,BN41-01 1 SA
...3 M0015 BN94-03610A ASSY PCB MISC-MAIN BOX SECOND;UN46C9000Z 1 SA
....4 0202-001463 SOLDER-WIRE;LFC2-W3.0,-,D3,99.79Sn/0.2Cu 0.64 SNA
....4 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.003 SNA
....4 0204-002420 SOLVENT;1M-1000,C3H70H,96 1.16 SNA
....4 0204-002607 FLUX;DF-234U,13%,14KG,Gravity 0.82 0.757 SNA
....4 T0756 AA68-01018A LABEL-PQS;50mmX,13,WHITE 1 SNA
....4 BN97-04418A ASSY SMD;UN55C9000ZFXZA,BN94-03610A 1 SNA
.....5 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A 0.379 SNA
.....5 1006-001440 IC-LINE RECEIVER;THC63LVD1027,TSSOP,64P, 1 SNA
.....5 CER04 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
.....5 R512 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 SA
.....5 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 24 SNA
.....5 R1035 2007-000287 R-CHIP;100ohm,1%,1/10W,TP,1608 12 SNA
.....5 AR61 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 SNA
.....5 C134 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 4 SA
5-3
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
.....5 PPC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 7 SA
.....5 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 SNA
.....5 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 4 SC
.....5 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 5 SA
.....5 AC510 3708-002777 CONNECTOR-FPC/FFC/PIC;82P,0.5mm/0.75mm,S 1 SA
.....5 EH01 3711-005889 HEADER-BOARD TO CABLE;BOX,22P,1R,1.25mm, 1 SNA
.....5 BN41-01434A PCB MAIN-SECOND;UC9000,FR-4,4,1.2,237*15 1 SNA
.....5 BN68-02775A LABEL-SMD;ALL MODELS,8.5,21,COMMON 1 SNA
.....5 3710-003267 CONNECTOR-SOCKET;144P,2R,0.5mm,SMD-S,AU/ 1 SA
....4 JA330 3722-002846 JACK-PHONE;1/6,NI,BLACK,ANGLE 1 SNA
...3 BN98-02759A ASSY K/D-PACKING MATERIAL;BN94-03610A,BN 1 SNA
....4 T0214 0203-001269 TAPE-OPP MASKING;#301,T0.06,W75,L50000,N 0.03 SNA
....4 6902-000012 BAG AIR CAP;LDPE,T0.03,W130,L130,TRP,1.1 1 SNA
....4 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 0.08 SNA
....4 M040 6922-000003 BAND PP;PP,T0.8,W18,L1650M,TRP,DA69-9014 0.02 SNA
....4 AA61-30009A LOCKER-BAND,CLIP;SPC-1,18MM T0.5 1 SNA
....4 T0603 AA69-02444P PALLET-CKD;CKD,PAPER,1145,705,120 1 SNA
....4 AA69-04861W MASTER CARTON;CB,DW,560,320,235 1 SNA
....4 AA69-04880M PAD-CROSS;CB,DW,550,105 1 SNA
....4 AA69-04880N PAD-CROSS;CB,DW,310,105 1 SNA
....4 AA69-04906W PAD-PLATE;CB,SW,550,310 1 SNA
..2 M0014 BN94-03725A ASSY PCB MISC-MAIN;DP,BN41-01424,BN94-03 1 SA
...3 M0014 BN94-03519A ASSY PCB MAIN;UN46C9000ZFXZA 1 SA
....4 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 2.775 SNA
....4 3722-002849 JACK-MODULAR;8P/8C(ULTRA SLIM),YES,ANGLE 1 SNA
....4 T0756 AA68-01018A LABEL-PQS;50mmX,13,WHITE 1 SNA
....4 CIS3 BN40-00162A TUNER;DTVS20CVH081A,NTSC,191CH,45.75MHz, 1 SA
....4 BN97-04335A ASSY SMD;UN46C9000ZFXZA,BN94-03519A 1 SNA
.....5 DS01A 0401-000116 DIODE-SWITCHING;MMSD914T1,100V,200mA,SOD 6 SA
.....5 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 17 SA
.....5 DR01A 0402-001098 DIODE-RECTIFIER;SK34,40V,3A,SMC,TP 1 SA
.....5 D0254 0402-001207 DIODE-SCHOTTKY;UPS5819,40V,1000mA,DO-216 1 SA
.....5 0403-001164 DIODE-ZENER;MMSZ5232B,5.32-5.88V,500MW,S 1 SA
.....5 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 11 SNA
.....5 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 7 SA
.....5 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 2 SA
.....5 SD3 0407-000114 DIODE-SWITCHING;KDS184,80V,100mA,SOT-23, 1 SNA
.....5 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 3 SA
.....5 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 SA
.....5 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 6 SA
.....5 Q409 0505-002386 FET-SILICON;AO3415AL,P,-20V,-4A,0.045ohm 5 SA
.....5 0903-001663 IC-MICROCOMPUTER;CLM7600,BGA,400P,17x17m 1 SA
.....5 T0596 0904-002554 IC-USC;AU6256-JBF,QFN,28P,5x5mm,12MHz,TP 1 SA
.....5 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 SA
.....5 IC106 1001-001627 IC-VIDEO SWITCH;SiI9389CTU,TQFP,100P,14x 1 SA
.....5 1006-001480 IC-LINE TRANSCEIVER;MAX3222ECAP+T,SSOP,2 1 SA
.....5 IC112 1103-001310 IC-EEPROM;24LC02B,256X8BIT,SOIC,8P,3.91X 1 SNA
.....5 IC112 1103-001475 IC-EEPROM;M24256-BR,256Kbit,32Kx8,SOP,8P 1 SNA
.....5 1105-002049 IC-DDR2 SDRAM;EM68B16CWPA-25H,DDR2 SDRAM 2 SA
.....5 1105-002058 IC-DDR2 SDRAM;K4T1G164QE-HCF8,DDR2,1Gbit 4 SA
.....5 T0124 1201-002992 IC-POWER AMP;STA369BWS,PSSO,36P,10.3x7.5 2 SA
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
.....5 T0087 1203-002519 IC-POSI.FIXED REG.;KIA7809AF,DPAK,3P,240 1 SA
.....5 IC703 1203-003121 IC-POSI.FIXED REG.;FAN1112,SOT-223,3P,6. 1 SA
.....5 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 SA
.....5 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
.....5 IC012 1203-004937 IC-POSI.ADJUST REG.;MP2000DJ-ADJ-LF-Z,TS 1 SA
.....5 1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. 2 SA
.....5 1203-005559 IC-BACKLIGHT DRIVER;MP3302DJ,TSOT23,5P,2 1 SA
.....5 1203-006012 IC-DC/DC CONVERTER;MP8725EL,QFN14,14P,3x 1 SA
.....5 1203-006013 IC-DC/DC CONVERTER;AOZ1031AI,SO-8,8P,4.9 2 SA
.....5 T0087 1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 1 SA
.....5 T0087 1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 1 SA
.....5 T0087 1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T 2 SA
.....5 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
.....5 1204-003100 IC-DECODER;SDP92,FCPBGAH,937P,35x35mm,PL 1 SA
.....5 IC118 1204-003101 IC-VIDEO PROCESS;SDP94,PBGA,345P,19x19mm 1 SNA
.....5 IC118 1204-003128 IC-VIDEO PROCESS;FRC9459S,FBGA,372P,23x2 1 SNA
.....5 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 2 SA
.....5 1205-003834 IC-ETHERNET CONTROLLER;RTL8201E-VC-GR,QF 1 SA
.....5 1205-003840 IC-CODEC;WM8595GEFL/RS,QFN,48P,7x7x0.9mm 1 SA
.....5 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 SA
.....5 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 19 SA
.....5 FMR4 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 3 SNA
.....5 MR604 2007-000137 R-CHIP;2Kohm,5%,1/16W,TP,1005 9 SNA
.....5 HDR7 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 2 SNA
.....5 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 6 SNA
.....5 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 60 SNA
.....5 R102 2007-000149 R-CHIP;12Kohm,5%,1/16W,TP,1005 1 SA
.....5 R509 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 3 SNA
.....5 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 8 SNA
.....5 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 9 SNA
.....5 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 52 SNA
.....5 2007-000231 R-CHIP;1.3Kohm,1%,1/10W,TP,1608 2 SA
.....5 MR39 2007-000242 R-CHIP;1.5Kohm,5%,1/16W,TP,1005 1 SNA
.....5 UR53 2007-000305 R-CHIP;10Mohm,5%,1/10W,TP,1608 1 SA
.....5 R809 2007-000475 R-CHIP;1Mohm,1%,1/10W,TP,1608 1 SA
.....5 RT01 2007-000483 R-CHIP;1ohm,5%,1/8W,TP,2012 2 SNA
.....5 2007-000606 R-CHIP;240ohm,1%,1/10W,TP,1608 2 SA
.....5 JR11 2007-000614 R-CHIP;24Kohm,1%,1/10W,TP,1608 2 SNA
.....5 2007-000633 R-CHIP;270Kohm,1%,1/10W,TP,1608 2 SA
.....5 2007-000736 R-CHIP;30Kohm,1%,1/10W,TP,1608 1 SA
.....5 2007-000755 R-CHIP;330Kohm,1%,1/10W,TP,1608 1 SA
.....5 R19 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 SNA
.....5 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 2 SNA
.....5 DR6 2007-000831 R-CHIP;39Kohm,5%,1/16W,TP,1005 1 SA
.....5 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA
.....5 2007-000946 R-CHIP;47ohm,1%,1/10W,TP,1608 7 SA
.....5 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 36 SA
.....5 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 81 SNA
.....5 CER07 2007-001308 R-CHIP;200ohm,5%,1/16W,TP,1005 1 SNA
.....5 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 2 SNA
.....5 MR316 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 3 SA
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
.....5 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 1 SA
.....5 2007-007008 R-CHIP;300ohm,5%,1/16W,TP,1005 1 SNA
.....5 PR8 2007-007015 R-CHIP;13Kohm,5%,1/16W,TP,1005 2 SA
.....5 R365 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 6 SNA
.....5 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 2 SA
.....5 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 1 SA
.....5 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 6 SNA
.....5 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 1 SA
.....5 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 4 SA
.....5 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005 19 SA
.....5 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 65 SNA
.....5 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 3 SNA
.....5 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 2 SNA
.....5 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 36 SNA
.....5 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 50 SNA
.....5 2007-007352 R-CHIP;130Kohm,1%,1/10W,TP,1608 4 SA
.....5 2007-007469 R-CHIP;110ohm,1%,1/16W,TP,1005 1 SNA
.....5 HDR44 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 2 SNA
.....5 WR23 2007-007525 R-CHIP;3.4Kohm,1%,1/10W,TP,1608 2 SNA
.....5 2007-007538 R-CHIP;56Kohm,1%,1/16W,TP,1005 2 SA
.....5 2007-007617 R-CHIP;2.49Kohm,1%,1/10W,TP,1608 1 SA
.....5 2007-007698 R-CHIP;5.1Kohm,1%,1/16W,TP,1005 1 SA
.....5 2007-007724 R-CHIP;40.2ohm,1%,1/10W,TP,1608 2 SA
.....5 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 1 SNA
.....5 2007-007947 R-CHIP;36ohm,1%,1/10W,TP,1608 1 SA
.....5 MR11 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 17 SNA
.....5 2007-008136 R-CHIP;36Kohm,1%,1/16W,TP,1005 1 SA
.....5 2007-008263 R-CHIP;3Kohm,1%,1/16W,TP,1005 1 SA
.....5 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 1 SNA
.....5 2007-008391 R-CHIP;6.34Kohm,1%,1/16W,TP,1005 1 SA
.....5 2007-008811 R-CHIP;1.5ohm,5%,1/16W,TP,1005 1 SA
.....5 2007-009853 R-CHIP;1.6Kohm,1%,1/16W,TP,1005 1 SNA
.....5 RN22 2011-001001 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2 1 SA
.....5 MR38 2011-001093 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,3 1 SA
.....5 ZRN10 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 2 SA
.....5 DAR09 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 24 SA
.....5 DRP29 2011-001396 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,8P,TP, 3 SNA
.....5 2011-001427 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,2.0 4 SA
.....5 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 5 SA
.....5 2011-001497 R-NETWORK;470ohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
.....5 2011-001586 R-NETWORK;1Kohm,5%,1/16W,L,CHIP-V,4P,TP, 10 SNA
.....5 2011-001587 R-NETWORK;100ohm,5%,1/16W,L,CHIP-V,4P,TP 1 SNA
.....5 2011-001589 R-NETWORK;0ohm,5%,1/16W,L,CHIP-V,4P,TP,1 1 SNA
.....5 AC1 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1608,- 6 SA
.....5 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 9 SA
.....5 MC2 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 36 SA
.....5 DC54 2203-000278 C-CER,CHIP;.01nF,0.5pF,50V,C0G,TP,1005 3 SA
.....5 DC2 2203-000330 C-CER,CHIP;.012nF,5%,50V,C0G,TP,1005 4 SA
.....5 DC1 2203-000386 C-CER,CHIP;.015nF,5%,50V,C0G,TP,1005 12 SA
.....5 MC302 2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 6 SA
.....5 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 10 SA
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
.....5 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 1 SA
.....5 V1233 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,TP,2012 14 SNA
.....5 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,1005 1 SA
.....5 DC25 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,1005 4 SA
.....5 CK40B 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 3 SNA
.....5 C132 2203-000854 C-CER,CHIP;0.039nF,5%,50V,C0G,1005 1 SA
.....5 AD480 2203-000995 C-CER,CHIP;.047nF,5%,50V,C0G,TP,1005 4 SA
.....5 C101 2203-001124 C-CER,CHIP;0.68NF,10%,50V,X7R,TP,1005 4 SA
.....5 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 11 SNA
.....5 AD480 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012 1 SNA
.....5 USC4 2203-002605 C-CER,CHIP;0.008nF,0.25pF,50V,NP0,TP,160 1 SA
.....5 C711 2203-002982 C-CER,CHIP;6.8nF,10%,50V,X7R,1005 2 SA
.....5 DC18 2203-005138 C-CER,CHIP;1.8nF,10%,50V,X7R,1005 6 SA
.....5 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 36 SNA
.....5 AD480 2203-005344 C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,- 19 SNA
.....5 AD480 2203-005393 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1005 1 SNA
.....5 PC8 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,1005 3 SNA
.....5 AD480 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 4 SNA
.....5 AD480 2203-006039 C-CER,CHIP;1nF,10%,2000V,X7R,3216 2 SA
.....5 AD480 2203-006104 C-CER,CHIP;1000nF,10%,50V,X7R,3225 2 SA
.....5 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,1005 11 SNA
.....5 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 4 SNA
.....5 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 358 SNA
.....5 AD480 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 9 SA
.....5 C802 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608 1 SA
.....5 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 108 SC
.....5 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 8 SA
.....5 HDC11 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 48 SNA
.....5 PC69 2203-006818 C-CER,CHIP;47000nF,20%,6.3V,X5R,3216 1 SA
.....5 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,1608 6 SNA
.....5 AD480 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 2 SNA
.....5 AD480 2203-007138 C-CER,CHIP;2200nF,10%,50V,X7R,TP,3216 2 SA
.....5 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 7 SNA
.....5 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608 5 SNA
.....5 2503-001051 C-NETWORK;100nFx4,20%,16V,2012 3 SA
.....5 2601-001056 TRANS-SMD,PULSE;350UH,-,1:1,1:1,12.7X6.7 1 SA
.....5 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 4 SA
.....5 VL6 2703-000398 INDUCTOR-SMD;10uH,10%,3225 9 SA
.....5 T0052 2703-001239 INDUCTOR-SMD;3.3uH,10%,1608 1 SA
.....5 T0052 2703-002044 INDUCTOR-SMD;390NH,5%,2012 3 SA
.....5 T0052 2703-002332 INDUCTOR-SMD;330nH,5%,1608 1 SA
.....5 T0052 2703-002557 INDUCTOR-SMD;270NH,5%,1608 2 SNA
.....5 T0052 2703-003150 INDUCTOR-SMD;4.7uH,20%,5050 4 SNA
.....5 T0052 2703-003713 INDUCTOR-SMD;1.5uH,20%,7366 3 SA
.....5 T0052 2703-003790 INDUCTOR-SMD;4.7uH,20%,8080 4 SA
.....5 X202 2801-003773 CRYSTAL-SMD;12MHz,30ppm,28-AAN,20pF,50oh 1 SA
.....5 X202 2801-003948 CRYSTAL-SMD;12MHz,30ppm,28-AAN,12pF,60oh 1 SA
.....5 X202 2801-004629 CRYSTAL-SMD;27MHz,20ppm,12pF,50ohm,TP 2 SNA
.....5 X202 2801-004688 CRYSTAL-SMD;0.032768MHz,20ppm,1.9pF,6500 1 SNA
.....5 X202 2801-004734 CRYSTAL-SMD;25.000000MHz,20ppm,28-AAN,12 1 SA
.....5 X202 2801-004774 CRYSTAL-SMD;24MHz,30ppm,14pF,30ohm,TP 2 SA
5-7
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
.....5 X202 2801-004775 CRYSTAL-SMD;12MHz,30ppm,16pF,30ohm,TP 1 SNA
.....5 2804-001878 OSCILLATOR-CLOCK;49.152MHz,50ppm,10TTL/1 1 SA
.....5 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 2 SA
.....5 DR32 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 2 SNA
.....5 L2011 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 3 SNA
.....5 T0568 3301-001236 BEAD-SMD;60ohm,1608 9 SNA
.....5 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 52 SA
.....5 T0313 3404-001207 SWITCH-TACT;12V,50mA,160gf,6.2X6.2,SPST 1 SA
.....5 3701-001293 CONNECTOR-HDMI;19P,2R,FEMALE,SMD-A,AU 4 SA
.....5 CN906 3707-001095 CONNECTOR-OPTICAL;SMD-A(Ultra Slim),SPDI 1 SA
.....5 AC510 3708-002777 CONNECTOR-FPC/FFC/PIC;82P,0.5mm/0.75mm,S 1 SA
.....5 HB01A 3711-005470 HEADER-BOARD TO CABLE;BOX,30P,1R,1.25mm, 1 SA
.....5 HB01A 3711-005499 HEADER-BOARD TO CABLE;BOX,8P,1R,1.25mm,S 2 SA
.....5 HB01A 3711-005509 HEADER-BOARD TO CABLE;BOX,4P,1R,1.25mm,S 1 SA
.....5 HB01A 3711-005543 HEADER-BOARD TO CABLE;BOX,6P,1R,1.25mm,S 1 SA
.....5 3722-003044 JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE 2 SA
.....5 BN68-02775A LABEL-SMD;ALL MODELS,8.5,21,COMMON 1 SNA
.....5 BN97-04162A ASSY MICOM;T-VAL9AUSC-1005.0,2010.04.13 1 SNA
......6 1107-001868 IC-NAND FLASH;KFG8GH6U4M-AIB6,1GByte,512 1 SNA
......6 BN68-02303A LABEL-IC;9.5MMX8MM,ART PAPER 1 SNA
.....5 BN97-04307A ASSY MICOM;T-VALCPLD-0010,2010.04.28 1 SNA
......6 1301-001969 IC-CPLD;EPM240T100C4N,TQFP,100P,16x16mm, 1 SNA
.....5 BN97-04308A ASSY MICOM;T-VALAFRCS-20128,2010.03.22 1 SNA
......6 IC112 1103-001406 IC-EEPROM;AT24C512BN-SH25-T,512Kbit,64Kx 1 SNA
.....5 T0010 BP27-00002A COIL CHOKE;SLF6028T-220MR77,22uF,20%,0.1 1 SA
.....5 0202-001767 SOLDER-CREAM;LST-5710,D20~38,42Sn/57Bi/1 6.37 SNA
.....5 HDC5 2203-001072 C-CER,CHIP;0.056nF,5%,50V,NP0,1005 1 SA
.....5 BN97-04570A ASSY MICOM;T-VAL9AUSS-9003,2010.04.06 1 SNA
......6 IC520 0903-001651 IC-MICROCONTROLLER;61P802-RG480WT,LQFP,4 1 SNA
.....5 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005,- 2 SA
.....5 T0052 2703-002268 INDUCTOR-SMD;8.2nH,5%,1005 4 SNA
.....5 BN41-01424B PCB MAIN;UC9000,FR-4,4,1.2,310*158,N99A 1 SNA
.....5 T0052 2703-002238 INDUCTOR-SMD;1UH,5%,2012 2 SNA
.....5 2703-003854 INDUCTOR-SMD;560nH,5%,2012 2 SA
....4 3701-001710 CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI 1 SNA
....4 JA330 3722-002844 JACK-PHONE;1/7P,NI,LAUREL-GREEN,ANGLE 1 SA
....4 JA330 3722-002845 JACK-PHONE;1/7P,NI,YELLOW,ANGLE 1 SA
....4 JA330 3722-002846 JACK-PHONE;1/6,NI,BLACK,ANGLE 2 SNA
...3 BN98-02758A ASSY K/D-PACKING MATERIAL;BN94-03519A,B, 1 SNA
....4 T0214 0203-001269 TAPE-OPP MASKING;#301,T0.06,W75,L50000,N 0.13 SNA
....4 6902-000314 BAG AIR CAP;LDPE,T0.05,W400,L400,TRP,6.6 1 SNA
....4 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 0.28 SNA
....4 M040 6922-000013 BAND PP;PP,W18,L2300m,TRP,21000g 0.05 SNA
....4 AA61-30009A LOCKER-BAND,CLIP;SPC-1,18MM T0.5 1 SNA
....4 T0603 AA69-02447A PALLET-CKD;CKD,PAPER,1025,890,120 1 SNA
....4 AA69-04463N MASTER CARTON;CB,DW,850,485,235,100g 1 SNA
....4 AA69-04470J PAD-CROSS;CB,DW,840,215,100g 1 SNA
....4 AA69-04470K PAD-CROSS;CB,DW,485,215,100g 1 SNA
....4 AA69-04476J PAD-PLATE;CB,SW,840,475,100g 1 SNA
0.1 BN91-05649A ASSY LCD-AMLCD VD;BN95-00398A 1 SNA
..2 PANEL BN95-00398A ASSY PRODUCT LCD;T460FCE1-FS,SLL7DS1,10b 1 SA
5-8
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
...3 T0081 6001-002283 SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 6 SNA
...3 BN63-07171A SHEET-DBEF D2-400;UC9000 46inch,DBEF D2- 1 SNA
...3 BN63-07172A SHEET-PRISM;UC9000 46inch,PTX538,0.3,103 1 SNA
...3 BN63-07173A SHEET-DIFFUSER;UC9000 46inch,PTR873,0.3, 1 SNA
...3 BN63-07174A SHEET-REFLECTOR;UC9000 46inch,SLP7-7C(40 1 SNA
...3 BN74-00079A TAPE-REFLECTOR;UC9000 46",UX150,WHITE,T0 4 SNA
...3 BN74-00080A TAPE-REFLECTOR;UC9000 46",UX150,WHITE,T0 2 SNA
...3 TCON BN81-04720A A/S-T CON LTQ460HQ01;LTQ460HQ01 1 SA
...3 BN96-13548A ASSY MISC P-LED BAR;UC9000 46inch (B),SE 2 SNA
...3 BN96-14004A ASSY MISC P-LED BAR;UC9000 46inch (A1),S 2 SNA
...3 BN96-14005A ASSY MISC P-LED BAR;UC9000 46inch (A2),S 2 SNA
...3 F001A BN96-14102A ASSY COVER P-FRONT;46,UC9000,UO,SUS416 T 1 SNA
....4 T0081 6001-000346 SCREW-MACHINE;FH,+,M3,L4,ZPC(WHT),SWRCH1 16 SNA
....4 BN60-00189A SPACER-FELT;UC9000 46",L1036,T0.5,W8 2 SNA
....4 BN60-00190A SPACER-FELT;UC9000 46",L577,T0.5,W8 2 SNA
....4 BN61-04248C BOSS-TAPE;#4920,acryl,0.45mm,12mm,3M,whi 3.35 SNA
....4 BN61-06372A BRACKET-CORNER;UC9000,SK5,T1.0 4 SNA
....4 BN61-06382A BRACKET-PCB L;UC9000 46",AL 1 SNA
....4 BN61-06387A BRACKET-PCB R;UC9000 46,AL 1 SNA
....4 BN61-06539A BOSS-TAPE;UC8000,PE,T0.16,W5,Transparent 0.94 SNA
....4 BN61-06605A BOSS-TAPE;UC9000,acryl,T0.15,W17,Transpa 1 SNA
....4 BN61-06609A GUIDE-CELL;UC9000,SILICON,T2.0,WHITE 8 SNA
....4 BN61-06610A GUIDE-CELL;UC9000,SILICON,T3.0,WHITE 2 SNA
....4 BN61-06611A GUIDE-CELL;UC9000,SILICON,T4.0,WHITE 2 SNA
....4 F001 BN63-06870A COVER-FRONT;UC9000 46",SUS416,0.6,HAIR L 1 SNA
....4 BN63-06881A COVER-MIDDLE BOTTOM;UC9000 46",AL,extrut 1 SNA
....4 BN63-06910A COVER-MIDDLE TOP;UC9000 46,AL,extrution 1 SNA
....4 BN63-06911A COVER-MIDDLE L;UC9000 46,AL 1 SNA
....4 BN63-06912A COVER-MIDDLE R;UC9000 46,AL 1 SNA
....4 BN63-06970A SHEET-INSULATOR COF R;UC9000 46" PET,T0. 1 SNA
....4 BN63-06971A SHEET-INSULATOR COF L;UC9000 46" PET,T0. 1 SNA
....4 BN63-06972A SHEET-INSULATOR S-BOARD R;UC9000 46" PET 1 SNA
....4 BN63-06973A SHEET-INSULATOR S-BOARD L;UC9000 46" PET 1 SNA
....4 BN64-01444A BADGE-BRAND;UC9000,AL,W 65,ELETRO FORMIN 1 SNA
...3 R001A BN96-14103A ASSY COVER P-REAR;UC9000 46,AL T2.2,HAIR 1 SNA
....4 BN60-00162H SPACER-FOAM;FOAM,50000mm,Dark Gray,0.5T, 2.4 SNA
....4 R001 BN63-06878A COVER-REAR;UC9000 46",AL,T2.2,HAIR LINE 1 SNA
....4 BN63-06958A SHEET-INSULATOR T-CON;PET,T0.2 1 SNA
....4 BN63-07195A SHEET-INSULATOR REAR;UC9000,PET,T0.075,W 2 SNA
....4 BN60-00218A SPACER-RING;UC9000 55",INNER 5.6,OUTER 1 2 SNA
....4 BN61-06499A HOLDER-CAP;UC9000,AL,ANODIZING 4 SNA
...3 CS03A BN96-14106A ASSY SHIELD P-PCB;UC9000 46/55,AL,T1.0 1 SNA
....4 RS01 BN63-06900A SHIELD-PCB;UC9000,AL,T0.8,conversion tre 1 SNA
....4 BN63-06959A SHEET-INSULATOR SHIELD;PET,T0.2 1 SNA
....4 BN63-07349A GASKET;GASKET EMI,Polyurethane Sponge+ P 1 SNA
....4 BN63-07350A GASKET;GASKET EMI,Polyurethane Sponge+ P 1 SNA
...3 FL06 BN96-14108D ASSY CABLE P-FPCB LVDS CABLE;C9000,FPCB 1 SA
...3 BN96-14145A ASSY OPEN CELL;LTQ460HQ01,8bit,46inch,16 1 SNA
...3 BN96-14204A ASSY MISC P-LGP-LED;C9K 46inch LGP-LED 1 SNA
....4 BN61-06592A LGP-LED;C9K 46inch,PMMA,2.0,1049.88*602. 1 SNA
...3 FB30A BN96-14398A ASSY BOARD P-IR & 3D EMITTER;UC9Z 46,CT5 1 SA
5-9
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
...3 BD01A BN94-03564A ASSY PCB MISC-N240 DOCKING;UN46C9000ZFXZ 1 SA
....4 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 SNA
....4 BN97-04379A ASSY SMD;UN46C9000ZFXZA,BN94-03562A 1 SNA
.....5 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 SA
.....5 1105-002086 IC-DDR SDRAM;EM6A9320BIA,128MB,LFBGA,144 1 SA
.....5 IC012 1203-003544 IC-POSI.ADJUST REG.;RT9173BPS,SOP-8,8P,5 1 SA
.....5 1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. 2 SA
.....5 1203-006133 IC-POSI.ADJUST REG.;AP1117D-25-GZ-13-89, 1 SA
.....5 T0087 1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T 1 SA
.....5 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 1 SA
.....5 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 4 SA
.....5 KAR13 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 SNA
.....5 KAR21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
.....5 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 3 SNA
.....5 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 10 SNA
.....5 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 36 SNA
.....5 UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 53 SNA
.....5 R109 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 SNA
.....5 ZR45 2007-000329 R-CHIP;11Kohm,5%,1/10W,TP,1608 1 SA
.....5 2007-000633 R-CHIP;270Kohm,1%,1/10W,TP,1608 1 SA
.....5 RF03 2007-000828 R-CHIP;39Kohm,1%,1/10W,TP,1608 1 SA
.....5 2007-001096 R-CHIP;62Kohm,1%,1/10W,TP,1608 1 SNA
.....5 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 SNA
.....5 R133 2007-007004 R-CHIP;12Kohm,1%,1/10W,TP,1608 1 SA
.....5 PR8 2007-007015 R-CHIP;13Kohm,5%,1/16W,TP,1005 1 SA
.....5 R365 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 2 SNA
.....5 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 1 SNA
.....5 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 2 SNA
.....5 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 14 SNA
.....5 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 4 SNA
.....5 2007-007352 R-CHIP;130Kohm,1%,1/10W,TP,1608 1 SA
.....5 2007-007698 R-CHIP;5.1Kohm,1%,1/16W,TP,1005 1 SA
.....5 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 4 SA
.....5 AC139 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 SA
.....5 AD480 2203-000995 C-CER,CHIP;.047nF,5%,50V,C0G,TP,1005 2 SA
.....5 C101 2203-001124 C-CER,CHIP;0.68NF,10%,50V,X7R,TP,1005 1 SA
.....5 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 6 SNA
.....5 AD480 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,2012 1 SNA
.....5 C711 2203-002982 C-CER,CHIP;6.8nF,10%,50V,X7R,1005 1 SA
.....5 DC108 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 7 SC
.....5 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 8 SNA
.....5 VC37 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 76 SA
.....5 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 7 SNA
.....5 C802 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608 1 SA
.....5 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 12 SC
.....5 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 16 SA
.....5 AD480 2203-006842 C-CER,CHIP;0.47nF,5%,50V,C0G,1005 4 SNA
.....5 AD480 2203-007138 C-CER,CHIP;2200nF,10%,50V,X7R,TP,3216 1 SA
.....5 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608 11 SNA
.....5 T0052 2703-003559 INDUCTOR-SMD;4.7uH,20%,8080 1 SNA
.....5 T0052 2703-003713 INDUCTOR-SMD;1.5uH,20%,7366 1 SA
5-10
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
.....5 L2011 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 SNA
.....5 T0568 3301-001236 BEAD-SMD;60ohm,1608 4 SNA
.....5 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 6 SA
.....5 AC510 3708-002777 CONNECTOR-FPC/FFC/PIC;82P,0.5mm/0.75mm,S 1 SA
.....5 HB01A 3711-005471 HEADER-BOARD TO CABLE;BOX,12P,1R,1.25mm, 1 SA
.....5 HB01A 3711-005472 HEADER-BOARD TO CABLE;BOX,20P,1R,1.25mm, 2 SA
.....5 IC125 BN13-00031A IC ASIC;LUNA,SDP95,400,3.6,-40to+125C,CA 1 SA
.....5 BN41-01427A PCB MAIN;UC9000,FR-4,4,1.2,242*139.5,N99 1 SNA
.....5 3711-007441 CONNECTOR-HEADER;144P,2R,0.5mm,STRAIGHT, 1 SA
.....5 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A 4.805 SNA
...3 BN73-00282A SILICON/RUBBER-GAPPAD;UC9Z,SILICON+POLYM 4 SNA
...3 CCMM1 BN73-00218A SILICON/RUBBER;UE32B6000VWXXC,SILICON+PO 4 SNA
...3 BN74-00099A TAPE-CELL;UC9000 46",W11, L1040,BLACK & 1 SNA
...3 6001-002623 SCREW-MACHINE;FH,+,M1.6,L5,Cr+3 PLT,SWCH 36 SNA
...3 BN74-00055A TAPE-WIRE;DW-0.1T,30*12*0.05T 12 SNA
...3 6001-002624 SCREW-MACHINE;FH,+,M3,L4,BLK,SWRCH18A 4 SNA
...3 W392 6003-000282 SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW 4 SA
...3 EC13 BN39-01371A LEAD CONNECTOR;46" C9000, wire-harness,F 2 SA
0.1 BN92-06086A ASSY BOX;UC9000 46,UO 1 SNA
..2 BH68-00664A LABEL BOX-00;ALL MODEL,A/P 90G,220,90,WH 1 SNA
..2 BN69-04949A BOX-SET,IN;46UC9000,CB,C-01,DW1, YEL,W16 1 SNA
..2 BN69-04950B BOX-01,SET OUT;46UC9000,CB,C-03,DW3, YEL 1 SNA
0.1 BN92-06088A ASSY P/MATERIAL;UC9000 46 1 SNA
..2 T0214 0203-001269 TAPE-OPP MASKING;#301,T0.06,W75,L50000,N 1.16 SNA
..2 T0214 0203-001595 TAPE-OPP MASKING;OPP-2,0.075,75,800M,CLR 1.38 SNA
..2 T0524 6902-000959 BAG PE;NITRON,T0.015/T0.5,W1400,L900,TRP 1 SNA
..2 T0214 AA61-20285C HOLDER-BOX;CORAL,PP,BLACK,HB,17.5g 4 SA
..2 BN69-04836A CUSHION-01,SET;UC9000 46",EPS,HQ & EXPOR 1 SNA
..2 BN69-04951A PAD-01,TYPE;46UC9000,CB,DW-3,YEL,W2948,D 1 SNA
..2 6902-001241 BAG SHEET;HDPE/NITRON,T0.015/T1.0,W700,L 1 SNA
0.1 BN92-06175A ASSY LABEL;UN46C9000ZFXZA 1 SNA
..2 BN68-02974A LABEL RATING;WW,PET,T0.05,15,340,LED TV 1 SNA
..2 T0527 AA68-03752B LABEL-STICKER;WW,ALL,Art Paper(90g),25,3 1 SNA
0.1 ACCE1 BN92-05752D ASSY ACCESSORY;UN46C9000ZFXZA 1 SNA
..2 BN96-13453A ASSY ACCESSORY-MANUAL;UN46C9000ZFXZA 1 SNA
...3 AA68-03242L MANUAL FLYER-07,SAFETY GUIDE;comm,Samsun 1 SNA
...3 AK96-01194A ASSY USB P-WIRELESS LAN DONGLE;WIS09ABGN 1 SA
...3 M0114 BN39-01154C CBF SIGNAL;Chelsea Slim, STEREO Plug to 1 SA
...3 M0114 BN39-01154H CBF SIGNAL;UE40B7000WWXXC,RCA 3PIN,30AWG 1 SA
...3 BN39-01154R CBF SIGNAL-USB GENDER;UN46C90000ZFXZA,4P 1 SA
...3 BN39-01154T CBF SIGNAL-USB GENDER;UN55C90000ZFXZA,4P 1 SA
...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 SA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 BN68-02021A MANUAL FLYER-01,WARRANTY CARD;comm,Samsu 1 SNA
...3 BN68-02178D MANUAL FLYER-CARD;UC9000,SAMSUNG,eng/spa 1 SNA
...3 BN68-02186A MANUAL FLYER-TOC GUIDE;COMM,SAMSUNG,11 L 1 SNA
...3 BN68-02833A MANUAL USERS-01;U9000,SAMSUNG,Eng/ Spa/ 1 SNA
...3 BN68-02834A MANUAL FLYER-01,QSG;U9000,SAMSUNG,Eng,N. 1 SNA
...3 BN68-02834B MANUAL FLYER-01,QSG;U9000,SAMSUNG,Fra,N. 1 SNA
...3 BN68-02928A MANUAL FLYER-ECO SENSOR GUIDE;common,SAM 1 SNA
...3 BN69-05209A BOX-SET;9000_ACC_BOX-SET,CB,NON-STANDARD 1 SNA
5-11
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
...3 BN96-14632A ASSY HOLDER P-WIRE;UC9000,55 1 SNA
....4 BAG 6902-000031 BAG ZIPPER;LDPE,T0.05,W80,L160,TRP,0,0,4 1 SNA
....4 M0114 BN61-05373A HOLDER-WIRE;LB7000 46,NYRON 4 SNA
...3 BP68-00263E MANUAL FLYER-WARRANTY CARD;comm,Samsung, 1 SNA
...3 T0074 BN59-00802A REMOCON;TM94,5,KOREA,BLUE,43.7g 1 SA
...3 BN69-05208A PAD-01,TYPE;UC9000_ACC,CB,W492,L500,SW,E 1 SNA
...3 BN96-10788D ASSY ACCESSORY-PREVENT;LED UC9000,nylon6 1 SNA
..2 BN96-14741A ASSY ACCESSORY-WALL MOUNT;UC9000,Wall Mo 1 SA
..2 BN96-14634A ASSY MISC P-RMC30C1/ZA;UC9000,RMC30C1/ZA 1 SNA
...3 BN90-02801A ASSY COVER FRONT;UC9000,DUAL TV,UO 1 SNA
....4 BN59-01060A TOUCH SCREEN;TSP REV 0.2 1 SNA
....4 BN63-06546A COVER-FRONT BOTTOM;DUAL TV,acryl,1 1 SNA
....4 F001 BN63-06547A COVER-FRONT;DUAL TV,PC,PC TRIREX 3020FG 1 SNA
.....5 T0254 BN60-00113A FASTENER-PEM NUT;PAPYRUS,SUM24L,M1.4,10. 5 SNA
....4 FK08 BN64-01272A KNOB-POWER;Dual TV,PC,3.5 1 SNA
....4 BN64-01273A INLAY-SPEAKER;DUAL TV,PC,1,D0.3 , PC She 1 SNA
....4 SP01A BN96-12068C ASSY SPEAKER P;8ohm,2pin,0.7W,30mm,Unit 1 SA
....4 DM02A BN96-13699A ASSY MISC P-MOTOR;UN55C90002FX2A,VIBRATI 1 SA
....4 FB05A BN96-14064A ASSY BOARD P;UN55C90002FX2A,SJ10-01-002A 1 SA
....4 BN63-07088A SHEET-PANEL;DUAL TV,PORON TAPE,0.3mm 1 SNA
....4 BN74-00105A TAPE-CELLULOSE;DUAL TV,0.05t 1 SNA
....4 BN74-00106A TAPE-ETC;DUAL TV,17 X 3.5 X 0.4t 1 SNA
....4 FC01A BN96-14839A ASSY COVER P-KEY PAD;Dual TV,UO,PC, Rubb 1 SNA
.....5 BN64-01274A INLAY-COVER;DUAL TV,PC,1,PC Sheet 1 SNA
.....5 BN64-01296A KNOB-MASTER;DUAL TV,ABS,1.6T,D6.5,NATURE 1 SNA
.....5 FK02 BN64-01466A KNOB-CONTROL;DUAL TV,PC 1 SNA
.....5 BN73-00256A RUBBER-KEY PAD;dual tv,RUBBER 1 SNA
...3 BN90-02802A ASSY COVER FRONT-MIDDLE;UC9000,DUAL TV 1 SNA
....4 FC05 BN63-06548A COVER-JACK;DUAL TV,PC,1,PC+Rubber 1 SNA
....4 R002A BN63-06550A COVER-MIDDLE;DUAL TV,PC,1 1 SNA
....4 BN63-06665A SHIELD-MAIN;DUAL TV,ET-SPTE,0.15T,NATURE 1 SNA
....4 FW04 BN64-01275A WINDOW-RMC;dual tv,PC 1 SNA
....4 AW129 BN64-01276A WINDOW-REAR;dual tv,PC 1 SNA
...3 BN91-05551A ASSY SHIELD;RMC30C1/ZA 1 SNA
....4 0203-005485 TAPE-CONDUCTIVE;ID-C01,COPPER,T0.07,W51, 1 SNA
....4 6001-001645 SCREW-MACHINE;PH,+,M1.4,L5,ZPC(BLK),SWRC 5 SNA
....4 R001 BN63-06549A COVER-REAR;DUAL TV,PC,1 1 SA
....4 BN73-00277A SILICON/RUBBER;UN55C90002FX2A,HIGH ROAD 1 SNA
....4 BN73-00278A SILICON/RUBBER;UN55C90002FX2A,GAPPAD1500 1 SNA
....4 EU02A BN96-13488A ASSY USB P-WIRELESS;WLU6180-D99,4,USB 2. 1 SA
....4 BN63-07286A GASKET;RMC30C1,conductive fabric,2mm,7mm 1 SNA
....4 BN63-07287A GASKET;RMC30C1,conductive fabric,0.13mm, 1 SNA
....4 AT050 BN74-00104A TAPE GASK;RMC30C1,Absorber,70mm*40mm*0.2 1 SNA
...3 M0017 BN91-05552A ASSY CHASSIS;RMC30C1/ZA 1 SNA
....4 M0014 BN94-03671A ASSY PCB MISC-MAIN;RMC30C1/ZA 1 SA
.....5 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.5 SNA
.....5 LD1 0601-000519 LED-IR;ROUND,5mm,170mW,4V,950nm,TP 1 SNA
.....5 6902-000012 BAG AIR CAP;LDPE,T0.03,W130,L130,TRP,1.1 1 SNA
.....5 BN97-04332A ASSY SMD;RMC30C1/ZA,BN94-03516A 1 SNA
......6 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A 1.5 SNA
......6 D0254 0402-001207 DIODE-SCHOTTKY;UPS5819,40V,1000mA,DO-216 2 SA
5-12
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
......6 0403-001164 DIODE-ZENER;MMSZ5232B,5.32-5.88V,500MW,S 1 SA
......6 Q613 0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350mW,SOT-2 3 SA
......6 0501-000470 TR-SMALL SIGNAL;KST4403L,PNP,350MW,SOT-2 2 SA
......6 Q409 0505-002386 FET-SILICON;AO3415AL,P,-20V,-4A,0.045ohm 4 SA
......6 0505-002605 FET-SILICON;AO3420L,N,20V,6A,0.024ohm,1. 1 SA
......6 0903-001633 IC-MICROCONTROLLER;ATMXT224-CU,VFBGA,49P 1 SA
......6 0903-001663 IC-MICROCOMPUTER;CLM7600,BGA,400P,17x17m 1 SA
......6 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 SA
......6 1105-001859 IC-DDR2 SDRAM;K4T1G164QD-ZCE7,DDR2,1Gbit 1 SA
......6 1201-002400 IC-AUDIO AMP;WM8956GEFL/RV,QFN,32P,5x5mm 1 SA
......6 1203-003615 IC-DC/DC CONVERTER;MP1541DJ,TSOT-23,5P,2 1 SA
......6 T0086 1203-004131 IC-PWM CONTROLLER;MP2109DQ,QFN,10P,3x3mm 1 SA
......6 1203-005267 IC-VOL. DETECTOR;KIA7027,TSM,3P,PLASTIC, 1 SA
......6 1203-005342 IC-POSI.ADJUST REG.;MP8904DD,QFN,8P,2x3m 1 SA
......6 1203-005923 IC-DC/DC CONVERTER;TPS63031DSKR,QFN,10P, 2 SA
......6 1203-006245 IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9x1. 1 SA
......6 1203-006256 IC-MULTI REG.;MP20041,TQFN8,8P,2.0x2.0mm 1 SA
......6 1203-006257 IC-BACKLIGHT DRIVER;MP3304CDD-LF-Z,QFN,8 1 SA
......6 1205-003735 IC-SWITCH;AP2151WG-7,SOT25,5P,2.9x1.6mm, 1 SA
......6 IS01 1209-001961 IC-SENSOR;KXTE9-2058,LGA,10P,3x3x0.9 mm, 1 SA
......6 1405-001233 VARISTOR;30Vdc,5A,1.6x0.8x0.8mm,TP 10 SA
......6 2007-000039 R-CHIP;0ohm,1%,1/10W,TP,1608 3 SA
......6 PR4 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA
......6 R104 2007-000063 R-CHIP;150Kohm,1%,1/10W,TP,1608 2 SNA
......6 KAR21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
......6 AR150 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
......6 MROP1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
......6 ARR2 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 2 SA
......6 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 4 SA
......6 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 SNA
......6 R104 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 52 SA
......6 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 SNA
......6 DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 6 SNA
......6 MR16 2007-000168 R-CHIP;470Kohm,5%,1/16W,TP,1005 3 SNA
......6 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 5 SNA
......6 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 1 SNA
......6 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 97 SNA
......6 UR53 2007-000305 R-CHIP;10Mohm,5%,1/10W,TP,1608 1 SA
......6 R809 2007-000475 R-CHIP;1Mohm,1%,1/10W,TP,1608 2 SA
......6 2007-000816 R-CHIP;390Kohm,1%,1/10W,TP,1608 1 SA
......6 AR61 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 SNA
......6 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 6 SNA
......6 2007-007008 R-CHIP;300ohm,5%,1/16W,TP,1005 1 SNA
......6 R365 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 1 SNA
......6 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 1 SNA
......6 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005 4 SA
......6 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 2 SNA
......6 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 1 SNA
......6 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 1 SNA
......6 2007-007352 R-CHIP;130Kohm,1%,1/10W,TP,1608 1 SA
......6 WR23 2007-007525 R-CHIP;3.4Kohm,1%,1/10W,TP,1608 2 SNA
5-13
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
......6 2007-007720 R-CHIP;300Kohm,1%,1/10W,TP,1608 1 SA
......6 2007-008136 R-CHIP;36Kohm,1%,1/16W,TP,1005 1 SA
......6 2007-008294 R-CHIP;33ohm,1%,1/16W,TP,1005 3 SA
......6 2007-008332 R-CHIP;11.5Kohm,1%,1/16W,TP,1005 1 SA
......6 2007-009117 R-CHIP;49.9Kohm,1%,1/16W,TP,1005 1 SA
......6 ZRN10 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 2 SA
......6 DAR09 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 4 SA
......6 2011-001506 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
......6 2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, 4 SNA
......6 RC34 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,1608 1 SA
......6 DC1 2203-000386 C-CER,CHIP;.015nF,5%,50V,C0G,TP,1005 2 SA
......6 MC302 2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 2 SA
......6 C212 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608 2 SA
......6 AD480 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 2 SNA
......6 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 1 SNA
......6 DC108 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 7 SC
......6 VC37 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 2 SA
......6 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 4 SNA
......6 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 69 SNA
......6 C510 2203-006170 C-CER,CHIP;220nF,10%,16V,X7R,1608 1 SNA
......6 JC10 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,1608 2 SA
......6 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 2 SC
......6 AD480 2203-006377 C-CER,CHIP;4700NF,10%,25V,X5R,-,2012 2 SNA
......6 C234 2203-006378 C-CER,CHIP;4700nF,10%,6.3V,X5R,TP,1608 5 SNA
......6 AD480 2203-006427 C-CER,CHIP;4700nF,10%,16V,X5R,TP,2012 2 SA
......6 AD480 2203-006460 C-CER,CHIP;2200nF,10%,16V,X5R,1608 3 SA
......6 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 4 SA
......6 AD480 2203-006698 C-CER,CHIP;1000nF,10%,25V,X7R,1608 1 SA
......6 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,1608 6 SNA
......6 AD480 2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,1005 3 SNA
......6 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 SNA
......6 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608 28 SNA
......6 2409-001123 C-POLYMER ,LEAD;10uF,20%,6.3V,WT,TP,2012 1 SA
......6 T0052 2703-003297 INDUCTOR-SMD;4.7uH,20%,2520 1 SNA
......6 2703-003343 INDUCTOR-SMD;2.2uH,20%,2520 5 SNA
......6 X202 2801-004688 CRYSTAL-SMD;0.032768MHz,20ppm,1.9pF,6500 1 SNA
......6 X202 2801-004868 CRYSTAL-SMD;12MHz,50ppm,8pF,100ohm,TP 1 SA
......6 2801-004922 CRYSTAL-SMD;8MHz,30ppm,4P SMD,18pF,100oh 1 SA
......6 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 41 SA
......6 T0568 3301-001594 BEAD-SMD;90ohm,2.0*1.2*1.3mm,TP,-,- 1 SNA
......6 T0568 3301-002039 BEAD-SMD;26ohm,1608,TP 2 SA
......6 T0313 3404-001209 SWITCH-TACT;12VDC,50mA,250gf,4.5x4.5x1.5 1 SA
......6 CN1 3708-002193 CONNECTOR-FPC/FFC/PIC;50P,0.5mm,SMD-A,AU 1 SA
......6 3708-002821 CONNECTOR-FPC/FFC/PIC;41P,0.3mm,SMD-A,AU 1 SA
......6 3708-002830 CONNECTOR-FPC/FFC/PIC;5P,0.5mm,SMD-A,AU, 1 SA
......6 3708-002831 CONNECTOR-FPC/FFC/PIC;29P,0.3mm,SMD-A,AU 1 SA
......6 3710-002801 CONNECTOR-SOCKET;20P,1R,0.3mm,SMD-A,Au,B 1 SNA
......6 3710-003262 SOCKET-BOARD TO BOARD;30P,2R,0.5mm,SMD-S 1 SA
......6 3711-006710 HEADER-BATTERY;BOX,3P,3R,2.5mm,SMD-S,AU, 1 SNA
......6 BN13-00037A PLD;S3F80JB,44 1 SNA
......6 BN41-01442A PCB MAIN;UN55C90002FX2A,FR-4,6,52mm x 92 1 SNA
5-14
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
......6 BN97-04367A ASSY MICOM;T-TRMXBS-1003.1,2010.04.27 1 SNA
.......7 1107-001818 IC-NAND FLASH;KFG1G16U2C-DIB6,1024Mbit,6 1 SNA
......6 GK61-00018A BRACKET-FINGER;EXF-0023-07,AU, BeCu,0.1m 1 SNA
......6 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 1 SNA
......6 2011-001586 R-NETWORK;1Kohm,5%,1/16W,L,CHIP-V,4P,TP, 1 SNA
......6 ER19 2007-002899 R-CHIP;10ohm,1%,1/10W,TP,1608 2 SA
......6 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 1 SA
.....5 BN97-04364A ASSY MICOM;KFG1G16U2C-DIB6,N99A,2010.1.2 1 SNA
......6 BN46-00024A KEY CODE;UN55B9000XF,DCP,LICENSE HDCP 2. 1 SNA
...3 BN91-05592A ASSY LCD;BN07-00879A 1 SNA
....4 PANEL BN07-00879A LCD-PANEL;A030DN01,6bit,2.95,262K,4:1,62 1 SNA
..◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
