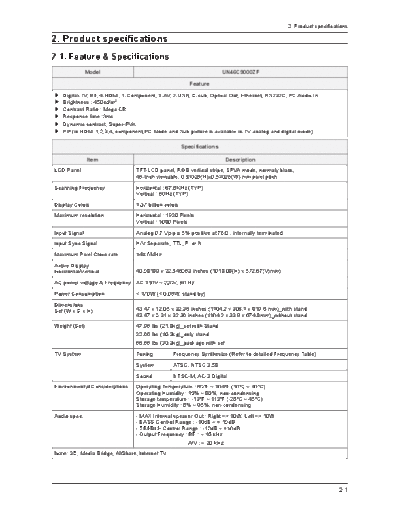

Image preview - the first page of the document
Product Specification


>> Download Product Specification documenatation <<

Text preview - extract from the document
                                                                                              2. Product specifications

2. Product specifications
2-1. Feature & Specifications
               Model                                                   UN46C9000ZF

                                                         Feature

   Digital-TV, RF, 4-HDMI, 1-Component, 1-AV, 2-USB, D-sub, Optical Out, Ethernet, RS232C, PC Audio In
   Brightness : 450cd/m2
   Contrast Ratio : Mega CR
   Response time :3ms
   Dynamic contrast, Super-PVA
   PIP(in HDMI 1,2,3,4, component,PC Mode and Sub picture is available in TV analog and digital mode)

                                                      Specifications

               Item                                                      Description
LCD Panel                       TFT-LCD panel, RGB vertical stripe, SPVA mode, normaly black,
                                46-Inch viewable, 0.53025(H)x0.53025(W) mm pixel pitch
Scanning Frequency              Horizontal : 67.5KHz (TYP)
                                Vertical : 60Hz (TYP)
Display Colors                  1.07 billion colors
Maximum resolution              Horizontal : 1920 Pixels
                                Vertical : 1080 Pixels
Input Signal                    Analog 0.7 Vp-p
