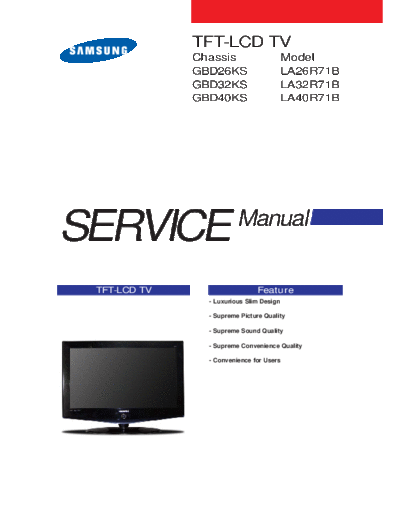

Image preview - the first page of the document

>> Download samsung_gbd26ks_chassis_la26r71b_lcd_tv_sm_149 documenatation <<

Text preview - extract from the document

TFT-LCD TV
Chassis Model
GBD26KS LA26R71B
GBD32KS LA32R71B
GBD40KS LA40R71B

SERVICE Manual

TFT-LCD TV Feature
- Luxurious Slim Design

- Supreme Picture Quality

- Supreme Sound Quality

- Supreme Convenience Quality

- Convenience for Users
Samsung Electronics Co.,Ltd.
- This Service Manual is a property of 416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Samsung Electronics Co., Ltd. Gyeonggi-Do, Korea, 443-742
Any unauthorized use of Manual can be Printed in Korea
punished under applicable International P/N : BN82-00139H-00
and/or domestic law. URL : http://itself.sec.samsung.co.kr/
1 Precautions

1 Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1 Safety Precautions

1-1-1 Warnings
1. For continued safety, do not attempt to modify the
circuit board.
2. Disconnect the AC power and DC Power Jack before
servicing.
1-1-2 Servicing the LCD Monitor
1. When servicing the LCD Monitor Disconnect the AC
line cord from the AC outlet.
2. It is essential that service technicians have an accurate
voltage meter available at all times. Check the
calibration of this meter periodically.

1-1-3 Fire and Shock Hazard
Before returning the monitor to the user, perform the Figure 1-1. Leakage Current Test Circuit
following safety checks:
1. Inspect each lead dress to make certain that the leads
are not pinched or that hardware is not lodged between
1-1-4 Product Safety Notices
the chassis and other metal parts in the monitor. Some electrical and mechanical parts have special
2. Inspect all protective devices such as nonmetallic safety-related characteristics which are often not evident
control knobs, insulating materials, cabinet backs, from visual inspection. The protection they give may not
adjustment and compartment covers or shields, be obtained by replacing them with components rated for
isolation resistor-capacitor networks, mechanical higher voltage, wattage, etc. Parts that have special safety
insulators, etc. characteristics are identified by on schematics and parts
lists. A substitute replacement that does not have the same
3. Leakage Current Hot Check (Figure 1-1): safety characteristics as the recommended replacement part
WARNING: Do not use an isolation might create shock, fire and/or other hazards. Product
transformer during safety is under review continuously and new instructions
this test. are issued whenever appropriate.
Use a leakage current tester or a metering system that
complies with American National Standards Institute
(ANSI C101.1, Leakage Current for Appliances), and
Underwriters Laboratories (UL Publication UL1410,
59.7).

1-1
1 Precautions

1-2 Servicing Precautions
WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
Caution: Before servicing units covered by this service manual, read and follow the Safety
Precautions section of this manual.
Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety
precautions, always follow the safety precautions.

1-2-1 General Servicing 4. Check the insulation between the blades of the AC
plug and accessible conductive parts (examples: metal
panels, input terminals and earphone jacks).
Precautions 5. Insulation Checking Procedure: Disconnect the power
1. Always unplug the unit s AC power cord from the AC cord from the AC source and turn the power switch
power source and disconnect the DC Power Jack ON. Connect an insulation resistance meter (500 V) to
before attempting to: the blades of the AC plug.
(a) remove or reinstall any component or assembly, (b) The insulation resistance between each blade of the
disconnect PCB plugs or connectors, (c) connect a test AC plug and accessible conductive parts (see above)
component in parallel with an electrolytic capacitor. should be greater than 1 megohm.
2. Some components are raised above the printed circuit 6. Always connect a test instrument s ground lead to the
board for safety. An insulation tube or tape is instrument chassis ground before connecting the
sometimes used. The internal wiring is sometimes positive lead; always remove the instrument s ground
clamped to prevent contact with thermally hot lead last.
components. Reinstall all such elements to their
original position.
3. After servicing, always check that the screws,
components and wiring have been correctly
reinstalled. Make sure that the area around the
serviced part has not been damaged.

1-3 Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called
Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors.
The following techniques will reduce the incidence of component damage caused by static electricity.

6. Do not remove a replacement ESD from its protective
1. Immediately before handling any semiconductor package until you are ready to install it. Most
components or assemblies, drain the electrostatic replacement ESDs are packaged with leads that are
charge from your body by touching a known earth electrically shorted together by conductive foam,
ground. Alternatively, wear a discharging wrist-strap aluminum foil or other conductive materials.
device. To avoid a shock hazard, be sure to remove the 7. Immediately before removing the protective material
wrist strap before applying power to the monitor. from the leads of a replacement ESD, touch the
2. After removing an ESD-equipped assembly, place it protective material to the chassis or circuit assembly
on a conductive surface such as aluminum foil to into which the device will be installed.
prevent accumulation of an electrostatic charge. Caution: Be sure no power is applied to
3. Do not use freon-propelled chemicals. These can the chassis or circuit and
generate electrical charges sufficient to damage ESDs. observe all other safety
4. Use only a grounded-tip soldering iron to solder or precautions.
desolder ESDs.
8. Minimize body motions when handling unpackaged
5. Use only an anti-static solder removal device. Some
replacement ESDs. Motions such as brushing clothes
solder removal devices not classified as anti-static
together, or lifting your foot from a carpeted floor can
can generate electrical charges sufficient to damage
generate enough static electricity to damage an ESD.
ESDs.

1-2
1 Precautions

1-4 Installation Precautions
1. For safety reasons, more than two people are 6. Keep the antenna far away from any high-voltage
required for carrying the product. cables and install it firmly. Contact with the high-
voltage cable or the antenna falling over may
2. Keep the power cord away from any heat emitting cause fire or electric shock.
devices, as a melted covering may cause fire or
electric shock. 7. When installing the product, leave enough space
(10cm) between the product and the wall for
3. Do not place the product in areas with poor ventilation purposes.
ventilation such as a bookshelf or closet. The A rise in temperature within the product may
increased internal temperature may cause fire. cause fire.

4. Bend the external antenna cable when connecting
it to the product. This is a measure to protect it
from being exposed to moisture. Otherwise, it
may cause a fire or electric shock.

5. Make sure to turn the power off and unplug the
power cord from the outlet before repositioning
the product. Also check the antenna cable or the
external connectors if they are fully unplugged.
Damage to the cord may cause fire or electric
shock.

1-3
1 Precautions

Memo

1-4
3 Alignments and Adjustments

3 Alignments and Adjustments

3-1 Service Instruction
1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation.
Check the basic characteristics such as height, horizontal and vertical sync.
2. Use the specified test equipment or its equivalent.
3. Correct impedance matching is essential.
4. Avoid overload. Excessive signal from a sweep generator might overload the front-end
of the TV. When inserting signal markers, do not allow the marker generator to distort
test result.
5. Connect the TV only to an AC power source with voltage and frequency as specified on
the backcover nameplate.
6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure
that the power cord is disconnected before replacing any parts.
7. To protect aganist shock hazard, use an isolation transform.

3-1
3 Alignments and Adjustments

3-2 How to Access Service Mode
3-2-1 Entering Factory Mode
1. To enter "Service Mode" Press the remote -control keys in this sequence :
- If you do not have Factory remote - control

- If you have Factory remote - control

- The buttons are active in the service mode.
1. Remote - Control Key : Power, Arrow Up, Arrow Down, Arrow Left
Arrow Right, Menu, Enter, Number Key(0~9)
2. Function - Control Key : Power, CH +, CH -, VOL +, VOL -,
Menu, TV/VIDEO(Enter)

3-2-2 Panel Check

Specially for LA26,32R7**, You have to check Panel Maker Because of different adjustments as follows.
First of all, Check the label rating!

1) Label Rating File

Panel check

If Panel Mark is "A", Set the factory mode Panel BOM(Bill of material) : BN07-00247A
indicating as follows. Connector between Panel and Power Unit
: BN39-00603M (300mm)
Panel BOM(Bill of material) : BN07-00289A
Connector between Panel and Power Unit * Option Byte
: BN39-00603A (250mm) 1. Gamma "OFF"
2. Panel Option "AMLCD_INT"
* Option Byte
1. Gamma "AUO"
2. Panel Option "AUO_AMVA" Others are same shown below.

If Panel Mark is "S" or not printed.
Set the factory mode indicating as follows.

3-2
3 Alignments and Adjustments

3-3 Factory Data
1. Calibration
2. Option Table XXXX XXXX
3. White Balance
4. SVP-PX
5. Option Block
6. STV8257/STA323W
7. YC Delay
8. Adjust
9. I2C Check
10. W/B MOVIE
11. Checksum
12. Reset
13. Spread Spectrum
T-BRDMPEA-0161 (Main Micom Ver)
T-BRDMPEUS-1000 (Sub Micom Ver)
Month / Day / Year / Hour / Min. / Sec.

1. Calibration
1) AV Calibration
2) COMP Calibration
3) PC Calibration
4) HDMI Calibration
2. Option Table XXXX XXXX

Inch Option 32" Carrier Mute ON TTX Group Auto
Gamma OFF Language English Auto Power ON
Panel Option AMLCD_INT Auto FM ON Magazine LNA OFF
2HDMI OFF High Deviation OFF ---- G
Brt.Sensor OFF TTX ON ---- OFF
EnergySave ON TTX List Flof Debug OFF
LBE/FBE OFF ACR OFF Ch.Table SUWON
FRC(Micronas) OFF Dynamic CE ON iDTV_Cntry UK
FRC(Samsung) OFF Dynamic Dimming ON Dynamic Contrast OFF
LNA OFF Tuner TOP 8

3-3
3 Alignments and Adjustments

1. Calibration AV Calibration EXE
COMP Calibration EXE
PC Calibration EXE
HDMI Calibration EXE

2. Option Table
Inch Option 23"/32"/37"/40"/46"/57"
Gamma OFF/AUO/CMO/AMLCD
Panel Option AUO / CMO/AMLCD_INT/Panel3 / Panel4 / Panel5 / Panel6
2Hdmi OFF
Brt. Sensor FF
EnergySave ON
LBE/FBE OFF
FRC(Micronas) OFF
FRC2X OFF
LNA OFF
Carrier Mute ON
Language English
Auto FM ON
High Deviation OFF
TTX ON
TTX List Flof
ACR OFF
Dynamic CE ON
Dynamic Dimming ON
Tuner TOP 8
TTX Group Auto
Auto Power ON
Magazine LNA OFF
Debug OFF
Ch. Table SUWON
iDTV_Cntry UK
Dynamic Contrast OFF

BORDEAUX INCH OPTION
Panel Maker Gamma Panel Option
26 AUO AUO AUO
32 AUO AUO AUO
32 AMLCD OFF AMLCD_INT
37 AUO AUO AUO
40 AMLCD AMLCD AMLCD_INT

3-4
3 Alignments and Adjustments

3. White Balance Sub Brightness ADJ
R-Offset ADJ
G-Offset 128
B-Offset ADJ
Sub Contrast 100
R-Gain ADJ
G-Gain 128
B-Gain ADJ

4. SVP-PX ComB Filter Y-Filter 80H
Sharpness H2Gain 05H
H4Gain 02H
V2Gain 0CH
V4Gain 04H
Sr2Gain 02H
Sr4Gain 00H
Sl2Gain 02H
Sl4Gain 08H
Peakth1 04H
Peakth2 2F H
Peakth3 3F H
NR Y_NR_OFF 80H
C_NR_OFF 80H
Y_NR_ON 80H
C_NR_ON 80H

RGB Calibration R-Offset 48H
G-Offset 48H
B-Offset 48H

R-Gain 55H
G-Gain 55H
B-Gain 55H

ADC Calibration TCD3 Contrast 78H
TCD3 Brightness 20H
TCD3 CR 80H
TCD3 CB 80H
TCD3 Delay 00H
Analog Y Offset 41H
Analog PB Offset 80H
Analog PR Offset 80H
Analog Y Gain CBH
Analog PB Gain 9AH
Analog PR Gain 9AH
Black Level 00H
Svp Brightness 00H

3-5
3 Alignments and Adjustments

low high delta
Calibration Target AV ADC 17H D5H 02H
COMP ADC 0F H EBH 02H
PC ADC 17H D5H 04H
ALL RGB 00H DDH 08H

Color Management Skin Direction Reddish
Skin Enhane 40H
Green Stretch 00H
Blue Stretch 00H

5. Option block FRC(Micronas)
FRC2X
LBE/FBE Test Pattern 00H
BLACK_TILT 000
BlackGain_MAX 000
LOWER_FUNC 000
UPPER_FUNC 000
SKIN_EN 000
SKIN_T_X 000
SKIN_T_Y 000
ColorGain 000

6. STV8257/STA323W Ch1 Volume 40H
Ch2 Volume 40H
AGC Gain 06H
AV-Prescale 00H
AV Delay 41H
Comb Delay 41H
HDMI Delay 41H
PC Delay 41H
L1 Att/Rel Thres 7FH

3-6
3 Alignments and Adjustments

7. YC Delay RF PAL-B/G AAH
RF PAL-D/K 99H
RF PAL- I 99H
RF SECAM-B/G 88H
RF SECAM-D/K 44H
RF SECAM-L/L' 88H
RF NTSC3.58 66H
RF NTSC4.43 CCH
AV PAL AAH
AV SECAM 88H
AV NTSC 3.58 BBH
AV NTSC4.43 AAH
AV PAL60 77H

8. Adjust Video Mute Time 10
Melody Volume 9
Ana_Dimm_Max FEH

LNA PLUS RFDB-1 Level 2
RFDB-2 Level 5
RFDB-3 Level 9
RFDB-4 Level 24
Hotel Option Hotel Mode OFF
Power On Channel 1
Power On Volume 10
Max Volume 100
Local Key Lock OFF
Power On Source RF

3-7
3 Alignments and Adjustments

9. I2C Check EXE

10. W/B MOVIE WB Movie OFF
Color Mode Movie

W1 R Gain 161
W1 B Gain 74
W1 R Offset 119
W1 B Offset 140
W2 R Gain 162
W2 B Gain 47
W2 R Offset 113
W2 B Offset 146
Movie Contrast 70
Movie Brightness 50
Movie Color 45
Movie Sharpness 25
Movie Color Tone Warm2

11. Checksum EXE

12. Reset EXE

13. Spread Spectrum Spectrum ON
Delta 3
Positive 8
Negative 2

3-8
3 Alignments and Adjustments

3-4 Service Adjustment
3-4-1 White Balance - Calibration

If picture color is wrong, do calibration first.

Equipment : CA210, Patten : chess pattern
Execute calibration in Factory Mode
Source AV : PAL composite, Component : 1280*720/60Hz
PC : 1024*768/60Hz

( chess patten )

3-4-2 White Balance - Adjustment

If picture color is wrong, check White Balance condition.

Equipment : CA210, Patten : Toshiba
Adjust W/B in Factory Mode

Sub brightness and R/G/B Offset controls low light region
Sub contrast and R/G/B Gain controls high light region
Source AV : PAL composite, Component : 1280*720/60Hz
HDMI[DVI] : 1280*720/60Hz

[ Test Pattern : MSPG-945 Series Pattern #16 ]

*Color temperature
1500K +/-500, -6 ~-20 MPCD

*Color coordinate
H/L : 267/263 +/- 2 35.0 Ft +/- 2.0Ft
L/L : 270/260 +/- 3 1.5 Ft +/- 0.2Ft

Toshiba Patten

3-9
3 Alignments and Adjustments

3-4-3 Conditions for Measurement
1. On the basis of toshiba ABL pattern : High Light level (57 IRE)
- INPUT SIGNAL GENERATOR : MSPG-925LTH
* Mode NO 2 : 744X484@60 Hz
NO 6 : 1280X720@60 Hz
NO 21 : 1024X768@60 Hz
* Pattern NO 36 : 16 Color Pattern
NO 16 : Toshiba ABL Pattern
2. Optical measuring device : CA210 (FL)
Please use the MSPG-925 LTH generator for model LE26M51B/LE32M51B/LE40M51B/LE46M51B.

3-4-4 Method of Adjustment
1. Adjust the white balance of AV, Component and DVI Modes.
(AV Component)
a) Set the input to the mode in which the adjustment will be made
(RF DTV PC DVI).
* Input signal - VIDEO Mode : Model #2 (744*484 Mode), Pattern #16
- DTV,DVI Mode : Model #6 (1280*720 Mode), Pattern #16
- HDMI Mode: Model #6(1280*720 Mode), Pattern #16

b) Enter factory color control, confirm the data.

c) Adjust the low light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust sub - Brightness to set the 'Y' value.
- Adjust red offset ('x') and blue offset ('y') to the color coordinates.
Picture 4-2 Toshiba ABL Pattern

Low light
Measurement point

* Do not adjust green offset data.

d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust red gain ('x') and blue gain ('y') to the color coordinates.
* Do not adjust the green gain and sub-contrast (Y) data.

3-10
3 Alignments and Adjustments

Picture 4-3 Toshiba ABL Pattern

High light
Measurement point

3-11
3 Alignments and Adjustments

3-5 Software Upgrade
3-5-1 How to Update Flash ROM
1. Installthe Flash Downloader
ConnectSet(Service Jack)and Jig Cable to execute Program Update.

2. Flash Downloader program update
-Before Turning on the set,Click "connect"which is under of OSD Screen!
-Turn on the Set.

3-12
4 Troubleshooting

4 Troubleshooting
4-1 First Checklist for Troubleshooting

1. Check the various cable connections first.
- Check to see if there is a burnt or damaged cable.
- Check to see if there is a disconnected cable connection or a connection is too loose.
- Check to see if the cables are connected according to the connection diagram.

2. Check the power input to the Main Board.

3. Check the voltage in and out between the SMPS Main Board, between the SMPS
INVERTER Board, and between the Main LVDS Boards.

4-1
4 Troubleshooting

4-2 Checkpoints by Error Mode

4-2-1 No Power

LAMP off, power indicator No
Check a connection a power cable.
LED red color?

Yes

Does proper DC 12V No
Change a Assy PCB Power.
appear at CN800?

Yes

Does proper DC A3.3V, No Check a IC809, IC802.
A5V appear at
Change a main PCB ass'y.
C854, C866?

Yes

Does proper DC 5V, 3.3V, No
1.8V appear at C811, C853, Check a IC803, IC805, IC813, IC307.
C833? Change a main PCB ass'y

Yes

No Check a other function.
A power is supplied to set? (No picture part)
Replace a lcd panel.

4-2
4 Troubleshooting

4-2-2 No Video (Analog PC)

Power Indicator is off.
Lamp on, no video.

Yes

Check a PC source and check No Input a analog PC signal and
the connection of DSUB cable? connected cable(DPMS).

Yes

Does the signal appear at No PC cable. Change a PC
1
#30, 22, 38(R, G, B) of IC500? cable. Change a main PCB ass'y.

Yes

Does the digital data appear No Check a IC500
at the output of
Change a main PCB ass'y.
LVDS (R563_OP~R572_OP)?

Yes

Check a LVDS cable? No
Replace a lcd panel? Please, Call to Samsung Co. LTD.

4-3
4 Troubleshooting

WAVEFORMS

1 R,G,B Output Signal of IC500

4-4
4 Troubleshooting

4-2-3 No Video (Digital-HDMI)

Power Indicator is off.
Lamp on, no video.

Yes

Check the connection No
Input a HDMI cable.
of HDMI cable?

Yes

Does the digital data appear at No Check a a IC 500
3 R503~R510? Change a main PCB ass'y.

Yes

2 Does the digital data No
appear at output of IC500 Check a IC500
LVDS(R563_OP~R572_OP)? Change a main PCB ass'y.

Yes

Check a LVDS cable? No
Replace lcd panel? Please, Call to Samsung Co. LTD.

4-5
4 Troubleshooting

2 Digital Output Data of IC500 3 Signal of HDMI(Data)

4-6
4 Troubleshooting

4-2-4 No Picture (Tuner_CVBS)

Power Indicator is off. No Connect the RF cable and
Lamp on, no picure. check RF signal.

Yes

Dose the signal appear No Check a B+ voltage (#6 of Tuner) 5V,
4
at R110? change a main PCB ass'y

Yes

Does the signal appear at No
4 Change a main PCB ass'y.
#8 of IC500?

Yes

Does the digital data appear No
3 at output of Check a IC500.
R563_OP~R572_OP? Change a main PCB ass'y.

Yes

Check a LVDS cable? No
Replacea lcd panel? Please, Call to Samsung Co. LTD.

4-7
4 Troubleshooting

WAVEFORMS

3 CVBS Output Signal 4 Tuner_CVBS Output Signal

4-8
4 Troubleshooting

4-2-5 No Picture (Video_CVBS)

Power Indicator is off. No
Check a A/V cable and video signal.
Lamp on, no picture.

Yes

Dose the signal appear at No
4 Check a connection harness.
#10 of IC500?

Yes

Does the signal appear at No
Out of IC500 Check a IC515.
R563_OP~R572_OP? Change a main PCB ass'y

Yes

Check a LVDS cable? No
Replace lcd panel? Please, Call to Samsung Co. LTD.

4-9
4 Troubleshooting

WAVEFORMS

4 CVBS Output Signal

4-10
4 Troubleshooting

4-2-6 No Picture (S-VIDEO_Y,C)

Power Indicator is off. No Connect the s-video cable.
Lamp on, no picure. Operating a video player.
Yes

5 Dose the Y/C signal appear at No
#21, #31 of IC500? Check a connection harness.

Yes

Does the digital data appear
2 No Check a IC500.
at Output of IC500,
R563_OP~R572_OP? Change a main PCB ass'y.

Yes

Check a LVDS cable? No
Replacea lcd panel? Please, Call to Samsung Co. LTD.

4-11
4 Troubleshooting

WAVEFORMS
2 Digital Output Data of IC500 5 Analog Signal(Y,C) to IC500

4-12
4 Troubleshooting

4-2-7 No Sound

No
Picture is display, no sound. Connect a sound cable.
control a volume.

Yes

Does the signal appear at
Pin #10, #16(CH1_L, R Sound)
No
6 and Pin #3, #9 Check a connection harness and
(CH2_L, R Sound) headphone jack / Side AV.
of IC603?

Yes

Check the DC 12V No Check a IC603.
of IC603? Change a main PCB ass'y.

Yes

Does the signal appear at
7 No
L609_OP, L611_OP, Change a main PCB ass'y.
L612_OP, L614_OP?

Yes

Replace the speaker ass'y?

4-13
4 Troubleshooting

WAVEFORMS

6 The Signal are Inputed to IC603 7 DC +12V

4-14
6 Electrical Parts List

6 Electrical Parts List
-You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
6-1 LA32R71BX/SHI Parts List

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

0 LA32R71BX/SHI LA32R71B,Q62E/32R70-GBD,32,LCD-TV,TANZAN 0

1 M0001 BN90-00840E ASSY COVER FRONT;32R71,SO,BORDEAUX 1 SNA
..2 T0003 BN96-02996D ASSY COVER P-FRONT;32R71,SO,ABS+PMMA,HB, 1 SA
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 SNA
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 SNA
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 SA
...3 C/F BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 1.48 SNA
...3 M0112 BN63-02318D COVER-FRONT;32R71,SO,ABS+PMMA,HB,BK23,S/ 1 SNA
...3 T0056 BN63-02320A COVER-DECORATION;32R71,HIPS,HB,GR503,BLM 1 SA
...3 T0023 BN64-00342A KNOB POWER;ROME,40,PC,VIOLET 1 SNA
...3 T0059 BN64-00366A INDICATOR LED;ROME-I,PC,CLEAR,ALL MODEL 1 SNA
...3 T0054 BN64-00443A KNOB-DECORATION;32R71,ABS,HB,GR503,VACUU 1 SNA
...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 SNA
...3 CIS BN63-01151A FELT-NON WOVEN;MM17NS,T0.5,393,10,BLACK 2 SNA
...3 T0069 BP60-00015D SPACER-FELT;617W,FELT,L760,T0.5,W10 2 SNA
...3 BN96-03404A ASSY BOARD P-FUNCTION&KNOB;Bordeaux,CT50 1 SNA
....4 T0022 BN64-00442A KNOB CONTROL;26,32,40R71,PC,BLK,ACRYL CL 1 SNA
....4 M0145 BN96-03045A ASSY BOARD P-FUNCTION;BORDEAUX,FUNCTION 1 SA
...3 M0146 BN96-03405A ASSY BOARD P-POWER;BORDEAUX1,CT5000-4140 1 SA
..2 T0175 BN96-03002A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
..2 T0175 BN96-03003A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA

1 M0002 BN90-00841D ASSY COVER REAR;32R71,SO,BORDEAUX 1 SNA
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 SA
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 13 SA
..2 M0013 BN96-02997D ASSY COVER P-REAR;32R71,SO,ABS+PMMA,HB,B 1 SA
...3 T0101 BN61-02032A BRACKET-WALL;32,MGM,SECC,T1.6 2 SNA
...3 M0006 BN63-02319A COVER-REAR;32R71,EO,SO,CO,ABS+PMMA,HB,BK 1 SNA
...3 T0071 BN64-00445B INLAY-TERMINAL;32,37,40R71,(BLK),PS SHEE 1 SNA
...3 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 0.7 SNA
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 SNA
...3 T0069 AA63-60131N SPACER-FELT;L2,FELT,280*10,BLK,T0.5 2 SNA

1 M0216 BN90-00842A ASSY STAND;32R71,BORDEAUX 1 SNA
..2 M0013 BN96-02998A ASSY STAND P-BASE;32R71,ABS+PMMA,HB,BK23 1 SA
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 SA
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,B,M4,L10,ZPC(YEL),SWR 4 SA
...3 BN61-02192A GUIDE-STAND;26,32R71,ABS,V0,BLK 1 SNA
...3 BN61-02204A HOLDER-SWIVEL RING;26,32R71,ACETAL,BLK 1 SNA
...3 BN61-02232A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,T 1 SNA
...3 BN61-02233A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,B 1 SNA
...3 BN61-02235A BRACKET-STAND BOTTOM;BORDEAUX 32,SECC,T2 1 SNA
...3 BN61-02236A BRACKET-HINGE SWIVEL;BORDEAUX 32,SECC,T1 1 SNA
...3 T0004 BN63-02321A COVER-STAND BASE;32R71,ABS+PMMA,HB,BK23, 1 SNA
...3 BN63-02322A COVER-STAND SUB;32R71,ABS+PMMA,HB,BK23,H 1 SA
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 8 SNA
...3 STAND BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.4 SNA
...3 T0514 BN61-02367A BRACKET-SUPPORT;BORDEAUX 32,SECC,T2.0 1 SNA
..2 T0524 6902-000241 BAG PE;NITRON/HDPE,T0.5/T0.012,W600,L600 1 SNA

1 M0017 BN91-01006L ASSY CHASSIS;LA32R71BX,ASIA 1 SNA
..2 M0014 BN94-00876A ASSY PCB MAIN;LA32R71B,BORDEAUX,ASIA 1 SA
...3 T0245 0202-001522 SOLDER-WIRE FLUX;LFA3-107,-,D1.2,96.5Sn/ 0.25 SNA
...3 JA709 3701-001294 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU 1 SA
...3 CN501 3711-004068 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,ANGL 1 SA
...3 CN500 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 SA

6-1
6 Electrical Parts List

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

...3 TEST901 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 SA
...3 CN700_OP 3711-004909 HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG 1 SA
...3 CN503 3711-005884 HEADER-BOARD TO BOARD;BOX,30P,2R,2mm,ANG 1 SA
...3 CN800 3711-005942 HEADER-BOARD TO CABLE;BOX,16P,1R,2mm,STR 1 SA
...3 JA708 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 SA
...3 JA716 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 SA
...3 JA707_NT 3722-002143 JACK-PIN;5P,NI,GRN/BLU/RED/WHT/RED,STRAI 1 SA
...3 JA715 3722-002360 JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT 1 SA
...3 JA704 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 SA
...3 JA711 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 SA
...3 JA713 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 SA
...3 JA714_OP 3722-002363 JACK-PIN;3P,Sn,YEL/WHT/RED,STRAIGHT 1 SA
...3 T0562 6046-001013 STAND OFF;M3,L5,Ni PLT,SUM24L,#4-40 2 SNA
...3 CIS3 BN40-00083A TUNER;TCPS3001PD32S(H),TCPS3001PD32S(H), 1 SA
...3 M0107 BN63-01847A SHIELD-COVER;ROME,SECC,T0.3,49.5,79.5,HE 1 SNA
...3 CIS8 BN73-00024C SILICON/RUBBER-BERGQUIST;VENUS 32,40",SI 1 SNA
...3 T0510 BN97-00845A ASSY SMD-MAIN;LA32R71B,BORDEAUX,ASIA 1 SNA
....4 CIS5 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45

◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
