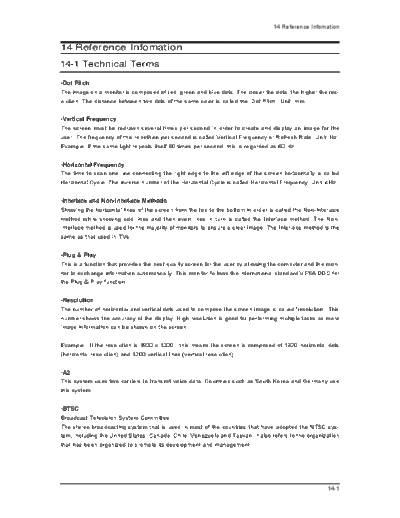

Image preview - the first page of the document
>> Download 03_Reference Information documenatation <<
Text preview - extract from the document
14 Reference Infomation
14 Reference Infomation
14-1 Technical Terms
-Dot Pitch
The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the res-
olution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm
-Vertical Frequency
The screen must be redrawn several times per second in order to create and display an image for the
user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate. Unit: Hz
Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.
-Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called
Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz
-Interlace and Non-Interlace Methods
Showing the horizontal lines of the screen from the top to the bottom in order is called the Non-Interlace
method while showing odd lines and then even lines in turn is called the Interlace method. The Non-
Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is the
same as that used in TVs.
-Plug & Play
This is a function that provides the best quality screen for the user by allowing the computer and the mon-
itor to exchange information automatically. This monitor follows the international standard VESA DDC for
the Plug & Play function.
-Resolution
The number of horizontal and vertical dots used to compose the screen image is called 'resolution'. This
number shows the accuracy of the display. High resolution is good for performing multiple tasks as more
image information can be shown on the screen.
Example: If the resolution is 1920 x 1200 , this means the screen is composed of 1920 horizontal dots
(horizontal resolution) and 1200 vertical lines (vertical resolution).
-A2
This system uses two carriers to transmit voice data. Countries such as South Korea and Germany use
this system.
-BTSC
Broadcast Television System Committee
The stereo broadcasting system that is used in most of the countries that have adopted the NTSC sys-
tem, including the United States, Canada, Chile, Venezuela and Taiwan. It also refers to the organization
that has been organized to promote its development and management.
14-1
14 Reference Infomation
-EIAJ
Electronic Industries Association of Japan.
-RF Cable
A round signal cable generally used for TV antennas.
-Satellite Broadcasting
Broadcasting service provided via satellite. Enables high picture quality and clear sound throughout the
country regardless of the location of the viewer.
-Sound Balance
Balances the levels of the sound coming from each speaker in televisions with two speakers.
-Cable TV
Whereas the terrestrial broadcasting is delivered via frequency signals through the air, cable broadcast-
ing is transmitted via a cable network. In order to view cable TV, one must purchase a cable receiver and
hook it up to the cable network.
-CATV
"CATV" refers to the broadcasting service offered at hotels, schools and other buildings through their own
broadcasting system, apart from VHF or UHF broadcasting by terrestrial broadcasters. The CATV pro-
grams may include movies, entertainment and educational programs. (Different from cable TV.)
CATV can be viewed only within the area in which the CATV service is offered.
-S-Video
Short for "Super Video." S-Video allows up to 800 lines of horizontal resolution, enabling high-quality
video.
-VHF/UHF
VHF indicates TV channels 2 to 13, and UHF indicates channels 14 through 69.
-Channel Fine Tuning
This feature allows the viewer to fine-tune the TV channel to obtain the best viewing conditions. The
Samsung LCD TV has both automatic and manual channel fine-tuning features to enable the viewer to
adjust their desired settings.
-External Device Input
External device input refers to video input from such external video devices as VCRs, camcorders and
DVD players, separate from a TV broadcast.
14-2
14 Reference Infomation
14-2 Pin Assignments
14-2-1 Scart 14-2-2 S-Video
No PIN Pin Separate
1 Sound R out 1 GND
2 Sound R In 2 Y
3 Sound L out 3 C
4 GND 4 GND
5 GND 5 GND
6 Sound L In
7 Cb
8 ID
9 GND
10 NC
11 Y
12 NC
13 GND
14 GND
15 Cr
16 BL In
17 GND
18 GND
19 Video Out
14-2-4 D-SUB
20 Video In
21 GND
Pin Separate
1 Red
14-2-3 A/V 2 Green
3 Blue
RCA Yellow CVBS 4 GND
5 GND (DDC Return)
Audio L 6 GND-Red
RCA White 7 GND-Green
GND
8 GND-Blue
9 No Connection
Audio R
RCA Red 10 GND-Sync / Self Test
GND 11 GND
12 DDC Data
13 H - Sync
14 V - Sync
15 DDC Clock
14-3
14 Reference Infomation
14-3 Timing Chart
This section of the service manual describes the timing that the computer industry recognizes as standard for com-
puter-generated video signals.
Table 14-1 Timing Chart
Mode IBM VESA
VGA2/ VGA3/
640/75 Hz, 800/75 Hz, 56Hz,
1024/60Hz 1024/75Hz 1280/75Hz, 50Hz
70 Hz 60Hz,72Hz
60 Hz 60Hz,72Hz
1024 x 768 1024 x 768 1280x1024
Timing 720 x 400 640 x 480 640 x 480 800 x 600
fH (KHz) 31.469 31.469 37.500 46.875 48.363 60.023 79.976
A sec 31.777 31.778 26.667 21.333 20.677 16.660 12.504
B sec 3.813 3.813 2.032 1.616 2.092 1.219 1.067
C sec 1.589 1.589 3.810 3.232 2.462 2.235 1.837
D sec 26.058 26.058 20.317 16.162 15.754 13.003 9.481
E sec 0.318 0.318 0.508 0.323 0.369 0.203 0.119
fV (Hz) 70.087 59.940 75.000 75.000 60.004 75.029 75.025
O msec 14.268 16.683 13.333 13.333 16.666 13.328 13.329
P msec 0.064 0.064 0.080 0.064 0.124 0.050 0.038
Q msec 0.858 0.794 0.427 0.448 0.600 0.466 0.475
R msec 13.155 15.761 12.800 12.800 15.880 12.795 12.804
S msec 0.191 0.064 0.027 0.021 0.062 0.017 0.013
Clock
Freq. 28.322 25.175 31.500 49.500 75.000 78.750 135.000
(MHz)
Polarity
H.Sync Negative Negative Negative Positive Negative Positive Positive
V.Sync Positive Negative Negative Positive Negative Positive Positive
Remark Separate Separate Separate Separate Separate Separate Separate
Separate Sync H/V Composite Sync
VIDEO
A Q R S
Horizontal Vertical
Video Video P
B O
C D E Q R S
Sync-on-Green
Sync Vertical
Sync
Green
B P Horizontal
P Q R S
A O
B O
A : Line time total B : Horizontal sync width O : Frame time total P : Vertical sync width
C : Back porch D : Active time Q : Back porch R : Active time
E : Front porch S : Front porch
14-4
14 Reference Infomation
14-4 Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen
will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED
is on. Refer to the video card manual and adjust the screen as follows.
Horizontal Vertical Pixel Clock Sync
Mode Resolution Frequency Frequency Frequency Polarity
(kHz) (Hz) (MHz) (H/V)
VGA 720 X 400 31.469 70.087 28.322 -/+
640 X 480 31.469 59.940 25.175 -/-
640 X 480 37.500 75.000 31.500 -/-
SVGA 800X600 46.875 75.000 49.500 +/+
800X600 37.879 60.317 40.000 +/+
XGA 1024 X 768 48.363 60.004 65.000 -/-
LA15S51BP 1024 X 768 60.023 75.029 78.750 +/+
LS17M24CP
SXGA
LS17M24CP 1280X1024 63.981 60.020 108.000 +,- / -,+
1280X1024 79.976 75.025 135.000 +/+
- The interlace mode is not supported.
- The set might operate abnormally if a non-standard video format is selected.
14-5
14 Reference Infomation
14-5 Panel Description
Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks
SEC LT140X1-002 BN07-00004A SA BN68-00239H -
SEC LT150XS-L01 BN07-00009A SB -
SEC LT150XS-L01-B BN07-00022A SC -
SEC LTM150XS-L02 BN07-00005A SD -
SEC LT181E2-132 BN07-00001A SE -
SEC LT150XS-T01 BN07-00010A SF -
SEC LTM181E3-132 BN07-00019A SG -
SEC LT170E2-131 BN07-10001D SH -
SEC LT181E2-131 BN07-10001E SJ -
SEC LTM170E4-L01 BN07-00018A SK -
SEC LTM240W1-L01 BN07-00015A SL -
SEC LTM213U3-L01 BN07-00016A SM -
SEC LTM150XH-L01 BN07-00026A SN -
SEC LTM150XH-L03 BN07-00027A SP -
SEC LTM150XS-L01 BN07-00032A SQ DELL(ZPD)
SEC LTM181E4-L01 BN07-00034A SR PVA
SEC LTM170EH-L01 BN07-00036A SS TN
SEC LTM170E5-L01 BN07-00037A SU PVA
SEC LTM150XH-L11 BN07-00041A SV -
SEC LTM213U4-L01 BN07-00039A SW PVA
SEC LTM150XH-L01(ZPD) BN07-00045A SX ZPD
SEC LTM150XH-L04 BN07-00046A SY New panel with high brightness
SEC LTM170W1-L01 BN07-00047A SZ Panel for TV
SEC LTM150XH-L06 BN07-00053A EA Panel for TV/ High luminance for 450cd _ SONY&EOS Team Panel for TV
SEC LTM153W1-L01 BN07-00054A EB Use NIKE MODEL
SEC LTM170EH-L05 BN07-00055A EC Panel EOS proj. for high brightness of 17" EH-L05
SEC LTM170E5-L03 BN07-00056A ED Dell 1702FP pro. E4. EH mechanical Compatible
SEC LTM190E1-L01 BN07-00057A EE DELL 1900 FP
SEC LTM181E5-L01 BN07-00061A EF 18" narrow bezel GH18PS
SEC LTM150XP-L01 BN07-00065A EG AMLCD PVA PANEL
SEC LTM240W1-L02 BN07-00062A EH Panel for 15" Wide TV
SEC LTM170EU-L01 BN07-00071A EJ Slim design, TN
SEC LTM170E5-L04 BN07-00072A EK E5-L04 6 bits FRC... for IBM
SEC LTA220W1-L01 BN07-00074A EL Panel for 22" TV
SEC LTM170E6-L02 BN07-00075A EM AMLCD Narrow & slim design 17" PVA mode
SEC LTM170W1-L01 BN07-00082A EN LTM170W1-L01 ZPD panel
SEC LTM170EH-L01 BN07-00080A EP LTM170EH-L01 ZPD panel
SEC LTM170E5-L01 BN07-00081A EQ LTM170E5-L01 ZPD panel
SEC LTM170EH-L05 BN07-00083A ER LTM170EH-L05 ZPD panel
SEC LTM170E5-L03 BN07-00084A ES LTM170E5-L03 ZPD panel
SEC LTM170EU-L01 BN07-00085A ET LTM170EU-L01 ZPD panel
SEC LTM170E5-L04 BN07-00086A EU LTM170E5-L04 ZPD panel
SEC LTM170E6-L02 BN07-00087A EV LTM170E6-L02 ZPD panel
SEC LTM150XH-L06 BN07-00091A EW Color coordinates change for LCD TV
SEC LTM153W1-L01 BN07-00092A EX AMLCD WIDE 15",9/10
SEC LTM170W1-L01 BN07-00100A EY Color Coordinates change code management
SEC LTM170EH-L05 BN07-00097A EZ LTM170E5-L05 Color Coordinates Change Panel Code
SEC LTA400W1-L01 BN07-00109A S1 PANEL of AMLCD 40" TV
SEC LTM153W1-L01 BN07-00110A S2 Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC LTM150XH-L06 BN07-00111A S3 Color coordinates change 0.280/0.290, 10000k & ZPD Panel
14-6
14 Reference Infomation
Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks
SEC LTM170W1-L01 BN07-00112A S4 Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC LTM170EH-L05 BN07-00113A S5 Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC LTM220W1-L01 BN07-00114A S6 ZPD Panel for AMLCD 22" TV
SEC LTM150XH-L06 BN07-00117A S7 ZPD Panel code
SEC LTM153W1-L01 BN07-00118A S8 ZPD Panel code
SEC LTM170WP-L01 BN07-00119A S9 PVA Panel for NIKE
SEC LTM213U4-L01 BN07-00039A E1 21.3" NARROW
SEC LTA260W1-L01 BN07-00121A E2 VENUS
SEC LTA220W1-L01 BN07-00074B E3 "Panel B-level panel code for 22"" TV Panel "
SEC LTA320W1-L01 BN07-00108A E4 "Panel for AMLCD 32"" TV"
SEC LTM213U4-L01 BN07-00124A E5 NARROW BEZEL 21 " PANEL
SEC LTM170E6-L04 BN07-00129A E6 "HIGHLAND 17"" LOW PANEL (Panel only for TCO03)"
SEC LTM190E1-L01 BN07-00088A E7 LTM190E1-L01 ZPD panel
SEC M150X4-L06 BN07-00137A E8 15" Narrow & Slim panel
SEC LTA170V1 BN07-00139A E9 "17"" Panel for Muse 4:3 VGA TV"
SEC LTM190E1-L02 BN07-00128A E10 "New Panel from AMLCDl, Specification : 6bit Driver IC"
SEC LTM170EX-L01 BN07-00143A E11 "Development new Panel from AMLCD"
SEC LTM170E8-L01 BN07-00144A E12 "Development new Panel from AMLCD"
SEC LTM170E6-L04 BN07-00129B E13 "ZPD panel for AMLCD (Panel only for TCO03)"
SEC LTA320W1-L02 BN07-00108B E14 "Creat B-level Panel code for AMLCD 32"" TV"
SEC LTM190E1-L03 BN07-00151A E15 "Development new 19"" Panel form AMLCD (Panel only for TCO03)"
SEC LTM240W1-L03 BN07-00134A E16 "AMLCD 24"" panel development"
SEC LTM190E1-L02 BN07-00128B E17 "New Panel from AMLCD, Specification : 6bit Driver IC(ZPD)"
SEC LTM190E4-L01 BN07-00145A E18 "AMLCD 24"" new panel development"
SEC LTM170E8-L01 BN07-00158A E19 "ZPD code derivation"
SEC LTM170EX-L01 BN07-00159A E20 "ZPD code derivation"
SEC LTM190E1-L03 BN07-00151B E21 "Creat new panel code for AMLCD 19"" (Panel only for TCO03)"
SEC LTA460H1-L01 BN07-00157A E22 "creat panel code for AMLCD 46"" TV "
SEC LTM170EU-L11 BN07-00160A E23 "creat new panel code for AMLCD 17"" (Panel only for TCO03)"
SEC LTM240W1-L03 BN07-00134B E24 "24"" panel ZPD code derivation"
SEC LTM190E4-L01 BN07-00145B E25 "AMLCD 19"" ZPD Panel code derivation"
SEC LTM240W1-L03 BN07-00134B E26 "24"" panel ZPD code derivation"
SEC LTM150XO-L01 BN07-00164A E27 "AMLCD 15"" XO-L01 new panel development"
SEC LTM150XO-L01 BN07-00164B E28 "AMLCD 15"" XO-L01 ZPD code derivation"
SEC LTM170EU-L11 BN07-00160B E29 "AMLCD 17"" NEW panel code derivation"
SEC LTA320W2-L01 BN07-00172A SPZ AMLCD 32" NEW panel
SEC LTM213U4-L01 BN07-00124B SPZ 21.3" Narrow PANEL ZPD Panel derivation
SEC LTM170EU-L11 BN07-00189A STH AMLCD EU-L11 Pb free panel code derivation
SEC LTM170EU-L11 BN07-00189B STZ AMLCD EU-L11 Pb free panel ZPD code derivation
SEC LTM240W1-L04 BN07-00188A SPH 24" A-DCC new panel development
SEC LTM240W1-L04 BN07-00188B SPZ 24" A-DCC panel ZPD code derivation
SEC LTM190EX-L01 BN07-00191A STH AMLCD 19" TN new Panel
SEC LTM190EX-L02 BN07-00191B STZ AMLCD 19" TN new Panel ZPD derivation
SEC LTA230W1-L02 BN07-00184A SPZ AMLCD 23" 16:9 new Panel
SEC LTA260W2-L01 BN07-00185A SPZ AMLCD 26" 16:9 new Panel
SEC LTM240M1-L01 BN07-00195A SPH 24" panel with high brightness deveiopment
SEC LTA400W2-L01 BN07-00186A SPZ AMLCD 40" 16:9 new Panel
SEC LTM150XO-L01 BN07-00197A STH AMLCD 15" XO-L01 Pb free panel code
SEC LTM150XO-L01 BN07-00197B STZ AMLCD 15" XO-L01 Pb free panel ZPD code
SEC LTM170EU-L21 BN07-00202A STZ AMLCD EU-L21 ZPD new code derivation
14-7
14 Reference Infomation
Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks
SEC LTA460W2-L03 BN07-00187A SPZ BEETOVEN 46"ZPD new panel
SEC LTM240M1-L01 BN07-00195B SPZ 24" igh brightness panel ZPD code derivation
SEC M170EX-L21 BN07-00206A STZ AMLCD LTM170EX-L21 ZPD new code derivation
SEC LTA460H3-L01 BN07-00200A SPZ AMLCD 46" LED BLU panel
SEC LTM170EU-L15 BN07-00214A STZ AMLCD EU-L15 TV high brightness ZPD new code derivation
SEC LTM170E8-L21 BN07-00218A SPZ AMLCD LTM170E8-L21 PVA ZPD new code derivation
SEC LTM190EX-L21 BN07-00222A STZ DISPLAY LCD
SEC LTM201U1-L01 BN07-00190B SPZ AMLCD 20.1" Normal panel ZPD code derivation
SEC LTM190E4-L21 BN07-00223A SPZ HAYDN 17" PZD code PANEL derivation
SEC LTA570H1-L01 BN07-00196A SPZ AMLCD 57" new panel development
SEC LTM150XO-L21 BN07-00229A STZ AMLCD 15" XO-L21 8ms panel code
SEC LTA260W2-L11 BN07-00239A SPZ AMLCD 26" 16:9 7Line new Panel
SEC LTA400WS-LH1 BN07-00245A SPZ AMLCD 40" 16:9 SPVA 90% new Panel
SEC LTM213U6-L01 BN07-00231A SPZ AMLCD 21.3" PVA new Panel Code
SEC LTA320WS-LH2 BN07-00244A SPZ AMLCD 32" 16:9 SPVA 90% new Panel
SEC LTA400WS-LH1 BN07-00245A SPZ AMLCD 40" 16:9 SPVA 90% new Panel
SEC LTM190M2-L01 BN07-00227A STZ AMLCD 19" TN Wide new Panel Code
SEC LTM201UX-L01 BN07-00249A STZ AMLCD 20.1" TN new Panel Code
CPT CLAA150XG09 BN07-00141A PA "CPT 15"" Monitor new panel development"
CPT CLAA170EA02 BN07-00148A PB "17"" CPT NEW development panel"
CPT CLAA170EA02 BN07-00148B PC "17"" CPT ZPD panel code derivation"
CPT CLAA150XG09 BN07-00141B PTZ "CPT 15"" panel ZPD code derivation (GOYA-PJT)"
CPT CLAA150XP01 BN07-00173A PTH CPT 15" PSWG code derivation
CPT CLAA150XP01 BN07-00173B PTZ CPT 15" PSWG panel ZPD code
CPT CLAA170EA07 BN07-00174A PTH "CPT 17"" PSWG panel code derivation
CPT CLAA170EA07 BN07-00174B PTZ CPT 17"""" PSWG type new Panel code"""
CPT CLAA170EA07 BN07-00174B PTZ CPT 17" PSWG type new Panel code
CPT CLAA170EA07Q BN07-00220A PTZ CPT 17" PSWG R/T 8msec code derivation
CPT CLAA170EA07Q BN07-00220B PTH CPT 17" PSWG R/T 8msec HPD code derivation
CPT CLAA150XP01F BN07-00236A PTZ CPT 15" PSWG panel ZPD & Lead free code derivation
TOSHIBA LTM15C419(A) BN07-00002A TA -
TOSHIBA LTM15C423(B) BN07-00006A TB -
TOSHIBA LTM18C161 BN07-00008A TC -
TOSHIBA LTM15C443 BN07-00031A TD -
TOSHIBA LTM15C458 BN07-00043A TE -
TOSHIBA LTM15C458S BN07-00077A TF "TSB 15"" high brightness Panel"
TOSHIBA LTM15C458 BN07-00078A TG Toshiba ZPD panel
TOSHIBA LTM15C458S BN07-00099A TH TSB LTM15C458S ( ZPD )
HANNSTAR HSD150MX41A(A) BN07-00020A NA "TTL type"
HANNSTAR HSD150MX12 BN07-00030A NB "TTL type"
HANNSTAR HSD170ME13 BN07-00180A NTH Hannstar 17" TN new panel development
HANNSTAR HSD170ME13 BN07-00180B NTZ Hannstar 17" TN new panel development ZPD code derivation
HANNSTAR HSD190ME12 BN07-00210A NTZ Hannstar 19" TN new panel development
HANNSTAR HSD150MX17-A BN07-00226A NTZ Hannstar 15" slim panel ZPD code derivation
TORISAN TM150XG-22L03(A) BN07-00021A RA -
TORISAN TM150XG-26L06 BN07-00042A RB -
14-8
14 Reference Infomation
Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks
TORISAN TM181SX-76N01 BN07-00048A RC -
TORISAN TM150XG-26L06 BN07-00059A RD 15" XGA TN MODE(ZPD)
TORISAN TM290WX-71N31 BN07-00063A RE "RS24NS (TORISAN 29"" NEW PANEL)"
TORISAN TM396WX-71N31 BN07-00064A RF "RS24NS (TORISAN 40"" NEW PANEL)"
TORISAN TM150XG-26L09 BN07-00073A RG "Panel for 15"" TV"
TORISAN TM150XG-26L10 BN07-00089A RH "L10(change except D/IC) ZPD"
TORISAN TM150XG-26L10 BN07-00090A RJ L10 NORMAL
TORISAN TM190SX-70N01 BN07-00098A RK Torisan 19" Panel
TORISAN TM181SX-76N01 BN07-00106A RL ZPD Panel code
TORISAN TM190SX-70N01 BN07-00107A RM ZPD Panel code
TORISAN TM290WX-71N31 BN07-00115A RN "Color Coordinates change panel for TORISAN 29"" TV"
TORISAN TM396WX-71N31 BN07-00116A RP,Q "Color Coordinates change panel for TORISAN 40"" TV"
TORISAN TM22OWX-71N31 BN07-00125A RR "Development TORISAN 22"" TV PANEL (ZPD)"
TORISAN TM22OWX-71N31 BN07-00127A RS "Development TORISAN 22"" TV PANEL (HPD)"
TORISAN TM396WX-71N32A BN07-00150A RT 120V inverter Exclusive panel
TORISAN TM190SX-70N02 BN07-00154A RMH Torisan 6bit panel code Derivation
TORISAN TM190SX-70N02 BN07-00154B RMZ Torisan 6bit panel code Derivation
TORISAN TM150XG-A01 BN07-00162A RTH Torisan 15" Narrow & Slim panel development
TORISAN TM150XG-A01 BN07-00162B RTZ Torisan 15" N&S panel ZPD code Derivation
SHARP LQ181E1DG11(A) BN07-10001C PA -
SHARP LQ150X1LW71 BN07-00067A PB SHARP 15" PVA PANEL
SHARP LQ370T3LZ41 BN07-00216A FAZ Rome2
HITACHI TX38D12VC0CAA(A) BN07-00003A HA -
HITACHI TX43DVCOCAB BN07-00060A HB 17" SXGA PVA MODE
HITACHI TX43D15VC0CAB BN07-00101A HC ZPD Panel
HITACHI TX51D11VC0CAB BN07-00122A HD 20.1" NARROW
HITACHI TX54D11VC0CAB BN07-00123A HE 21.3" NARROW
HITACHI TX80D12VC0CAB BN07-00169A HIZ "Development new panel for Hitachi 32"" TV (ZPD)"
HITACHI TX54D11VC0CAB BN07-00123B HIZ Hitachi 21.3"ZPD panel
IBM ITSX94S BN07-00017A IA -
UNIPAC UM170E0 BN07-00028A UA Loaded by cisdba
HYUNDAI HT15X13 BN07-00035A DA -
HYUNDAI HT17E11-200 BN07-00049A DB TN MODE
HYUNDAI HT17E11-300 BN07-00093A DC HT17E11-300 ZPD panel
HYUNDAI HT17E11-400 BN07-00094A DD HT17E11-400 normal panel
HYUNDAI HT17E11-400 BN07-00095A DE HT17E11-400 ZPD panel code
HYUNDAI HT17E12 BN07-00096A DF HT17E12 ( Narow & slim Design )
HYUNDAI HT17E12 BN07-00105A DG ZPD Panel code
HYUNDAI HT15X15-D00 BN07-00146A DH "Development for Ares 15"" Hydis TV"
HYUNDAI HT15X15-D01 BN07-00146B DJ "Derivation panel HPD for Ares 15"" Hydis TV "
HYUNDAI HT17E13-100 BN07-00167A DTH "PINEHURST-2(IBM) PJT 17"" HYDIS PANEL Derivation"
HYUNDAI HT17E13-100 BN07-00167B DTZ "PINEHURST-2(IBM) Hydis 17"" ZPD code Derivation"
HYUNDA HT170EX1-100 BN07-00240A DTZ 17" EX compatible Hydis Slim panel development
ACER L170E3 BN07-00044A AA TN(ADT)
ACER M170EN05 BN07-00076A AB AU 17" Panel ( Narrow & slim design )
14-9
14 Reference Infomation
Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks
ACER M170EN05 BN07-00102A AC ZPD Panel code
ACER M190EN02 BN07-00170A AMH "AU Monitor 19"" new panel development (P19-1S)"
ACER M190EN02 BN07-00170B AMZ "AU 19"" ZPD code derivation (ZPD)"
ACER M170EN06 BN07-00171A ATH "AU Monitor 17"" New panel development "
ACER T260XW01 BN07-00163A AMZ "AU 26"" new panel development (NF26EO)"
ACER A201SN01 BN07-00177A ATZ "AU TV panel 20.1"" TN SVGA new panel development"
ACER M170EN06 BN07-00171B ATZ AU Monitor 17" ZPD code derivation
ACER T315XW01 BN07-00194A AMZ AU 32" new
ACER M170EG01 BN07-00192A ATH AU TN PSWG type new Panel code
ACER M170EG01 BN07-00192B ATZ AU TN PSWG type NEW panel code derivation
ACER M190EN04 BN07-00203A ATH AU Monitor 19" ZPD new Panel code
ACER T260XW02 BN07-00208A AMZ AUO 26" ZPD panel
ACER M170EG01 V8 BN07-00221A ATZ AU TN PSWG type new Panel (8msec) ZPD code derivation
ACER T260XW02 BN07-00233A AMZ AUO 26" Panel new (Cosmetic spec down grade)
ACER T315XW01 BN07-00234A AMZ AUO 32" Grade new (Cosmetic spec down grade)
ACER M190EN03 BN07-00224A AMZ AU Monitor 19" MVA new code derivation
ACER T315XW01 BN07-00237A AMZ LCD TV VE project new
ACER T315XW01 BN07-00238A AMZ LCD TV VE project new
ACER M201UN02 V3 BN07-00168A AMZ
ACER M190EN04 V7 BN07-00248A ATZ AU Monitor 19" TN Glare ZPD new code derivation
CHIMEI M170E3-LO1 BN07-00050A CA TN PANEL
CHIMEI M150X3-L01 BN07-00051A CB COMPATIBLE
CHIMEI M170E4-L01 BN07-00052A CC MVA PANEL
CHIMEI M150X2-L01 BN07-00066A CD CHIME 15"I PVA PANEL
CHIMEI M150X3-L01 BN07-00079A CE Chimei ZPD panel
CHIMEI M170E3-L01 BN07-00103A CF ZPD Panel code
CHIMEI M170E4-L01 BN07-00104A CG ZPD Panel code
CHIMEI V296W1-L01 BN07-00120A CH MVA
CHIMEI M170E6-L02 BN07-00126A CJ HIGHLAND 17" LOW PANEL
CHIMEI M190E2-L01 BN07-00131A CK GH19AS,BS CHIMEI PANEL
CHIMEI M150X4-L06 BN07-00137A CL 15" Narrow & Slim panel
CHIMEI M170E6-L01 BN07-00133A CM "2003-03-11 vendor change"
CHIMEI M170E6-L01 BN07-00133B CN ZPD derivation panel
CHIMEI V201V1-T01 BN07-00135A CP CHIMEI 20.1" panel development
CHIMEI M170E6-L02 BN07-00126B CQ "HIGHLAND 17"" LOW PANEL ZPD derivation panel"
CHIMEI M170E6-L05 BN07-00152A CR "CMO 17"" new panel development code"
CHIMEI M170E6-L05 BN07-00152B CS "CMO 17"" ZPD panel code derivation"
CHIMEI M150X4-L06 BN07-00137B CT Chimei 15" Narrow & Slim panel ZPD derivation
CHIMEI M170E5-L05 BN07-00165A CTH CMO 17" new panel development code (GOYA2-PJT)
CHIMEI M170E5-L05 BN07-00165B CTZ CMO 17" ZPD panel(GOYA2-PJT)
CHIMEI V230W1-L02 BN07-00209A CMZ CMO 23" development
CHIMEI V320B1-L01 BN07-00207A CMZ CMO 32" development
CHIMEI V270W1-L01 BN07-00136A CMZ CHI MEI 27" panel development
NEC SVA150XG04TB BN07-00225A BTZ SVA NEC 15" panel ZPD code
14-10
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
