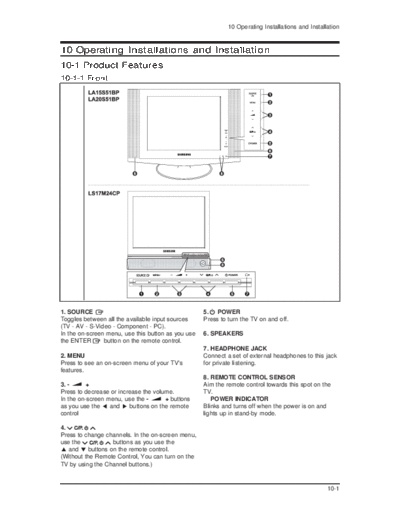

Image preview - the first page of the document



>> Download 05_Operation Instruction & Installation documenatation <<

Text preview - extract from the document

                                                             10 Operating Installations and Installation



10 Operating Installations and Installation
10-1 Product Features
10-1-1 Front




1. SOURCE                                           5.   POWER
Toggles between all the available input sources     Press to turn the TV on and off.
(TV - AV - S-Video - Component - PC).
In the on-screen menu, use this button as you use   6. SPEAKERS
the ENTER       button on the remote control.
                                                    7. HEADPHONE JACK
2. MENU                                             Connect a set of external headphones to this jack
Press to see an on-screen menu of your TV's         for private listening.
features.
                                                    8. REMOTE CONTROL SENSOR
3. -      +                                         Aim the remote control towards this spot on the
Press to decrease or increase the volume.           TV.
In the on-screen menu, use the -      + buttons        POWER INDICATOR
as you use the  and  buttons on the remote          Blinks and turns off when the power is on and
control                                             lights up in stand-by mode.

4.
Press to change channels. In the on-screen menu,
use the           buttons as you use the
 and  buttons on the remote control.
(Without the Remote Control, You can turn on the
TV by using the Channel buttons.)



                                                                                                   10-1
10 Operating Installations and Installation

10-1-2 Back




 - The product colour and shape may vary depending on the model.

1. Connecting an Aerial or Cable Television Network
   To view television channels correctly, a signal must be received by the set from one of the following
   sources:
   - An outdoor aerial / A cable television network / A satellite network

2. Connecting External A/V Devices
   - Connect RCA (optional) or S-VIDEO cable (optional) to an appropriate external A/V device such as
     VCR, DVD or Camcorder.
   - Connect RCA audio cables (optional) to "L - AUDIO - R" on the rear of your set and the other ends
     to corresponding audio out connectors on the A/V device.

3. Connecting Component Devices (DTV/DVD)
   - Connect component video cables (optional) to component connector ("Y", "PB", "PR") on the rear
     of your set and the other ends to corresponding component video out connectors on the DTV or
     DVD.
   - If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top
     Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("Y", "PB", "PR")
     on your set.
   - The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled
     Y, B-Y and R-Y or Y, Cb and Cr.
   - Connect RCA audio cables (optional) to "L - AUDIO - R" on the rear of your set and the other ends
     to corresponding audio out connectors on the DTV or DVD.

4. Connecting Computer
   - Connect the D- Sub cable (optional) to "PC IN" on the rear of your set and the other end to the
     Video Card of your computer.
   - Connect the stereo audio cable (optional) to "PC AUDIO IN" on the rear of your set and the other
     end to "Audio Out" of the sound card on your computer.

5. Kensington Lock
   - The Kensington lock (optional) is a device used to physically fix the system when used in a public
     place.
   - If you want to use a locking device, contact the dealer where you purchased the TV.
   - The place of the Kensington Lock may be different depending on its model.




10-2
                        10 Operating Installations and Installation

10-1-3 Remote Control




                                                              10-3
10 Operating Installations and Installation

10-2 Installation Notes and Precautions
10-2-1 How to Adjust the Stand




1. Place the front of the TV onto a soft cloth or cushion on a table as in Figure (1).
   - Align the TV bottom along the table edge.
2. Press on the center of the TV back.
   - Adjust the stand as in Figure (2) while pressing the
