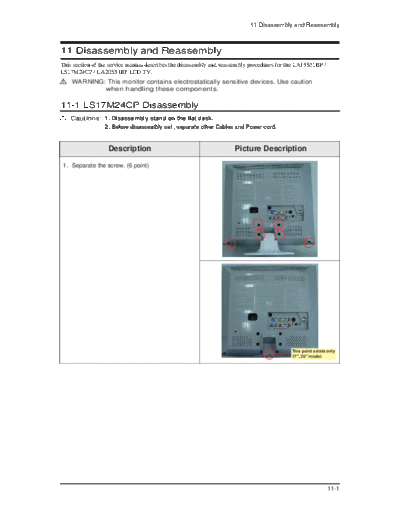

                                                                           11 Disassembly and Reassembly



11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LA15S51BP /
LS17M24CP / LA20S51BP LCD TV.
    WARNING: This monitor contains electrostatically sensitive devices. Use caution
             when handling these components.

11-1 LS17M24CP Disassembly
    Cautions: 1. Disassembly stand on the flat desk.
              2. Before disassembly set , separate other Cables and Power cord.


                   Description                                       Picture Description

 1. Separate the screw. (6 point)




                                                                                            This point exists only
                                                                                            17", 20" model.




                                                                                                              11-1
11 Disassembly and Reassembly


                Description                    Picture Description

2. Separate screw.




3. Separate harness of the Panel with the IP
   Borad with the Main Board.
   Separate screw between Panel and Front.
   (8 point)




11-2
                                                                    5 Disassembly and Reassembly


11-2 LA15S51BP/LA20S51BP Disassembly
  Cautions: 1. Disassembly stand on the flat desk.
            2. Before disassembly set , separate other Cables and Power cord.

                Description                                  Picture Description

1. Separate the screw. (6 point)




2. Separate screw.




                                                                                            11-3
11 Disassembly and Reassembly


                   Description                                        Picture Description

 3. Separate harness of the Panel with the IP
    Borad with the Main Board.
    Separate screw between Panel and Front.
    (6 point)




11-3 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.




11-4
