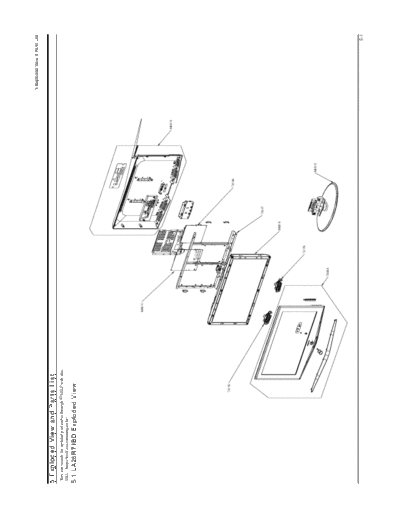

Image preview - the first page of the document
>> Download LA32R71WD documenatation <<
Text preview - extract from the document
5 Exploded View & Parts List
5 Exploded View and Parts List
- You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
5-1 LA26R71BD Exploded View
M0014
M0013
T0175
T0159
T0447
M0215
T0175
M0013
T0003
5-1
5 Exploded View & Parts List
5-2 LA26R71BD Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03012L ASSY COVER P-FRONT;26R71,SO(XSA),ABS+PMM 1 SA
T0175 BN96-03053A ASSY SPEAKER P;16ohm,Bordeuax 26,Left,5W 1 SA
T0175 BN96-03054A ASSY SPEAKER P;16ohm,Bordeuax 26,Right,5 1 SA
M0215 BN07-00254A LCD-PANEL;T260XW02,8bit,626.0*373.0*50.0 1 SA
T0447 BN96-03439B ASSY BRACKET P-PANEL;26,SECC,BUILT-IN,AU 1 SNA
M0014 BN94-00963T ASSY PCB MAIN-AMZ;LA26R71BDX/* 1 SA
T0159 BN96-03058A ASSY PCB P-SMPS;Bordeaux 26 PFC,LE26R71B 1 SA
M0013 BN96-03014J ASSY COVER P-REAR;26R71,SO(XSA),ABS+PMMA 1 SA
M0013 BN96-03017A ASSY STAND P-BASE;26R71,ABS+PMMA,HB,BK23 1 SA
5-2
5 Exploded View & Parts List
5-3 LA32R71BD Exploded View
M0014
M0013
T0175
T0447
M0215
T0175
T0003
M0013
5-3
5 Exploded View & Parts List
5-4 LA32R71BD Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03677A ASSY COVER P-FRONT;32R71,SO(XSA),ABS+PMM 1 SA
T0175 BN96-03002A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
T0175 BN96-03003A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
M0215 BN07-00247A LCD-PANEL;LTA320WT-L14,-,8BIT,760*450*50 1 SA
T0447 BN96-03440A ASSY BRACKET P-PANEL;32,SECC,BUILT-IN 1 SNA
M0014 BN94-00963U ASSY PCB MAIN;LA32R71BDX/XSA 1 SA
M0013 BN96-02997K ASSY COVER P-REAR;32R71,SO(XSA),ABS+PMMA 1 SA
M0013 BN96-02998A ASSY STAND P-BASE;32R71,ABS+PMMA,HB,BK23 1 SA
5-4
5 Exploded View & Parts List
5-5 LA40R71BD Exploded View
M0014
M0013
T0101
T0175
T0447
M0215
T0175
T0003
M0013
5-5
5 Exploded View & Parts List
5-6 LA40R71BD Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03011M ASSY COVER P-FRONT;40R71,SO(XSA),ABS+PMM 1 SA
T0175 BN96-03002A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
T0175 BN96-03003A ASSY SPEAKER P;8ohm,Bordeuax 32"/37"/40" 1 SA
M0215 BN07-00264A LCD-PANEL;LTA400WT-L01,8bit,952*551*51.0 1 SA
T0447 BN96-03442B ASSY BRACKET P-PANEL;CAMBRIDGE40,SECC,AM 1 SNA
M0014 BN94-00963U ASSY PCB MAIN;LA32R71BDX/XSA 1 SA
T0101 BN61-02427A BRACKET-WALL;BORDEAUX 40,SECC,T1.2 1 SNA
M0013 BN96-03013H ASSY COVER P-REAR;40R71,SO(XSA),ABS+PMMA 1 SA
M0013 BN96-03016A ASSY STAND P-BASE;40R71,ABS+PMMA,HB,BK23 1 SA
5-6
