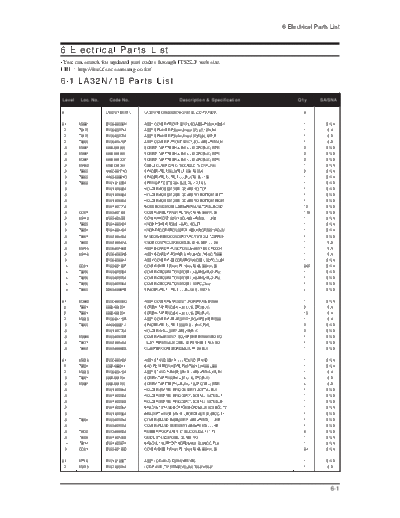

Image preview - the first page of the document
>> Download 11_Electrical Part List documenatation <<
Text preview - extract from the document
6 Electrical Parts List
6 Electrical Parts List
You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
6-1 LA32N71B Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA
0 LA32N71BX/XTL LA32N71B,Q56A/32M70-GNM,32,LCD-TV,INDIA 0
0.1 M0001 BN90-00936H ASSY COVER FRONT;32N71,SO,ABS+PMMA,HB,BK 1 S.N.A
..2 T0175 BN96-03271A ASSY SPEAKER P;8ohm,Mosel 32,Left,10W,BA 1 S.A
..2 T0175 BN96-03272A ASSY SPEAKER P;8ohm,Mosel 32,Right,10W,B 1 S.A
..2 T0003 BN96-03413F ASSY COVER P-FRONT;32N71,SO,-,ABS+PMMA,H 1 S.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 S.N.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 S.N.A
...3 M0081 6003-001003 SCREW-TAPTITE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 S.N.A
...3 M0162 6502-001067 CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/ 1 S.N.A
...3 T0069 AA60-00171Q SPACER-FELT;56L3,FELT,690,T0.35,8 2 S.N.A
...3 T0069 AA63-60001Q SPACER-FELT;-,FELT,-,-,-,BLK,T0.35,-,150 1 S.N.A
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
...3 BN61-02665A HOLDER-BOSS;MOSEL 32,ABS,VO,TOP 1 S.N.A
...3 BN61-02668A HOLDER-BOSS;MOSEL 32,ABS,VO,BOTTOM,LEFT 1 S.N.A
...3 BN61-02669A HOLDER-BOSS;MOSEL 32,ABS,VO,BOTTOM,RIGHT 1 S.N.A
...3 BN61-02771A BOSS-BOND;MOSEL,ABS+PMMA,NATURAL,BOND 12 S.N.A
...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 1.48 S.N.A
...3 M0112 BN63-02533F COVER-FRONT;32N71,SO,ABS+PMMA,-,-,-,HB,- 1 S.N.A
...3 T0023 BN64-00342A KNOB POWER;ROME,40,PC,VIOLET 1 S.N.A
...3 T0054 BN64-00443A KNOB-DECORATION;32R71,ABS,HB,GR503,VACUU 1 S.N.A
...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,V0,VIOLET,DIFFUS 1 S.N.A
...3 T0022 BN64-00467A KNOB CONTROL;SONOMA26,32,40,ABS,-,-,-,V0 1 S.A
...3 M0145 BN96-03466B ASSY BOARD P-FUNCTION;LE40M71BX,CT5000-4 1 S.A
...3 M0146 BN96-03634B ASSY BOARD P-POWER & IR;LE40M71BX,CT5000 1 S.A
...3 BN96-03664A ASSY COVER P-DECORATION;MOSEL,32,PC,CLEA 1 S.N.A
....4 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 0.07 S.N.A
....4 T0056 BN63-02528A COVER-DECORATION;MOSEL,40,ABS,HB,Cr-Plat 1 S.N.A
....4 T0056 BN63-02529A COVER-DECORATION;MOSEL,40,ABS,HB,Cr-Plat 1 S.N.A
....4 T0056 BN63-02536A COVER-DECORATION;MOSEL 32,PC,Clear 1 S.N.A
....4 T0069 AA63-60001E SPACER-FELT;-,FELT,-,-,-,BLK,0.5,-,55X15 4 S.N.A
0.1 M0002 BN90-00939G ASSY COVER REAR;32N71,SO,HIPS,HB,BK500,- 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 13 S.A
..2 M0013 BN96-04113B ASSY COVER P-REAR;32N71,SO,HIPS,HB,BK500 1 S.A
...3 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- 2 S.N.A
...3 BN61-02776A HOLDER-WALL;32R7,ABS,HB,BLK 2 S.N.A
...3 M0006 BN63-02692B COVER-REAR;32N71,SO,HIPS,HB,BK500,NEO MO 1 S.N.A
...3 T0071 BN64-00543A INLAY-TERMINAL;MOSEL 32,PS SHEET,T0.5,SO 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A
0.1 M0216 BN90-00942A ASSY STAND;32M71,-,-,-,ROUND STAND 1 S.N.A
..2 T0524 6902-000241 BAG PE;NITRON/HDPE,T0.5/T0.012,W600,L600 1 S.N.A
..2 M0013 BN96-03419A ASSY STAND P-BASE;32M71,-,ABS+PMMA,HB,BK 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,B,M4,L10,ZPC(YEL),SWR 4 S.A
...3 BN61-02204A HOLDER-SWIVEL RING;26,32R71,ACETAL,BLK 1 S.N.A
...3 BN61-02232A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,T 1 S.N.A
...3 BN61-02233A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,B 1 S.N.A
...3 BN61-02235A BRACKET-STAND BOTTOM;BORDEAUX 32,SECC,T2 1 S.N.A
...3 BN61-02236A BRACKET-HINGE SWIVEL;BORDEAUX 32,SECC,T1 1 S.N.A
...3 T0004 BN63-02321A COVER-STAND BASE;32R71,ABS+PMMA,-,-,-,HB 1 S.N.A
...3 BN63-02537A COVER-STAND SUB;32M71,ABS+PMMA,-,-,-,HB, 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 8 S.N.A
...3 T0920 BN61-02439A GUIDE-STAND;MOSEL 32,ABS VO 1 S.N.A
....4 T0514 BN61-02367A BRACKET-SUPPORT;BORDEAUX 32,SECC,T2.0 1 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.4 S.N.A
0.1 MP1.0 BN91-01058T ASSY LCD-AMZ;LE32M61BX/XEC 1 S.N.A
..2 M0215 BN07-00324A LCD-PANEL;T315XW02(V3),8bit,760.0*450.0* 1 S.A
6-1
6 Electrical Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA
0.1 M0017 BN91-01238A ASSY CHASSIS;LA32N71BX/* 1 S.N.A
..2 T0862 BN94-00868G ASSY PCB MISC-MMS;MOSEL,NEO MOSEL ALL 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.003 S.N.A
...3 CN330 3711-003340 HEADER-BOARD TO CABLE;BOX,16P,2R,2mm,STR 1 S.A
...3 CN5 3722-001051 JACK-USB;4P/1C,AU,BLK,ANGLE,A TYPE 1 S.A
...3 SUB06 BN63-02530A SHIELD-MMS;MOSEL,SPTE T0.2,-,-,-,-,- 1 S.N.A
...3 T0174 BN97-00842J ASSY SMD;LE26R73BDX/XET 1 S.N.A
....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
