M0014
BN61-05080A
5. Exploded View & Part List

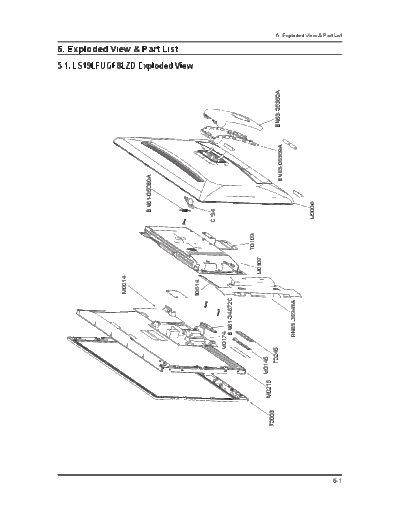

5-1. LS19LFUGF8LZD Exploded View
T0514
CIS4
M0174
BN61-04672C
T0103
M0107
M0215 M0145
T0003
T0245 BN63-05360A
BN63-05359A
BN63-05343A
M0006
5. Exploded View & Part List
5-1
5. Exploded View & Part List
5-1-1. LS19LFUGF8LZD Parts List
Location No. Code No. Description & Specification Q'ty SA/SNA Remark
CIS4 BN61-04983A HOLDER-STAND;LAPFIT 18.5",ACETAL,T3.0,WH 1 S.N.A
M0006 BN63-05341A COVER-REAR;#LAPFIT,ABS+PMMA,HB,BK23,G/DL 1 S.N.A
M0014 BN94-02513F ASSY PCB MAIN;LS19LFUGF8/ZC 1 S.A
M0107 BN63-05342A SHIELD-COVER;LAPFIT,SECC,T0.8 1 S.N.A
M0145 BN96-09922A ASSY BOARD P-FUNCTION;lapfit18.5",CT5000 1 S.A
M0174 BN44-00282A IP BOARD;IP-34155A,Lapfit18.5"(2Lamp),0. 1 S.A
M0215 BN07-00704A LCD-PANEL;CLAA185WA03A 1 S.A
T0003 BN96-09461A ASSY COVER P-FRONT;LS19LFU,ABS+PMMA,HB,B 1 S.A
T0103 BN61-05079A BRACKET-FRAME;LAPFIT,SECC,T0.8 1 S.N.A
T0245 BN61-04968A HOLDER-PCB;LAPFIT,ABS,HB 1 S.N.A
T0514 BN61-04965A BRACKET-SUPPORT;LAPFIT,SPTE,T0.3 1 S.N.A
BN61-04672C GUIDE-PANEL;943SB(CMO&CPT),SECC,T0.8 1 S.N.A
BN61-04984A HOLDER-ROLLER;LAPFIT 18.5",ELASTOMER,BK2 1 S.N.A
BN61-05080A SPRING ETC-TOP;LAPFIT 18.5",SWC,1.0,7.0, 1 S.N.A
BN63-05359A COVER-STAND FRONT;LAPFIT 18.5",ABS,HB,BK 1 S.N.A
BN63-05360A COVER-STAND REAR;LAPFIT 18.5",ABS,HB,BK2 1 S.N.A
BN63-05343A SHIELD-LAMP;LAPFIT,SPTE,T0.3 1 S.N.A
5-2
5. Exploded View & Part List
5-2 LS19LFUGF8LZD Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
LS19LFUGF8LZD LD190G,WVH1/S19L0-LLF,19,LCD-MO,BRAZIL
ASSY COVER FRONT;LS19LF,D190SU,BLACK
0.1 M0001 BN90-02008A 1 S.N.A
,HIG
ASSY COVER P-FRONT;LS19LFU,ABS+PMMA
..2 T0003 BN96-09461A 1 S.A
,HB,B
SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SW
...3 C/F+G/P 6003-000115 2 S.N.A
RC
...3 BN61-04672C GUIDE-PANEL;943SB(CMO&CPT),SECC,T0.8 1 S.N.A
...3 T0245 BN61-04968A HOLDER-PCB;LAPFIT,ABS,HB 1 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.7 S.N.A
COVER-FRONT;LAPFIT,ABS+PMMA,HB,BK27,H/
...3 M0112 BN63-05340A 1 S.N.A
GL
...3 M0145 BN96-09922A ASSY BOARD P-FUNCTION;lapfit18.5",CT5000 1 S.A
....4 BN94-02628A ASSY PCB MAIN-FUNCTION/PCB;Lapfit,Functi 1 S.N.A
.....5 BN97-03170A ASSY SMD-F/PCB;Lapfit,Function assy 1 S.N.A
SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/
......6 0202-001477 0.02 S.N.A
3A
......6 CD1 0406-001253 DIODE-TVS;VESD05A1-02V,6.0/6.8/7.5V,SOD- 1 S.N.A
TR-SMALL SIGNAL;KSC1623-
......6 Q1 0501-000342 1 S.A
Y,NPN,200mW,SOT-
......6 L0405 0601-002643 LED;SMD(SIDE VIEW),RED,3.8x1.0x0.42mm 1 S.N.A
......6 L0405 0601-002643 LED;SMD(SIDE VIEW),RED,3.8x1.0x0.42mm 1 S.N.A
......6 L0405 0601-002643 LED;SMD(SIDE VIEW),RED,3.8x1.0x0.42mm 1 S.N.A
......6 L0405 0601-002643 LED;SMD(SIDE VIEW),RED,3.8x1.0x0.42mm 1 S.N.A
......6 IC1 1209-001838 IC-SENSOR;CT1C08,MLF,24P,4x4mm,PLASTIC,5 1 S.A
......6 R8 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
......6 R1 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A
......6 R2 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A
......6 R3 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A
......6 R4 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A
......6 R7 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.N.A
......6 R5 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 S.N.A
......6 R6 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 S.N.A
......6 R10 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A
......6 R11 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A
......6 R12 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A
......6 R9 2007-000744 R-CHIP;30ohm,5%,1/10W,TP,1608 1 S.A
......6 C1 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.N.A
HEADER-BOARD TO
......6 CN330 3711-005743 1 S.N.A
CABLE;BOX,5P,1R,1.25mm,A
......6 BN41-01175A PCB SUB-FUNCTION;LAPFIT Function,FR-4,2, 1 S.N.A
LEAD CONNECTOR;Lavender,UL1061#28,UL1
.....5 M2893 BN39-01190B 1 S.A
061
ASSY COVER REAR;LS19LF,
0.1 M0002 BN90-02009A 1 S.N.A
D190SU,BLACK,HIG
ASSY COVER P-REAR;LS19LFU,ABS+PMMA,
..2 M0013 BN96-09460A 1 S.A
HB,BK
5-3
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
ASSY STAND P;LAPFIT,ABS HB HIGH
...3 M0003 BN96-09446A 1 S.A
GLOSSY,B
HOLDER-ROLLER;LAPFIT
....4 BN61-04984A 1 S.N.A
18.5",ELASTOMER,BK2
....4 CCM1 BN63-02183C COVER-SHEET;Rhcm,PE Vinyl,T0.05,200mm,20 0.4 S.N.A
COVER-STAND FRONT;LAPFIT
....4 BN63-05359A 1 S.N.A
18.5",ABS,HB,BK
COVER-STAND REAR;LAPFIT
....4 BN63-05360A 1 S.N.A
18.5",ABS,HB,BK2
SCREW-TAPTYPE;BH,+,WP,B,M4.0,L12,ZPC(B
...3 6006-001096 1 S.N.A
LK
...3 CIS4 BN61-04983A HOLDER-STAND;LAPFIT 18.5",ACETAL,T3.0,WH 1 S.N.A
...3 BN61-05080A SPRING ETC-TOP;LAPFIT 18.5",SWC,1.0,7.0, 1 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.7 S.N.A
COVER-REAR;#LAPFIT,ABS+PMMA,HB,BK23,G/
...3 M0006 BN63-05341A 1 S.N.A
DL
...3 BN63-05362A COVER-STAND SHEET;LAPFIT 18.5",ACETAL,T1 2 S.N.A
...3 M0126 BN73-00199A RUBBER-FOOT;LAPFIT,ELASTOMER,BLACK 2 S.N.A
0.1 M0017 BN91-03373G ASSY CHASSIS;LS19LFUGF8/ZC 1 S.N.A
..2 M2893 BN39-01165C LEAD CONNECTOR;Lapfit 18.5" Ubisync,UL10 1 S.A
..2 M0174 BN44-00282A IP BOARD;IP-34155A,Lapfit18.5"(2Lamp),0. 1 S.A
..2 T0514 BN61-04965A BRACKET-SUPPORT;LAPFIT,SPTE,T0.3 1 S.N.A
..2 M0014 BN94-02513F ASSY PCB MAIN;LS19LFUGF8/ZC 1 S.A
...3 T0245 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.025 S.N.A
CONNECTOR-DSUB;15P,3R,FEMALE,ANGLE,
...3 CN102 3701-001219 1 S.A
AUF
HEADER-BOARD TO
...3 CN601 3711-004261 1 S.A
BOARD;BOX,12P,1R,2mm,ANG
...3 CN701 3722-001101 JACK-USB;4P/1C,AU,IVR,ANGLE,B TYPE 1 S.A
...3 M0214 BN96-07252B ASSY CABLE P-FLAT;LIME,Flat cable,100mm, 1 S.A
...3 T0174 BN97-03028F ASSY SMD;LS19LFUGF8/ZC 1 S.N.A
SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/
....4 SUB05 0202-001477 0.5 S.N.A
3A
DIODE-SWITCHING;MMBD4148SE,100V,200m
....4 D115 0401-001056 1 S.A
A,SO
DIODE-SWITCHING;MMBD4148SE,100V,200m
....4 D116 0401-001056 1 S.A
A,SO
DIODE-SWITCHING;MMBD4148SE,100V,200m
....4 D117 0401-001056 1 S.A
A,SO
DIODE-SWITCHING;MMBD4148SE,100V,200m
....4 D701 0401-001056 1 S.A
A,SO
DIODE-SWITCHING;MMBD4148SE,100V,200m
....4 D702 0401-001056 1 S.A
A,SO
....4 D113 0403-001411 DIODE-ZENER;5.49-5.73V,200mW,SOD-323,TP 1 S.N.A
....4 D114 0403-001411 DIODE-ZENER;5.49-5.73V,200mW,SOD-323,TP 1 S.N.A
....4 D118 0403-001411 DIODE-ZENER;5.49-5.73V,200mW,SOD-323,TP 1 S.N.A
....4 D119 0403-001411 DIODE-ZENER;5.49-5.73V,200mW,SOD-323,TP 1 S.N.A
....4 D203 0403-001411 DIODE-ZENER;5.49-5.73V,200mW,SOD-323,TP 1 S.N.A
....4 D603 0403-001411 DIODE-ZENER;5.49-5.73V,200mW,SOD-323,TP 1 S.N.A
....4 D703 0403-001411 DIODE-ZENER;5.49-5.73V,200mW,SOD-323,TP 1 S.N.A
....4 D112 0406-001061 DIODE-TVS;MMQA5V6T3,5.32/5.6/5.88V,24W,S 1 S.A
....4 ZD401 0406-001061 DIODE-TVS;MMQA5V6T3,5.32/5.6/5.88V,24W,S 1 S.A
TR-SMALL SIGNAL;KTC3875S-
....4 Q202 0501-000445 1 S.A
Y,NPN,150mW,SOT
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
TR-SMALL SIGNAL;KTC3875S-
....4 Q205 0501-000445 1 S.A
Y,NPN,150mW,SOT
TR-SMALL SIGNAL;KTC3875S-
....4 Q290 0501-000445 1 S.A
Y,NPN,150mW,SOT
TR-SMALL SIGNAL;KTC3875S-
....4 Q401 0501-000445 1 S.A
Y,NPN,150mW,SOT
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-
....4 Q203 0501-002080 1 S.A
59
TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-
....4 Q204 0501-002080 1 S.A
59
....4 Q409 0505-001165 FET-SILICON;SI3443BDV,P,-20V,+-4.4A,65mo 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 1 S.A
....4 IC112 1103-001023 IC-EEPROM;24C08,8Kbit,1Kx8,SOP,8P,5x4mm, 1 S.N.A
IC-DDR SDRAM;EM6A9160TS0A-5G,DDR
....4 IC501 1105-001838 1 S.A
SDRAM,1
....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A
....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A
....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A
....4 T0087 1203-003121 IC-POSI.FIXED REG.;FAN1112,SOT-223,3P,6. 1 S.N.A
....4 T0087 1203-003695 IC-POSI.FIXED REG.;NCP1117ST33T3G,SOT-22 1 S.A
....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A
IC-DECODER;DL-125,PBGA,276P,19x19mm,PL
....4 IC300 1204-003038 1 S.A
AS
IC-LCD CONTROLLER;SE758MH-
....4 IC109 1205-003261 1 S.A
LF,PQFP,128P,2
....4 R257 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.N.A
....4 R258 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.N.A
....4 R213 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R217 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R221 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R242 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R270 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R271 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R272 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R303 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R304 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R305 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R306 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R307 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R308 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R309 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R310 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R325 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R326 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R390 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R393 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R394 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R430 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R702 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R703 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R144 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R145 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R122 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R123 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R124 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R126 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R127 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R130 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R131 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R133 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R150 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R216 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R222 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R223 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R224 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R225 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R231 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R235 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R236 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R237 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R327 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R353 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R354 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R355 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R403 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R404 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R405 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R264 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R136 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R206 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R292 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R330 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R331 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R364 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R402 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R207 2007-000083 R-CHIP;3Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R333 2007-000083 R-CHIP;3Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R205 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R211 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R218 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R291 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R362 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R406 2007-000088 R-CHIP;7.5Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R137 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R138 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R139 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R142 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R143 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R208 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R209 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R215 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R220 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R226 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R228 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R229 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R230 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R232 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R233 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R234 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R290 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R356 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R357 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R358 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R407 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R408 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R311 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R227 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A
....4 R701 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A
....4 R328 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 S.N.A
....4 R212 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A
....4 R214 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A
....4 R359 2007-000491 R-CHIP;2.2Kohm,1%,1/10W,TP,1608 1 S.A
....4 R360 2007-000491 R-CHIP;2.2Kohm,1%,1/10W,TP,1608 1 S.A
....4 R620 2007-000536 R-CHIP;200ohm,1%,1/10W,TP,1608 1 S.A
....4 R621 2007-000570 R-CHIP;220ohm,1%,1/10W,TP,1608 1 S.A
....4 R414 2007-000708 R-CHIP;3.9Kohm,1%,1/10W,TP,1608 1 S.A
....4 R129 2007-000821 R-CHIP;390ohm,1%,1/10W,TP,1608 1 S.N.A
....4 R219 2007-000821 R-CHIP;390ohm,1%,1/10W,TP,1608 1 S.N.A
....4 R361 2007-000929 R-CHIP;470ohm,1%,1/10W,TP,1608 1 S.N.A
....4 R413 2007-000965 R-CHIP;5.1Kohm,5%,1/10W,TP,1608 1 S.N.A
....4 R134 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A
....4 R135 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A
....4 R125 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.N.A
....4 R128 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.N.A
....4 R132 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.N.A
....4 R409 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R601 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R602 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R604 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R605 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R606 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R607 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R608 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R609 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R610 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R611 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R612 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R613 2007-002425 R-CHIP;1ohm,5%,1/10W,TP,1608 1 S.N.A
....4 R411 2007-007004 R-CHIP;12Kohm,1%,1/10W,TP,1608 1 S.A
....4 R332 2007-007600 R-CHIP;3.48Kohm,1%,1/10W,TP,1608 1 S.A
....4 C448 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A
....4 C451 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.N.A
....4 C112 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.N.A
5-7
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 C113 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.N.A
....4 C211 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.N.A
....4 C452 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.N.A
....4 C117 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A
....4 C440 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A
....4 C443 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A
....4 C446 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A
....4 C449 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 S.A
....4 C123 2203-000384 C-CER,CHIP;0.015nF,5%,50V,C0G,1608 1 S.N.A
....4 C306 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A
....4 C307 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A
....4 C308 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A
....4 C323 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A
....4 C663 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A
....4 C666 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A
....4 C673 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A
....4 C701 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A
....4 C703 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A
....4 C121 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.N.A
....4 C122 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.N.A
....4 C124 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.N.A
....4 C206 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.N.A
....4 C207 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.N.A
....4 C114 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608 1 S.A
....4 C115 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608 1 S.A
....4 C116 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608 1 S.A
....4 C118 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608 1 S.A
....4 C119 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608 1 S.A
....4 C120 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608 1 S.A
....4 C316 2203-000903 C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608 1 S.A
....4 C317 2203-000903 C-CER,CHIP;0.0047nF,0.25pF,50V,C0G,1608 1 S.A
....4 C445 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,- 1 S.N.A
....4 C125 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C126 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C127 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C128 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C130 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C205 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C208 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C210 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C213 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C214 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C215 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C301 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C302 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C303 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C304 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C305 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C309 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C310 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
5-8
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 C311 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C312 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C313 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C314 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C315 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C318 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C319 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C320 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C321 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C322 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C327 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C336 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C337 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C338 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C346 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C347 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C348 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C349 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C350 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C351 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C352 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C353 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C354 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C355 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C356 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C357 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C361 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C362 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C363 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C364 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C365 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C366 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C367 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C369 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C371 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C373 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C404 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C406 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C434 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C436 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C441 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C442 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C444 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C470 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C501 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C605 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C607 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C608 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C609 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C610 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
5-9
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 C621 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C622 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C627 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C629 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C630 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C632 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C633 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C634 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C635 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C636 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C637 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C638 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C639 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C640 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C641 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C643 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C645 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C647 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C648 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C649 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C651 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C652 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C655 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C656 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C657 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C658 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C659 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C661 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C662 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C665 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C667 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C668 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C669 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C670 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C671 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C672 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C686 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C687 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C691 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C692 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C698 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C699 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C702 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C704 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A
....4 C209 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C212 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C290 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C324 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C325 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C326 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
5-10
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 C340 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C341 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C342 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C343 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C344 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C345 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C358 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C359 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C360 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C368 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C370 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C623 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C624 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C625 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C626 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C683 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C684 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C685 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C688 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C689 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C690 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C705 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C706 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.N.A
....4 C203 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C372 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C403 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C405 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C433 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C438 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C439 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C606 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C628 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C631 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C642 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C644 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C646 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C650 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C654 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C660 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C664 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,3216 1 S.N.A
....4 C225 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A
....4 C226 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A
....4 C227 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A
....4 C228 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A
....4 C229 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A
....4 C230 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A
....4 C231 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A
....4 C232 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A
....4 C453 2203-006333 C-CER,CHIP;10000nF,20%,16V,X5R,TP,3216 1 S.N.A
....4 C463 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
5-11
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 C464 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C465 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C466 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C601 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C611 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C612 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C613 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C614 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C615 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C616 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C617 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C618 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C619 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C620 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C653 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C801 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C802 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C803 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C804 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C805 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C806 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C807 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C808 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C809 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 1 S.A
....4 C447 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A
....4 C450 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A
....4 C461 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A
....4 C462 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 1 S.N.A
CRYSTAL-SMD;14.31818MHz,30ppm,28-
....4 X202 2801-003667 1 S.A
AAN,16p
CRYSTAL-SMD;12MHz,30ppm,28-
....4 X202 2801-003948 1 S.A
AAN,12pF,60oh
....4 G101 3301-000316 CORE-FERRITE BEAD;120ohm,2012,TP 1 S.N.A
BEAD-SMD;60ohm,4516,TP,70ohm/
....4 T0568 3301-001145 1 S.N.A
45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/
....4 T0568 3301-001145 1 S.N.A
45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/
....4 T0568 3301-001145 1 S.N.A
45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/
....4 T0568 3301-001145 1 S.N.A
45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/
....4 T0568 3301-001145 1 S.N.A
45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/
....4 T0568 3301-001145 1 S.N.A
45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/
....4 T0568 3301-001145 1 S.N.A
45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/
....4 T0568 3301-001145 1 S.N.A
45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/
....4 T0568 3301-001145 1 S.N.A
45MHz,82ohm
BEAD-SMD;60ohm,4516,TP,70ohm/
....4 T0568 3301-001145 1 S.N.A
45MHz,82ohm
....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A
5-12
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A
....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A
....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A
....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A
....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A
....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A
....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A
....4 T0568 3301-001407 BEAD-SMD;30ohm,1608,300mA,TP,,,0.4ohm 1 S.N.A
....4 T0568 3301-001407 BEAD-SMD;30ohm,1608,300mA,TP,,,0.4ohm 1 S.N.A
....4 T0568 3301-001594 BEAD-SMD;90ohm,2.0*1.2*1.3mm,TP,-,- 1 S.N.A
CONNECTOR-FPC/FFC/PIC;30P,1mm,SMD-
....4 M0106 3708-001150 1 S.A
A,SN,Y
....4 T0010 BN27-00009A COIL CHOKE;SMD 12x12x6,EOS,33uH,15%,0.12 1 S.A
....4 T0077 BN41-01261A PCB MAIN;lapfit 18.5" ubisync,CEM-3,4,MP 1 S.N.A
....4 M0018 BN97-03038G ASSY MICOM;Lapfi LD190G,LS19LFCGFZ/ZW,11 1 S.N.A
IC-FLASH MEMORY;MX25L1005,1Mbit,1Mx1,S
.....5 IC115 1107-001614 1 S.N.A
OP
....4 M0018 BN97-03038H ASSY MICOM;Lapfi LD190G,LS19LFCGFZ/ZW,11 1 S.N.A
.....5 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 S.A
DIODE-SCHOTTKY;SSC54,20V,5000mA,DO-
....4 D0254 0404-001307 1 S.A
214AB
..2 M0006 BN96-09462A ASSY SHIELD P-COVER;LS19LFU,SECC,T0.8 1 S.N.A
...3 AA63-00800A GASKET-(C);SVP-50L7HX,Conductive Fabric, 1 S.N.A
...3 BN61-02429D STUD-PEM;PNB,M2.8,D7,L20,ZPC(SIL),SUM24L 1 S.N.A
...3 T0103 BN61-05079A BRACKET-FRAME;LAPFIT,SECC,T0.8 1 S.N.A
...3 M0131 BN63-04097A GASKET;PEONY,Conductive Fabric,1 mm,10 m 4 S.N.A
...3 M0107 BN63-05342A SHIELD-COVER;LAPFIT,SECC,T0.8 1 S.N.A
SCREW-TAPTYPE;PWH,+,-
..2 6003-000264 5 S.A
,B,M3,L6,ZPC(WHT),S
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),S
..2 6003-001439 1 S.N.A
WRC
0.1 M0112 BN91-03698A ASSY SHIELD;LS19LFU 1 S.N.A
..2 BN63-05343A SHIELD-LAMP;LAPFIT,SPTE,T0.3 1 S.N.A
0.1 M0019 BN91-03723A ASSY LCD;LS19LFU* 1 S.N.A
..2 M0215 BN07-00704A LCD-PANEL;CLAA185WA03A 1 S.A
0.1 M0113 BN92-04265B ASSY P/MATERIAL;LS19LFUGF/ZA 1 S.N.A
..2 T0524 6902-000241 BAG PE;HDPE/NITRON,T0.5/T0.012,W600,L600 1 S.N.A
0.1 M0019 BN92-04369A ASSY LABEL;LS19LF* 1 S.N.A
0.1 M0045 BN92-04683H ASSY ACCESSORY;LS19LFUGFZLZD 1 S.N.A
..2 M0114 BN39-00244G CBF SIGNAL;D-sub cable,15P/15P,20276N,15 1 S.A
..2 M0045 BN96-10709G ASSY ACCESSORY;LS19LFUGFZLZD 1 S.A
CBF-POWER CORD;DT,BR,BP3/YES,I(IEC320
...3 T0268 3903-000020 1 S.A
C1
...3 BN59-00839A S/W DRIVER-03,IB;LD190,LD190G,LD220,LD22 1 S.N.A
...3 M9889 BN63-02368B CLOTH-CLEAN;cloth,120,160,sea blue,ToC 1 S.N.A
...3 BN68-00844A MANUAL FLYER-01, LEAFLET;LCD/CDT Leaflet 1 S.N.A
...3 BN68-00887B MANUAL FLYER-QSG;XAZ, ALL Model,SyncMast 1 S.N.A
5-13
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
MANUAL FLYER-01,QSG;COMM,SyncMaster,W/
...3 BN68-01892B 1 S.N.A
W,
...3 BN39-00397G CBF IF-USB CABLE;LAPFIT,4P/4P,2725(USB2. 1 S.A
MANUAL FLYER-INSTALLATION
...3 BN68-02216C 1 S.N.A
GUID;comm,Sync
0.1 M0003 BN92-04962K ASSY BOX;LS19LFUGF8/XK 1 S.N.A
..2 BN69-03473D BOX-SET;LAP-FAT(18.5),CB,A1,W503,D354,H9 1 S.N.A
5-14
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
