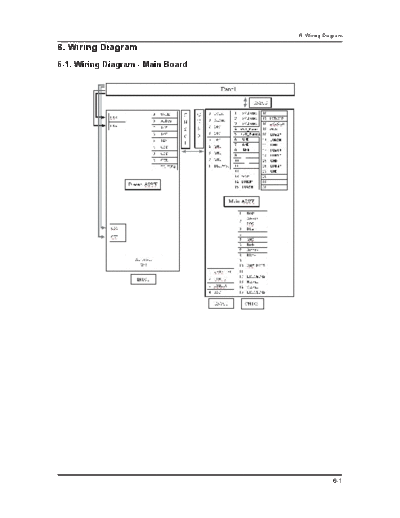

Image preview - the first page of the document



>> Download Wiring_Diagram_E documenatation <<

Text preview - extract from the document

                                   6. Wiring Diagram

6. Wiring Diagram
6-1. Wiring Diagram - Main Board




                                                6-1
6. Wiring Diagram

6-2. Wiring Diagram - IP Board



                                                IP Connector       LVDS Connector
                                            (Connect to IP- Board (Connect to Panel)




                      Function Connector
                    (Connect to IP-Board)




                                                                         USB Input
                                                                                       RGB Connector
                                                                         Connector
                                                                                       (Connect to PC)
                                                                        (Connect to
                                                                           PC)




6-2
                                                                                                 6. Wiring Diagram

6-3. Connector Functions
        Connector                                              Functions

CN2  CN601            Supplies 5V from the power board to the main board and transmits the PWM output from the
                      power board to the inverter.
                      * Possible problems: The No Power and Blank Screen errors may occur.

CN301 ~ CN304         Transmits the lamp current (6mA ~ 7mA) generated in the inverter to the panel lamp.
                      * Possible problems: A Blank Screen error may occur.

CN1                   Transmits input power of 90V to 263V to the power board.
                      * Possible problems: The No Power error may occur.

CN102                 VGA signal input terminal
                      * Possible problems: The No RGB Output error may occur.

CN3                   Connects the function board and the main board.
                      * Possible problems: The No Power, No LED Screen, No OSD Operation, and Abnormal OSD
                        Operation errors may occur.

CN202                 Transmits the LVDS signals from the main board to the panel.
                      * When a problem occurs: The Blank screen and No power errors may occur.


6-4. Cables
Use           LVDS 30P FFC

Code          BN96-002854T








                                                                                                              6-3
6. Wiring Diagram

Memo




6-4
