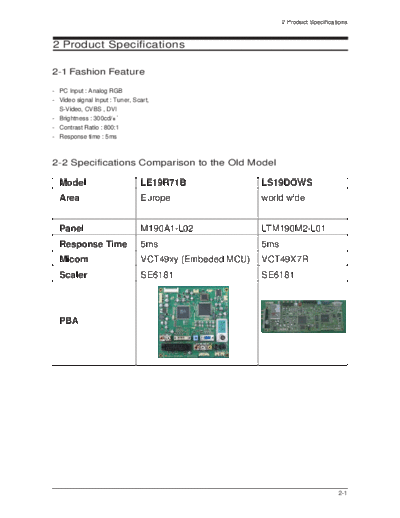

Image preview - the first page of the document
>> Download 04_Product Specification documenatation <<Text preview - extract from the document 2 Product Specifications
2 Product Specifications
2-1 Fashion Feature
- PC Input : Analog RGB
- Video signal Input : Tuner, Scart,
S-Video, CVBS , DVI
- Brightness : 300cd/
- Contrast Ratio : 800:1
- Response time : 5ms
2-2 Specifications Comparison to the Old Model
Model LE19R71B LS19DOWS
Area Europe world wide
Panel M190A1-L02 LTM190M2-L01
Response Time 5ms 5ms
Micom VCT49xy (Embeded MCU) VCT49X7R
Scaler SE6181 SE6181
PBA
2-1
2 Product Specifications
2-3 Specifications
Item Description
