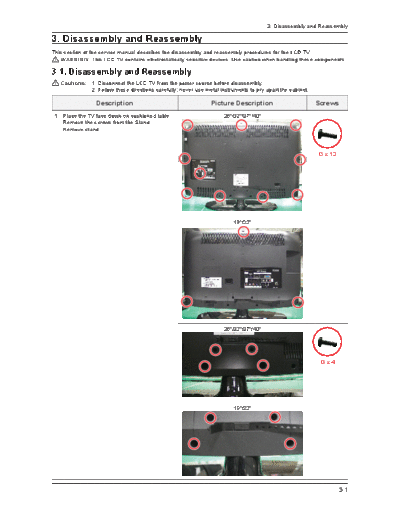

Image preview - the first page of the document
>> Download Disassembly & Reassembly documenatation <<
Text preview - extract from the document
3. Disassembly and Reassembly
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LCD TV.
WARNING: This LCD TV contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly
Cautions: 1. Disconnect the LCD TV from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
Description Picture Description Screws
1. Place the TV face down on cushioned table. 26"/32"/37"/40"
Remove the screws from the Stand.
Remove stand.
O x 10
19"/22"
26"/32"/37"/40"
Ox4
19"/22"
3-1
3. Disassembly and Reassembly
Description Picture Description Screws
2. Lift up rear cover and remove the stand. 26"/32"/37"/40"
19"/22"
3-2
3. Disassembly and Reassembly
Description Picture Description Screws
3. Remove Screw from the stand BRKT and 26"/32"/37"/40"
lift up the stand BRKT.
19"/22"
3-3
3. Disassembly and Reassembly
Description Picture Description Screws
4. Disonnect cable from the boards. 26"/32"/37"/40"
19"/22"
5. Remove screws and Lift up the Lod panel. 26"/32"/37"/40"
19"/22"
Reassembly procedures are in the reverse order of disassembly procedures.
3-4
