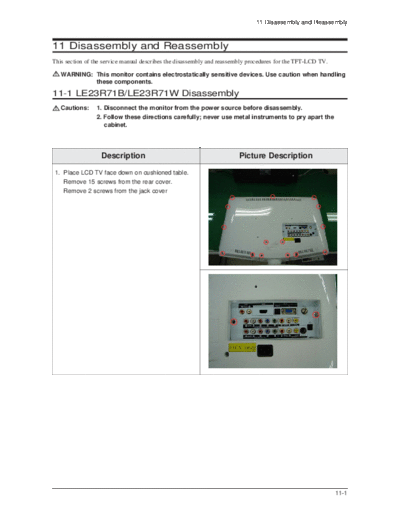

Image preview - the first page of the document
>> Download 06_Disassembly & Reassembly documenatation <<Text preview - extract from the document 11 Disassembly and Reassembly
11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD TV.
WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling
these components.
11-1 LE23R71B/LE23R71W Disassembly
Cautions: 1. Disconnect the monitor from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the
cabinet.
Description Picture Description
1. Place LCD TV face down on cushioned table.
Remove 15 screws from the rear cover.
Remove 2 screws from the jack cover
11-1
11 Disassembly and Reassembly
Description Picture Description
2. Remove stand and lift up the rear cover.
3. Disconnect cables and remove screws from the
boards
11-2
11 Disassembly and Reassembly
Description Picture Description
4. Lift up the boards and remove screws from the
stand brkt.
5. Lift up the stand brkt and remove 7 screws from
the panel brkt.
11-3
11 Disassembly and Reassembly
Description Picture Description
6. Lift up the brkt and LCD panel.
7. LCD panel
11-4
11 Disassembly and Reassembly
7. LCD panel
11-2 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.
11-5
11 Disassembly and Reassembly
Memo
11-6
