>> Download 08_Circuit Description documenatation <<Text preview - extract from the document 13 Circuit Descriptions
13 Circuit Descriptions

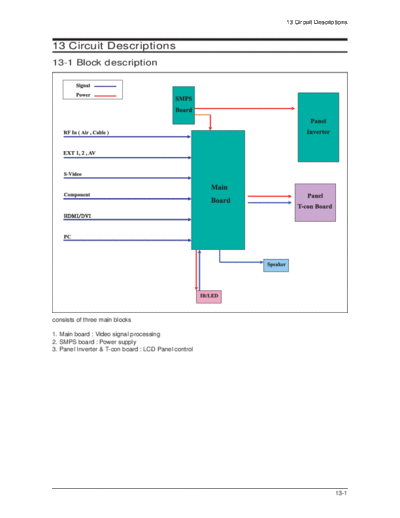

13-1 Block description
consists of three main blocks
1. Main board : Video signal processing
2. SMPS board : Power supply
3. Panel Inverter & T-con board : LCD Panel control
13-1
13 Circuit Descriptions
13-2 Main Block
* VCTi : IF AV1/2, S-Video input and video decoding, Audio signal processing.
* FLI5928H : - Scaler IC.
- Component, PC, HDMI/DVI input and LVDS signal output.
* BA7657 : component 1/2, Switching IC.
13-2
13 Circuit Descriptions
13-3 SMPS Board
13-3-1 SMPS Diagram (Free_Volt)
13-3
13 Circuit Descriptions
Memo
13-4
