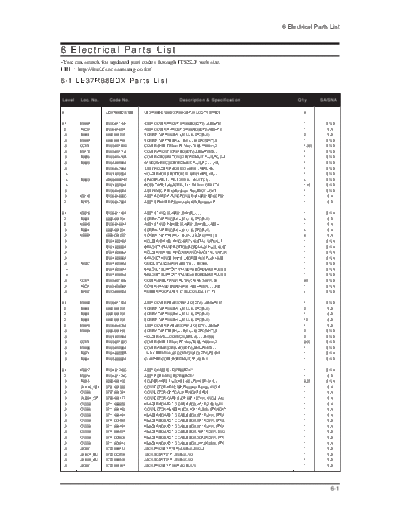

Image preview - the first page of the document
>> Download Electrical Part List documenatation <<
Text preview - extract from the document
6 Electrical Parts List
6 Electrical Parts List
-You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
6-1 LE37R88BDX Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA
0 LE37R88BDX/XEE LE37R88BD,N30A/37R80-GBP,37,LCD-TV,SWEDE 0
0.1 M0001 BN90-01144F ASSY COVER FRONT;37R88,EO(IDTV),-,ABS+PM 1 S.N.A
..2 T0003 BN96-04657F ASSY COVER P-FRONT;37R88,EO(IDTV),ABS+PM 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A
...3 CCM1 BN63-02183G COVER-SHEET;Rhcm,PE Vinyl,T0.05,1100mm,2 1.983 S.N.A
...3 M0112 BN63-03111A COVER-FRONT;37R81,EO(IDTV),ABS+PMMA,-,-, 1 S.N.A
...3 T0056 BN63-03416B COVER-DECORATION;37 BORDEAUX PLUS,PC,CLE 1 S.N.A
...3 T0603 BN64-00588A WINDOW-RMC;32,BORDEAUX PLUS,PC,-,-,-,HB, 1 S.N.A
...3 BN96-04700A ASSY HOLDER P-BOSS;37,40R81,-,HIPS,HB,-, 1 S.N.A
....4 BN61-02959A HOLDER-BOSS BOTTOM;37,40R81,HIPS,HB,-,-, 1 S.N.A
....4 T0069 AA60-00091M SPACER-FELT;-,FELT,35X10,-,-,BLK,T0.5,-, 4 S.N.A
....4 BN61-03261A BOSS-TAPE;Tulip,ACRYL,T1.1,W12mm,GRAY,TA 1.45 S.N.A
...3 BN96-04802A ASSY MISC P-BLU;Bordeaux Plus,BACK LIGHT 1 S.N.A
...3 M0145 BN96-04809C ASSY BOARD P-FUNCTION&IR;LE40R81BDX,CT50 1 S.A
..2 T0175 BN96-04768A ASSY SPEAKER P;8ohm,4pin,10W,Bordeaux Pl 1 S.A
0.1 M0216 BN90-01148A ASSY STAND;37,40R81,SWIVEL,-,-,-,- 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
..2 M0013 BN96-04661A ASSY STAND P-BASE;37,40R81,SWIVEL,-,ABS+ 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 8 S.A
...3 BN61-02248A HOLDER-SWIVEL RING;40R71,ACETAL NATUAL,T 1 S.N.A
...3 BN61-02883A BRACKET-STAND BOTTOM;BORDEAUX PLUS,40,SE 1 S.N.A
...3 BN61-02885A HOLDER-SWIVEL RING;MURANO40,ACETAL NATUR 1 S.N.A
...3 BN61-02886A BRACKET-HINGE SWIVEL;BORDEAUX PLUS,40,SE 1 S.N.A
...3 T0920 BN61-02984A GUIDE-STAND;40R81,ABS,V0,-,-,-,BK500,- 1 S.N.A
....4 BN61-02981A BRACKET-SUPPORT STAND;40 BORDEAUX PLUS,S 1 S.N.A
....4 BN61-03045A BRACKET-SUPPORT STAND;40 BORDEAUX PLUS,S 1 S.N.A
...3 CCM1 BN63-02183E COVER-SHEET;Rhcm,PE Vinyl,T0.05,750mm,20 0.5 S.N.A
...3 T0004 BN63-03030A COVER-STAND BASE;40R81,ABS+PMMA,-,-,-,HB 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,SILICON,DIA 17 * T1. 4 S.N.A
0.1 M0002 BN90-01152A ASSY COVER REAR;37R81,EO(IDTV),-,ABS+PMM 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 12 S.A
..2 M0013 BN96-04670A ASSY COVER P-REAR;37R81,EO(IDTV),-,ABS+P 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
...3 BN61-02950A HOLDER-WALL;COMMON,ABS,V0,-,-,-,BK500,- 2 S.N.A
...3 CCM1 BN63-02183G COVER-SHEET;Rhcm,PE Vinyl,T0.05,1100mm,2 0.99 S.N.A
...3 M0006 BN63-03208A COVER-REAR;37R81,EO(IDTV),ABS+PMMA,-,-,- 1 S.N.A
...3 T0071 BN64-00555B INLAY-TERMINAL;07,COMMON,EO(IDTV),PS SHE 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A
0.1 M0017 BN91-01243C ASSY CHASSIS;LE37R86BDX/* 1 S.N.A
..2 M0014 BN94-01121C ASSY PCB MAIN;LE37R86BDX/* 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A
...3 JA1410_NSI 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A
...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A
...3 JA3201_OP 3709-001477 CONNECTOR-CARD SLOT;68P,1.27mm,ANGLE,AU, 1 S.A
...3 CN330 3711-000058 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN 1 S.A
...3 CN906 3711-004182 CONNECTOR-HEADER;BOX,10P,1R,2MM,STRAIGHT 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004531 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG 1 S.A
...3 CN330 3711-005606 HEADER-BOARD TO CABLE;BOX,30P,2R,2mm,STR 1 S.A
...3 CN330 3711-005842 HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR 1 S.A
...3 JA330 3722-000143 JACK-PHONE;1P(VER),AG,BLK,ANGLE 1 S.A
...3 JA1601_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA1608_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
6-1
6 Electrical Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA332 3722-001163 JACK-VHS;4P,AU,BLK,ANGLE 1 S.A
...3 JA333 3722-002360 JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002543 JACK-PIN;3P,Sn,RED/WHT/YEL,ANGLE 1 S.A
...3 CIS3 BN40-00096A TUNER;DNOS403MH261B(S),PAL Hyper,181CH, 1 S.A
...3 T0603 BN63-02494A SHIELD-PCB MAIN;MOSEL 40",SPTE,T0.3,EURO 1 S.N.A
...3 CCMM1 BN73-00024D SILICON/RUBBER;BORDEAUX,SILICON,28x28XT6 1 S.N.A
...3 T0174 BN97-01233C ASSY SMD;LE37R86BDX/* 1 S.N.A
....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
