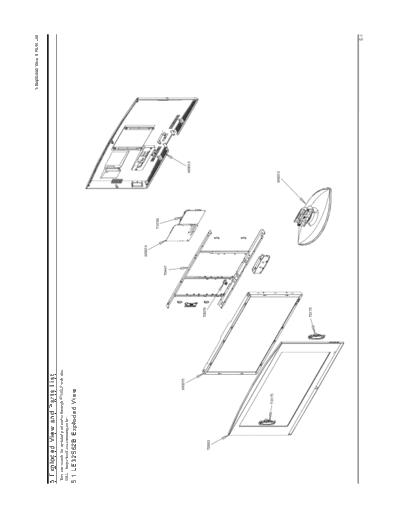

Image preview - the first page of the document
>> Download Exploded View & Part List documenatation <<
Text preview - extract from the document
5 Exploded View & Parts List
5 Exploded View and Parts List
- You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
5-1 LE32S62B Exploded View
M0014
T0159
T0447
M0215
M0013
T0076
T0003
T0175
M0013
T0175
5-1
5 Exploded View & Parts List
5-2 LE32S62B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03628Q ASSY COVER P-FRONT;32T70,EO,ABS+PMMA,HB, 1 S.A
T0175 BN96-05397A ASSY SPEAKER P;8ohm,2pin,Left,10W,Sniper 1 S.A
T0175 BN96-05398A ASSY SPEAKER P;8ohm,3pin,Right,10W,Snipe 1 S.A
M0215 BN07-00453A LCD-PANEL;LTA320WT-L06,8bit,32inch,16.7M 1 S.A
T0447 BN96-02999W ASSY BRACKET P-PANEL;SONOMA-2,32,SECC,AM 1 S.N.A
M0014 BN94-01304F ASSY PCB MAIN-AMLCD;LE32S62BX/* 1 S.A
M0013 BN96-03838D ASSY COVER P-REAR;32T70,EO,-,HIPS,HB,BK5 1 S.A
M0027 BN96-03698B ASSY STAND P-BASE;SONOMA,32,ABS+PMMA,HB, 1 S.A
5-2
5 Exploded View & Parts List
5-3 LE37S62B Exploded View
M0014
T0159
T0447
M0215
M0013
T0003
T0076
T0175
M0013
T0175
5-3
5 Exploded View & Parts List
5-4 LE37S62B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-04044J ASSY COVER P-FRONT;37T70,EO,ABS+PMMA,HB, 1 S.A
T0175 BN96-05399A ASSY SPEAKER P;8ohm,2pin,Left,10W,Sniper 1 S.A
T0175 BN96-05400A ASSY SPEAKER P;8ohm,3pin,Right,10W,Snipe 1 S.A
M0215 BN07-00424A LCD-PANEL;CLAA370WA03SL,8bit,37inch,16.7 1 S.A
T0447 BN96-03253A ASSY BRACKET P-PANEL;BORDEAUX-2,37,AUO,S 1 S.N.A
T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 S.A
M0014 BN94-01304B ASSY PCB MAIN-CPT;LE37S62BX/*CPT 1 S.A
M0027 BN96-03697B ASSY STAND P-BASE;SONOMA,40,ABS+PMMA,HB, 1 S.A
M0013 BN96-04045D ASSY COVER P-REAR;37T70,EO,HIPS,HB,BK500 1 S.A
5-4
5 Exploded View & Parts List
5-5 LE40S62B Exploded View
M0014
M0174
T0447
M0215
M0013
T0003
T0076
T0175
M0013
T0175
5-5
5 Exploded View & Parts List
5-6 LE40S62B Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-03394C ASSY COVER P-FRONT;40T70,EO,ABS+PMMA,HB, 1 SA
T0175 BN96-03247A ASSY SPEAKER P;8ohm,Sonoma 32,Left,10W,N 1 SA
T0175 BN96-03248A ASSY SPEAKER P;8ohm,Sonoma 32,Right,10W, 1 SA
M0215 BN07-00264A LCD-PANEL;LTA400WT-L01,8bit,952*551*51.0 1 SA
T0447 BN96-03528B ASSY BRACKET P-PANEL;SONOMA,40EO,READY,S 1 SNA
T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 SA
M0014 BN94-01033A ASSY PCB MAIN;LE40S71BX 1 SA
M0174 BN44-00134C IP BOARD;PSIV230601A,40"BORDEAUX,2.0~3.0 1 SA
M0013 BN96-03839A ASSY COVER P-REAR;40T71,EO,HIPS,HB,BK500 1 SA
M0013 BN96-03697A ASSY STAND P-BASE;40T70,ABS+PMMA,HB,BK23 1 SA
5-6
