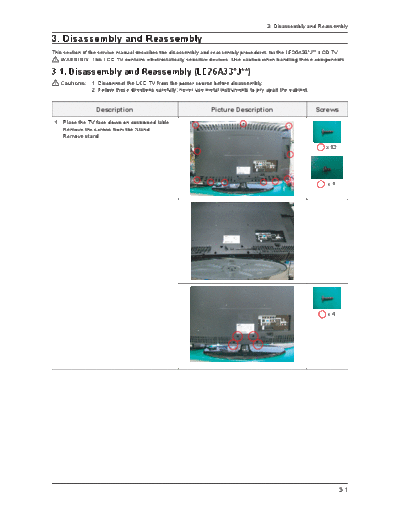

Image preview - the first page of the document
Disassembly & Reassembly


>> Download Disassembly & Reassembly documenatation <<

Text preview - extract from the document
                                                                                       3. Disassembly and Reassembly

3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LE26A33*J** LCD TV.
    WARNING: This LCD TV contains electrostatically sensitive devices. Use caution when handling these components.

3-1. Disassembly and Reassembly (LE26A33*J**)
   Cautions: 1. Disconnect the LCD TV from the power source before disassembly.
             2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.


                 Description                                    Picture Description                        Screws
 1. Place the TV face down on cushioned table.
    Remove the screws from the Stand.
    Remove stand.

                                                                                                             x 12




                                                                                                              x1




                                                                                                              x4




                                                                                                                    3-1
3. Disassembly and Reassembly


                Description                    Picture Description   Screws
2. Lift up rear cover and remove the stand.




3. Remove Screw from the stand BRKT and lift
   up the stand BRKT.


                                                                        x2




3-2
                                                          3. Disassembly and Reassembly


                Description              Picture Description               Screws
4. Disonnect cable from the boards.




5. Remove the screws of Scaler board's
   shield case and boards.


                                                                               x 10




                                                                                      3-3
3. Disassembly and Reassembly


                Description                                 Picture Description   Screws
6. Remove screws and Lift up the Lod panel.



                                                                                     x 10




                                                                                     x4




 Reassembly procedures are in the reverse order of disassembly procedures.




3-4
                                                                                      3. Disassembly and Reassembly

3-2. Disassembly and Reassembly (LE32A33*J*N**)
3-2-1. HANARO
  Cautions: 1. Disconnect the LCD TV from the power source before disassembly.
            2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.


                  Description                                  Picture Description                        Screws
1. Place the TV face down on cushioned table.
   Remove the screws from the Rear cover.
   Remove the screws from the Stand.

                                                                                                            x 11




                                                                                                             x1




                                                                                                             x4




2. Remove the stand.
   Lift up the rear cover.




                                                                                                                   3-5
3. Disassembly and Reassembly


                Description            Picture Description   Screws
3. Remove Screw from the stand BRKT.
   Lift up the stand BRKT.


                                                                x4




3-6
                                                                  3. Disassembly and Reassembly


                Description                      Picture Description               Screws
4. Disconnect a cable from the Main&IP boards.
   Remove a Cable.




5. Remove the screws of the Main & IP boards.
   Remove the Main & IP boards.


                                                                                       x4




                                                                                       x5




                                                                                       x2




                                                                                            3-7
3. Disassembly and Reassembly


                Description                                 Picture Description   Screws
6. Remove the Screw from Front Assy.
   Lift up the Panel BRKT.


                                                                                    x 10




7. Remove the screws from Panel BRKT.
   Remove the Panel BRKT.


                                                                                     x2




                                                                                     x9




 Reassembly procedures are in the reverse order of disassembly procedures.




3-8
                                                                                      3. Disassembly and Reassembly

3-2-2. OEM
  Cautions: 1. Disconnect the monitor from the power source before disassembly.
            2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.


                  Description                                  Picture Description                        Screws
1. Place monitor face down on cushioned table.
   Remove the screws from the Rear cover.
   Remove the screws from the Stand.

                                                                                                            x 11




                                                                                                             x1




                                                                                                             x4




2. Remove the stand.
   Lift up the rear cover.




                                                                                                                   3-9
3. Disassembly and Reassembly


                Description            Picture Description   Screws
3. Remove Screw from the stand BRKT.
   Lift up the stand BRKT.


                                                                x4




3-10
                                                              3. Disassembly and Reassembly


                Description                  Picture Description               Screws
4. Disconnect a cable from the Main & IP &
   T-CON boards. Remove a Cable.




5. Remove the screws of the Main & IP &
   T-CON boards.
   Remove the Main & IP & T-CON boards.

                                                                                   x8




                                                                                   x5




                                                                                   x2




                                                                                        3-11
3. Disassembly and Reassembly


                Description                                 Picture Description   Screws
6. Remove the Screw from Front Assy.
   Lift up the Panel BRKT.


                                                                                    x 12




7. Remove the screws from Panel BRKT.
   Remove the Panel BRKT.


                                                                                     x2




                                                                                     x9




 Reassembly procedures are in the reverse order of disassembly procedures.
