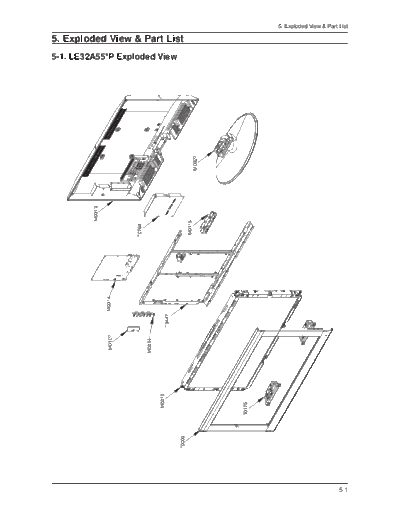

Image preview - the first page of the document
>> Download 20080708192358968_05_Exploded_View_IDTV(Ver2.0) documenatation <<
Text preview - extract from the document
5. Exploded View & Part List
5. Exploded View & Part List
5-1. LE32A55*P Exploded View
M0027
M0013
M0115
T0764
M0014
T0447
M0107
M0254
M0215
T0175
T0003
5-1
5. Exploded View & Part List
5-1-2. LE32A55*P Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06925E ASSY COVER P-FRONT;32L557,EO(iDTV),ABS+P 1 S.A
T0175 BN96-06818B ASSY SPEAKER P;8ohm,CORAL,L450,10W,4pin, 1 S.A
M0215 BN07-00520A LCD-PANEL;LTF320HA01 1 S.A
T0447 BN96-04681U ASSY BRACKET P-PANEL;32"PEARL-II,AMLCD 1 S.A
M0115 BN61-03706A BRACKET-STAND LINK;BRACKET-STAND-LINK 32 1 S.N.A
M0107 BN63-03039A SHIELD-COVER;MURANO40,PCM,T0.5,IDTV 1 S.N.A
M0254 BN61-02875E HOLDER-SIDE AV;40F8,EO,HIPS V0,-,-,-,BK5 1 S.N.A
M0014 BN94-01656E ASSY PCB MAIN;LE32A556P1FXXC 1 S.A
T0764 BN44-00208A SMPS-LCDTV;MK32P5T,SEM,AC/DC,137W,AC100 1 S.A
M0013 BN96-06947B ASSY COVER P-REAR;32L530,EO(iDTV),HIPS,H 1 S.A
M0027 BN96-06935A ASSY STAND P-BASE;32,L530,ABS+PMMA,HB,BK 1 S.A
5-2
M0014
M0107
T0764
M0254
M0215
T0447
5-2. LE37A55*P Exploded View
T0003
M0115 M0013
M0125
T0175
M0027
5. Exploded View & Part List
5-3
5. Exploded View & Part List
5-2-1. LE37A55*P Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06926A ASSY COVER P-FRONT;37L557,P2,EO(iDTV),AB 1 S.A
T0175 BN96-06818B ASSY SPEAKER P;8ohm,CORAL,L450,10W,4pin, 1 S.A
M0215 BN07-00514A LCD-PANEL;T370HW02 V4 1 S.A
T0447 BN96-06880A ASSY BRACKET P-PANEL;37L550P3,,SECC,,,PE 1 S.N.A
M0115 BN61-02882A BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-, 1 S.A
M0107 BN63-03039A SHIELD-COVER;MURANO40,PCM,T0.5,IDTV 1 S.N.A
M0254 BN61-02875E HOLDER-SIDE AV;40F8,EO,HIPS V0,-,-,-,BK5 1 S.N.A
M0014 BN94-01656A ASSY PCB MAIN-AUO;LE37A556P1FX,N46A 1 S.A
M0125 BN96-04817B ASSY INLET P;LNT4081FX,XAA,250mm,250mm,- 1 S.A
T0764 BN44-00216A SMPS-LCDTV;MK37P5T,SEM,AC/DC,171W,AC100 1 S.A
M0013 BN96-06948B ASSY COVER P-REAR;37L530,EO(iDTV),HIPS,H 1 S.A
M0027 BN96-04754A ASSY STAND P-BASE;-,37,40S81,-,ABS+PMMA, 1 S.A
5-4
M0013
M0014
M0254 M0146
M0107
T0101
M0215 M0125
5-3. LE40A55*P Exploded View
T0003 T0447
T0764
M0115
T0175
M0027
5. Exploded View & Part List
5-5
5. Exploded View & Part List
5-3-1. LE40A55*P Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06927E ASSY COVER P-FRONT;40L557,EO(iDTV),ABS+P 1 S.A
T0175 BN96-06809B ASSY SPEAKER P;8ohm,L550 P2/P3,Down Firi 1 S.A
M0215 BN07-00579A LCD-PANEL;LTF400HA03 1 S.A
T0447 BN96-06960A ASSY BRACKET P-PANEL;40A450C,SECC,T1.0,C 1 S.N.A
M0115 BN61-02882A BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-, 1 S.A
M0146 BN61-03414A BRACKET-PANEL TOP;PEONY52,SECC T1.2 2 S.N.A
M0014 BN94-01656P ASSY PCB MAIN-SQE;LE40A558P3FXXC 1 S.A
M0125 BN96-04817B ASSY INLET P;LNT4081FX,XAA,250mm,250mm,- 1 S.A
T0101 BN61-03348A BRACKET-WALL;LCD TV 32,SECC T1.2,-,-,-,- 2 S.N.A
M0013 BN96-06949B ASSY COVER P-REAR;40L530,EO(iDTV),HIPS,H 1 S.A
M0027 BN96-04754A ASSY STAND P-BASE;37,40S81,W/W,ABS+PMMA, 1 S.A
5-6
M0013
M0146
M0020
M0014
T0764
5-4. LE46A55*P Exploded View
M0215
M0107
T0003
M0125
M0115
M0027
T0175
T0447
5. Exploded View & Part List
5-7
5. Exploded View & Part List
5-4-1. LE46A55*P Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06710H ASSY COVER P-FRONT;PEARL 46",EU(iDTV),AB 1 S.A
T0175 BN96-06819A ASSY SPEAKER P;8ohm,PEARL,LCD,10W,100mm, 1 S.A
M0215 BN07-00518A LCD-PANEL;LTF460HA01 1 S.A
T0447 BN96-05878A ASSY BRACKET P-PANEL;-,PEONY,46,-,SECC,- 1 S.N.A
M0115 BN61-03336A BRACKET-STAND LINK;46 PEONY,SECC,T1.6 1 S.N.A
M0014 BN94-01656U ASSY PCB MAIN-AMLCD;LE46A556P1FXXC 1 S.A
M0125 BN96-05490A ASSY INLET P;LE52M87BDX,XEC,300,300,150m 1 S.A
M0013 BN96-05898B ASSY COVER P-REAR;L550 46Inch,EO,HIPS HB 1 S.A
M0027 BN96-06740A ASSY STAND P-BASE;L550 46Inch,ABS+PMMA,H 1 S.A
5-8
M0146 M0013
M0014
M0254 M0107
T0447 T0764
M0215
T0003
5-5. LE52A55*P Exploded View
M0125
T0175
M0027
5. Exploded View & Part List
5-9
5. Exploded View & Part List
5-5-1. LE52A55*P Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
T0003 BN96-06713B ASSY COVER P-FRONT;52L550,P3,EO(iDTV),AB 1 S.A
T0175 BN96-06809C ASSY SPEAKER P;8ohm,L530 52",Down Firing 1 S.A
M0215 BN07-00522A LCD-PANEL;LTF520HB01 1 S.A
T0447 BN96-07390A ASSY BRACKET P-PANEL;52L550,P2,P3,P4,EO, 1 S.N.A
M0115 BN61-03790A BRACKET-STAND LINK;AMBER 46,SECC,T1.6,-, 1 S.N.A
M0107 BN63-03039A SHIELD-COVER;MURANO40,PCM,T0.5,IDTV 1 S.N.A
M0254 BN61-02875E HOLDER-SIDE AV;40F8,EO,HIPS V0,-,-,-,BK5 1 S.N.A
M0014 BN94-01656D ASSY PCB MAIN-AMLCD;LE52A556P1FX,N46A 1 S.A
M0125 BN96-05490A ASSY INLET P;LE52M87BDX,XEC,300,300,150m 1 S.A
M0013 BN96-06951B ASSY COVER P-REAR;52L530,EO(iDTV),HIPS,H 1 S.A
M0027 BN96-06937A ASSY STAND P-BASE;52,L530,ABS+PMMA,HB,BK 1 S.A
5-10
5. Exploded View & Part List
5-6. LE32A55*P Parts List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
LE32A557P2FXBT LE32A557P2F,N46A/32AP2-GPR,32,LCD-TV,LAT
0.1 M0001 BN90-01545B ASSY COVER FRONT;32L530,EO,P2 1 S.N.A
..2 T0003 BN96-06925E ASSY COVER P-FRONT;32L557,EO(iDTV),ABS+P 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.A
...3 T0069 AA60-00171Q SPACER-FELT;56L3,FELT,690,T0.35,8 2 S.N.A
...3 BN61-03261J BOSS-TAPE;Tulip,ACRYL,T1.1,W16.0mm,GRAY, 0.62 S.N.A
...3 BN61-03885B HOLDER-BOSS BOTTOM;32L530,HIPS,HB,BK500 1 S.N.A
...3 BN63-01925A FELT-VIBRATION;42D5,FELT,T0.35,10,370 2 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 1.48 S.N.A
...3 M0112 BN63-04364C COVER-FRONT;32L550,P2,EO(iDTV),ABS+PMMA, 1 S.N.A
...3 T0059 BN64-00379A INDICATOR LED;ROME-II,23,PC,CLEAR 1 S.N.A
...3 T0061 BN64-00453A WINDOW-REMOCON;32R71,PC,VIOLET,DIFFUSER( 1 S.N.A
...3 T0022 BN64-00755A KNOB-CONTROL;32L450,ABS,V0,BK07 1 S.N.A
...3 M0025 BN96-06724A ASSY DECORATION P;L550-2 32Inch,EO,ABS+P 1 S.N.A
....4 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.05 S.N.A
....4 BN64-00835A DECORATION-BOTTOM;DECORATION-BOTTOM 32 L 1 S.N.A
...3 M0102 BN96-06798A ASSY BLU P;Pearl(L550),BACK LIGHT UNIT,M 1 S.A
...3 M0145 BN96-07269A ASSY BOARD P-FUNCTION;LN40A450C1D,CT5000 1 S.A
...3 M0146 BN96-07270F ASSY BOARD P-POWER & IR;LE32A656P1F,CT50 1 S.A
0.1 M0002 BN90-01550A ASSY COVER REAR;32L550,P3,EO(iDTV),,,, 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 11 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A
..2 M0013 BN96-06947B ASSY COVER P-REAR;32L530,EO(iDTV),HIPS,H 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A
...3 T0101 BN61-03348A BRACKET-WALL;LCD TV 32,SECC T1.2,-,-,-,- 4 S.N.A
...3 M0006 BN63-04366B COVER-REAR;32L550,P2,EO(iDTV),HIPS,-,-,- 1 S.N.A
...3 T0071 BN64-00776A INLAY-TERMINAL;L450,EO(iDTV),PS SHEET,T0 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,LDPE,-,-,BLK,- 1 S.N.A
0.1 M0216 BN90-01555A ASSY STAND;32L530 1 S.N.A
..2 T0524 6902-000241 BAG PE;HDPE/NITRON,T0.5/T0.012,W600,L600 1 S.N.A
..2 M0027 BN96-06935A ASSY STAND P-BASE;32,L530,ABS+PMMA,HB,BK 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A
...3 BN61-02232A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 S.N.A
...3 BN61-02233A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,N 1 S.N.A
...3 BN61-02236A BRACKET-HINGE SWIVEL;BORDEAUX 32,SECC,T1 1 S.N.A
...3 BN61-02942A BRACKET-STAND BOTTOM;32,BORDEAUX PLUS,SE 1 S.N.A
...3 T0920 BN61-03886A GUIDE-STAND;GUIDE-STAND 32 L530,PC,BLK,G 1 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.4 S.N.A
...3 T0004 BN63-03102A COVER-STAND BASE;32R81,ABS+PMMA,-,-,-,HB 1 S.N.A
...3 M0126 BN73-00052C RUBBER-FOOT;LCD TV,CR RUBBER,T2.0 DIA19, 4 S.N.A
5-11
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
0.1 BN91-01964A ASSY LCD-AMLCD;LN32A550P1FX/*,LTF320HA01 1 S.N.A
..2 M0215 BN07-00520A LCD-PANEL;LTF320HA01 1 S.A
0.1 M0017 BN91-02016E ASSY CHASSIS;LE32A556P1FX/XC,AMLCD 1 S.N.A
..2 M0014 BN94-01656E ASSY PCB MAIN;LE32A556P1FXXC 1 S.A
...3 0202-001557 SOLDER-CREAM;LST57-A,D38-63,42SN/57BI/1A 11 S.N.A
...3 T0245 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 1.25 S.N.A
...3 JA3114_NSI 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A
...3 JA3208_OP 3701-001480 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 S.A
...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A
...3 JA7201 3709-001508 CONNECTOR-CARD SLOT;68P,1.27mm,PIN,PCMCI 1 S.A
...3 CN330 3711-000058 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN 1 S.A
...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004531 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG 1 S.A
...3 CN330 3711-004712 HEADER-BOARD TO CABLE;BOX,9P,1R,2mm,STRA 1 S.A
...3 CN330 3711-005842 HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR 1 S.A
...3 JA330 3722-000143 JACK-PHONE;1P(VER),AG,BLK,ANGLE 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 CN3108_NSI 3722-002275 JACK-DIN;4P,-,SN,BLK,- 1 S.A
...3 CN3111_NSI 3722-002546 JACK-USB;4P/1C,AU,BLK,ANGLE,A type 1 S.N.A
...3 JA3202 3722-002681 JACK-SCART;42P,SN,BLK 1 S.A
...3 JA333 3722-002690 JACK-PIN;3P,Ni,RED/WHT/YEL,ANGLE 1 S.A
...3 HDCP BN97-00688B ASSY HDCP;MT8202 IC HDCP Key' 1 S.N.A
....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 S.N.A
...3 T0174 BN97-02033E ASSY SMD;LE32A556P1F/*,N46A 1 S.N.A
....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45um,96.5Sn/ 2.999 S.N.A
....4 D1104 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3101 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3102 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3103 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3104 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3105 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3106 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3108 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3109 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3144 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3146 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3147 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3149 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3150 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3151 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3152 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3153 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3154 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3155 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3158 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3159 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3161 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
5-12
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 D3162 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3163 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3165 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3166 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3168 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3170 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3173 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3195 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3196 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3197 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3198 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3200 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3201 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3202 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3203 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3204 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3206 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3207 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3254 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3255 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3256 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D5501_CEC 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D2105 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D2106 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D2201 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3118 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3120 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D3123 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D5104 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D5105 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D5201 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A
....4 D5111 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A
....4 D5101 0403-000584 DIODE-ZENER;VLZ3V6B,3.6/3.845V,500mW,SOD 1 S.N.A
....4 D3141 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3156 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3191 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3199 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A
....4 D1111 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 S.A
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 S.A
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 S.A
....4 D3119 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3122 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3138 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3139 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3179 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3180 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3182_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3183_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
5-13
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 D3184_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3185_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3188_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3189_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3190_NSID 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3251 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3252 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3208 0406-001181 DIODE-TVS;NUP4201MR6,6/-/-V,500W,TSOP-6 1 S.A
....4 D2104 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D2108 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D2110 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7201 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7202 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7203 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7204 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7205 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D7206 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 Q7001 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, 1 S.A
....4 Q7002 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, 1 S.A
....4 Q5201 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A
....4 Q7402 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A
....4 Q1104 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q1111 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q2102 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3102 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3106 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3107 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3111 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3112 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3113 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3114 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3151_NPN 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3152_NPN 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5104 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5108 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5109 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5202 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q6101_DIM 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q2101 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A
....4 Q2103 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A
....4 Q3104 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A
....4 Q3109 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A
....4 Q1101_L 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q1102_50HZ 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3103 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3105 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3108 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3110 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3153_NPN 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q3116 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.A
5-14
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 Q3117 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,SOT-23 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A
....4 IC104 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP 1 S.A
....4 IC104 0801-002172 IC-CMOS LOGIC;74LCX16244,BUFFER/LINE DRI 1 S.A
....4 IC104 0801-002172 IC-CMOS LOGIC;74LCX16244,BUFFER/LINE DRI 1 S.A
....4 IC104 0801-002172 IC-CMOS LOGIC;74LCX16244,BUFFER/LINE DRI 1 S.A
....4 IC104 0801-002432 IC-CMOS LOGIC;74LVC244,8BIT BUFFER/DRIVE 1 S.N.A
....4 IC104 0801-002630 IC-CMOS LOGIC;74AHCT1G08,2-INPUT AND GAT 1 S.A
....4 IC104 0801-003239 IC-CMOS LOGIC;74LVC1G00,2-input NAND Gat 1 S.A
....4 IC104 0801-003239 IC-CMOS LOGIC;74LVC1G00,2-input NAND Gat 1 S.A
....4 IC5110 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A
....4 IC106 1001-001513 IC-VIDEO SWITCH;TMDS351PAG,TQFP,64P,9x9m 1 S.A
....4 IC5108 1001-001523 IC-ANALOG MULTIPLEX;74HC4052PW,TSSOP,16P 1 S.A
....4 IC107 1002-001482 IC-D/A CONVERTER;WM8521H9GED/R,16bit,SOI 1 S.A
....4 IC2102 1002-001509 IC-A/D&D/A CONVERTER;MT8291,24bit,LQFP,4 1 S.A
....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 S.A
....4 IC112 1103-001410 IC-EEPROM;S-24CS08AFJ-TB-1GE,8Kbit,1Kx8, 1 S.A
....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A
....4 IC5104 1105-001862 IC-DDR2 SDRAM;K4T56163QI-ZCF7,DDR2 SDRAM 1 S.A
....4 IC5106 1105-001862 IC-DDR2 SDRAM;K4T56163QI-ZCF7,DDR2 SDRAM 1 S.A
....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A
....4 T0124 1201-002677 IC-POWER AMP;NTP3100,QFN56,56P,8x8mm,DUA 1 S.A
....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A
....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A
....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A
....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A
....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A
....4 IC3104 1203-003394 IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4 1 S.A
....4 IC7206 1203-003394 IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4 1 S.A
....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A
....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A
....4 IC5102 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 S.A
....4 IC2103 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A
....4 IC7402 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A
....4 T0087 1203-004816 IC-POSI.FIXED REG.;KIA78D015F,DPAK,3P,6. 1 S.A
....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A
....4 T0170 1203-004868 IC-SWITCH VOL. REG.;MP2363,SOIC,8P,4.9x3 1 S.A
....4 IC012 1203-005218 IC-POSI.ADJUST REG.;AP1086DL,TO-252,3P,6 1 S.A
....4 IC118 1204-002779 IC-VIDEO PROCESS;S4LF122X01,PBGA,208P,17 1 S.A
....4 IC7001 1204-002861 IC-DECODER;UPD61211GM-104-GAA-A,QFP,216P 1 S.A
....4 IC118 1204-002869 IC-VIDEO PROCESS;MT8226FJ,BGA,569P,31x31 1 S.A
5-15
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 D3107 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 D3110 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 D3113 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 D5502 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 R110 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 S.A
....4 R110 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 S.A
....4 R110 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
5-16
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000083 R-CHIP;3Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000096 R-CHIP;30Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000096 R-CHIP;30Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000104 R-CHIP;150Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
5-17
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
5-18
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 S.N.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
5-19
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
5-20
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 S.A
5-21
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R110 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 S.A
....4 R110 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
