                                                                                                                           5 Exploded View & Parts List


5 Exploded View and Parts List
- You can search for updated part codes through ITSELF web site.
  URL : http://itself.sec.samsung.co.kr/

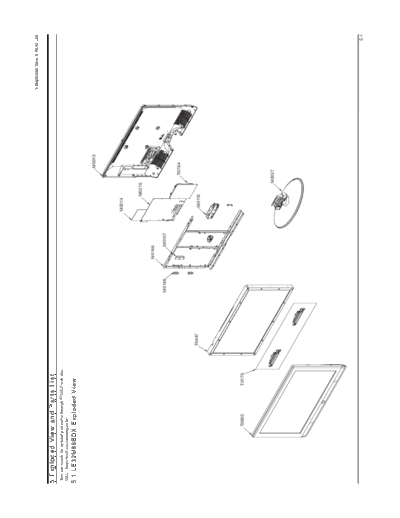

5-1 LE32M86BDX Exploded View


                                                                                                                   M0013




                                                                                               M0014



                                                                                                       M0215

                                                                                   M0146

                                                                           M0146       M0107


                                                                                                               T0764


                                                                   T0447                        M0115




                               T0003                  T0175




                                                                                                           M0027




                                                                                                                                                   5-1
5 Exploded View & Parts List

5-2 LE32M86BDX Parts list

  Location   Code.No       Item & Specification                       Q'ty   SA/SNA   Remark

  T0003      BN96-05318B   ASSY COVER P-FRONT;-,32M86,EO(IDTV),-,AB    1      S.A

  T0175      BN96-04773A   ASSY SPEAKER P;8ohm,4pin,Horn Type,10W,T    1      S.A

  M0215      BN07-00463A   LCD-PANEL;T315XW02 VF,8bit,32inch,16.7M,    1      S.A

  T0447      BN96-05757A   ASSY BRACKET P-PANEL;32M81,SMPS,AUO,SUB-    1     S.N.A

  M0146      BN61-02207A   BRACKET-PANEL SIDE;Bordeaux 26,SECC,T1.2    4     S.N.A

  M0014      BN94-01303G   ASSY PCB MAIN-AUO VE;LE32M87BDX/*           1      S.A

  M0107      BN63-03039A   SHIELD-COVER;MURANO40,PCM,T0.5,IDTV         1     S.N.A

  T0764      BN44-00156B   SMPS-LCDTV;FULL-HD 32",SEM,AC/DC,180W,AC    1      S.A

  M0027      BN96-04662A   ASSY STAND P-BASE;32R81,M81,SWIVEL,-,ABS    1      S.A

  M0013      BN96-05320A   ASSY COVER P-REAR;32M81,EO(IDTV),ABS+PMM    1      S.A




5-2
