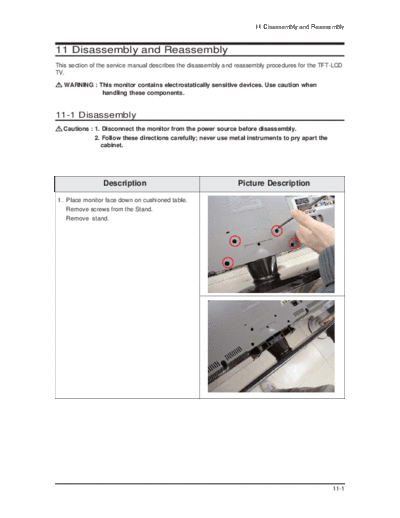

Image preview - the first page of the document
>> Download 05_Disassembly & Reassembly documenatation <<Text preview - extract from the document 11 Disassembly and Reassembly
11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD
TV.
WARNING : This monitor contains electrostatically sensitive devices. Use caution when
handling these components.
11-1 Disassembly
Cautions : 1. Disconnect the monitor from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the
cabinet.
Description Picture Description
1. Place monitor face down on cushioned table.
Remove screws from the Stand.
Remove stand.
11-1
11 Disassembly and Reassembly
Description Picture Description
2. Remove screws from the rear-cover and lift up
the rear-cover.
3. Disconnet cables from the main and power
boards
Remove screws from the side AV jack.
11-2
11 Disassembly and Reassembly
Description Picture Description
4. Remove screws from the boards and stand
BRKT.
5. Lift up the speakers.
Remove screws from the BRKT.
11-3
11 Disassembly and Reassembly
Description Picture Description
6. Lift up the Panel and remove screws.
7. Lift up the panel BRKT.
11-4
11 Disassembly and Reassembly
11-2 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.
11-5
11 Disassembly and Reassembly
Memo
11-6
