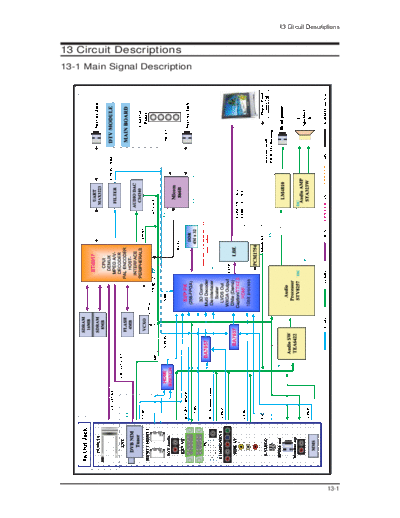

Image preview - the first page of the document
>> Download 12_Circuit Description documenatation <<Text preview - extract from the document 13 Circuit Descriptions
13 Circuit Descriptions
13-1 Main Signal Description
13-1
13 Circuit Descriptions
13-2 DTV Signal Description
13-2
13 Circuit Descriptions
13-3 DTV Signal Description (Only for Italy)
13-3
13 Circuit Descriptions
13-4 RF/DTV Tuner (DNOS303ZH261B(S)) SPEC.
1. Description
1-1 Receiving System : Designed to cover all bands in VHF and UHF including digital terrestrial(DVB-T)
and hyper channels for CCIR system.
1-2 It built in COFDM-Demod IC & Analog Demod IC (PAL B/G, I, D/K, SECAM L/L')
1-3 Receiving Channel : 47MHz ~ 862MHz
1-4 Intermediate Frequency : Digital(center) 36.167 MHz, Analog(picture) 38.9MHz
1-5 Input Impedance : 75
