5. Exploded View & Part List
5. Exploded View & Part List

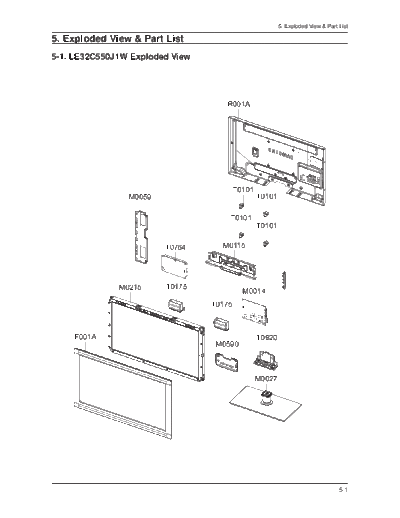

5-1. LE32C550J1W Exploded View
R001A
T0101
M0059 T0101
T0101
T0101
T0764 M0115
M0215 T0175
M0014
T0175
F001A T0920
M0590
M0027
5-1
5. Exploded View & Part List
5-2. LE32C550J1W Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
F001A BN96-12806B ASSY COVER P-FRONT;32,LC550,EO,PC+PC,V2, 1 SA
M0014 BN94-03391M ASSY PCB MAIN-AAE;LE32C550J1WX* 1 SA
M0027 BN96-12761A ASSY STAND P-BASE;32,EXPORT,TEMPERED GLA 1 SA
M0059 BN81-04436A A/S-INV T315HW04 V2;T315HW04 V2 1 SA
M0115 BN61-06024A BRACKET-STAND LINK;LC550 32",SECC,T1.2 1 SNA
M0215 BN07-00826A LCD-PANEL;T315HW04 V2,AU31H42,8bit,31.5, 1 SA
M0590 BN81-04407A A/S-T CON T315HW04_V2;T315HW04 V2 1 SA
R001A BN96-12765H ASSY COVER P-REAR;32,LC550,EO,PCM,T0.5,B 1 SA
T0101 BN61-05996A BRACKET-WALL;LC650 40,SECC,T1.2 4 SNA
T0175 BN96-12871A ASSY SPEAKER P;6ohm,4pin,10W,L:530 R:170 1 SA
T0764 BN44-00339A SMPS-LCD TV;P3237F1_ASM,P3237F1_ASM,AC/D 1 SA
T0920 BN61-06002A GUIDE-STAND;32,LC650,PC+G/F,20%,V2,BK000 1 SNA
5-2
5. Exploded View & Part List
5-2-1. LE32C550J1W Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
0.1 S001A BN90-02442B ASSY STAND;32,LC650,W/W,2COAT,ROSE BLACK 1 SNA
..2 M0027 BN96-12761A ASSY STAND P-BASE;32,EXPORT,TEMPERED GLA 1 SA
...3 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 3 SA
...3 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.1 SNA
...3 BN61-04731C BOSS-TAPE;AMBER,ACRYL,T1.1,W16.0mm,WHITE 0.29 SNA
...3 BN61-04855A BRACKET-SWIVEL BOTTOM;B650 40,SECC,T2.0 1 SNA
...3 BN61-05254A HOLDER-SWIVEL RING BOTTOM;LB700 40,POM H 1 SNA
...3 BN61-05653A BRACKET-STAND BOTTOM;B650 32,SECC,T2.0 1 SNA
...3 BN61-05826A BOSS-BOND;#760,Poly urethane,Black 2.4 SNA
...3 GSN01 BN61-05993A GUIDE-STAND NECK;32,LC650,PETG,V2,TP0003 1 SNA
....4 BN61-06078B GUIDE-NECK-INSERT;LC650 32,PETG HB,TP000 1 SNA
...3 CCM1 BN63-04755A COVER-SHEET;AMBER,PE,T0.05,W150mm,200M,6 1.1 SNA
...3 BN63-05530D COVER-STAND GLASS;32,LC650,GLASS,T8.0,2C 1 SNA
...3 T0527 BN68-01648B LABEL WARNING;WW,PET,T0.05,40,25,EXPORT 1 SNA
...3 M0126 BN73-00215A RUBBER-FOOT;40LB650,RUBBER,15*25,60,4.0, 4 SNA
...3 M0126 BN73-00217A RUBBER-FOOT;LB650,RUBBER,DIA30,7.5,Dark 4 SNA
...3 BN74-00031A GREASE;kanto-kasei FL-955,grease,wht 0.4 SNA
...3 T0056 BN63-06908A COVER-DECORATION;LB700 40,ABS+PMMA,HB,H/ 1 SNA
..2 T0920 BN61-06002A GUIDE-STAND;32,LC650,PC+G/F,20%,V2,BK000 1 SNA
0.1 R001A BN90-02446H ASSY COVER REAR;32,LC550,EO 1 SNA
..2 R001A BN96-12765H ASSY COVER P-REAR;32,LC550,EO,PCM,T0.5,B 1 SA
...3 R001 BN63-06392C COVER-REAR;32,LC550/530,EO,PCM,T0.5,BLK, 1 SNA
...3 BN64-01269D INLAY-AV;LC550,EO,PS SHEET,T0.5,BLK,H/GL 1 SNA
...3 T0071 BN64-01297C INLAY-TERMINAL;LC550,EO,PS SHEET,T0.5,BL 1 SNA
...3 T0139 BN65-00003A CLAMPER BAG;42C7,LDPE,HB,BLK 1 SNA
...3 AH358 BN61-06544A HOLDER-REAR;LC650 32,PP,BLK 1 SNA
...3 M0131 BN63-03845A GASKET;EMT4-10-4-110R-DM8,4T,10MM,100MM 2 SNA
...3 BN60-00162C SPACER-FOAM;FOAM,50000mm,Dark Gray,0.5T, 0.86 SNA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 9 SA
0.1 BN90-02472B ASSY COVER FRONT;32,LC550,EO 1 SNA
..2 F001A BN96-12806B ASSY COVER P-FRONT;32,LC550,EO,PC+PC,V2, 1 SA
...3 BN60-00163A SPACER-FOAM;LC650-32",FOAM,400,0.5,25,Bo 2 SNA
...3 BN60-00163F SPACER-FOAM;LC650-32",FOAM,750,T 0.5,22, 1 SNA
...3 AB326 BN61-04661A BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H 4 SNA
...3 BN61-04731A BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE 1 SNA
...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.04,900mm,20 0.35 SNA
...3 CCM1 BN63-05199P COVER-SHEET;AMBER,PE,T0.08,W1000,200M,CL 0.31 SNA
...3 F001 BN63-06384B COVER-FRONT;32,LC550,EO,PC+PC,V2,TP0010+ 1 SNA
...3 BN61-05977B HOLDER-BOSS BOTTOM;32,LC630,ABS,HB,WT003 1 SNA
...3 FB21A BN96-14789C ASSY BOARD P-TOUCH FUNCTION&IR;LC550,CT5 1 SA
..2 T0175 BN96-12871A ASSY SPEAKER P;6ohm,4pin,10W,L:530 R:170 1 SA
0.1 M0017 BN91-04662E ASSY CHASSIS;LN55C650T1FXZA 1 SNA
..2 M0014 BN94-03391M ASSY PCB MAIN-AAE;LE32C550J1WX* 1 SA
...3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 SNA
...3 3701-001480 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 SA
...3 CN906 3707-001096 CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF 1 SA
...3 3709-001601 CONNECTOR-CARD SLOT;68P W/L,1.27mm,PCMCI 1 SA
...3 3711-007302 HEADER-BOARD TO BOARD;BOX,18P,2R,2mm,ANG 1 SA
5-3
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
...3 3722-003037 JACK-USB;4P/1C W/L,AU/NI,BLK,ANGLE,A 1 SA
...3 JA330 3722-003038 JACK-PHONE;7P/1C W/L,SN,BLK 2 SA
...3 3722-003039 JACK-SCART;21P,Sn,BLK 1 SA
...3 JA333 3722-003040 JACK-PIN;3P W/L,SN,BLK/YEL/WHT/RED,ANGLE 1 SA
...3 3722-003041 JACK-PIN;5P RCA(SCART) W/L,NI,RED/WHT/RE 1 SA
...3 3722-003058 JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 1 SA
...3 CIS3 BN40-00173A TUNER;DTOS40CVL081A,DVB-T/C,164CH,38.9MH 1 SA
...3 T0066 BN62-00040A HEAT SINK-ES;SAPPHIRE,T2.0,36*36*6.6,BLK 1 SNA
...3 M0412 BN96-11826C ASSY BRACKET P-PCB;LB450 40,SPTE T0.5 + 1 SNA
....4 BN61-04928C BRACKET-SUPPORT PCB;SPTE,T 0.5,SCREW-M4 1 SNA
....4 BN61-05262B HOLDER-BOSS PCB;52,LB550(EO),PBT+G/F(30% 1 SNA
...3 BN97-03935M ASSY SMD;LE32C550J1WX*,BN94-03391M 1 SNA
....4 0202-001767 SOLDER-CREAM;LST-5710,D20~38,Sn-57Bi-1Ag 0.409 SNA
....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 18 SA
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 2 SA
....4 0403-001164 DIODE-ZENER;MMSZ5232B,5.32-5.88V,500MW,S 1 SA
....4 0403-001180 DIODE-ZENER;BZX84C6V2,5.8-6.6V,350mW,SOT 1 SA
....4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 17 SNA
....4 D0254 0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000mA,SMA,TP 1 SA
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 SA
....4 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 2 SA
....4 T0139 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 9 SNA
....4 SD3 0407-000114 DIODE-SWITCHING;KDS184,80V,100mA,SOT-23, 3 SNA
....4 KQ1 0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150mW,SOT- 1 SA
....4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 12 SA
....4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 5 SA
....4 Q409 0505-000274 FET-SILICON;AO4435L,P,-30V,-11A,0.014ohm 1 SNA
....4 IC104 0801-002630 IC-CMOS LOGIC;74AHCT1G08,2-INPUT AND GAT 1 SA
....4 ND51C2 0801-002780 IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER 1 SA
....4 IC104 0801-003330 IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x 3 SA
....4 IC104 0802-001012 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,DQFN, 1 SNA
....4 T0596 0904-002554 IC-USC;AU6256-JBF,QFN,28P,5x5mm,12MHz,TP 1 SA
....4 IC106 1001-001573 IC-VIDEO SWITCH;SiI9287BCNUTR,QFN,72P,10 1 SNA
....4 1006-001474 IC-LINE DRIVER;DRV604PWP,HPSSOP,28P,9.8x 1 SA
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 2 SA
....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 SA
....4 1105-002058 IC-DDR2 SDRAM;K4T1G164QE-HCF8,DDR2,1Gbit 2 SA
....4 T0124 1201-002992 IC-POWER AMP;STA369BWS,PSSO,36P,10.3x7.5 1 SA
....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,PLAST 1 SA
....4 T0087 1203-002835 IC-POSI.FIXED REG.;KIA7805AF,DPAK,3P,6.6 1 SA
....4 T0087 1203-002898 IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. 1 SA
....4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
....4 1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. 1 SA
....4 1203-005559 IC-BACKLIGHT DRIVER;MP3302DJ,TSOT23,5P,2 1 SA
....4 1203-006013 IC-DC/DC CONVERTER;AOZ1031AI,SO-8,8P,4.9 1 SA
....4 1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 1 SA
....4 T0087 1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T 1 SA
....4 T0087 1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T 1 SA
....4 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
....4 1203-006288 IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 1 SA
....4 1204-003088 IC-DEMODULATOR;DRX39XYK,PQFN,64P,9x9x0.8 1 SA
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 1204-003096 IC-VIDEO DECODER;HIDTVPRO-SX,PBGA,580P,P 1 SA
....4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 2 SA
....4 1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9x1.6 1 SA
....4 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 1 SA
....4 1205-003735 IC-SWITCH;AP2151WG-7,SOT25,5P,2.9x1.6mm, 1 SA
....4 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 SA
....4 1405-001271 VARISTOR;20Vdc,5A,1.0x0.5x0.6mm,TP 25 SA
....4 PR6 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 4 SNA
....4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 36 SA
....4 HDR7 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 3 SNA
....4 AR49 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 8 SNA
....4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 14 SNA
....4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 49 SNA
....4 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 2 SNA
....4 R104 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 51 SA
....4 R102 2007-000149 R-CHIP;12Kohm,5%,1/16W,TP,1005 8 SA
....4 HDR2 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 SNA
....4 HDR9 2007-000152 R-CHIP;20Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 8 SNA
....4 AR43 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 7 SNA
....4 R123 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 3 SNA
....4 DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR16 2007-000168 R-CHIP;470Kohm,5%,1/16W,TP,1005 1 SA
....4 R509 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 SNA
....4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 10 SNA
....4 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 4 SNA
....4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 11 SNA
....4 UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 2 SNA
....4 MR9 2007-000455 R-CHIP;18Kohm,1%,1/10W,TP,1608 1 SA
....4 ER13 2007-000669 R-CHIP;2Kohm,1%,1/10W,TP,1608 1 SNA
....4 R726 2007-000695 R-CHIP;3.3ohm,5%,1/10W,TP,1608 1 SNA
....4 2007-000755 R-CHIP;330Kohm,1%,1/10W,TP,1608 1 SA
....4 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 3 SNA
....4 HR3 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 SNA
....4 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 SNA
....4 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 4 SA
....4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 9 SNA
....4 DR43 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 SNA
....4 2007-001317 R-CHIP;910ohm,5%,1/16W,TP,1005 1 SNA
....4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 11 SNA
....4 2007-002768 R-CHIP;6.2Kohm,1%,1/10W,TP,1608 1 SA
....4 MR316 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 1 SA
....4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 2 SA
....4 TR30 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 11 SNA
....4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 1 SNA
....4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 3 SNA
....4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 6 SNA
....4 2007-007316 R-CHIP;3.3Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 1 SA
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 8 SNA
....4 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 4 SNA
....4 MR11 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 13 SA
....4 2007-008134 R-CHIP;12.4Kohm,1%,1/16W,TP,1005 1 SC
....4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
....4 2007-008563 R-CHIP;270ohm,1%,1/16W,TP,1005 1 SA
....4 2007-008593 R-CHIP;750ohm,1%,1/16W,TP,1005 1 SA
....4 ZRN10 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 6 SA
....4 DAR09 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 5 SA
....4 2011-001448 R-NETWORK;10ohm,5%,1/16W,L,4P,T,1010 4 SA
....4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 8 SA
....4 DRP9 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 SA
....4 2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. 2 SA
....4 2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, 7 SNA
....4 2011-001589 R-NETWORK;0ohm,5%,1/16W,L,CHIP-V,4P,TP,1 16 SNA
....4 DC30 2203-000138 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1005,- 2 SNA
....4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 4 SA
....4 MC302 2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 4 SA
....4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 13 SA
....4 AC139 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 2 SA
....4 V1233 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,TP,2012 6 SNA
....4 MC9 2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 2 SNA
....4 DC374 2203-000659 C-CER,CHIP;0.27nF,5%,50V,C0G,1608 1 SA
....4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,1005 1 SNA
....4 DC25 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,1005 11 SA
....4 CK40B 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 3 SNA
....4 KFC6 2203-000872 C-CER,CHIP;0.0030nF,0.25pF,50V,C0G,1608 2 SNA
....4 HDC5 2203-001072 C-CER,CHIP;0.056nF,5%,50V,NP0,1005 4 SA
....4 C101 2203-001124 C-CER,CHIP;0.68NF,10%,50V,X7R,TP,1005 1 SNA
....4 DC87 2203-001153 C-CER,CHIP;.068nF,5%,50V,NP0,1005 2 SA
....4 AD480 2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 2 SNA
....4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 17 SNA
....4 AD480 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 8 SNA
....4 C711 2203-002982 C-CER,CHIP;6.8nF,10%,50V,X7R,1005 1 SA
....4 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 7 SNA
....4 DC9 2203-005481 C-CER,CHIP;47nF,10%,10V,X7R,TP,1005 3 SA
....4 AD480 2203-005511 C-CER,CHIP;27nF,10%,10V,X7R,TP,1005 1 SA
....4 AD480 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 SNA
....4 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 SNA
....4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 129 SNA
....4 JC10 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,1608 2 SA
....4 AD480 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 18 SA
....4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 50 SC
....4 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 3 SA
....4 HDC11 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 15 SNA
....4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,1608 1 SNA
....4 AD480 2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,1005 15 SNA
....4 AD480 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 2 SNA
....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 4 SA
....4 T0052 2703-000296 INDUCTOR-SMD;680nH,10%,1608 1 SA
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 VL6 2703-000398 INDUCTOR-SMD;10uH,10%,3225 5 SA
....4 L1103 2703-000403 INDUCTOR-SMD;22uH,10%,3225 1 SA
....4 T0052 2703-001239 INDUCTOR-SMD;3.3uH,10%,1608 3 SA
....4 L607 2703-001254 INDUCTOR-SMD;1.8uH,10%,2012 1 SA
....4 T0052 2703-002268 INDUCTOR-SMD;8.2nH,5%,1005 4 SNA
....4 T0052 2703-003149 INDUCTOR-SMD;2.2uH,20%,5050 2 SA
....4 T0052 2703-003150 INDUCTOR-SMD;4.7uH,20%,5050 4 SNA
....4 X202 2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 1 SA
....4 X202 2801-004004 CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2 1 SA
....4 X202 2801-004775 CRYSTAL-SMD;12MHz,30ppm,16pF,30ohm,TP 1 SNA
....4 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 2 SA
....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 7 SA
....4 T0568 3301-002039 BEAD-SMD;26ohm,1608,TP 37 SA
....4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,Hi 1 SNA
....4 3701-001591 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU 3 SNA
....4 3701-001693 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A 1 SA
....4 AC510 3708-002797 CONNECTOR-FPC/FFC/PIC;51P,0.50mm,SMD,AU, 1 SA
....4 CON_US 3711-005616 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,SMD 1 SNA
....4 HB01A 3711-007336 HEADER-BOARD TO CABLE;B0X,4P,1R,2.5mm,SM 1 SA
....4 BN41-01331B PCB MAIN;SX1 DVB (4/5series),FR-4,4,1.0, 1 SNA
....4 BN97-04023A ASSY MICOM-MAIN;N82A,2009.11.10,T-TDT5DE 1 SNA
.....5 1107-001818 IC-NAND FLASH;KFG1G16U2C-DIB6,1024Mbit,6 1 SNA
....4 BN97-04024A ASSY MICOM-SUB;N82A,2009.11.10,T-TDT5DEU 1 SNA
.....5 IC115 1107-001580 IC-FLASH MEMORY;MX25L4005,4Mbit,512Kx8,S 1 SNA
....4 T0087 1203-005134 IC-POSI.FIXED REG.;RT9167A-33PB,SOT-23-5 1 SNA
...3 BN97-04098A ASSY CI PLUS;BN46-00025A,LC5F,SX1 platfo 1 SNA
....4 BN46-00025A KEY CODE-CI PLUS KEY;CI PLUS KEY,TCTC,SE 1 SNA
...3 3722-003088 JACK-USB;4P/1C,NI/PD/AU/SN,GRY,STRAIGHT, 1 SA
0.1 BN91-04913A ASSY LCD-AUO;BN07-00826A 1 SNA
..2 M0215 BN07-00826A LCD-PANEL;T315HW04 V2,AU31H42,8bit,31.5, 1 SA
...3 M0590 BN81-04407A A/S-T CON T315HW04_V2;T315HW04 V2 1 SA
...3 M0059 BN81-04436A A/S-INV T315HW04 V2;T315HW04 V2 1 SA
0.1 BN91-05088B ASSY SHIELD-AAE;LE32C550J1WX* 1 SNA
..2 T0081 6001-002284 SCREW-MACHINE;BH,+,M4,L8,ZPC(WHT),SWRCH1 8 SA
..2 T0081 6001-002604 SCREW-MACHINE;BH,+,M4,L10,ZPC(WHT),SWRCH 2 SA
..2 M0081 6003-000337 SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR 6 SA
..2 M2893 BN39-01267A LEAD CONNECTOR;LA32B450,UL 2651 AWG#26,1 1 SA
..2 M2893 BN39-01274A LEAD CONNECTOR;LC5F,UL 1007 #26,14P,80mm 1 SA
..2 T0764 BN44-00339A SMPS-LCD TV;P3237F1_ASM,P3237F1_ASM,AC/D 1 SA
..2 BN61-06023A HOLDER-SIDE AV;LC450 32,EO,PC+ABS,V0,BK0 1 SNA
..2 BN61-06441A HOLDER-INLET;LC530,ABS,V0 1 SNA
..2 BN61-06559A HOLDER-GROUND;LC550,SUS304,0.3 2 SNA
..2 M0523 BN96-12973A ASSY BRACKET P-WALL;32,37,40,LC650,SECC, 4 SNA
...3 T0101 BN61-05996A BRACKET-WALL;LC650 40,SECC,T1.2 4 SNA
...3 BN60-00188B SPACER-FOAM;LCD,FELT,20,3.0,20,Center : 4 SNA
..2 M0230 BN96-13171A ASSY CABLE P-FFC;LN32C530F1FXZA,FFC,0.5m 1 SA
..2 T0910 BN96-13341A ASSY BRACKET P-STAND LINK;LC530 32,SECC, 1 SNA
...3 BN61-02429K STUD-PEM;PNB,M3.8,D7,L14.9,ZPC(SIL),SUM2 4 SNA
...3 M0115 BN61-06024A BRACKET-STAND LINK;LC550 32",SECC,T1.2 1 SNA
...3 BN61-05281A HOLDER-CLAMP;LCD,NYLON 66,WHT 2 SNA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 7 SA
5-7
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
0.1 BN92-05722A ASSY LABEL;LN32C550J1FX*,37,40,46 1 SNA
..2 T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, 1 SNA
0.1 ACCE1 BN92-05798G ASSY ACCESSORY;LE32C550J1WXXH 1 SNA
..2 BN96-13269H ASSY ACCESSORY-MANUAL;LE32C550J1WXXH,37, 1 SNA
...3 AA69-02656A BAG ACCESSORY;PJTV,LDPE,T0,05,L400,W280, 1 SNA
...3 BN68-00514E MANUAL FLYER-05,WARRANTY CARD;comm,Samsu 1 SNA
...3 BN68-02186A MANUAL FLYER-TOC GUIDE;COMM,SAMSUNG,11 L 1 SNA
...3 BN68-02688C MANUAL USERS;C550,SAMSUNG,10LANGS,XH,W/P 1 SNA
...3 AA68-03242V MANUAL FLYER-SAFETY GUIDE;comm,Samsung,1 1 SNA
...3 BN68-02766B MANUAL FLYER-STAND GUIDE;L550~L750,SAMSU 1 SNA
..2 ACCE2 BN96-13310L ASSY ACCESSORY-CABLE;LE32C550J1WX* 1 SNA
...3 T0268 3903-000456 CBF-POWER CORD;DT,EU/KR,CP3,IEC320 C13-R 1 SA
...3 T0120 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,HOLDER,7. 2 SNA
...3 T0524 6902-001107 BAG PE;LDPE,T0.05,W450,L400,TRP,0,3Separ 1 SNA
...3 REMO2 BN59-01014A REMOCON;TM1050,SAMSUNG,20PIN SINGLE,48KE 1 SA
...3 BN61-05596A HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, 1 SNA
...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 SA
...3 T0531 BN63-06389B COVER-BOTTOM;32,LC530,HIPS,V0,BK0020 1 SA
...3 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 9 SA
...3 T0524 6902-000341 BAG PE;LDPE,T0.05,L90,W70,TRP,,,PE MARK 1 SNA
0.1 BN92-05854A ASSY P/MATERIAL;32,LC650 1 SNA
..2 6902-001104 BAG ROLL;HDPE/HDPE/NITRON,T0.5,W800,L175 1.9 SNA
..2 BN69-03934A WRAP STRETCH FILM;All,HDPE,0.012,500,300 5 SNA
..2 BN68-02422B LABEL-WARNING SHIPPING;ALL MODEL,A/P 100 1 SNA
..2 AA01-00004A FOIL;2000,2000,NTR,SEH 1 SNA
..2 T0214 BN74-00008A TAPE-OPP MASKING;OPP-2,T0.05,W100,L800M, 2.3 SNA
..2 BN69-04998A CUSHION-SET;32LC550/570,630,650,670/653, 1 SNA
..2 BN69-04029A PAD PACKING-EDGE;CB,B800,W50x50,L2200,YE 1 SNA
..2 BN69-04822A PALLET-WOOD;2010 LCD 32,WOOD,W1020,D1190 1 SNA
0.1 BN92-05901C ASSY BOX;32,LC550,EO 1 SNA
..2 BH68-00662A LABEL BOX-00;ALL MODEL,MOJO 90G,60,110,W 1 SNA
..2 BN69-05100E BOX-SET;32LC550-SEH,CB,A-01,DW3,YEL,W827 1 SNA
5-8
5. Exploded View & Part List
5. Exploded View & Part List
5-1. LE37C550J1W Exploded View
R001A
T0101
INVER T0101
T0101
T0101
T0764 M0115
PANEL T0175
M0014
T0175
F001A T0920
TCON
M0027
5-1
5. Exploded View & Part List
5-2. LE37C550J1W Parts List
Location No. Code No. Description & Specification Q'ty S.A/S.N.A Remark
F001A BN96-12807B ASSY COVER P-FRONT;37,LC550,EO,PC+PC,V2, 1 SA
INVER BN81-04438A A/S-INV T370HW03 VG;T370HW03 VG 1 SA
M0014 BN94-03391J ASSY PCB MAIN;LE37C550J1WX* 1 SA
M0027 BN96-12762A ASSY STAND P-BASE;37,40,EXPORT,TEMPERED 1 SA
M0115 BN61-05998A BRACKET-STAND LINK;LC650 46,SECC,T1.6 1 SNA
PANEL BN07-00828A LCD-PANEL;T370HW03 VG,AU37H3G,8bit,37,16 1 SA
R001A BN96-12766H ASSY COVER P-REAR;37,LC550,EO,PCM,T0.5,B 1 SA
T0101 BN61-05996A BRACKET-WALL;LC650 40,SECC,T1.2 4 SNA
T0175 BN96-12871B ASSY SPEAKER P;6ohm,4pin,10W,L:540 R:200 1 SA
T0764 BN44-00339B SMPS-LCD TV;P3237F1_AHS,P3237F1_AHS,AC/D 1 SA
T0920 BN61-06003A GUIDE-STAND;37,40,46,LC650,PC+G/F,20%,V2 1 SNA
TCON BN81-04409A A/S-T CON T370HW03_VG;T370HW03 VG 1 SA
5-2
5. Exploded View & Part List
5-2-1. LE37C550J1W Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
0.1 S001A BN90-02443B ASSY STAND;37,40,LC650,W/W,2COAT,ROSE BL 1 SNA
..2 M0027 BN96-12762A ASSY STAND P-BASE;37,40,EXPORT,TEMPERED 1 SA
...3 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 6 SA
...3 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.1 SNA
...3 BN61-04731D BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE 0.29 SNA
...3 BN61-05244A BRACKET-SWIVEL BOTTOM;LB700 46,HGI,T3.0 1 SNA
...3 BN61-05493A HOLDER-SWIVEL RING BOTTOM;LB650 40,Aceta 1 SNA
...3 BN61-05652A BRACKET-STAND BOTTOM;B650 40,SECC,T2.0 1 SNA
...3 BN61-05826A BOSS-BOND;#760,Poly urethane,Black 2.6 SNA
...3 GSN01 BN61-05994A GUIDE-STAND NECK;40,LC650,PETG,V2,TP0003 1 SNA
....4 0103-007257 RESIN-PETG;ECOZEN-SE,NP01,TP0003,3.2 V2, 150 SNA
....4 BN61-06079A GUIDE-NECK-INSERT;40,LC650,PETG,HB,TP000 1 SNA
...3 CCM1 BN63-04755A COVER-SHEET;AMBER,PE,T0.05,W150mm,200M,6 1.14 SNA
...3 BN63-05781D COVER-STAND GLASS;40,LC650,GLASS,T8.0,2C 1 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 T0527 BN68-01648B LABEL WARNING;WW,PET,T0.05,40,25,EXPORT 1 SNA
...3 M0126 BN73-00215A RUBBER-FOOT;40LB650,RUBBER,15*25,60,4.0, 4 SNA
...3 M0126 BN73-00217A RUBBER-FOOT;LB650,RUBBER,DIA30,7.5,Dark 4 SNA
...3 BN74-00031A GREASE;kanto-kasei FL-955,grease,wht 0.4 SNA
...3 FD01 BN63-06913A COVER-DECORATION;LB7000 46,ABS+PMMA,HB,H 1 SNA
....4 0103-005096 RESIN-ABS;HB,ABS+PMMA 13 SNA
..2 SG03A BN96-12795D ASSY STAND P-GUIDE;37,40,46,LC650,W/W,PC 1 SA
...3 T0920 BN61-06003A GUIDE-STAND;37,40,46,LC650,PC+G/F,20%,V2 1 SNA
....4 0103-007285 RESIN-PC;BK0007,2.0 V2,PC/GF20%,Glass fi 478 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 BN68-02766B MANUAL FLYER-STAND GUIDE;L550~L750,SAMSU 1 SNA
...3 BN96-12031G ASSY ACCESSORY-SCREW;10 LCD-TV,6003-0010 1 SNA
....4 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 9 SA
....4 T0524 6902-000341 BAG PE;LDPE,T0.05,L90,W70,TRP,,,PE MARK 1 SNA
...3 T0524 6902-001063 BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE 1 SNA
0.1 R001A BN90-02447H ASSY COVER REAR;37,LC550,EO 1 SNA
..2 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 13 SA
..2 R001A BN96-12766H ASSY COVER P-REAR;37,LC550,EO,PCM,T0.5,B 1 SA
...3 R001 BN63-06336C COVER-REAR;37,LC550/530,EO,PCM,T0.5,BLK, 1 SNA
...3 BN64-01269D INLAY-AV;LC550,EO,PS SHEET,T0.5,BLK,H/GL 1 SNA
...3 T0071 BN64-01297C INLAY-TERMINAL;LC550,EO,PS SHEET,T0.5,BL 1 SNA
...3 T0139 BN65-00003A CLAMPER BAG;42C7,LDPE,HB,BLK 1 SNA
...3 BN60-00162X SPACER-FOAM;FOAM,30000mm,Dark Gray,1T,15 2.03 SNA
...3 AH358 BN61-06545A HOLDER-REAR;LC650 37/40/46,PP,BLK 1 SNA
..2 6001-002622 SCREW-MACHINE;PH,+,WSP,M6,L12,ZPC(BLK),S 4 SA
..2 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.1 SNA
0.1 BN90-02473B ASSY COVER FRONT;37,LC550,EO 1 SNA
..2 F001A BN96-12807B ASSY COVER P-FRONT;37,LC550,EO,PC+PC,V2, 1 SA
...3 AB326 BN61-04661A BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H 5 SNA
...3 CCM1 BN63-05199B COVER-SHEET;AMBER,PE,T0.08,W65mm,200M,CL 2.13 SNA
...3 CCM1 BN63-05199D COVER-SHEET;AMBER,PE,T0.08,W75mm,200M,CL 0.95 SNA
...3 F001 BN63-06385B COVER-FRONT;37,LC550,EO,PC+PC,V2,TP0010+ 1 SNA
....4 0103-007267 RESIN-PC;RD0005,2.0V0,NH PC,NH PC 2.0 V2 945 SNA
5-3
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 0103-007268 RESIN-PC;TP0010,2.0V0,NH PC,NH PC 2.0 V2 660 SNA
...3 BN96-12776B ASSY HOLDER P-BOSS BOTTOM;37,LC630,ABS,H 1 SNA
....4 BN61-04731A BOSS-TAPE;AMBER,ACRYL,T1.1,W8.0mm,WHITE 0.36 SNA
....4 BN61-05978B HOLDER-BOSS BOTTOM;37,LC630,ABS,HB,WT003 1 SNA
.....5 0103-004618 RESIN-ABS;WT0034,HB,ABS,High Flow ABS 110 SNA
...3 M0125 BN96-13451B ASSY BOARD P-TOUCH FUNCTION&IR;LN32C550J 1 SA
...3 BN74-00052A TAPE-PAPER;LB530,Crepe Paper,0.17mm, 10m 0.05 SNA
...3 BN60-00162X SPACER-FOAM;FOAM,30000mm,Dark Gray,1T,15 0.81 SNA
...3 BN60-00163R SPACER-FOAM;LC650-37",FOAM,830,T 1.0,18, 1 SNA
...3 BN60-00163S SPACER-FOAM;LC650-37",FOAM,470,T 1.0,20, 2 SNA
..2 T0175 BN96-12871B ASSY SPEAKER P;6ohm,4pin,10W,L:540 R:200 1 SA
0.1 BN91-04911A ASSY LCD-AUO;BN07-00828A 1 SNA
..2 PANEL BN07-00828A LCD-PANEL;T370HW03 VG,AU37H3G,8bit,37,16 1 SA
...3 TCON BN81-04409A A/S-T CON T370HW03_VG;T370HW03 VG 1 SA
...3 INVER BN81-04438A A/S-INV T370HW03 VG;T370HW03 VG 1 SA
0.1 BN91-05089A ASSY SHIELD;LE37C550J1WX* 1 SNA
..2 T0081 6001-002284 SCREW-MACHINE;BH,+,M4,L8,ZPC(WHT),SWRCH1 8 SA
..2 M0081 6003-000337 SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR 6 SA
..2 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 5 SA
..2 M2893 BN39-01267E LEAD CONNECTOR;LB6T,FLAT CONNECTOR ASS'Y 1 SA
..2 M2893 BN39-01272A LEAD CONNECTOR;LB6T,UL2651#26,14P,100mm, 1 SA
..2 T0764 BN44-00339B SMPS-LCD TV;P3237F1_AHS,P3237F1_AHS,AC/D 1 SA
..2 BN61-06023A HOLDER-SIDE AV;LC450 32,EO,PC+ABS,V0,BK0 1 SNA
...3 0103-005041 RESIN-PC;V0,PC+ABS 21 SNA
..2 M0523 BN96-12973A ASSY BRACKET P-WALL;32,37,40,LC650,SECC, 4 SNA
...3 T0101 BN61-05996A BRACKET-WALL;LC650 40,SECC,T1.2 4 SNA
...3 BN60-00188B SPACER-FOAM;LCD,FELT,20,3.0,20,Center : 4 SNA
..2 M0230 BN96-13171B ASSY CABLE P-FFC;LN37C530F1FXZA,FFC,0.5m 1 SA
..2 T0910 BN96-13342A ASSY BRACKET P-STAND LINK;LC530 37/40/46 1 SNA
...3 BN61-02429K STUD-PEM;PNB,M3.8,D7,L14.9,ZPC(SIL),SUM2 2 SNA
...3 M0115 BN61-05998A BRACKET-STAND LINK;LC650 46,SECC,T1.6 1 SNA
...3 BN61-05281A HOLDER-CLAMP;LCD,NYLON 66,WHT 3 SNA
..2 T0081 6001-002604 SCREW-MACHINE;BH,+,M4,L10,ZPC(WHT),SWRCH 2 SA
..2 BN61-06441A HOLDER-INLET;LC530,ABS,V0 1 SNA
...3 0103-004627 RESIN-ABS;VE-0812/K2901,BK0020,V0,ABS,No 18 SNA
..2 BN61-06559A HOLDER-GROUND;LC550,SUS304,0.3 2 SNA
..2 BN73-00273B SILICON/RUBBER-GAPPAD;UE32C6500,SILICON+ 1 SNA
0.1 BN92-05722A ASSY LABEL;LN32C550J1FX*,37,40,46 1 SNA
..2 T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, 1 SNA
..2 AA68-03752D LABEL-STICKER;WW,ALL,Art Paper(90g),44.5 1 SNA
0.1 ACCE1 BN92-05798H ASSY ACCESSORY;LE37C550J1WXXH,40,46 1 SNA
..2 BN96-13269H ASSY ACCESSORY-MANUAL;LE32C550J1WXXH,37, 1 SNA
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,9.2 1 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 BN68-00514E MANUAL FLYER-05,WARRANTY CARD;comm,Samsu 1 SNA
...3 BN68-02186A MANUAL FLYER-TOC GUIDE;COMM,SAMSUNG,11 L 1 SNA
...3 BN68-02688C MANUAL USERS;C550,SAMSUNG,10LANGS,XH,W/P 1 SNA
...3 AA68-03242V MANUAL FLYER-SAFETY GUIDE;comm,Samsung,1 1 SNA
..2 ACCE2 BN96-13310M ASSY ACCESSORY-CABLE;LE37C550J1WX*,40 1 SNA
...3 T0268 3903-000456 CBF-POWER CORD;DT,EU/KR,CP3,IEC320 C13-R 1 SA
...3 T0120 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,HOLDER,7. 2 SNA
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
...3 REMO2 BN59-01014A REMOCON;TM1050,SAMSUNG,20PIN SINGLE,48KE 1 SA
...3 BN61-05596A HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, 1 SNA
...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 SA
...3 T0531 BN63-06339B COVER-BOTTOM;37,40,46,LC650,HIPS,V0,BK00 1 SA
....4 0103-004637 RESIN-HIPS;BK0020,V0,HIPS,NoN-Deca,NoN-D 70 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,9.2 1 SNA
0.1 BN92-05855A ASSY P/MATERIAL;37,LC650 1 SNA
..2 T0214 0203-001595 TAPE-OPP MASKING;OPP-2,0.075,75,800M,CLR 2.58 SNA
..2 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 3.19 SNA
..2 M040 6922-000003 BAND PP;PP,T0.8,W18,L1650M,TRP,DA69-9014 0.81 SNA
..2 BN69-00257B PACKING-PAD;PAPER,CB-SW4,1130,820,YEL,28 1 SNA
..2 BN69-00257F PACKING-BAG SHEET;-,CB,-,1200,500,-,-,WH 1 SNA
..2 BN69-03982F PAD PACKING-EDGE;LB6T,PAPER,8,120,2160,Y 1 SNA
..2 T0246 BN69-04324A CUSHION-01,SET;LC650 37,EPS,16.7g/l 1 SNA
..2 BN68-02422B LABEL-WARNING SHIPPING;ALL MODEL,A/P 100 1 SNA
..2 BN69-05034A PAD CUSHION;37LC***,EPS,T43,W230,D435 1 SNA
..2 BN69-05181A PALLET;-,WOOD,980,1180,135,8500,2010-45, 1 SNA
..2 6902-001176 BAG PE;HDPE/NITRON,T0.015/T0.5,W1200,L50 1 SNA
..2 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,1260.0 1 SNA
0.1 BN92-05900C ASSY BOX;37,LC550,EO 1 SNA
..2 BN69-04665D BOX-SET;37LC550,CB,A-01,DW3,YEL,W1135,D1 1 SNA
..2 BH68-00662A LABEL BOX-00;ALL MODEL,MOJO 90G,60,110,W 1 SNA
0.1 M0017 BN91-04662B ASSY CHASSIS;LC570 1 SNA
..2 M0014 BN94-03391J ASSY PCB MAIN;LE37C550J1WX* 1 SA
...3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 SNA
...3 3701-001480 CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN 1 SA
...3 CN906 3707-001096 CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF 1 SA
...3 3709-001601 CONNECTOR-CARD SLOT;68P W/L,1.27mm,PCMCI 1 SA
...3 3711-007302 HEADER-BOARD TO BOARD;BOX,18P,2R,2mm,ANG 1 SA
...3 3722-002920 JACK-USB;4P/1C,Ni/Pd/Au/Sn,BLK,STRAIGHT, 1 SA
...3 3722-003037 JACK-USB;4P/1C W/L,AU/NI,BLK,ANGLE,A 1 SA
...3 JA330 3722-003038 JACK-PHONE;7P/1C W/L,SN,BLK 2 SA
...3 3722-003039 JACK-SCART;21P,Sn,BLK 1 SA
...3 JA333 3722-003040 JACK-PIN;3P W/L,SN,BLK/YEL/WHT/RED,ANGLE 1 SA
...3 3722-003041 JACK-PIN;5P RCA(SCART) W/L,NI,RED/WHT/RE 1 SA
...3 3722-003058 JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 1 SA
...3 CIS3 BN40-00173A TUNER;DTOS40CVL081A,DVB-T/C,164CH,38.9MH 1 SA
...3 T0066 BN62-00040A HEAT SINK-ES;SAPPHIRE,T2.0,36*36*6.6,BLK 1 SNA
...3 M0412 BN96-11826C ASSY BRACKET P-PCB;LB450 40,SPTE T0.5 + 1 SNA
....4 BN61-04928C BRACKET-SUPPORT PCB;SPTE,T 0.5,SCREW-M4 1 SNA
....4 BN61-05262B HOLDER-BOSS PCB;52,LB550(EO),PBT+G/F(30% 1 SNA
...3 BN97-03935J ASSY SMD;LE37C550J1WX*,BN94-03391J 1 SNA
....4 0202-001767 SOLDER-CREAM;LST-5710,D20~38,Sn-57Bi-1Ag 0.409 SNA
....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 18 SA
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 2 SA
....4 0403-001164 DIODE-ZENER;MMSZ5232B,5.32-5.88V,500MW,S 1 SA
....4 0403-001180 DIODE-ZENER;BZX84C6V2,5.8-6.6V,350mW,SOT 1 SA
....4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 17 SNA
....4 D0254 0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000mA,SMA,TP 1 SA
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 SA
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 2 SA
....4 T0139 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 9 SNA
....4 SD3 0407-000114 DIODE-SWITCHING;KDS184,80V,100mA,SOT-23, 3 SNA
....4 KQ1 0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150mW,SOT- 1 SA
....4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 12 SA
....4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 5 SA
....4 Q409 0505-000274 FET-SILICON;AO4435L,P,-30V,-11A,0.014ohm 1 SNA
....4 IC104 0801-002630 IC-CMOS LOGIC;74AHCT1G08,2-INPUT AND GAT 1 SA
....4 ND51C2 0801-002780 IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER 1 SA
....4 IC104 0801-003330 IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x 3 SA
....4 IC104 0802-001012 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,DQFN, 1 SNA
....4 T0596 0904-002554 IC-USC;AU6256-JBF,QFN,28P,5x5mm,12MHz,TP 1 SA
....4 IC106 1001-001573 IC-VIDEO SWITCH;SiI9287BCNUTR,QFN,72P,10 1 SNA
....4 1006-001474 IC-LINE DRIVER;DRV604PWP,HPSSOP,28P,9.8x 1 SA
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 2 SA
....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 SA
....4 1105-002058 IC-DDR2 SDRAM;K4T1G164QE-HCF8,DDR2,1Gbit 2 SA
....4 T0124 1201-002992 IC-POWER AMP;STA369BWS,PSSO,36P,10.3x7.5 1 SA
....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,PLAST 1 SA
....4 T0087 1203-002835 IC-POSI.FIXED REG.;KIA7805AF,DPAK,3P,6.6 1 SA
....4 T0087 1203-002898 IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. 1 SA
....4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
....4 T0087 1203-005134 IC-POSI.FIXED REG.;RT9167A-33PB,SOT-23-5 1 SNA
....4 1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. 1 SA
....4 1203-005559 IC-BACKLIGHT DRIVER;MP3302DJ,TSOT23,5P,2 1 SA
....4 1203-006013 IC-DC/DC CONVERTER;AOZ1031AI,SO-8,8P,4.9 1 SA
....4 1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 1 SA
....4 T0087 1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T 1 SA
....4 T0087 1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T 1 SA
....4 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
....4 1203-006288 IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 1 SA
....4 1204-003088 IC-DEMODULATOR;DRX39XYK,PQFN,64P,9x9x0.8 1 SA
....4 1204-003096 IC-VIDEO DECODER;HIDTVPRO-SX,PBGA,580P,P 1 SA
....4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 2 SA
....4 1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9x1.6 1 SA
....4 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 1 SA
....4 1205-003735 IC-SWITCH;AP2151WG-7,SOT25,5P,2.9x1.6mm, 1 SA
....4 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 SA
....4 1405-001271 VARISTOR;20Vdc,5A,1.0x0.5x0.6mm,TP 25 SA
....4 PR6 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 4 SNA
....4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 36 SA
....4 HDR7 2007-000139 R-CHIP;220ohm,5%,1/16W,TP,1005 3 SNA
....4 AR49 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 7 SNA
....4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 14 SNA
....4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 48 SNA
....4 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 2 SNA
....4 R104 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 52 SA
....4 R102 2007-000149 R-CHIP;12Kohm,5%,1/16W,TP,1005 8 SA
....4 HDR2 2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 SNA
....4 HDR9 2007-000152 R-CHIP;20Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 8 SNA
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 AR43 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 8 SNA
....4 R123 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 3 SNA
....4 DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR16 2007-000168 R-CHIP;470Kohm,5%,1/16W,TP,1005 1 SNA
....4 R509 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 SNA
....4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 10 SNA
....4 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 4 SNA
....4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 11 SNA
....4 UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 2 SNA
....4 MR9 2007-000455 R-CHIP;18Kohm,1%,1/10W,TP,1608 1 SA
....4 ER13 2007-000669 R-CHIP;2Kohm,1%,1/10W,TP,1608 1 SNA
....4 R726 2007-000695 R-CHIP;3.3ohm,5%,1/10W,TP,1608 1 SNA
....4 2007-000755 R-CHIP;330Kohm,1%,1/10W,TP,1608 1 SA
....4 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 3 SNA
....4 HR3 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 SNA
....4 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 SNA
....4 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 4 SA
....4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 9 SNA
....4 DR43 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 SNA
....4 2007-001317 R-CHIP;910ohm,5%,1/16W,TP,1005 1 SNA
....4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 11 SNA
....4 2007-002768 R-CHIP;6.2Kohm,1%,1/10W,TP,1608 1 SA
....4 MR316 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 1 SA
....4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 2 SA
....4 TR30 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 11 SA
....4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 1 SNA
....4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 3 SNA
....4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 6 SNA
....4 2007-007316 R-CHIP;3.3Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 8 SNA
....4 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 4 SNA
....4 MR11 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 13 SNA
....4 2007-008134 R-CHIP;12.4Kohm,1%,1/16W,TP,1005 1 SC
....4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
....4 2007-008563 R-CHIP;270ohm,1%,1/16W,TP,1005 1 SA
....4 2007-008593 R-CHIP;750ohm,1%,1/16W,TP,1005 1 SA
....4 ZRN10 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 6 SA
....4 DAR09 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 5 SA
....4 2011-001448 R-NETWORK;10ohm,5%,1/16W,L,4P,T,1010 4 SA
....4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 8 SA
....4 DRP9 2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 SA
....4 2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. 2 SA
....4 2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, 7 SNA
....4 2011-001589 R-NETWORK;0ohm,5%,1/16W,L,CHIP-V,4P,TP,1 16 SNA
....4 DC30 2203-000138 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1005,- 2 SNA
....4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 4 SA
....4 MC302 2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 4 SA
5-7
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 13 SA
....4 AC139 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 2 SA
....4 V1233 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,TP,2012 6 SNA
....4 MC9 2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 2 SNA
....4 DC374 2203-000659 C-CER,CHIP;0.27nF,5%,50V,C0G,1608 1 SA
....4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,1005 1 SA
....4 DC25 2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,1005 11 SA
....4 CK40B 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 3 SNA
....4 KFC6 2203-000872 C-CER,CHIP;0.0030nF,0.25pF,50V,C0G,1608 2 SNA
....4 HDC5 2203-001072 C-CER,CHIP;0.056nF,5%,50V,NP0,1005 4 SA
....4 C101 2203-001124 C-CER,CHIP;0.68NF,10%,50V,X7R,TP,1005 1 SA
....4 DC87 2203-001153 C-CER,CHIP;.068nF,5%,50V,NP0,1005 2 SA
....4 AD480 2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 2 SNA
....4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 17 SNA
....4 AD480 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 8 SNA
....4 C711 2203-002982 C-CER,CHIP;6.8nF,10%,50V,X7R,1005 1 SA
....4 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 7 SNA
....4 DC9 2203-005481 C-CER,CHIP;47nF,10%,10V,X7R,TP,1005 3 SA
....4 AD480 2203-005511 C-CER,CHIP;27nF,10%,10V,X7R,TP,1005 1 SA
....4 AD480 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 1 SNA
....4 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 SNA
....4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 130 SNA
....4 JC10 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,1608 2 SA
....4 AD480 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 18 SA
....4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 50 SC
....4 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 3 SA
....4 HDC11 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 15 SNA
....4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,1608 1 SNA
....4 AD480 2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,1005 16 SNA
....4 AD480 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 2 SNA
....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 4 SA
....4 T0052 2703-000296 INDUCTOR-SMD;680nH,10%,1608 1 SA
....4 VL6 2703-000398 INDUCTOR-SMD;10uH,10%,3225 5 SA
....4 L1103 2703-000403 INDUCTOR-SMD;22uH,10%,3225 1 SA
....4 T0052 2703-001239 INDUCTOR-SMD;3.3uH,10%,1608 3 SA
....4 L607 2703-001254 INDUCTOR-SMD;1.8uH,10%,2012 1 SA
....4 T0052 2703-002268 INDUCTOR-SMD;8.2nH,5%,1005 4 SNA
....4 T0052 2703-003149 INDUCTOR-SMD;2.2uH,20%,5050 2 SA
....4 T0052 2703-003150 INDUCTOR-SMD;4.7uH,20%,5050 4 SNA
....4 X202 2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 1 SA
....4 X202 2801-004004 CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2 1 SA
....4 X202 2801-004775 CRYSTAL-SMD;12MHz,30ppm,16pF,30ohm,TP 1 SNA
....4 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 2 SA
....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 7 SNA
....4 T0568 3301-002039 BEAD-SMD;26ohm,1608,TP 37 SA
....4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,Hi 1 SNA
....4 3701-001591 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU 3 SNA
....4 3701-001693 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A 1 SA
....4 AC510 3708-002797 CONNECTOR-FPC/FFC/PIC;51P,0.50mm,SMD,AU, 1 SA
....4 CON_US 3711-005616 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,SMD 1 SNA
....4 HB01A 3711-007336 HEADER-BOARD TO CABLE;B0X,4P,1R,2.5mm,SM 1 SA
5-8
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
