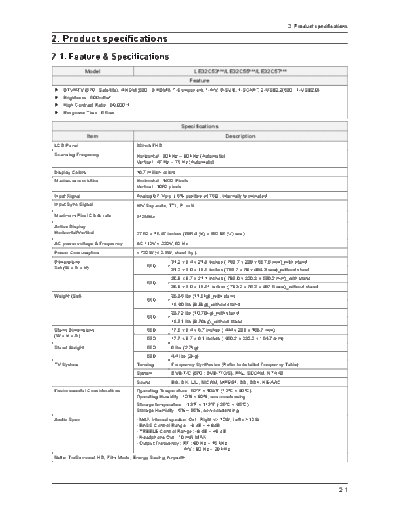

Image preview - the first page of the document
Product Specification


>> Download Product Specification documenatation <<

Text preview - extract from the document
                                                                                                        2. Product specifications

2. Product specifications
2-1. Feature & Specifications
               Model                                          LE32C53***/LE32C55***/LE32C57***
                                                             Feature
 DTV/ATV (570 : Satellite), 4-HDMI(530 : 3-HDMI), 1-Component, 1-A/V, D-SUB, 1-SCART, 2-USB2.0(530 : 1-USB2.0)
 Brightness : 500cd/m2
 High Contrast Ratio : 60,000:1
 Response Time : 6.5ms

                                                        Specifications
                 Item                                                        Description
LCD Panel                         32inch FHD
Scanning Frequency                Horizontal : 30 kHz ~ 80 kHz (Automatic)
                                  Vertical : 47 Hz ~ 75 Hz (Automatic)

Display Colors                    16.7 million colors
Maximum resolution                Horizontal : 1920 Pixels
                                  Vertical : 1080 pixels
Input Signal                      Analog 0.7 Vp-p
