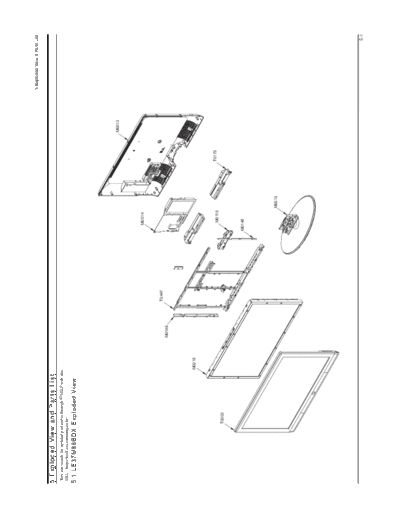

Image preview - the first page of the document
>> Download Exploded View & Part List documenatation <<
Text preview - extract from the document
5 Exploded View & Parts List
5 Exploded View and Parts List
- You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
5-1 LE37M86BDX Exploded View
M0013
M0014
T0447
M0146
M0215
M0115 T0175
T0003
M0146
M0013
5-1
5 Exploded View & Parts List
5-2 LE37M86BDX Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-04637B ASSY COVER P-FRONT;37M86,EO(IDTV),-,ABS+ 1 S.A
T0175 BN96-04771A ASSY SPEAKER P;8ohm,4pin,Enclosure Type, 1 S.A
T0447 BN96-04680C ASSY BRACKET P-PANEL;37M87,AUO,NT,PAL 1 S.N.A
M0215 BN07-00398A LCD-PANEL;T370HW02,8bit,37inch,16.7M,16: 1 S.A
M0014 BN94-01206A ASSY PCB MAIN;LE37M86BDX/* 1 S.A
M0013 BN96-04757A ASSY COVER P-REAR;37M81,EO(IDTV),ABS+PMM 1 S.A
M0013 BN96-04640A ASSY STAND P-BASE;37,40M81,-,ABS+PMMA,HB 1 S.A
5-2
5 Exploded View & Parts List
5-3 LE40M86BDX Exploded View
M0013
T0447
M0014
M0215
T0003
T0175
M0013
5-3
5 Exploded View & Parts List
5-4 LE40M86BDX Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-04643H ASSY COVER P-FRONT;40M86,EO(IDTV),ABS+PM 1 S.A
T0175 BN96-04771A ASSY SPEAKER P;8ohm,4pin,Enclosure Type, 1 S.A
T0447 BN96-05213B ASSY BRACKET P-PANEL;40M81,EO 1 S.N.A
M0215 BN07-00383A LCD-PANEL;LTA400HT-LH1,10bit,40inch,1.07 1 S.A
M0014 BN94-01206B ASSY PCB MAIN;LE40M86BDX/* 1 S.A
M0013 BN96-04746A ASSY COVER P-REAR;40M81,EO(IDTV),ABS+PMM 1 S.A
M0013 BN96-04640A ASSY STAND P-BASE;37,40M81,-,ABS+PMMA,HB 1 S.A
5-4
5 Exploded View & Parts List
5-5 LE46M86BDX Exploded View
M0013
T0447
M0014
M0215
T0003
T0175
M0013
5-5
5 Exploded View & Parts List
5-6 LE46M86BDX Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-04649H ASSY COVER P-FRONT;46M86,EO(IDTV),ABS+PM 1 S.A
T0175 BN96-04771A ASSY SPEAKER P;8ohm,4pin,Enclosure Type, 1 S.A
T0447 BN96-05214B ASSY BRACKET P-PANEL;46M81,EO 1 S.N.A
M0215 BN07-00391A LCD-PANEL; LTA460HT-LH2,10bit,46inch,1.0 1 S.A
M0014 BN94-01206C ASSY PCB MAIN;LE46M86BDX/* 1 S.A
M0013 BN96-04731A ASSY COVER P-REAR;46M81,EO(IDTV),-,ABS+P 1 S.A
M0013 BN96-04648A ASSY STAND P-BASE;46,52M81,-,ABS+PMMA,HB 1 S.A
5-6
5 Exploded View & Parts List
5-7 LE52M86BDX Exploded View
M0013
T0447
M0014
M0215
T0003
T0175
M0013
5-7
5 Exploded View & Parts List
5-8 LE52M86BDX Parts list
Location Code.No Item & Specification Q'ty SA/SNA Remark
T0003 BN96-04651J ASSY COVER P-FRONT;52M87,EO(IDTV),ABS+PM 1 S.N.A
T0175 BN96-04772A ASSY SPEAKER P;8ohm,4pin,Enclosure Type, 1 S.A
T0447 BN96-05294A ASSY BRACKET P-PANEL;52M81,UO,EO,SO,LO 1 S.N.A
M0215 BN07-00394A LCD-PANEL;LTA520HA03,10bit,52inch,1.07B, 1 S.A
M0014 BN94-01206D ASSY PCB MAIN;LE52M86BDX/* 1 S.A
M0013 BN96-04720A ASSY COVER P-REAR;52M81,EO(IDTV),-,ABS+P 1 S.A
M0013 BN96-04648A ASSY STAND P-BASE;46,52M81,-,ABS+PMMA,HB 1 S.A
