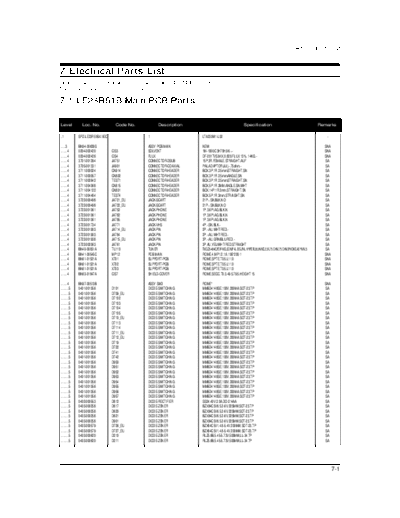

Image preview - the first page of the document
>> Download Electrical Part List documenatation <<
Text preview - extract from the document
7 Electrical Parts List
7 Electrical Parts List
-You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
7-1 LE23R51B Main PCB Parts
Level Loc. No. Code No. Description Specification Remarks
..1 SPZ-LE23R51BX/XEC 1 LTA230W1-L02 -
......3 BN94-00629S ASSY PCB MAIN NEW SNA
........4 0204-002420 CIS3 SOLVENT 1M-1000,C3H70H,96,-,- SNA
........4 0204-002426 CIS4 FLUX DF-201TVS,MIX,0.820,FLUX 13%, 14KG,- SNA
........4 3701-001294 JA751 CONNECTOR-DSUB 15P,3R,FEMALE,STRAIGHT,AUF SA
........4 3705-001331 JA901 CONNECTOR-COAXIAL PAL,ADAPTOR(J/J),-,75ohm,- SA
........4 3711-000024 CN914 CONNECTOR-HEADER BOX,3P,1R,2.5mm,STRAIGHT,SN SA
........4 3711-000057 CN802 CONNECTOR-HEADER BOX,3P,1R,2.5mm,ANGLE,SN SA
........4 3711-002642 TEST1 CONNECTOR-HEADER BOX,3P,1R,2.5mm,STRAIGHT,SN SA
........4 3711-004068 CN815 CONNECTOR-HEADER BOX,5P,1R,2MM,ANGLE,SN,WHT SA
........4 3711-004122 CN801 CONNECTOR-HEADER BOX,14P,1R,2mm,STRAIGHT,SN SA
........4 3711-004484 TEST4 CONNECTOR-HEADER BOX,5P,1R,2mm,STRAIGHT,SN SA
........4 3722-000498 JA721_EU JACK-SCART 21P,-,SN,BLK,NO SA
........4 3722-000498 JA722_EU JACK-SCART 21P,-,SN,BLK,NO SA
........4 3722-001061 JA752 JACK-PHONE 1P,3.6PI,AG,BLK,N SA
........4 3722-001061 JA782 JACK-PHONE 1P,3.6PI,AG,BLK,N SA
........4 3722-001061 JA785 JACK-PHONE 1P,3.6PI,AG,BLK,N SA
........4 3722-001734 JA771 JACK-VHS 4P,-,SN,BLK,- SA
........4 3722-001903 JA714_EU JACK-PIN 2P,-,AU,WHT/RED,- SA
........4 3722-001903 JA784 JACK-PIN 2P,-,AU,WHT/RED,- SA
........4 3722-001938 JA715_EU JACK-PIN 3P,-,AU,GRN/BLU/RED,- SA
........4 3722-002063 JA761 JACK-PIN 3P,AU,YEL/WHT/RED,STRAIGHT SA
........4 BN40-00051A TU110 TUNER TMQZ6-404C,PDP-NELSON,PAL B/G,PAL HYPER,38.9MHZ,2.5V,75 OHM,75 OHM,PHONE,ASYMM,5 SA
........4 BN41-00545C MP1.2 PCB MAIN ROME,4,MP1.2,1.6,195*200,1 SNA
........4 BN61-01521A X701 SUPPORT-PCB ROME,SPTE,T0.5,L11.0 SNA
........4 BN61-01521A X702 SUPPORT-PCB ROME,SPTE,T0.5,L11.0 SNA
........4 BN61-01521A X703 SUPPORT-PCB ROME,SPTE,T0.5,L11.0 SNA
........4 BN63-01847A CIS7 SHIELD-COVER ROME,SECC,T0.3,49.5,79.5,HEIGHT 15 SNA
........4 BN97-00513B ASSY SMD ROME* SNA
..........5 0401-001056 D101 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D709_EU DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D7102 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D7103 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D7104 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D7105 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D710_EU DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D7113 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D7114 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D711_EU DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D712_EU DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D719 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D722 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D741 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D742 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D950 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D951 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D952 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D953 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D954 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D955 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D956 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0401-001056 D957 DIODE-SWITCHING MMBD4148SE,100V,200MA,SOT-23,TP SA
..........5 0402-000553 D812 DIODE-RECTIFIER SS24,40V,2.0A,DO-214AA SA
..........5 0403-000258 D617 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP SA
..........5 0403-000258 D620 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP SA
..........5 0403-000258 D621 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP SA
..........5 0403-000258 D901 DIODE-ZENER BZX84C5V6,5.2-6V,225MW,SOT-23,TP SA
..........5 0403-000579 D726_EU DIODE-ZENER BZX84C5V1,4.8-5.4V,200MW,SOT-23,TP SA
..........5 0403-000579 D727_EU DIODE-ZENER BZX84C5V1,4.8-5.4V,200MW,SOT-23,TP SA
..........5 0403-000620 D210 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D211 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
7-1
7 Electrical Parts List
Level Loc. No. Code No. Description Specification Remarks
..........5 0403-000620 D212 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D213 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D214 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D215 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D216 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D217 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D300_DE DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D769 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D770 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D771 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D930 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D961 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D962 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D970 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D971 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D972 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D973 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D974 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D975 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D980_DE DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D981_DE DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-000620 D990 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL-34,TP SA
..........5 0403-001016 D725 DIODE-ZENER RLZ6.2B,5.96-6.27V,500mW,LL-34,TP SA
..........5 0403-001052 D701_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D702 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D703_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D704 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D705_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D706 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D707_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D708 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D7108 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D7109 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D7110 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D7111 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D7112 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D713_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D714_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D715_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D716_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D717 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D718 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D720 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D721 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D723 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D724 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D7301 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D743 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D744 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D745 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D746 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D748 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D750 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D751 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D752 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D753_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D754_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D7551 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D7552 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D7553 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D755_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D756 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D757_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D758 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D759 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D760_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D761 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D762_EU DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D763 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D764 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D765 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D766 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
7-2
7 Electrical Parts List
Level Loc. No. Code No. Description Specification Remarks
..........5 0403-001052 D767 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D772 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D773 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D774 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D775 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D776 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D777 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D778 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D779 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D780 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D781 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D782 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D958 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D959 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D960 DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D982_DE DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001052 D983_DE DIODE-ZENER RD8.2MB,7.7-8.7V,200MW,SOT-23,TP SA
..........5 0403-001425 D102 DIODE-ZENER BZX84C33,31-35V,350MW,SOT-23,TP SA
..........5 0406-001172 D7302 DIODE-TVS CDS3C30GTH,48V,0W,SMD SA
..........5 0406-001172 D7303 DIODE-TVS CDS3C30GTH,48V,0W,SMD SA
..........5 0406-001172 D7304 DIODE-TVS CDS3C30GTH,48V,0W,SMD SA
..........5 0406-001172 D7305 DIODE-TVS CDS3C30GTH,48V,0W,SMD SA
..........5 0407-000123 D622 DIODE-ARRAY DAN202K,80V,100MA,CA2-3,SOT-23,TP SA
..........5 0407-000123 D911 DIODE-ARRAY DAN202K,80V,100MA,CA2-3,SOT-23,TP SA
..........5 0407-000123 D912 DIODE-ARRAY DAN202K,80V,100MA,CA2-3,SOT-23,TP SA
..........5 0407-000123 D963 DIODE-ARRAY DAN202K,80V,100MA,CA2-3,SOT-23,TP SA
..........5 0407-000123 D964 DIODE-ARRAY DAN202K,80V,100MA,CA2-3,SOT-23,TP SA
..........5 0407-000123 D976 DIODE-ARRAY DAN202K,80V,100MA,CA2-3,SOT-23,TP SA
..........5 0501-000280 Q1211_EU TR-SMALL SIGNAL KSA1182,PNP,150mW,SOT-23,TP,70 SA
..........5 0501-000280 Q214_EU TR-SMALL SIGNAL KSA1182,PNP,150mW,SOT-23,TP,70 SA
..........5 0501-000342 Q100 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q211 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q221 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q3004_EU TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q608 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q611 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q612 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q615 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q630 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q631 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q632 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q633 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q634 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q635 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q912_EU TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q918 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q930 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q931 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q952 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-000342 Q970 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT-23,TP,135-270 SA
..........5 0501-002080 Q1210_EU TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q1212_EU TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q212_EU TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q213_EU TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q215 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q216 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q610 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q620 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q801 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q802 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q803 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q910 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0501-002080 Q911 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 SA
..........5 0801-002267 IC3010_EU IC-CMOS LOGIC 74LCX14,-,SOIC,14P,150MIL,-,TP,-,-,-,3.6V,-40TO+85C,-,5.5V,-,-,24MA SA
..........5 0801-002267 IC904 IC-CMOS LOGIC 74LCX14,-,SOIC,14P,150MIL,-,TP,-,-,-,3.6V,-40TO+85C,-,5.5V,-,-,24MA SA
..........5 0801-002633 IC313 IC-CMOS LOGIC NC7WBD3125,2BIT BUS SWITCH,SOIC,8P,90MIL,DOUBLE,TP,PLASTIC,TTL,-,0V,-40TO+85C,25 SA
..........5 0903-001362 IC901 IC-MICROCOMPUTER M30620SPGP,16BIT,LQFP,100P,14.0X14.0,24MHZ,TP,-,-,5V,300,-20TO+85C,10KB,-,19BIT, SNA
..........5 1001-000164 IC605 IC-ANALOG MULTIPLEX 74HC4052,CMOS,SOP,16P,150MIL,S SA
..........5 1001-001082 IC906_EU IC-VIDEO SWITCH BA7657F,-,SOP,24P,300MIL,SINGL SA
..........5 1001-001109 IC909_EU IC-ANALOG SWITCH FST3125M,BUS SWITCH & CMOS,SOIC,17P,150MIL,QUAD,7V,-40TO+85C,PLASTIC,-,4.0OHM,5. SA
..........5 1001-001109 IC913 IC-ANALOG SWITCH FST3125M,BUS SWITCH & CMOS,SOIC,17P,150MIL,QUAD,7V,-40TO+85C,PLASTIC,-,4.0OHM,5. SA
..........5 1001-001211 IC203 IC-ANALOG MULTIPLEX MM74HC4052MTC,DUALMUX/4-CHANNEL,TSSOP,16P,173MIL,DUAL 4-CHANNEL,6V,-40TO+85C,PLA SA
7-3
7 Electrical Parts List
Level Loc. No. Code No. Description Specification Remarks
..........5 1002-001398 IC312 IC-A/D CONVERTER MST9883CR-110,24Bit(8x3),LQFP,80P,14x14mm,+-0.5/LSB,TR,-,PLASTIC,3.3V,-20to+80C, SA
..........5 1006-001076 IC931 IC-DRIVER/RECEIVER MAX232ECWE+T,SOP,16P,300MIL,DUAL,ST,PLASTIC,6V,-,0to+70C,762mW,2,-,2,0.4/3.5V,- SA
..........5 1103-000129 IC710 IC-EEPROM 24C02,256x8,SOP,8P,5x4mm,4.5/5.5V,0to+70C SA
..........5 1103-000129 IC712 IC-EEPROM 24C02,256x8,SOP,8P,5x4mm,4.5/5.5V,0to+70C SA
..........5 1103-001279 IC910 IC-EEPROM 24C32,4Kx8,SOP,8P,5x4mm,2.5/5.5V,-40to+85C SA
..........5 1105-001538 IC202 IC-DRAM K4D263238E-GC36,4x1Mx32Bit,FBGA,144P,12x12mm,3.6nS,2.5V,5%,-,-55to+150C,770mA,-, SNA
..........5 1201-000166 IC204 IC-OP AMP LM358,SOP,ST,8P,150MIL,DUAL,100V/MV,PLASTIC,32V,500MW,0TO+70C,70DB,0.6V/US,5NA,- SA
..........5 1201-001495 IC615 IC-AUDIO AMP 7050,SOP,8P,150MIL,DUAL,26DB,PLASTIC,6V,0.25W,-,40DB,-,-,20NA,- SA
..........5 1201-002119 IC611 IC-AUDIO AMP TPA3004D2,HTQFP,48P,7x7mm,-,-,PLASTIC,18V,4.3W,-40to+85C,-,-,-,120mA,-,TR SA
..........5 1203-001109 IC616 IC-VOL. DETECTOR 7045,SOT-89,3P,-,PLASTIC,4.3/4 SA
..........5 1203-001559 IC905 IC-RESET DS1834A,SOIC,8P,150MIL,PLASTIC,-,-,-40to+85C,-,-,TP SA
..........5 1203-001815 IC803 IC-POSI.FIXED REG. 78M09,TO-252,3P,-,PLASTIC,8.6/9.4V,1.0W,-40TO+85C,0.5A,-,TP SA
..........5 1203-001816 IC802 IC-POSI.FIXED REG. 78M08,TO-252,3P,-,PLASTIC,7.7/8.3V,1.0W,-40TO+85C,0.5A,-,TP SA
..........5 1203-001824 IC920 IC-VOL. DETECTOR 7042,SOT-89,3P,-,PLASTIC,4.05V/4.35V,500MW,-30TO+75C,20MA,-,TP SA
..........5 1203-002708 IC3011 IC-POSI.FIXED REG. 1085,TO-263,3P,340MIL,PLASTIC,3.27/3.33V,-,-40TO+125C,3A,-,TP SA
..........5 1203-002842 IC811 IC-POSI.FIXED REG. AP1117D-33A,TO-252,3P,6.7X5.6MM,PLASTIC,3.235/3.365V,-,0TO+150C,1A,-,TP SA
..........5 1203-002842 IC812 IC-POSI.FIXED REG. AP1117D-33A,TO-252,3P,6.7X5.6MM,PLASTIC,3.235/3.365V,-,0TO+150C,1A,-,TP SA
..........5 1203-002844 IC814 IC-POSI.FIXED REG. AP1117D-18A,TO-252-3L,3P,6.7X5.6MM,PLASTIC,1.764/1.836V,-,0TO+150C,1A,-,TP SA
..........5 1203-002855 IC801 IC-POSI.FIXED REG. MC33269DTRK-5.0,DPRK,3P,257MIL,PLASTIC,4.95/5.05V,,-40to+150C,800mA,1.235/1.265V SA
..........5 1203-002855 IC804 IC-POSI.FIXED REG. MC33269DTRK-5.0,DPRK,3P,257MIL,PLASTIC,4.95/5.05V,,-40to+150C,800mA,1.235/1.265V SA
..........5 1203-002855 IC813 IC-POSI.FIXED REG. MC33269DTRK-5.0,DPRK,3P,257MIL,PLASTIC,4.95/5.05V,,-40to+150C,800mA,1.235/1.265V SA
..........5 1203-002974 IC808 IC-POSI.FIXED REG. AP1117D-25A,TO-252,3P,6.7x5.6mm,PLASTIC,2.45/2.55V,-,0to+150C,1A,-,TP SA
..........5 1203-003059 IC807 IC-SWITCH VOL. REG. MP1583,SOIC,8P,4.9x3.9mm,PLASTIC,1.22/21V,-,-40to+85CC,3A,1.194/1.25V,TP SA
..........5 1204-002352 IC201 IC-VIDEO PROCESS SVP-EX52-7052,PQFP,256P,28x28mm,PLASTIC,3.45V,-,0to+70C,TR,3D Comb VideoDecoder SA
..........5 1204-002411 IC610 IC-SOUND PROCESSOR MSP4410K-QA-B3-500,PQFP,80P,20x14mm,PLASTIC,8.7V,1W,0to+70C,TR,IC-AUDIO PROCESSO SA
..........5 1205-002383 IC311 IC-RECEIVER SII9993CT100,TQFP,100P,14x14mm,PLASTIC,3.6V,-,0to+70C,TR,IC-RECEIVER SA
..........5 2007-000043 R229 R-CHIP 1Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000043 R230 R-CHIP 1Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000052 R2357 R-CHIP 10Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000052 R919 R-CHIP 10Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000052 R9401 R-CHIP 10Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000052 R9405 R-CHIP 10Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000052 R9407_EU R-CHIP 10Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000052 R963 R-CHIP 10Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000052 R964 R-CHIP 10Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000052 R965 R-CHIP 10Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000052 R966 R-CHIP 10Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000052 R9661 R-CHIP 10Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000052 R9662 R-CHIP 10Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000060 R121 R-CHIP 100Kohm,1%,1/10W,TP,1608 SA
..........5 2007-000070 23_ R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 EO_ R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R2008_OP R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R207 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R214 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R215_OP R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R216 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R221 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R222 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R223 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R226 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R227 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R228 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R236 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R237 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R239 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R240 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R241 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R245 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R247 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R248 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R280 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R281 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R282 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R283 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R3261_EU R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R331 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R332 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R333 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R375 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R378 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R380_EU R-CHIP 0ohm,5%,1/10W,TP,1608 SA
7-4
7 Electrical Parts List
Level Loc. No. Code No. Description Specification Remarks
..........5 2007-000070 R381_EU R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R640 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R645 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R646 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R650 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R651 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R652 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R655 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R681 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R686 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R688 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R717_EU R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R718_EU R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R7602_EU R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R7608 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R7618_EU R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R7716_EU R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R772 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9124 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9125 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9129 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R918 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9207 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9209 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9215 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9217 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9218 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9330 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R934 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R935 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9403 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R960 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9664 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R9665 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R994 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R995 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R996 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000070 R997 R-CHIP 0ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R201 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R2013 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R2015 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R202 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R203 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R206 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R208 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R209 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R210 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R212 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R337 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R340 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R345 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R754 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R758 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000071 R9673 R-CHIP 22ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R100 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R101 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R347 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R349 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R350 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R351 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R616 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R617 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R761 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R7610 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R7611 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R762 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R782 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R783 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R982 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R983 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R984 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000072 R985 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
7-5
7 Electrical Parts List
Level Loc. No. Code No. Description Specification Remarks
..........5 2007-000072 R986 R-CHIP 47ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R102 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R104 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R1245_EU R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R234 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R2344 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R2345 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R235 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R252_EU R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R260 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R261 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R270 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R271 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R272 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R273 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R3159_EU R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R334 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R613 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R614 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R618 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R628 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R629 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R630 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R631 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R7111_EU R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R7120 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R719_EU R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R738 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R745 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R7488 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R7490 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R757 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R7590 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R7613 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R7614 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R7619 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R7630 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R781 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R9110_EU R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R9119 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R9120 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R9122 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R9123 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R932 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R936 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R937 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R940 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R941 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R953 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R954 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R955 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R962 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R9668 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R9669 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R967 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R968 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R969 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R974 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R975 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R976 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R990 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R991 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R992 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000074 R993 R-CHIP 100ohm,5%,1/10W,TP,1608 SA
..........5 2007-000075 R711_EU R-CHIP 220ohm,5%,1/10W,TP,1608 SA
..........5 2007-000075 R713_EU R-CHIP 220ohm,5%,1/10W,TP,1608 SA
..........5 2007-000075 R747_EU R-CHIP 220ohm,5%,1/10W,TP,1608 SA
..........5 2007-000075 R749_EU R-CHIP 220ohm,5%,1/10W,TP,1608 SA
..........5 2007-000076 R190 R-CHIP 330ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R1246 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R1267_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R1268_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
7-6
7 Electrical Parts List
Level Loc. No. Code No. Description Specification Remarks
..........5 2007-000077 R2358 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R251_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R253_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R254_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R355 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R356 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R357 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R712_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R748_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R750_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R7582 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R7585_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R7588 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R7616_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R7617_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R765 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R766 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R793 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R794 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R9108_EU R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000077 R9663 R-CHIP 470ohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R131_OP R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R211 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R258 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R259 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R323 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R3260_EU R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R615 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R6402 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R6404 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R692 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R696 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R767 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R9104_EU R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R924 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R931 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R9666 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000078 R9667 R-CHIP 1Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000079 R204 R-CHIP 1.8Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000079 R205 R-CHIP 1.8Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000080 R693 R-CHIP 2Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R224 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R242 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R244 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R338 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R925 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R926 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R927 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R928 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R938 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R939 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R945 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R946 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R9671 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000082 R9672 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000084 R225 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000084 R2356 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000084 R238 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000084 R256 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 SA
..........5 2007-000084 R257 R-CHIP ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
