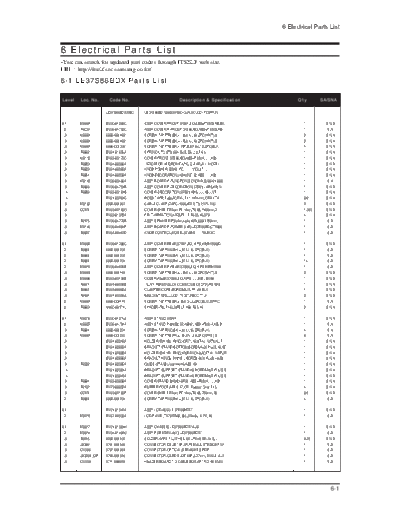

Image preview - the first page of the document
>> Download Electrical Part List documenatation <<
Text preview - extract from the document
6 Electrical Parts List
6 Electrical Parts List
-You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
6-1 LE37S86BDX Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA
LE37S86BDX/XEC LE37S86BD,N30A/37S80-GJA,37,LCD-TV,SPAIN
0.1 M0001 BN90-01203C ASSY COVER FRONT;37S81,EO,ABS+PMMA,HB,BK 1 S.N.A
..2 T0003 BN96-04752C ASSY COVER P-FRONT;37S86,EO,ABS+PMMA,HB, 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
...3 M0081 6006-001096 SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK 4 S.N.A
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
...3 M0112 BN63-03179C COVER-FRONT;37S86,EO,ABS+PMMA,-,-,-,HB,- 1 S.N.A
...3 T0059 BN64-00366A INDICATOR LED;ROME-I,PC,CLEAR,ALL MODEL 1 S.N.A
...3 T0023 BN64-00589A KNOB POWER;32S81,PC,-,-,-,-,VIOLET,-,- 1 S.N.A
...3 T0054 BN64-00590A KNOB-DECORATION;JASMINE 32,ABS,-,-,-,HB, 1 S.N.A
...3 M0145 BN96-03466A ASSY BOARD P-FUNCTION;SONOMA,SJ06-01-008 1 S.A
...3 T0066 BN96-04751B ASSY COVER P-DECORATION;37S81,-,ABS,HB,N 1 S.N.A
....4 T0056 BN63-03181B COVER-DECORATION;37S81,ABS,-,-,-,HB,-,NT 1 S.N.A
....4 BN61-03261C BOSS-TAPE;Tulip,ACRYL,T1.1,W24mm,GRAY,TA 0.8 S.N.A
...3 M0162 6502-001067 CABLE CLAMP;DAFC-1300,ID2.2,T5.2,NYLIN6/ 2 S.N.A
...3 CCM1 BN63-02183G COVER-SHEET;Rhcm,PE Vinyl,T0.05,1100mm,2 1.983 S.N.A
...3 BN63-01925A FELT-VIBRATION;42D5,FELT,T0.35,10,370 4 S.N.A
...3 T0175 BN96-04770B ASSY SPEAKER P;8ohm,4pin,10W,600/1250mm, 1 S.A
...3 M0146 BN96-04884E ASSY BOARD P-POWER & IR;LE37R86BD,CT5000 1 S.A
...3 T0022 BN64-00467D KNOB CONTROL;MOSEL32,ABS,-,-,-,V0,BK07,- 1 S.A
0.1 M0002 BN90-01208C ASSY COVER REAR;37S81,EO,HIPS,HB,BK500,D 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 1 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 14 S.A
..2 M0013 BN96-04826B ASSY COVER P-REAR;37S86,EO,HIPS,HB,BK500 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
...3 M0006 BN63-03198B COVER-REAR;37S86,EO,HIPS,-,-,-,HB,-,BK50 1 S.N.A
...3 T0071 BN64-00555B INLAY-TERMINAL;07,COMMON,EO(IDTV),PS SHE 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A
...3 T0101 BN61-03348A BRACKET-WALL;LCD TV 32",SECC T1.6 2 S.N.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 1 S.A
..2 T0069 AA60-00171L SPACER-FELT;46L3,FELT,460,T0.5,10 2 S.N.A
0.1 M0216 BN90-01214A ASSY STAND;37S81 1 S.N.A
..2 M0027 BN96-04754A ASSY STAND P-BASE;37,40S81,ABS+PMMA,HB,B 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 8 S.A
...3 BN61-02248A HOLDER-SWIVEL RING;40R71,ACETAL NATUAL,T 1 S.N.A
...3 BN61-02883A BRACKET-STAND BOTTOM;BORDEAUX PLUS,40,SE 1 S.N.A
...3 BN61-02885A HOLDER-SWIVEL RING;MURANO40,ACETAL NATUR 1 S.N.A
...3 BN61-02886A BRACKET-HINGE SWIVEL;BORDEAUX PLUS,40,SE 1 S.N.A
...3 T0920 BN61-02985A GUIDE-STAND;Jasmine40,ABS V0 1 S.N.A
....4 BN61-02981A BRACKET-SUPPORT STAND;40 BORDEAUX PLUS,S 1 S.N.A
....4 BN61-03045A BRACKET-SUPPORT STAND;40 BORDEAUX PLUS,S 1 S.N.A
...3 T0004 BN63-03030A COVER-STAND BASE;40R81,ABS+PMMA,-,-,-,HB 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,CR Rubber Gray,T1.5 4 S.N.A
...3 CCM1 BN63-02183E COVER-SHEET;Rhcm,PE Vinyl,T0.05,750mm,20 0.5 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
0.1 BN91-01342A ASSY LCD-AUO;LE37R86BDX/* 1 S.N.A
..2 M0215 BN07-00393A LCD-PANEL;T370XW02,8bit,37inch,16.7M,16: 1 S.A
0.1 M0017 BN91-01381H ASSY CHASSIS;LE37S86BDX/*AUO 1 S.N.A
..2 M0014 BN94-01404U ASSY PCB MAIN-AUO;LE37S86BDX/* 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A
...3 JA306 3701-001400 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,Ni 1 S.A
...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A
...3 JA3201_OP 3709-001346 CONNECTOR-CARD SLOT;68P,0.27mm,ANGLE,AU1 1 S.A
...3 CN330 3711-000058 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN 1 S.A
6-1
6 Electrical Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA
...3 CN906 3711-004182 CONNECTOR-HEADER;BOX,10P,1R,2MM,STRAIGHT 1 S.A
...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004531 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG 1 S.A
...3 CN330 3711-005606 HEADER-BOARD TO CABLE;BOX,30P,2R,2mm,STR 1 S.A
...3 CN330 3711-005842 HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR 1 S.A
...3 JA330 3722-000143 JACK-PHONE;1P(VER),AG,BLK,ANGLE 1 S.A
...3 JA202_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA207_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA332 3722-001163 JACK-VHS;4P,AU,BLK,ANGLE 1 S.A
...3 JA333 3722-002360 JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002543 JACK-PIN;3P,Sn,RED/WHT/YEL,ANGLE 1 S.A
...3 CIS3 BN40-00112A TUNER;TDHG6-K02A,TDHG6-K02A,PAL Hyper,18 1 S.A
...3 T0603 BN63-02494A SHIELD-PCB MAIN;MOSEL 40",SPTE,T0.3,EURO 1 S.N.A
...3 CCMM1 BN73-00024D SILICON/RUBBER;BORDEAUX,SILICON,28x28XT6 1 S.N.A
...3 HDCP BN97-00688A ASSY HDCP;BN46-00018A,PS-42V6S,D73A,GENE 1 S.N.A
....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 S.N.A
...3 T0174 BN97-01718U ASSY SMD;LE37S86BDX/*AUO 1 S.N.A
....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
